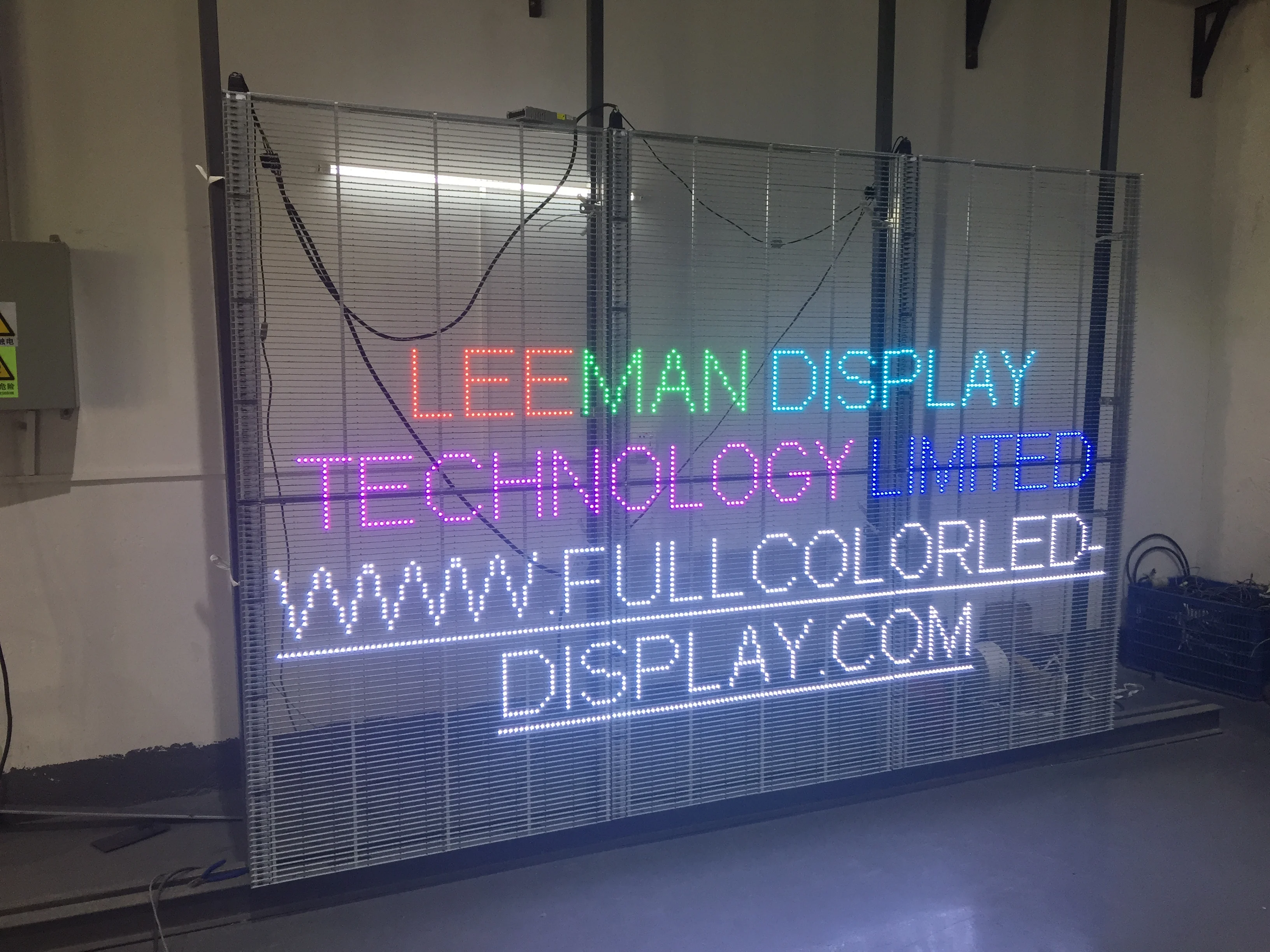

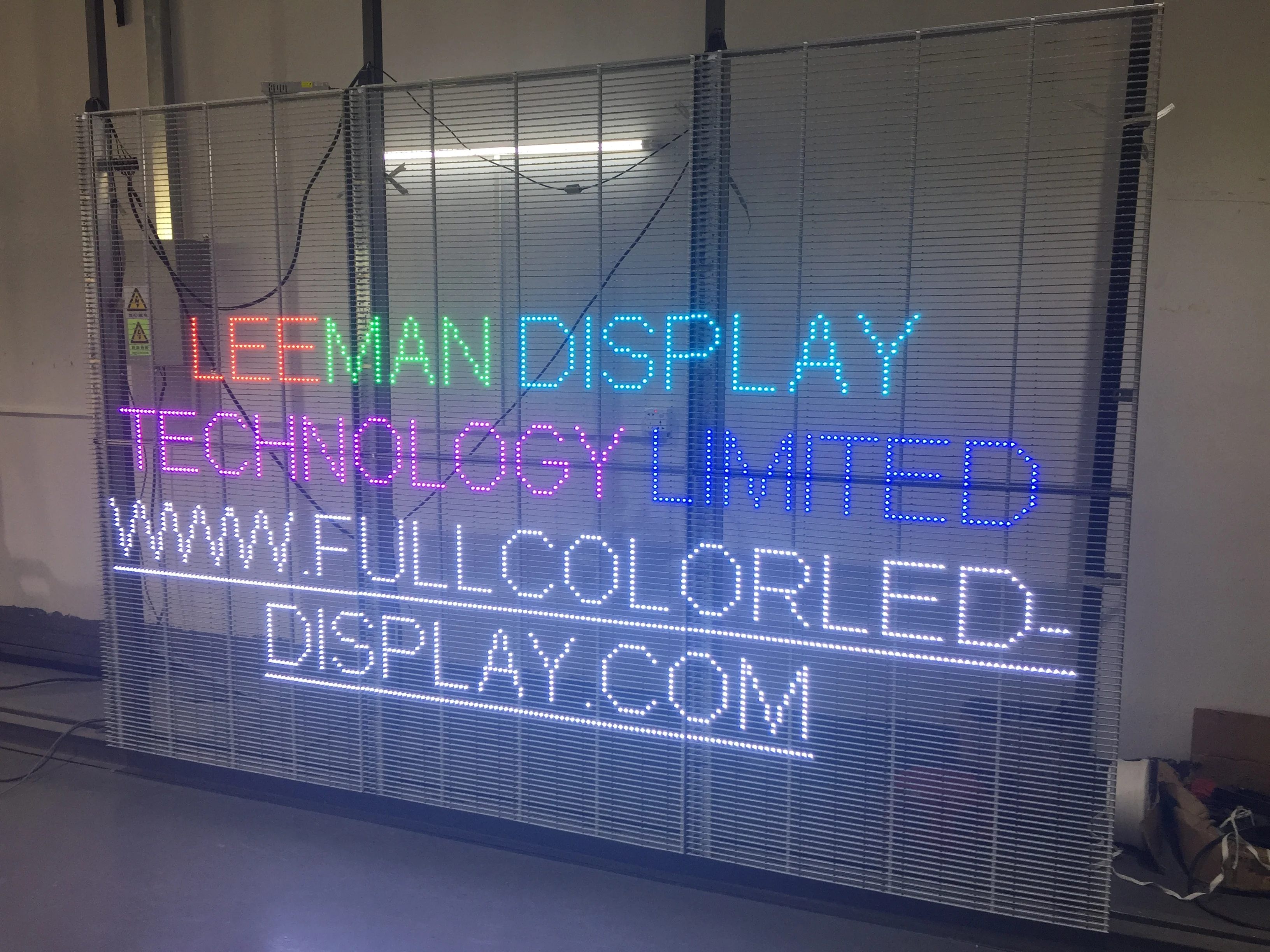

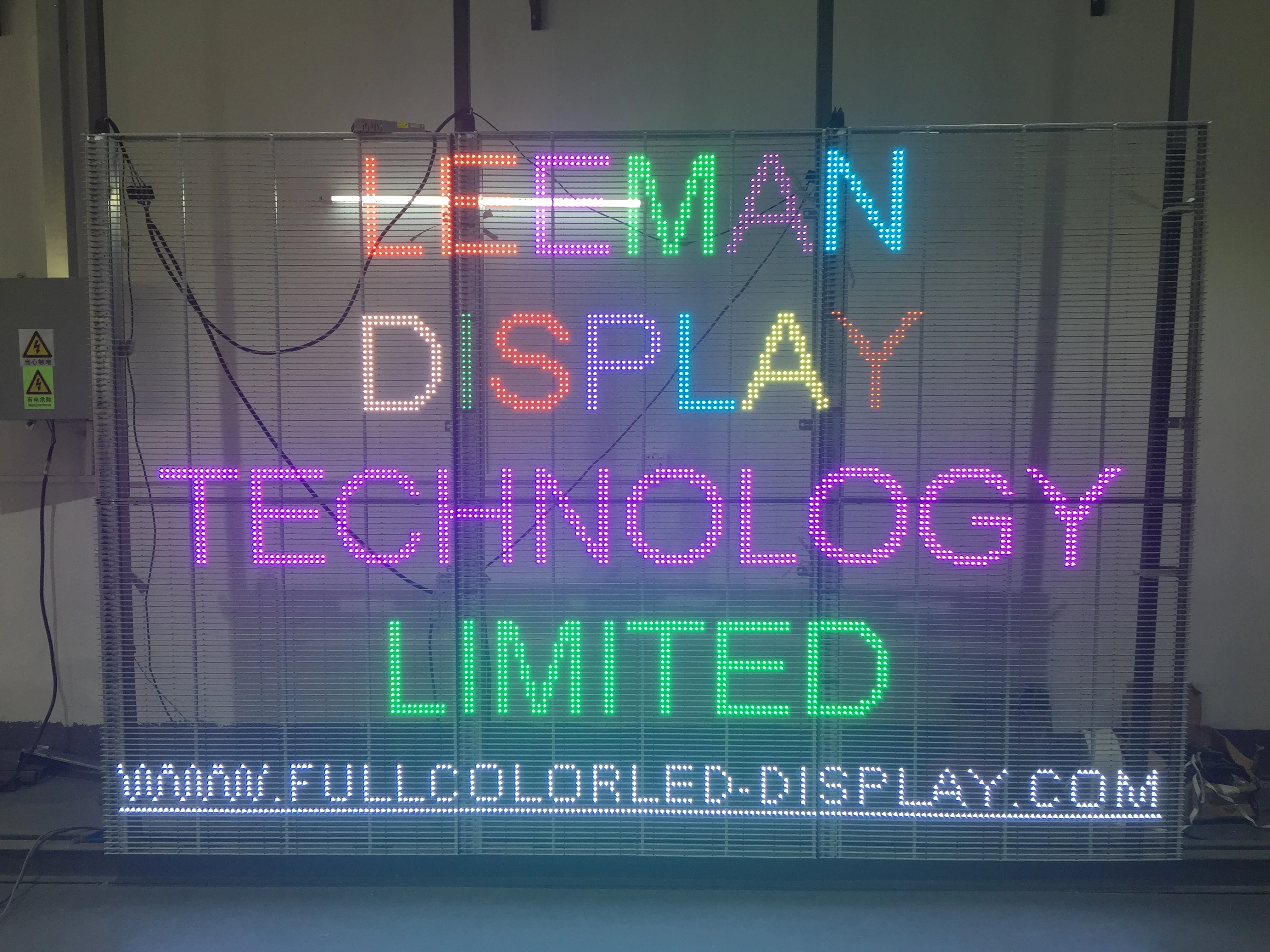

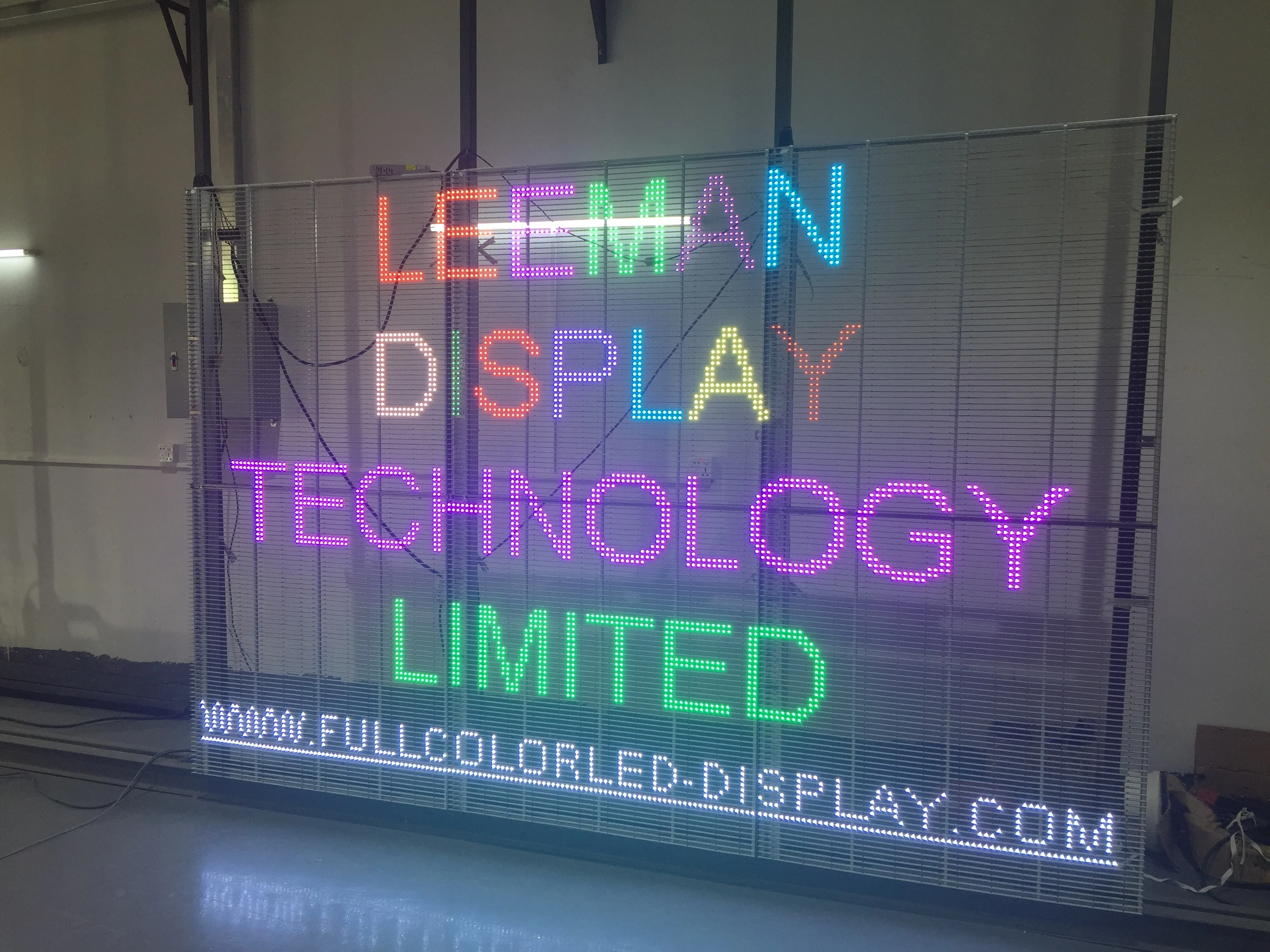

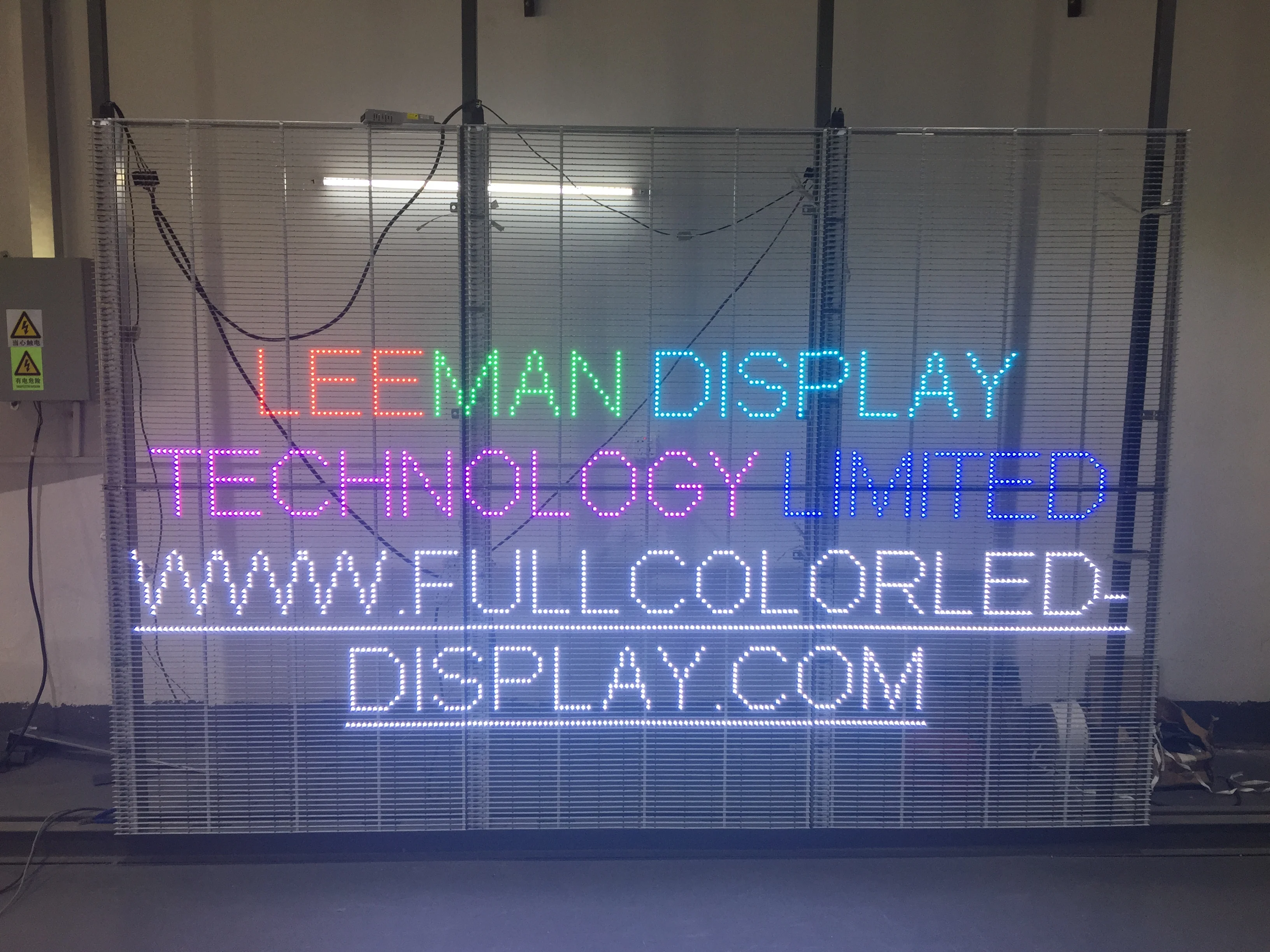

3D Transparent Oled Screen P5 P6 Indoor Glass Led Display Screen And Led Wall high quality rgb transparent oled screen P7.81
- Category: >>>
- Supplier: Shenzhen Leeman Industrial Co. Ltd.
Share on (62030532216):
Product Overview
Description
Small Pixel Pitch 1.25mm LED Display
Small Pixel Pitch 1.667mm LED Display
Small Pixel Pitch 1.914mm LED Display
Small Pixel Pitch 1.923mm LED Display
Small Pixel Pitch 2mm LED Display
Small Pixel Pitch 2.5mm LED Display
Small Pixel Pitch 3mm LED Display
A 1.25 / A 1.667 / A 1.914 / A 2 / A 2.5 / A3
Product Features
More Flexible Matching:With an aspect ratio of 8:9, panels are easy to be pieced together to play standard 4:3 and 16:9 videos.
Seamlessness: Die-casting aluminum panel, high-precision design and CNC processing minimize the error within 0.05mm.
Long lifespan:
Low-voltage power supply with high-efficiency causes little temperature rise, which helps to prolong the life of LED display in stable use.
Perfect Image: No flicker, no brightline or darkline ensures the LED display to take on more perfect image.
Industrialized Production: Patented technology, independent die sinking, precise welding and automatic processing all take the lead in LED industry.
Core Advantages
Color Uniformity: The LED display would present uniform color at all times with low power consumption and low temperature rise.
No Blackout during Use: Reliable communication-level power supply and rational power distribution system lead to stable and safe operation.
No Black Screen during Use: Constituted by loop transmission, intelligent switch, anti-hacker security and fault alarm, the most reliable data transmission mode is incorporated internally.
Safe Maintenance: It supports hot swapping, which is more safe and convenient for maintenance personnel.
| Item | Value |
| Pixel Pitch (mm) | 1.9 |
| Pixel Pitch (inch) | 0.076 |
| Pixel Density (pixels/m2) | 267078 |
| Pixel Configuration | SMD LED |
| Horizontal/Vertical Viewing Angle (deg) | 160/160 |
| Brightness (cd/m2) | 1000 |
| Gray Level (Bit) | 16 |
| Refresh Rate (Hz) | 1920/3840 |
| Panel Size (mm) | 325 (W)× 365 (H) |
| Panel Size (inch) | 12.8 (W)× 14.4 (H) |
| Panel Resolution (W×H) | 168× 189 |
| Weight (kg/pcs) | 4.5 |
| Panel Type and Material | Die - casting aluminum |
| Protection Grade | IP30 |
| Avg. Power Consumption (W/m2) | 400 |
| Max. Power Consumption (W/m2) | 1200 |
| Color Temperature (K) | 2000≤ TC≤ 9300 ajustable |
| Brightness Adjustment | Programmable/auto/manual |
| Color Calibration | Brightness and chroma calibration |
| Contrast Ratio | 3000:01:00 |
| Others | Communication - level power supply(customization), hot double backup, temperature and humidity test, multi - signal input support, etc. |
