5.PS foam absorbent tray/plate/dish making machine
6.PS foam egg tray, wine tray making machine
7.PS foam false ceiling machine
8.PS foam sheet extrusion line
Details introduction

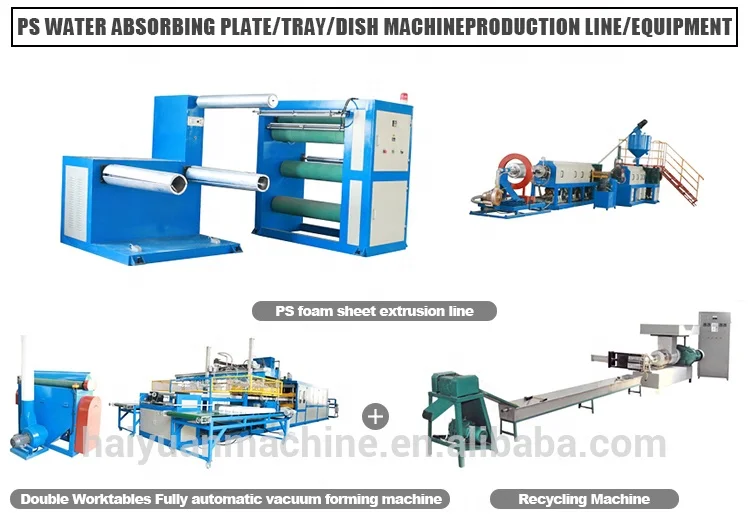

PS foam thermoocl plate/tray/dish machine production line include 3 parts:
1.PS foam sheet extrusion line
2.fully automatic vacuum forming machine
3 Crusher and recycling machine

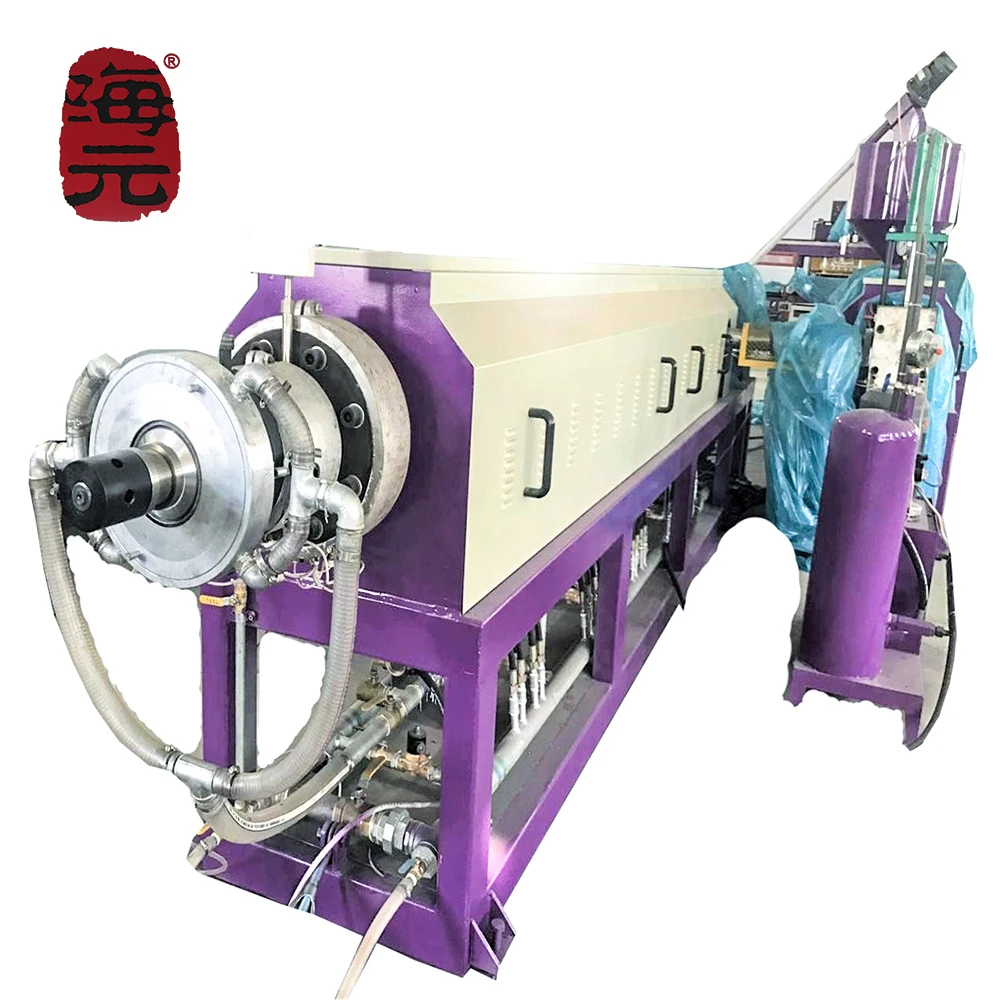

1.PS foam sheet extrusion line
There is two kind of hot sale model extruder in our factory, they are: HY-75/90 and HY-105/120
PS foam sheet extrusion line technical flow:
1.material mixing---2.material go into extruder 1 (foam agent)--- 3.net exchanger (filtering)---4.material go into extruder 2 --- 5.sheet extruded from mold head----6.cooling and shaping ---- 7.hauling off-----8.winding----9. finished products----10. packing

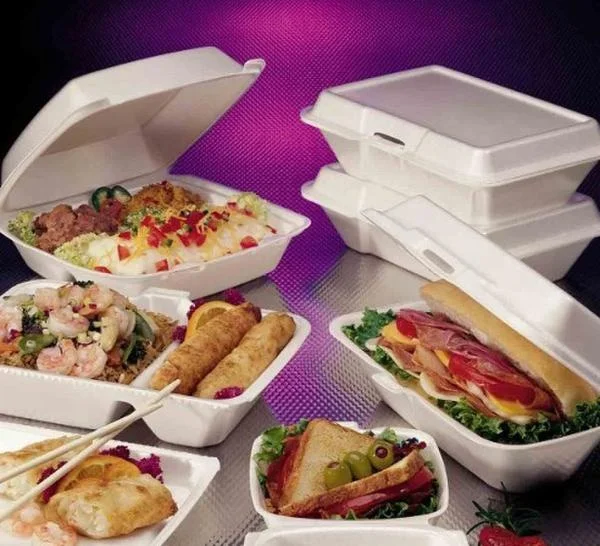

The raw material is general polystyrene granule.In the extruding process, vesicant is injected at high pressure, After extruding, foaming cooling,shaping and hauling off,it is winding to finished ps foam sheet rolls.After vacuum forming systerm,the finished PS foaming sheet can be made into varitey of packaging vessles. such as ps foam thermocol plate, tray, dish, box, conatiner, bowl, absorbnt tray, dish, plate, foam ceiling etc.
parameter
paremeter
unit
HY-75/90
HY-105/120
capacity
kg/h
80-100
200-240
sheet thickness
mm
1-4
sheet width
mm
640-1080
foaming rate
10-22
cooling method
wind&water cooliong
cutting method
single
butane gas presure
mpa
0.9-1.2
installation power
kw
120
180
installation demension
m
24*6*3
30*6*3
power supply
380v50hz 220v60hz
2.Fully automatic vacuum forming machine
This machine ingegrate forming, cutting, stacking at the same time, also the foam products could come out automatically, it is vacuum forming as well as press forming and synthertically forming, It can be used for processing all kinds of plalstc sheet.It adopts PLC controller and touch screen to control the working programmer. it is easy to operate and features high degree of automation.
Our ps foam thermocol vacuum forming machine can produce different shape containers by changing mould.
recycling machine is mainly used to recycle the ps foam polystyrene poducts.It is the ideal equipment to recycle the waste materials,This equiment features compact structure and easy operationg, The scrap pieces can be directly used to make granulation without comminting,At present, it is the ideal eneray-saving equipment to let the material circulation and reduce the waste.
PS foam thermocol plate/tray/dish making machine standard pacage for export:
Shipping:from Qingdao port
Packaing:standard pacage for export
Associated Brands
PS foam thermocol plate/tray/dish making machine associated Brands:
Certifications
PS foam thermocol plate/tray/dish making machine certifications:
Company Information
Longkou Haiyuan Plastic Machinery Co.,Ltd founded in 1999 is a professional manufacturer in producing PS foam sheet extrusion line,PS fast food box (disposable products) production line disposable take away food container, foam thermocol plate tray box making machine, PS foam disposable food box plate, absorbent tray dish making machine.foam foam false ceiling maching machine etc.With strong technical strength and abundant experence,basis on advance,technology from domestic and abroad.our machines are already exported to Russia, Egypt,India,Malaysia,Turkey and Thailand etc.
Our Services
1.Our profession engineer can helo you go to your country and adjustmenmt the PS foam thermocol plate/tray/dish machine
2.Our salesman will be 24 hours online for you to solve equipment problems
3.PS foam thermocol plate/tray/dish machine technical parameter can be set according to customer's requirment.
