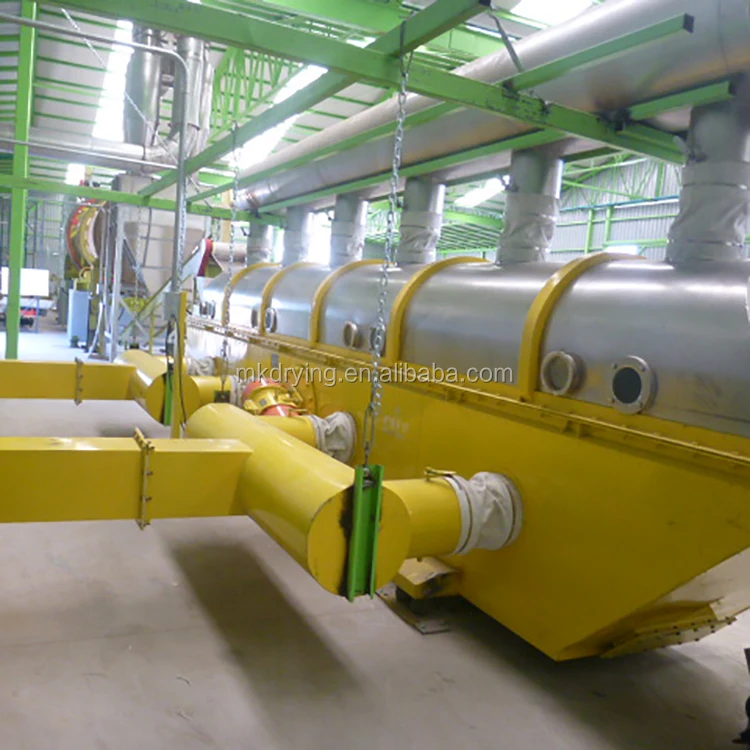

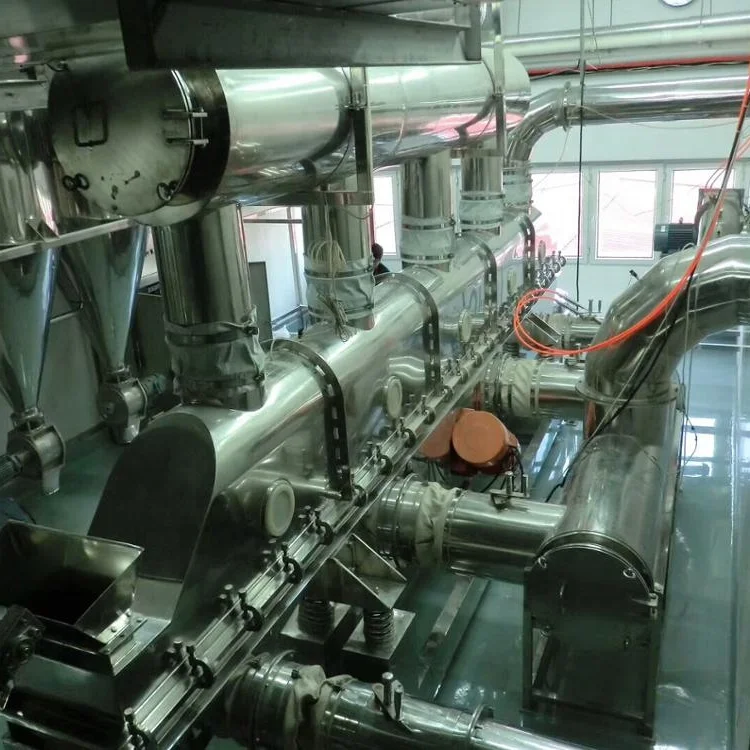

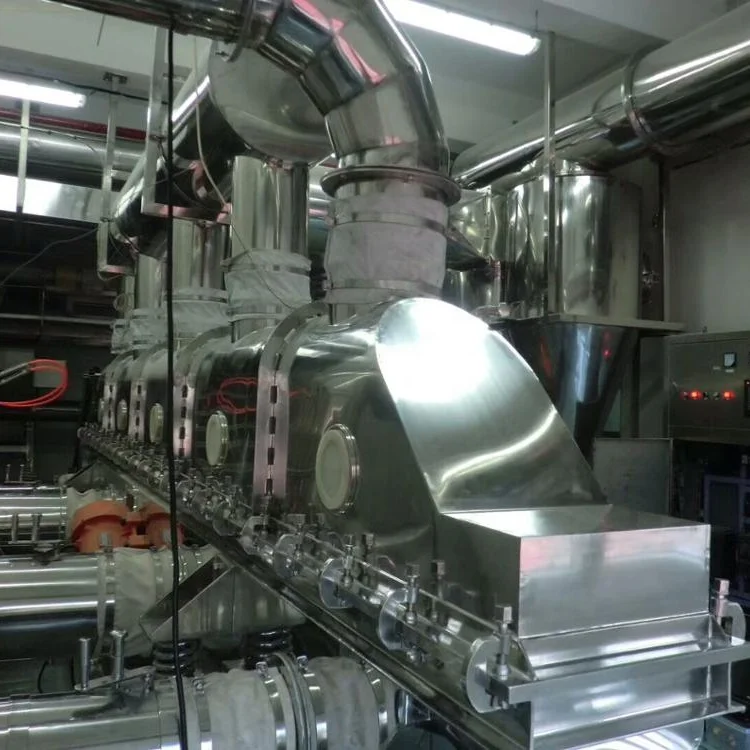

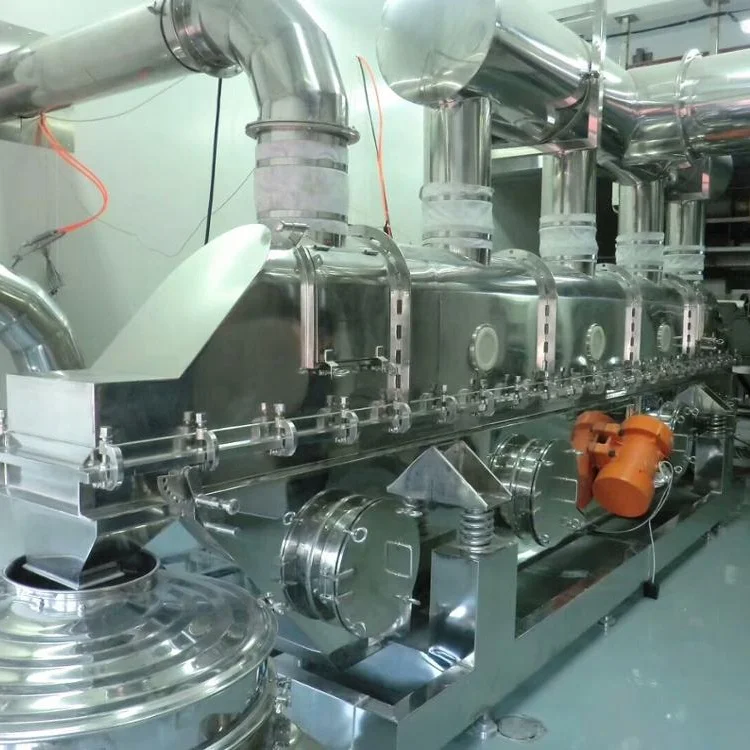

spice drying machine and the continuous type drying machine of vibrating fluid bed drying machine
Working principle of ZLG series vibrating fluid bed dryer:
ZLG series vibration fluid bed dryer is a type of fluidized bed where the mechanical vibration enhances the performance of fluidization vibration.
After wet material is evenly fed onto the fluid bed (normally a perforated plate) via the feeding hopper, the strong vibration of dryer body fluidizes the wet material which moves towards the discharging vent. At the same time, hot air is evenly distributed into the drying chamber and flows though the perforated plate. Moisture will be rapidly evaporated with complete contact and heat transfer between hot air and well fluidized wet material. Exhaust fan then will suck out the evaporated moisture.The drying process is continuous and cooling air can be introduced to cool the product to required temperature.
ZLG series vibration fluid bed dryer has been widely used in food, chemical and pharmaceutical industry for drying/cooling powder and granule (0.05-5mm) products with surface water. Technical advantages of ZLG series vibrating fluid bed dryer :
1.Wide applications: It is successfully used on all types of powders, agglomerates, granulates, especially those which fluidize poorly due to a broad particle size distribution. The fluid bed can be operated as a single drying or cooling unit - often associated with a spray drying system.
2.Energy-saving: Due to strong mechanical vibration, wet material can be perfectly fluidized and move forward with slow air flow velocity. Energy consumption is much lower than normal fluid bed dryer.
3.Adjustable residence time: Different residence time of wet material in drying chamber can be achieved by regulating the angle of vibration motors to meet different drying requirements in moisture.
4.Easy operation and maintenance: The whole drying system is highly automatic. The simple but practical design can not only reduce production cost but also the maintenance and repair cost.
Technical data
Model
Fluid bed(M2)
Inlet air temperature(°C)
Outlet air temperature (°C)
Evaporate capacity (kg/h)
Vibration motor
Model
Power (kw)
ZLG3×0.30
0.9
70-140
40-70
20-35
ZDS31-6
0.8×2
ZLG4.5×0.30
1.35
70-140
40-70
35-50
ZDS31-6
0.8×2
ZLG4.5×0.45
2.025
70-140
40-70
50-70
ZDS32-6
1.1×2
ZLG4.5×0.60
2.7
70-140
40-70
70-90
ZDS32-6
1.1×2
ZLG6×0.45
2.7
70-140
40-70
80-100
ZDS41-6
1.5×2
ZLG6×0.60
3.6
70-140
40-70
100-130
ZDS41-6
1.5×2
ZLG6×0.75
4.5
70-140
40-70
120-140
ZDS42-6
2.2×2
ZLG6×0.9
5.4
70-140
40-70
140-170
ZDS42-6
2.2×2
ZLG7.5×0.6
4.5
70-140
40-70
130-150
ZDS42-6
2.2×2
ZLG7.5×0.75
5.625
70-140
40-70
150-180
ZDS51-6
3.0×2
ZLG7.5×0.9
6.75
70-140
40-70
160-210
ZDS51-6
3.0×2
ZLG7.5×1.2
9
70-140
40-70
200-260
ZDS51
3.0×2
Pre-service: 1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3.We will recommend and offer machine according to customer’s use and purchase budget.
Sale service 1. Ensure product with high quality and pre-commissioning before delivery; provide each manufacturing step photo for customer checking on time.
2.Testing the machine and making video for customer’s checking. 3. Delivery on time; 4.Provide full sets of documents as customer’s requirements.
After-sale service 1.We will guarantee the machine quality for 1 year.
2.We provide free training and answer customer's question on technology in time.
Company Information
Product
Certifications
FAQ
Q: Can I visit your factory? A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai. Q: What’s the quality of your products? A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely. Q: What to do if the machine has a problem? A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment? A: Our warranty period is one year generally. Q: What is your payment term? A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement. Q: Does your price include freight? A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF price.
