T8014A cylinder boring machine T8016A

Product Overview

Description

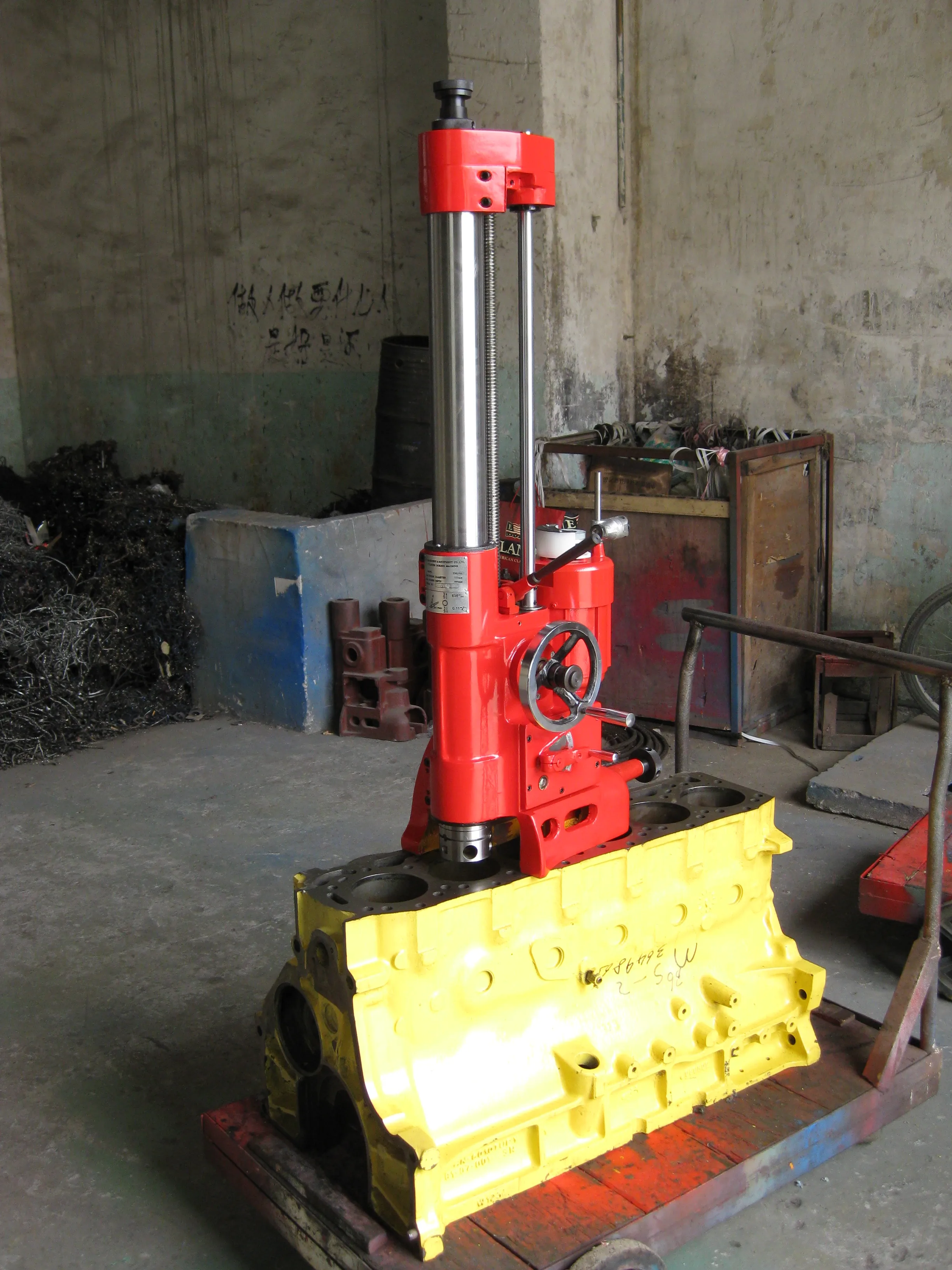

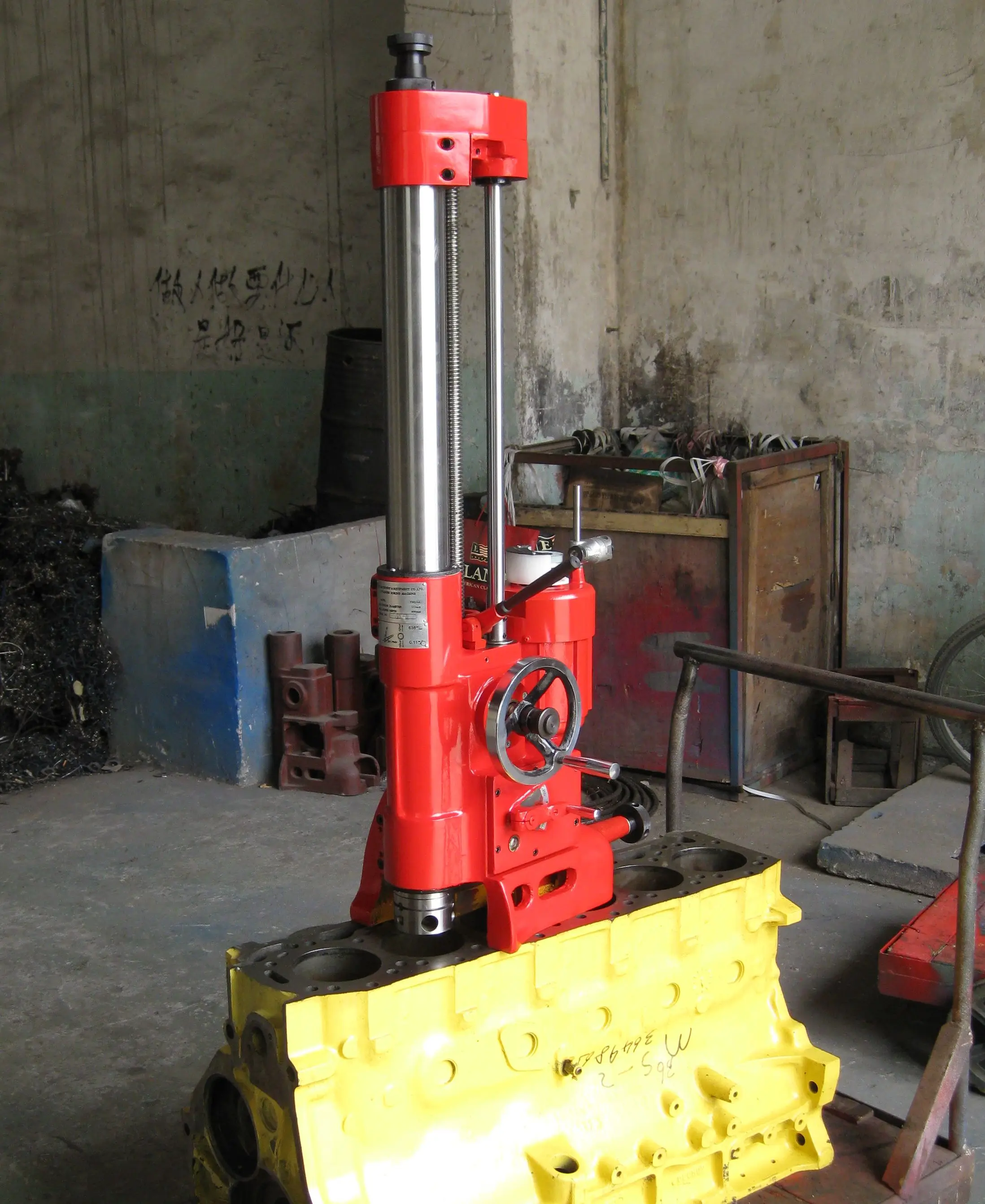

T8014A/T8016A cylinder boring machine



Application and features



The machine is mainly used for reboring engine cylinders of automboiles motor cycles and tractors.





1. reliable performance , widely use, processing accuracy high productivity



2. easy and flexible operation



3. good rigidity , amount of cutting .





Specifications:

Boring diameter :            65-140mm

Max.boring depth:           300mm

spindle speed :               250 rpm, 380 rpm

spindle feed :                  0.11mm/min

voltage :                          220V/380V

Main motor power :         0.25/0.37kw

motor speed:                   1440rpm

machine weight :             62kg

dimension :                     320x330x850mm
