Ветровой Гибридный насос на солнечных батареях от 0,5 до 500 кВт

Product Overview

Description

0.5kw to 500kw wind powered solar powered pump wind solar hybrid pump



the key of wind and solar hybrid pump system is wind turbine power.

Wind turbine power is complex system, also low efficiency for whole system if designing according to wrong information of buyer and or not complete information of wind speed,  i hope the customer can learn more, so no waste money for invertment. Many customers only comparing price, at last, the wind turbine cannot work like customer expected at the site.

many factors effect the power, for example:

1, permanent magnet generator (PMG) efficiency (for example, China natioanal standard efficiency is 70%,if good quality factories price is double than normal factory - becuase normal factory's raw material is less, the exact efficiency is much lower than 70%, if increase 10% efficiency to be 80%, the price of generator will be double again.  the whole system price will be increased maybe 10%-20%.

2, according to wind speed of site to design the rated power and rated wind speed. (please provide your site max. wind speed, average wind speed of every month every year of 10 years at least) .

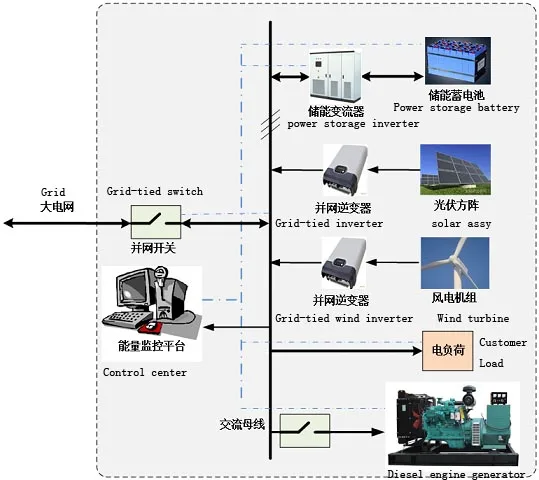

3, how to use this power, grid line (AC voltage/frequency) or off-grid (if off-grid, need the load details to design the whole system also confirm the battery capacity).



many technical points, we need to discuss one by one with our customers to make the whole system design. If the customer don't know the above technical point, maybe the wind turbine cannot work in good condition and customer will be unsatisfactory after installing at site (some reason from the buyer who don't know the technology details, main reason is from the factories, not tell the customer the details, only selling goods and get profit, also many factories to reduce the raw material Permanent Magnet Generator (PMG) to lower down cost but the quality and efficiency of PMG is lower down)



Hope above technical points are useful for your understanding.

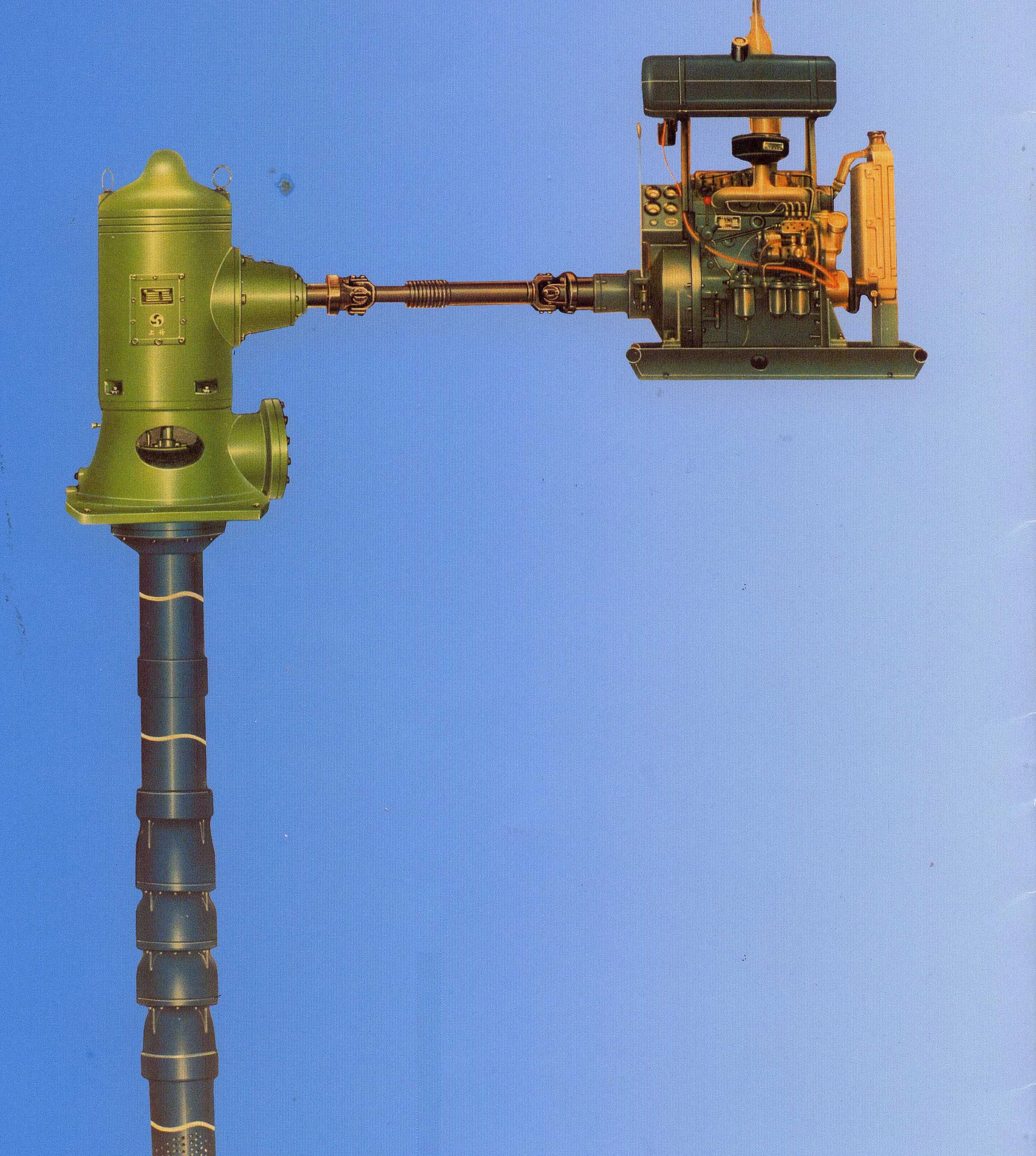

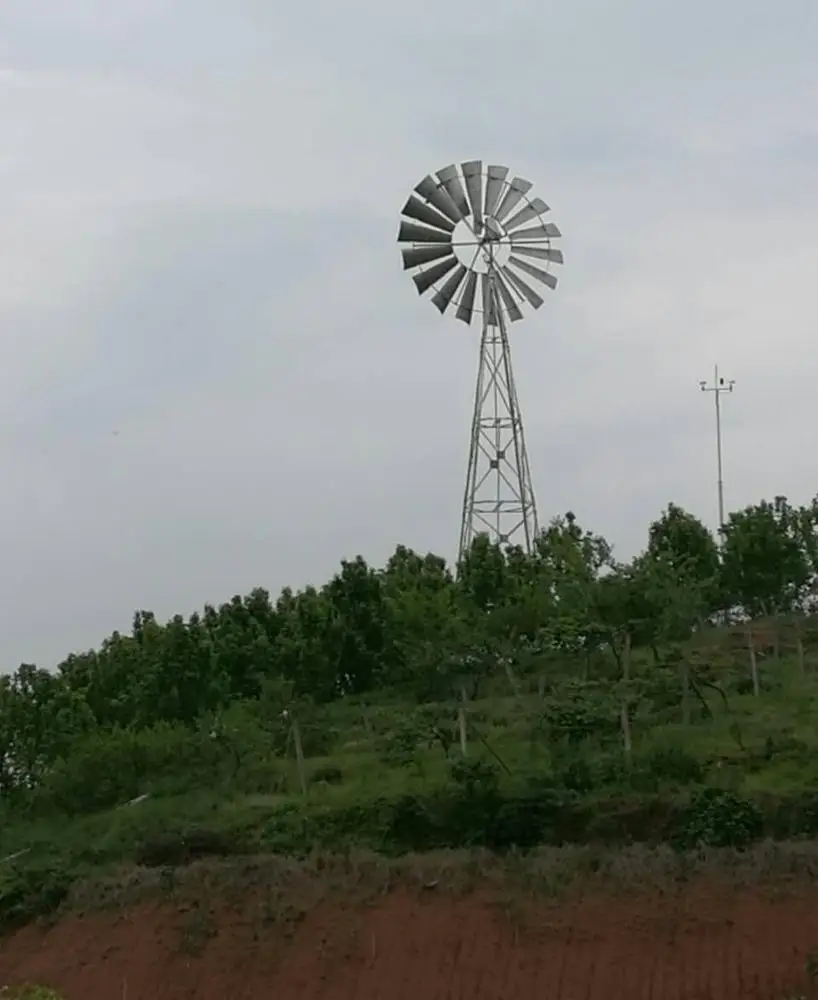

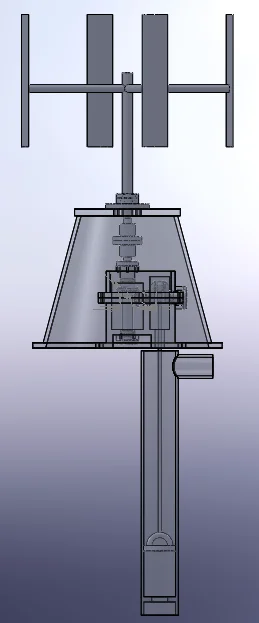

Also, we can design the wind turbine directly driven pump for farming irrigation purpose, driven air compressor for heating purpose (also compressed air can generate power) which method can improvde the using efficiency of wind power.



0.5kw to 50kw is as follows, 100kw to 500kw as per request, MW wind turbine is produced by big company, we can recommend the customer to contact with factory directly as per customer's details project introduction.



Attatched:

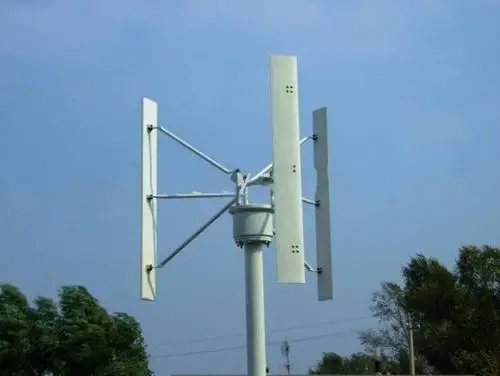

wind turbine 0.5kw -50kw detailed data sheet
Model	Rated speed(r/min)	Rated power(KW)	rated voltage(DC/V)	rated current(A)	starting wind speed(m/s)	rated wind speed (m/s)	safety wind speed (m/s)
FD2.5-0.5KW	450	0.5	12,24,48	42,21,10.5	2	8	35
FD2.8-1.0KW	380	1	24,48,96	42,21,10.5	2	9	35
FD3.2-2.0KW	380	2	24,48,96,120	83,42,21,17	2	9	35
FD3.8-2.5KW	350	2.5	24,48,96,120	104,52,26,21	2	9	35
FD4.0-3.0KW	300	3	48,96,120,240	62.5,31,25,12.5	2	10	35
FD6.0-5.0KW	260	5	48,96,120,240,360,500	104,52,42,21,14,10	2	10	35
FD7.0-10KW	200	10	96,120,240,360,500	104,83,42,28,20	2	12	35
FD10.0-20KW	150	20	240,360,500	83,56,40	2	12	35
FD12.0-30KW	150	30	360,500	83,60	2	12	35
FD16.0-50KW	100	50	480,600	83,90	2	12	35
