Product Overview

Description

EDS-G205 Series

5G-port full Gigabit unmanaged Ethernet switches

Family

Unmanaged Switches

Moxa has a large portfolio of industrial unmanaged switches that have been specifically designed for industrial Ethernet infrastructure. Our unmanaged Ethernet switches uphold the stringent standards that are required for operational reliability in harsh environments.

Feature

10/100BaseT(X) (RJ45 connector)

IEEE802.3/802.3u/802.3x support

Broadcast storm protection

DIN-rail mounting ability

-10 to 60°C operating temperature range

Overview

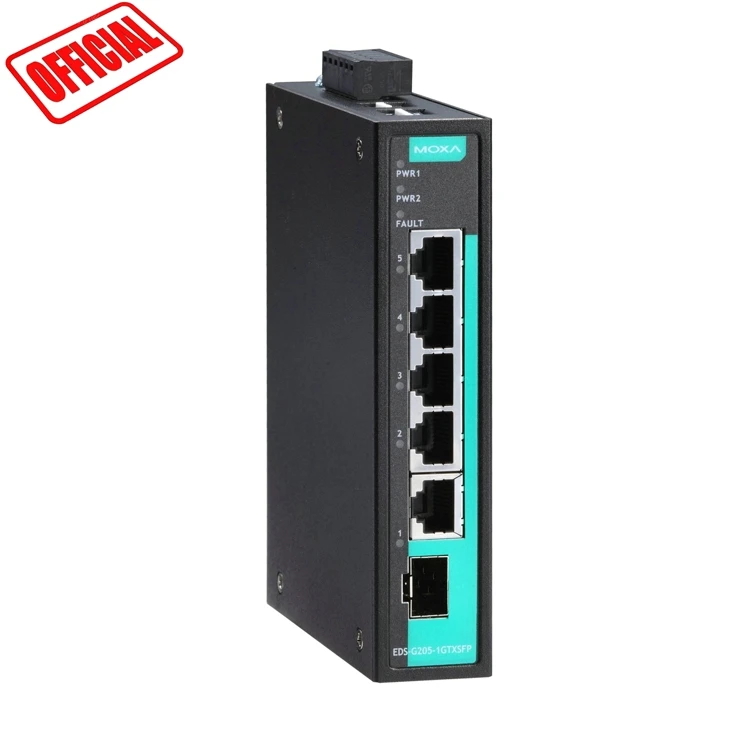

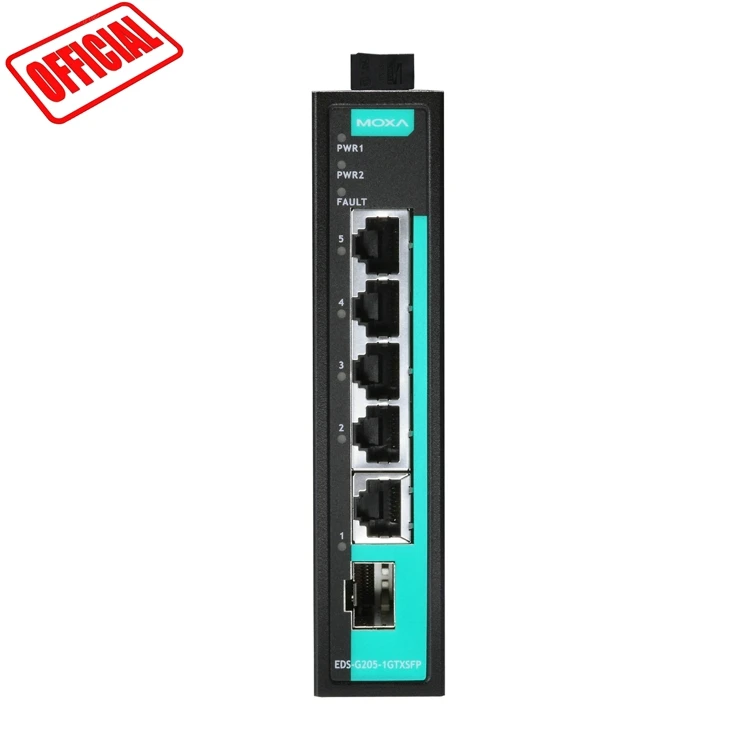

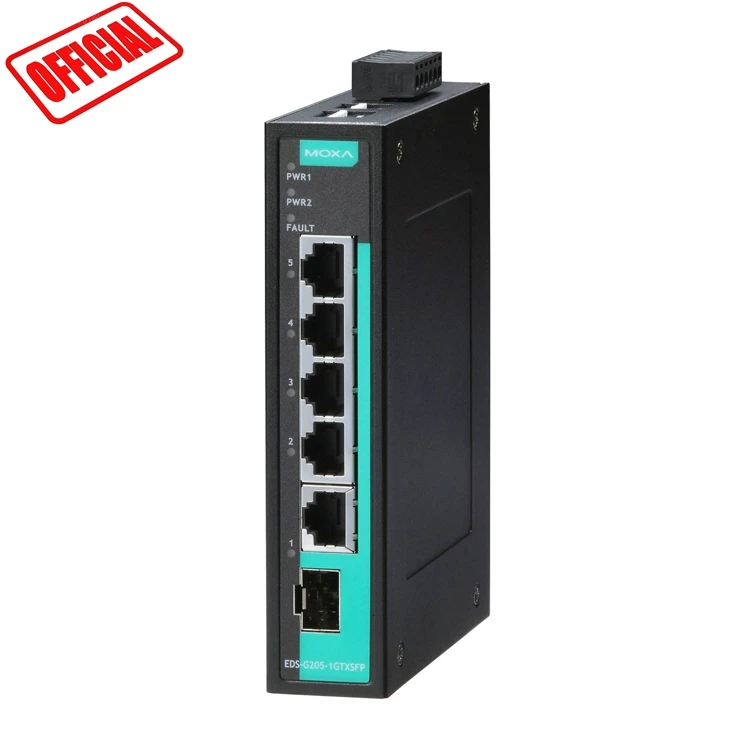

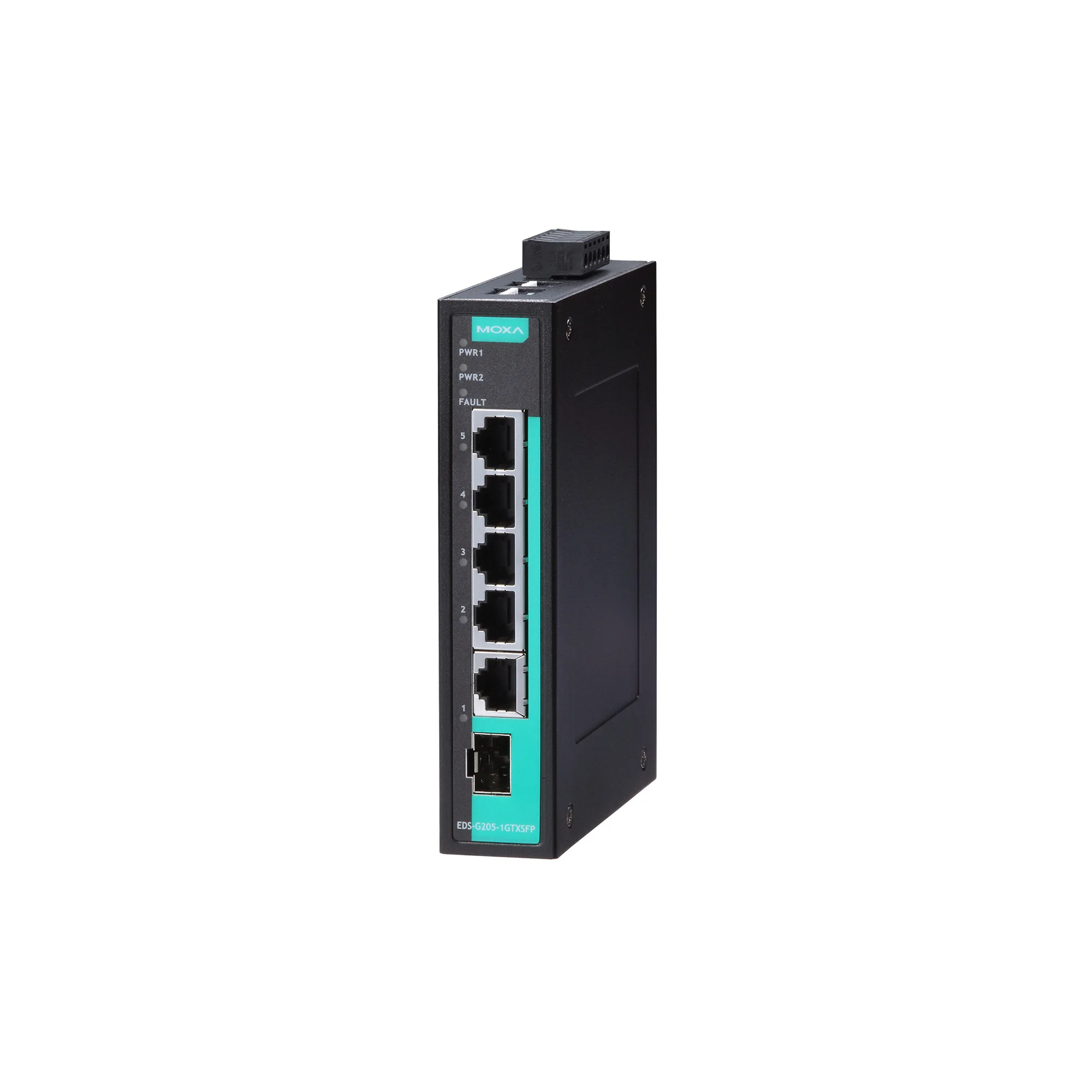

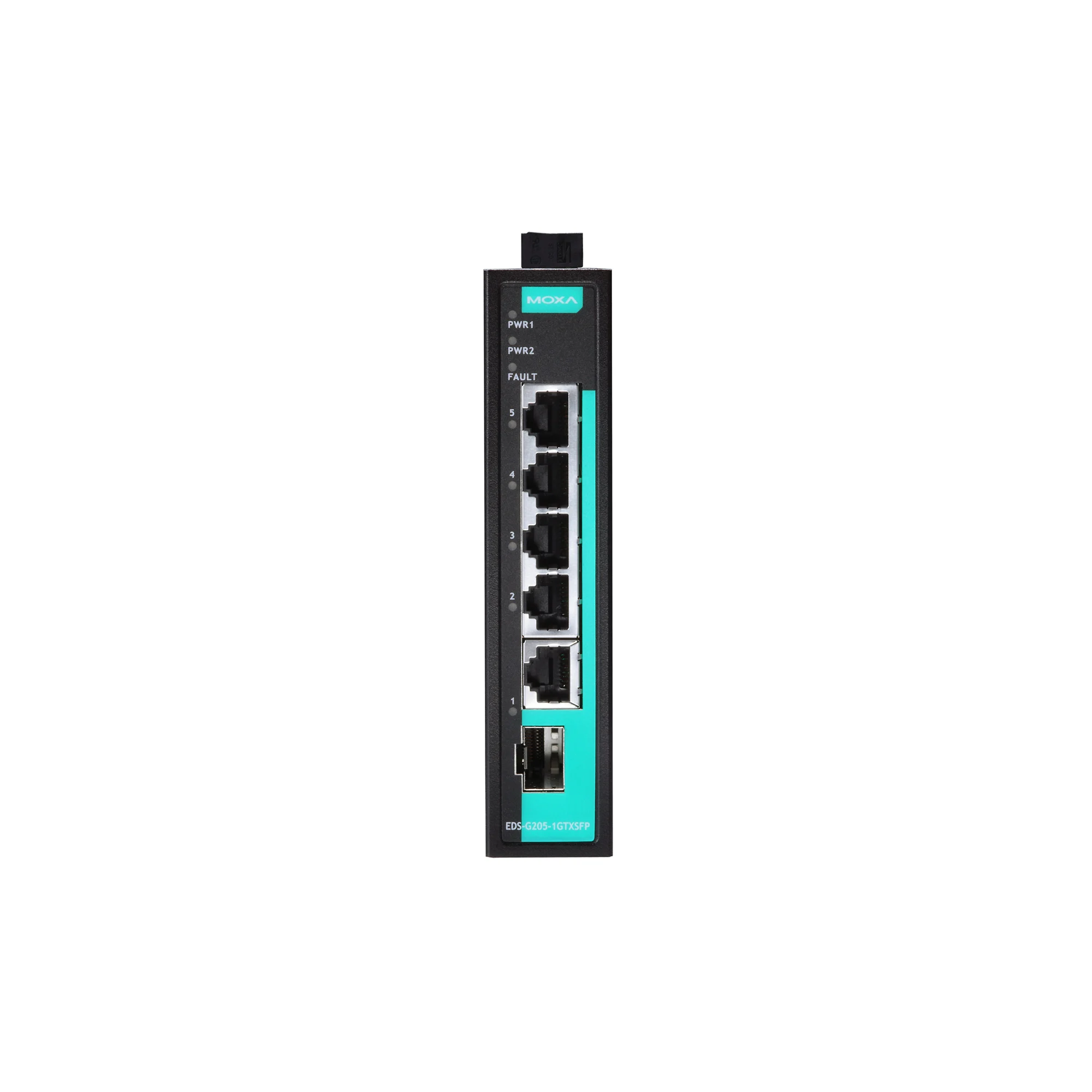

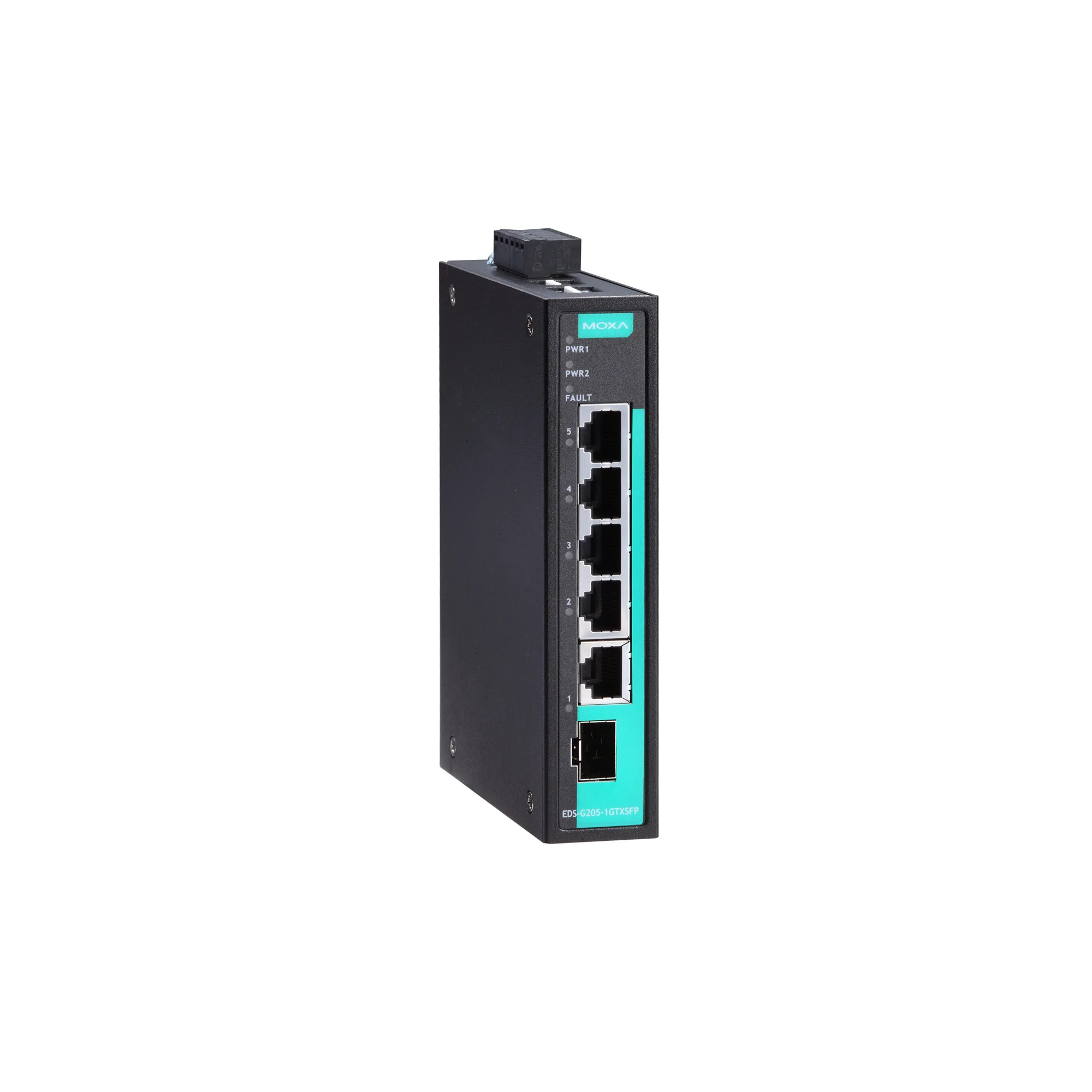

The EDS-G205-1GTXSFP switches are equipped with 5 Gigabit Ethernet ports and 1 fiber-optic port, making them ideal for applications that require high bandwidth. The EDS-G205-1GTXSFP switches provide an economical solution for your industrial Gigabit Ethernet connections, and the built-in relay warning function alerts network managers when power failures or port breaks occur. The 4-pin DIP switches can be used for controlling broadcast protection, jumbo frames, and IEEE 802.3az energy saving. In addition, 100/1000 SFP speed switching is ideal for easy on-site configuration for any industrial automation application.

A standard-temperature model, which has an operating temperature range of -10 to 60°C, and a wide-temperature range model, which has an operating temperature range of -40 to 75°C, are available. Both models undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The switches can be installed easily on a DIN rail or in distribution boxes.

Tech Specification

Alarm Contact Channels

1 relay output with current carrying capacity of 1 A @ 24 VDC

10/100/1000BaseT(X) Ports (RJ45 connector) 4

Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection

Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+) 4

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseX
IEEE 802.3az for Energy-Efficient Ethernet

MAC Table Size 8 K

Packet Buffer Size 1 Mbits

Jumbo Frame Size 10 KB

Processing Type Store and Forward

Ethernet Interface Broadcast storm protection, Jumbo Frame, IEEE 802.3az energy saving, 100/1000 SFP speed switching, Port break alarm

Connection 1 removable 6-contact terminal block(s)

Input Voltage 12/24/48 VDC, Redundant dual inputs

Operating Voltage 9.6 to 60 VDC

Reverse Polarity Protection Supported

Input Current 0.14 A @ 24 VDC

Housing Metal

IP Rating IP30

Dimensions 29 x 135 x 105 mm (1.14 x 5.31 x 4.13 in)

Weight 290 g (0.64 lb)

Installation DIN-rail mounting, Wall mounting (with optional kit)

Operating Temperature EDS-G205-1GTXSFP: -10 to 60°C (14 to 140°F) EDS-G205-1GTXSFP-T: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included) -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity 5 to 95% (non-condensing)

Freefall IEC 60068-2-32

EMC EN 55032/24

EMI CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
