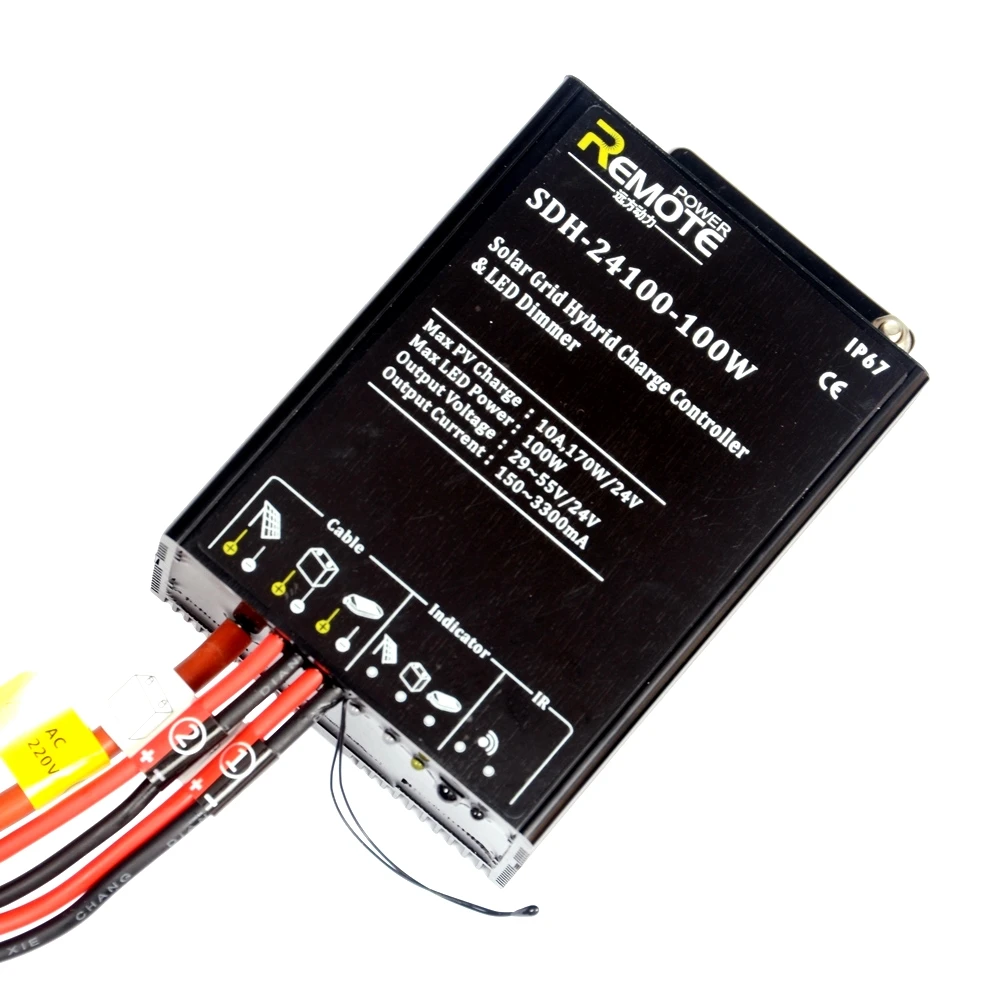

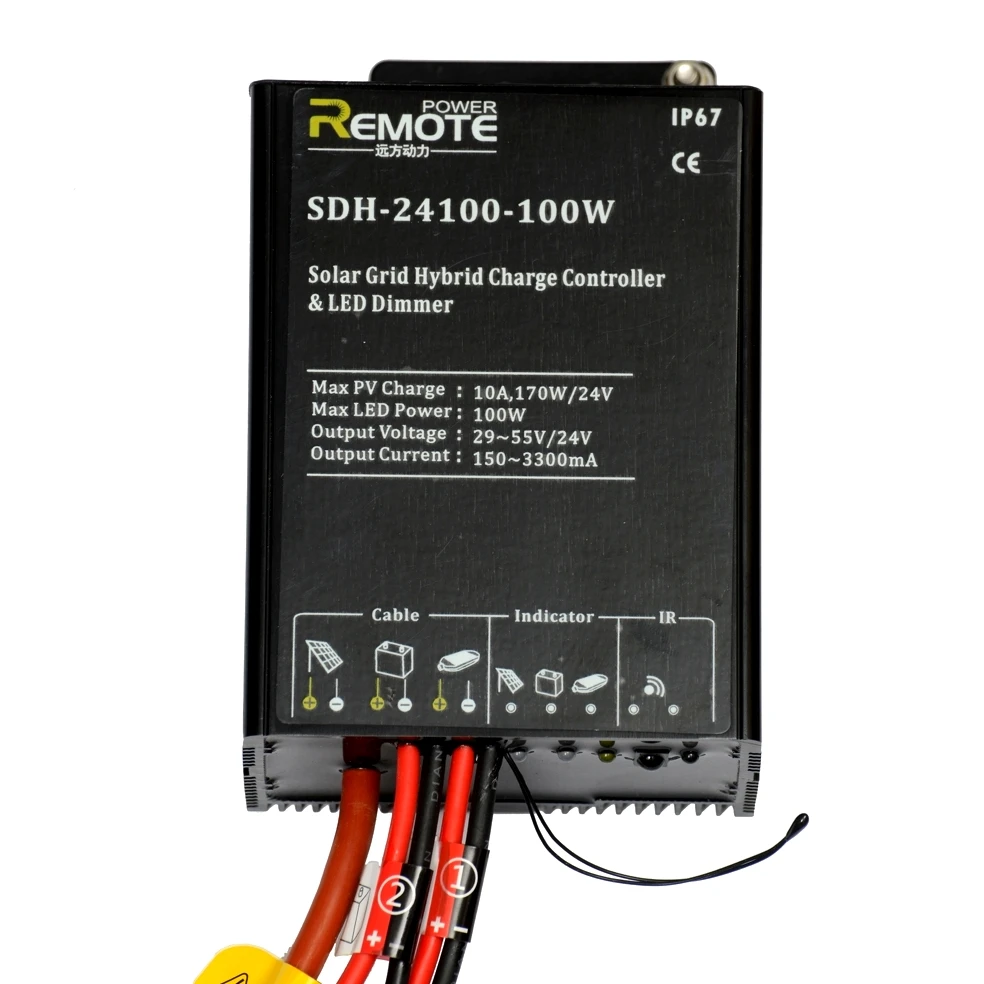

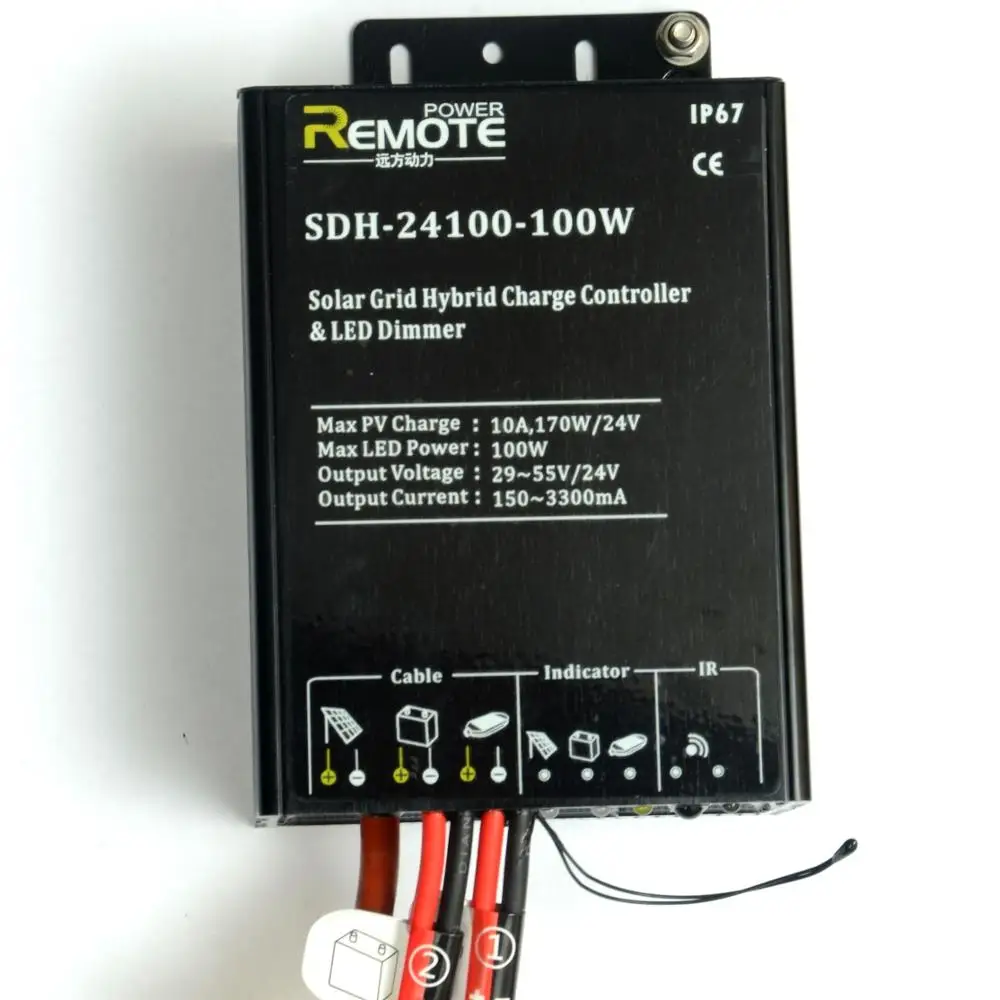

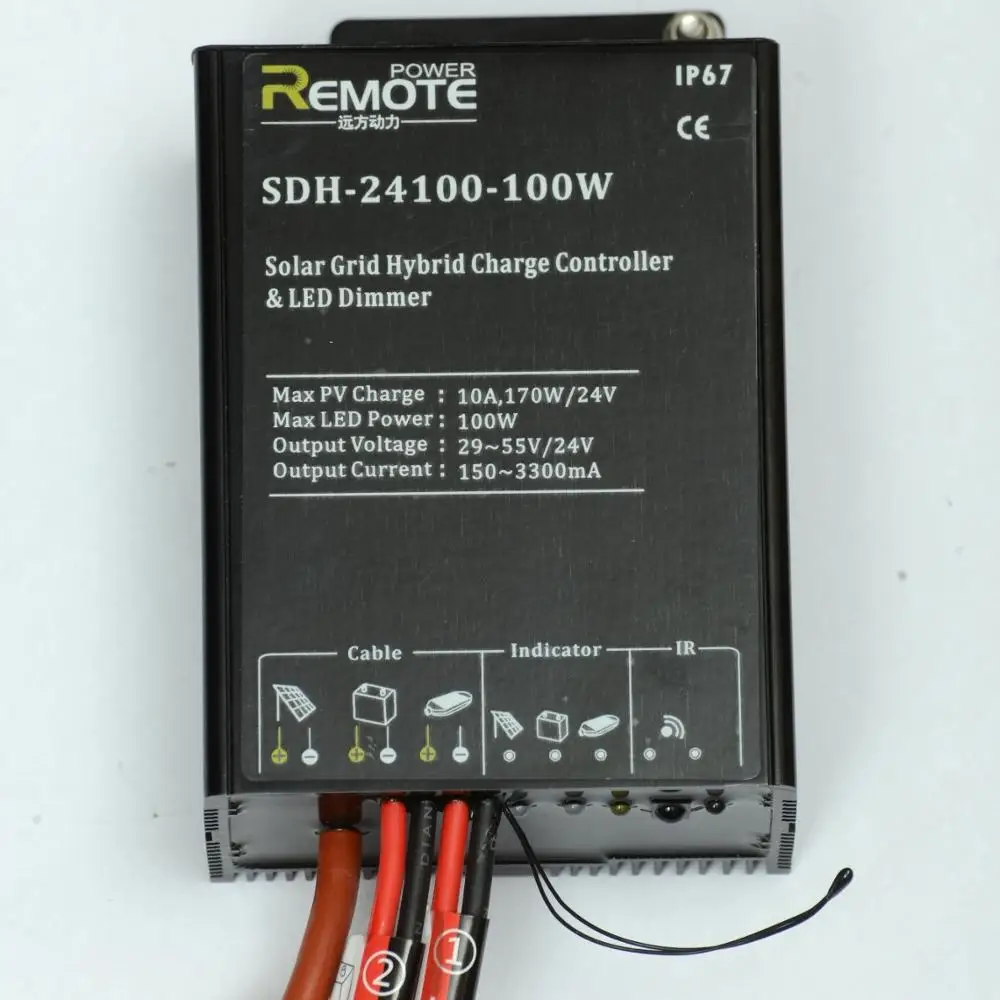

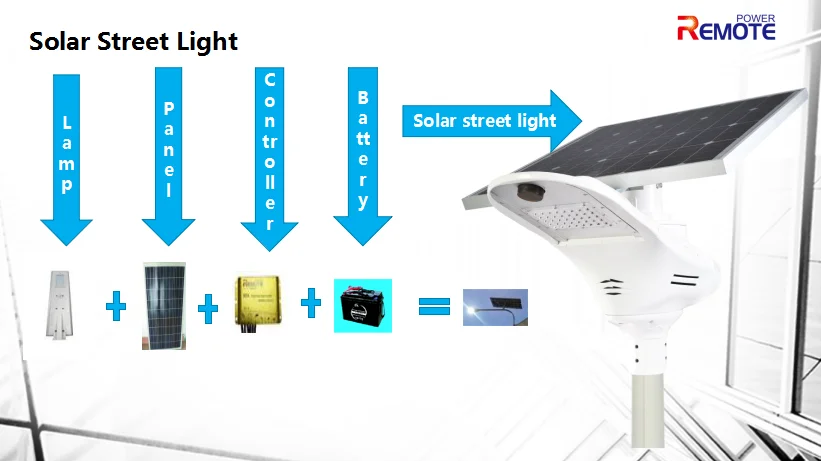

Intelligent 10A 12V 60W On Grid solar grid AC DC hybrid charge controller

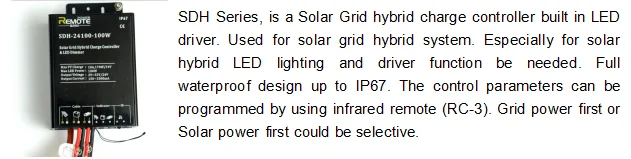

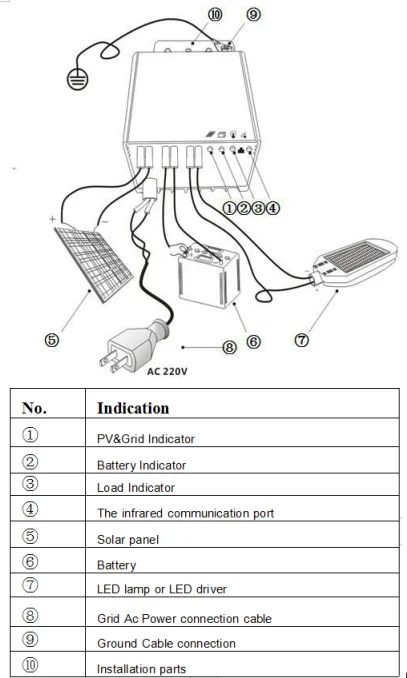

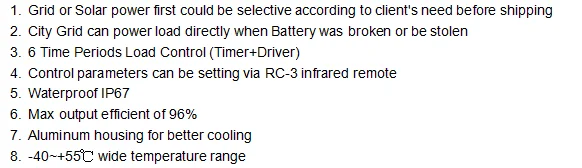

                                         Solar Grid Hybrid Charge Controller&LED Driver

Model

SDH-12100-60W

SDH-24100-60W

     SDH-24100-100W

System voltage

          12V

                             24V

                                                             LED Dimmer parameter

Max output power

      60W

         60W

             100W

Max boost output voltage

    17~55V

                        27~55V

Max output current

3.3A

LED Driver range

0~100%

Current step

50mA

Smart mode

4 types save energy mode, 2 types motion sensor function(optional)

Timer

6 Time period output control

Typical efficiency

92~96%

Accuracy current

3%, when take 80% rated power load can reach 1%

Over Load Capability

105% Output Rater Power

Grid AC/DC parameters

Grid input AC

AC185V~265V; 50HZ~60HZ

Inter DC output voltage

14.5V

29V

Max DC charge current

7A

3.5A

PV parameter

Max PV Output power

255W12V/510W24V

Max PV Open circuit voltage

65V

Max PV current

10A

Battery parameter

Type of Battery

AGM

Gel

Li

Custom

Max Battery voltage

34V

Main charge voltage

14.2V

14.4V

custom

/

Boost charge voltage*

14.6V

14.8V

10~20V

Float charge voltage

    13.6V

10~20V

Equalization charge voltage

14.6v

14.8v

/

Over Discharge voltage

11.1v

11.0v

8~20v

Reconnect voltage

12.6v

13v

10~20v

Temp. compensation

4mV/℃/2V

/

/

Others

External Communication

RS485/2400pbs,Modbus(optional)

Self-consumption

<12mA

17mA

low voltage protect

30% energy

Reduce output Term

85℃

Over Term

100℃

Dimensions (L*W*H)

130*83.5*49.5mm

Net weight

0.9kg

Enclosure

IP67

Working temperature

-40~+55℃

Note: Technical data for 12V system at 25℃, x2 in 24V system
