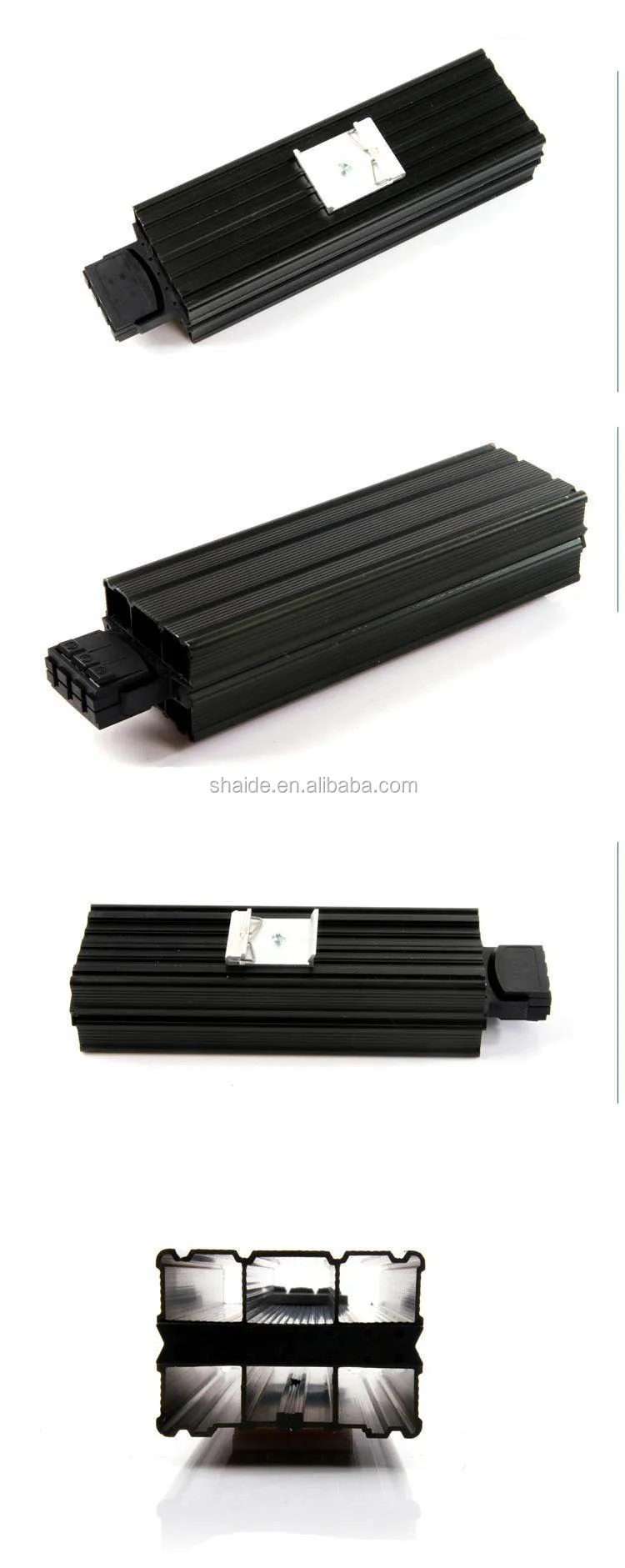

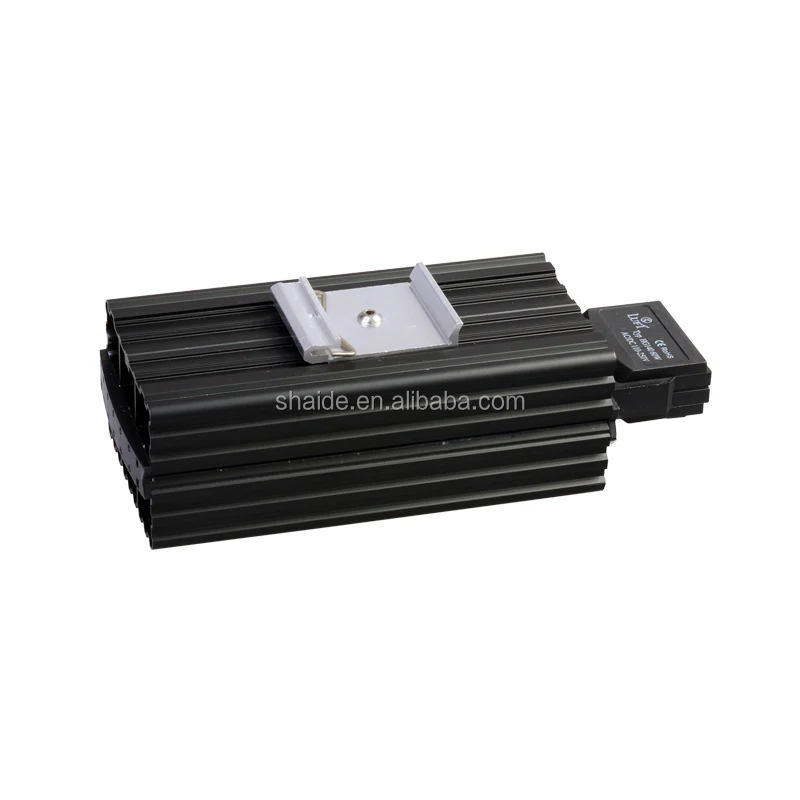

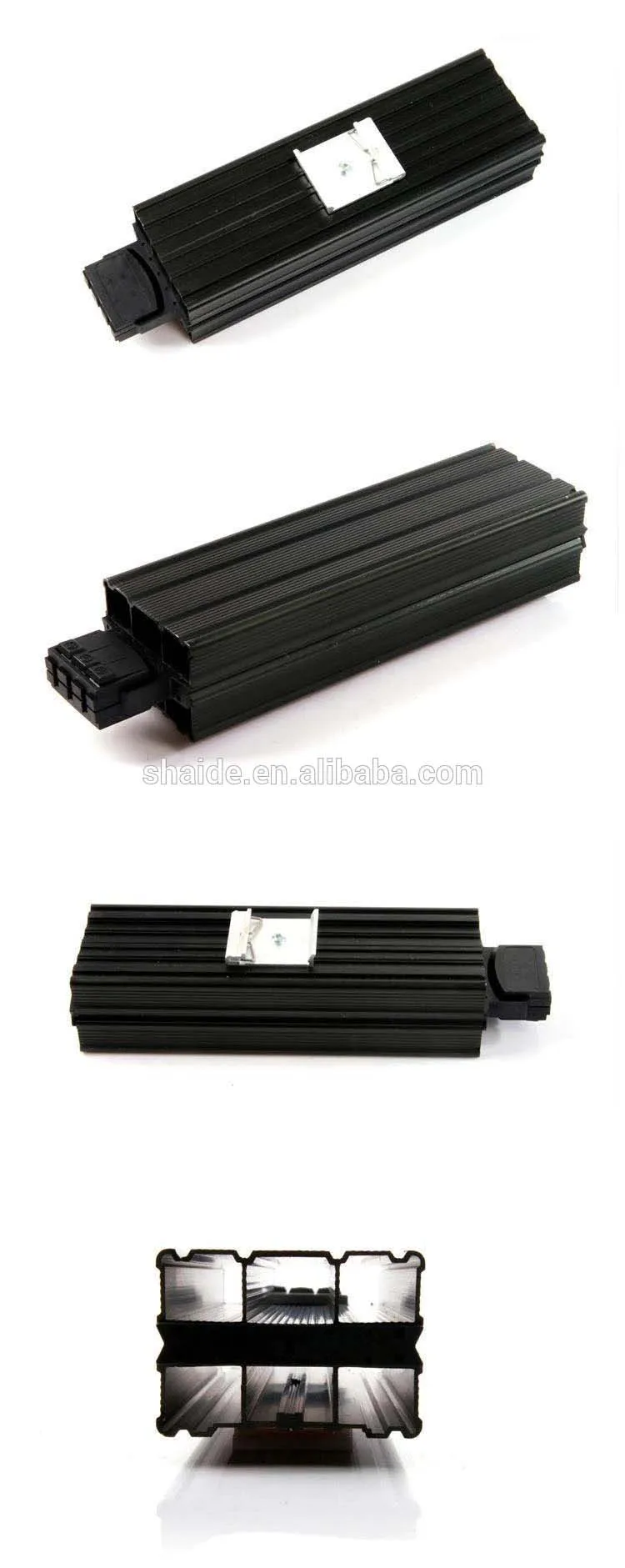

HG140 15 150W Series PTC Air cabinet Electric Heating Element

 HG140 15-150W  Series PTC Air cabinet Electric  Heating Element

These heater are used in enclosures where damage from condensation must be prevented

or where the temperature may not fall below a minimum value.The aluminium profile heater body design has a chimney effect and distributes the heat evenly.

The pressure clamp connections save time and simplify  installation

Pressure clamp connection

Dynamic heating up

Wide voltage range

Temperature limiting

Energy saving

Clip fixing

Quick installation

Technical Data

Operation voltage:120-240V AC/DC*(min 110V,max 265V)

Heating element:PTC resistor,self regulating and temperature limiting

Heater body:Extruded aluminum profile,anodised

Connection:3 pressure clamps for standard wire 0.5~1.5mm²

(with wire end ferrule) and rigid wire 0.5~2.5mm²

Connection casing:Plastic according to UL94-V-0,black

Mounting:clip for 35mm DIN rail.EN50022

Fitting position:vertical

Operating/storage temperature:-45 to +70℃(-49 to +158°F)

Protection type/Protection class:IP20/1 (earthed)
