Mastech MS8260B Digital Multimeter DMM VOLT STICK Tester Electrical LCR Meter Non contact voltage Detector
- Category: >>>
- Supplier: Shenzhen Ever Good Electronic Co. Ltd.
Share on (62030877697):
Product Overview
Description
Mastech MS8260B Digital Multimeter DMM VOLT STICK Tester Electrical LCR Meter Non-contact voltage Detector
Features:
Large 2000 count LCD display
Test AC / DC voltage and current, resistance, capacitance, frequency and temperature
Transistor (HFE) inspection, diode and continuity test
K-type thermocoupple probe
Data hold and display backlight
Specifications:
DCV: 200mV/2V/20V/200V 0.5%; 1000V 0.8%
ACV: 2V/20V/200V 0.8%; 750V 1.2%
DCA: 20mA 0.8%; 200mA 1.5%; 20A 2.0%
ACA: 20mA 1.0%; 200mA 1.8%; 20A 3.0%
Res.: 200/2k/20k/200k/2Mohm 0.8%; 20Mohm 1.0%; 200Mohm 5.0%
CAP: 20nF/200nF/2uF 4.0%; 200 uF 5.0%
Temp.: -20 c~ 0 c 5.0%; 1 ?~400 ? 2.0%; 401 ?~1000 ? 2.0%
Frequency: 0~20KHz 1.5%
.
Applications:

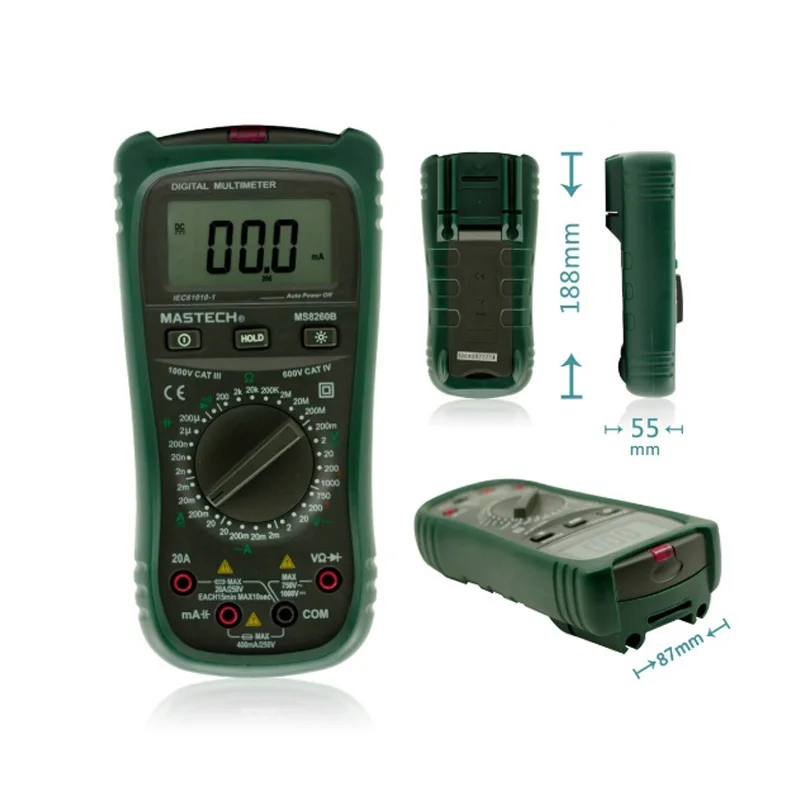

Dimension: 185 * 90 * 52mm
Item Weight: approx. 380g
Power: 1 * 9V/6F22 battery (not included)
Package Size: 24 * 17.5 * 7cm / 9.5 * 6.8 * 2.7in
Package Weight: 591g / 1.3lb
Package includes:
1 * MASTECH MS8260B Digital Multimeter

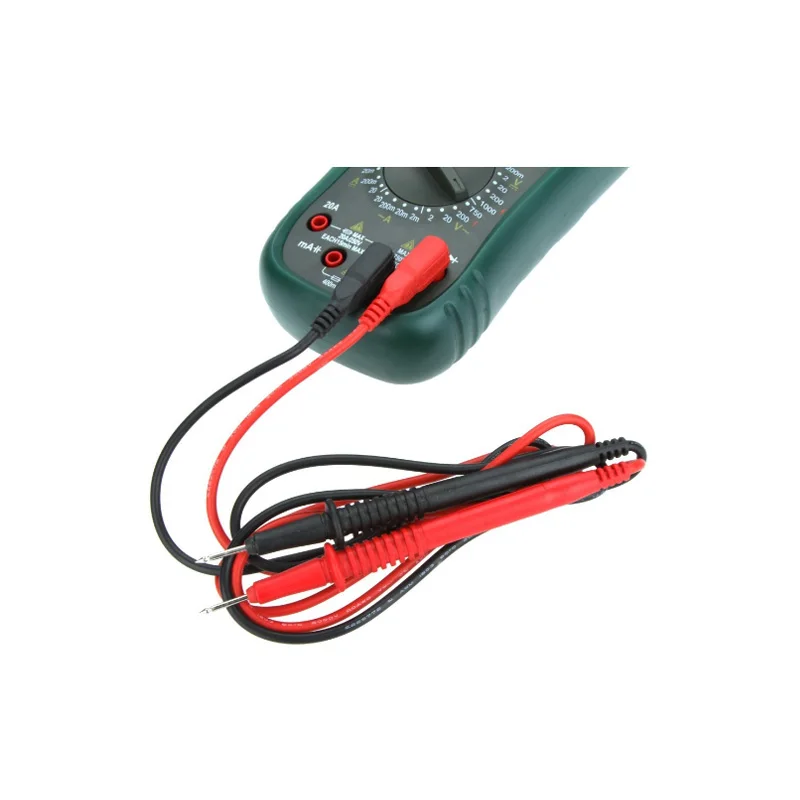

1 * Pair Test Lead
1 * Temperature Probe
1 * Multi-function Socket
1 * English Manual
