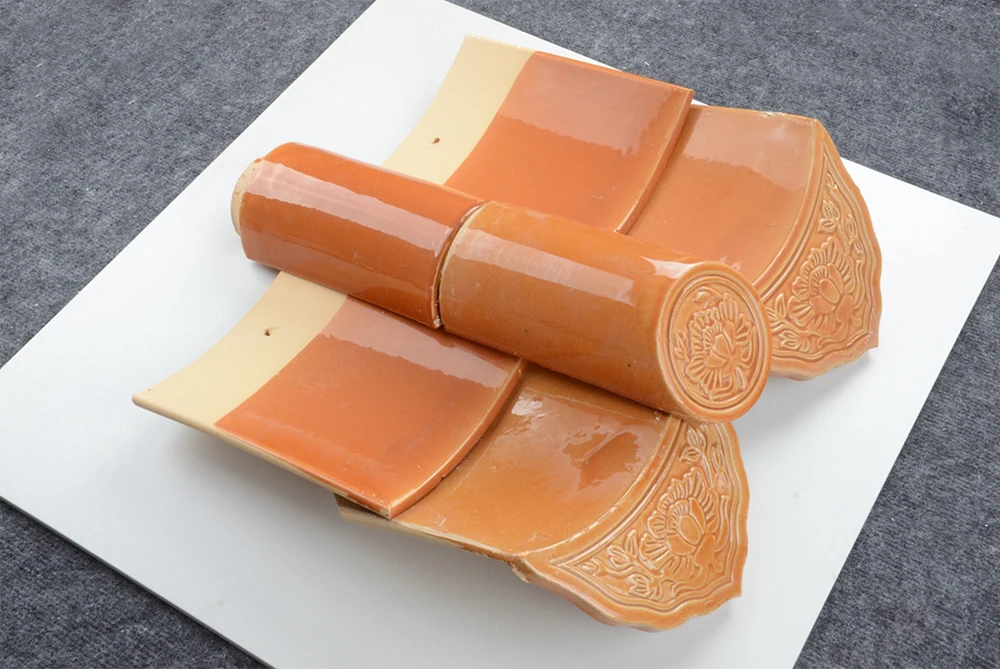

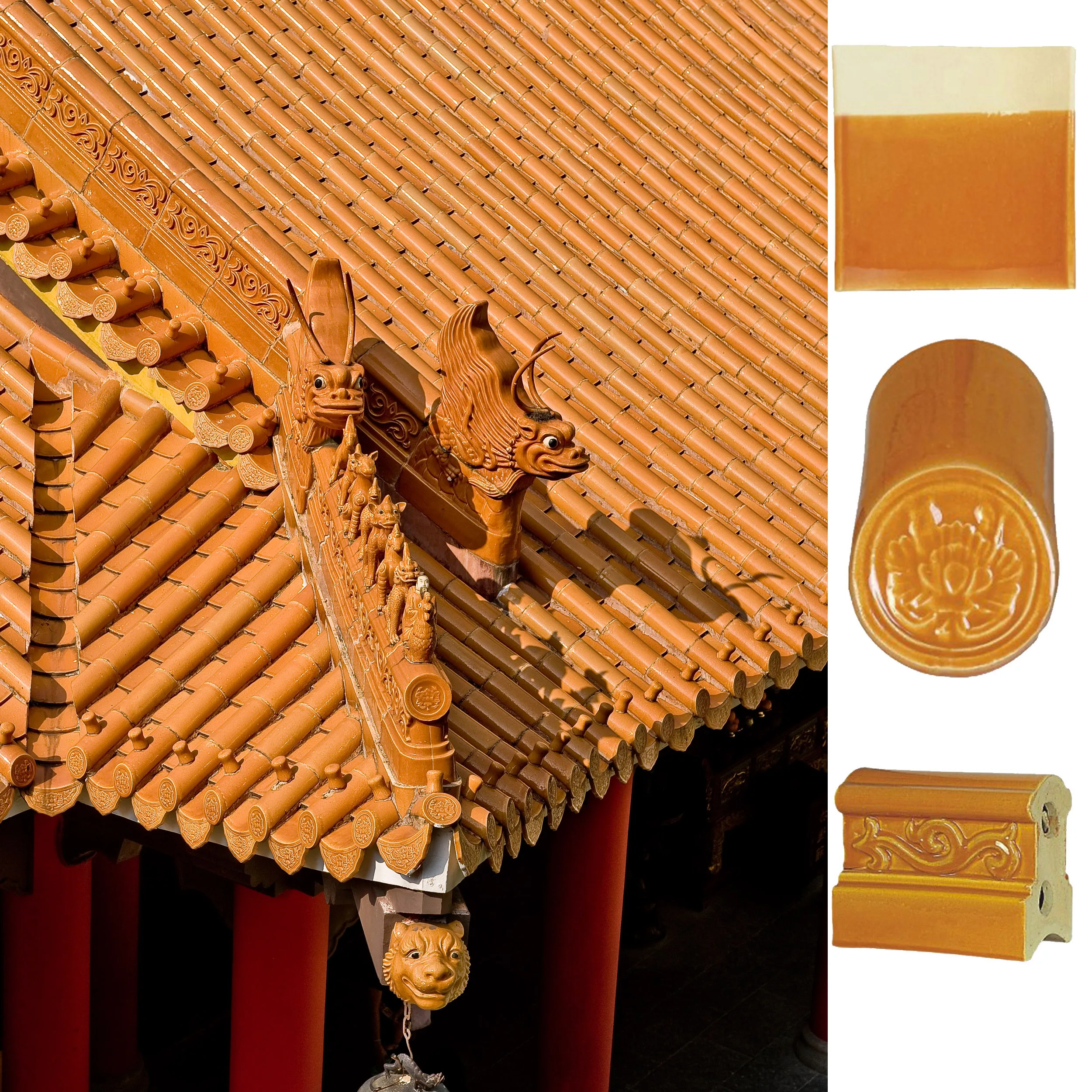

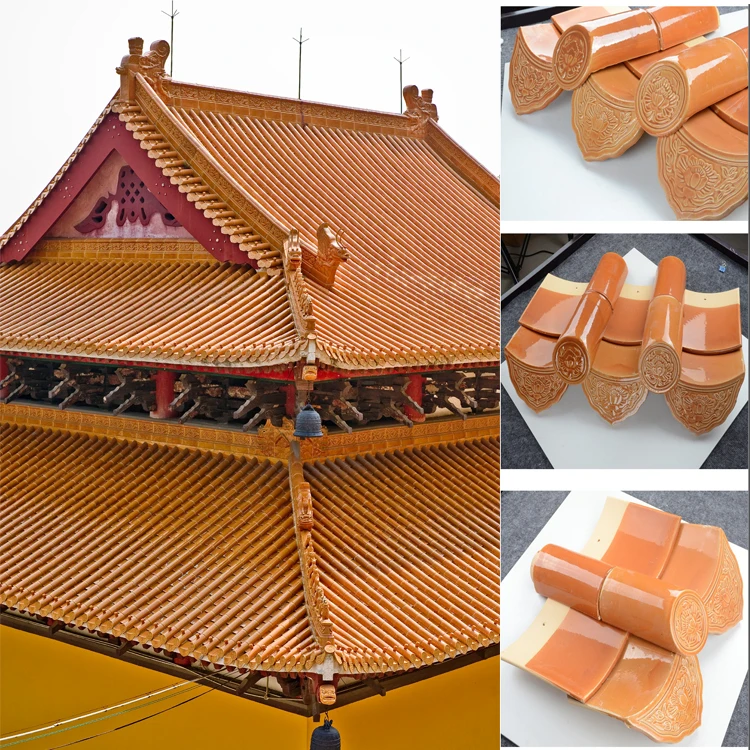

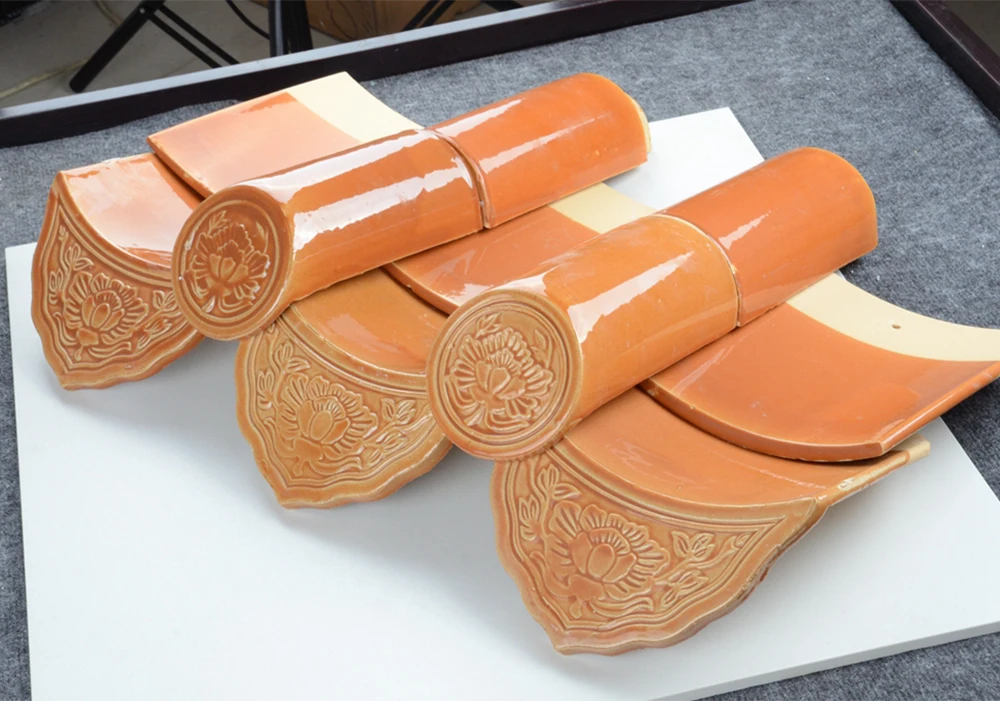

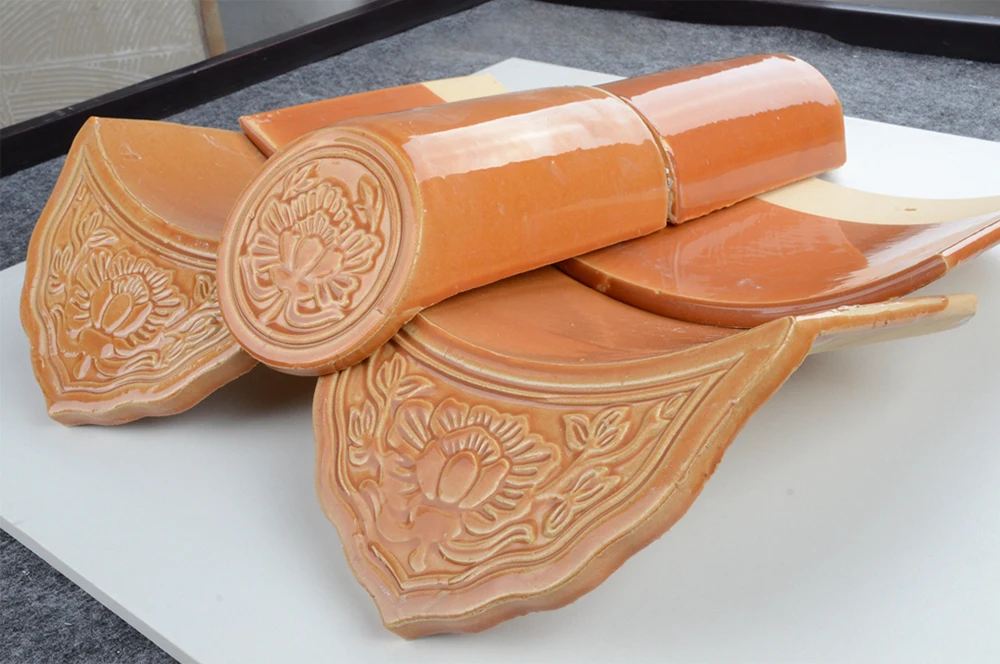

Clay red tile roofing panel dimensions

Raw materials

Nature red clay body

Brand Name

Red Lion

Available color

Yellow, green, red, grey, maroon

Normal size

Main cover tile
ML-001:225x220x11.5mm,1.1kg/pc,20pcs/carton.33pcs/M2(1/0.3m/0.23m=33pcs)

Main bottom tile
ML-002:190x220x11.5mm,1.2kg/pc,15pcs/carton.length/0.23m

Face cover tile
ML-008:185x105x60mm,0.8kg/pc,20pcs/carton.23pcs/M2(1/0.9m/0.23m=23pcs)

Face bottom tile
ML-009:170x105x60mm,0.9kg/pc,20pcs/carton. length/0.23m

Manufacturing method

Extruded, glazed, fired in tunnel kiln

Pressure resistance

Resistance to compression>1800N

Temper resistance

High temperature fired in kiln≥1250°C
