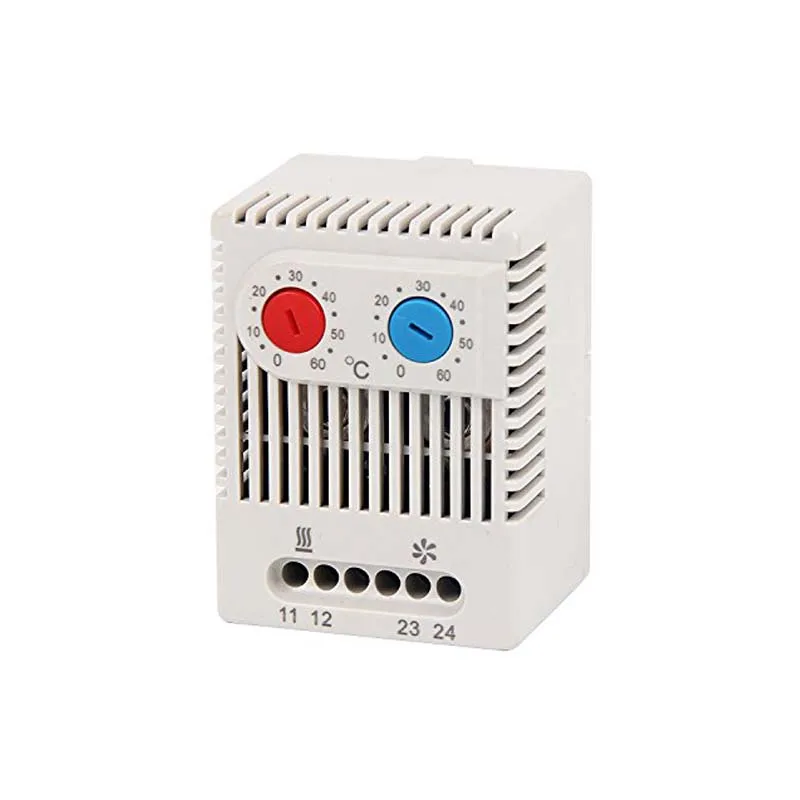

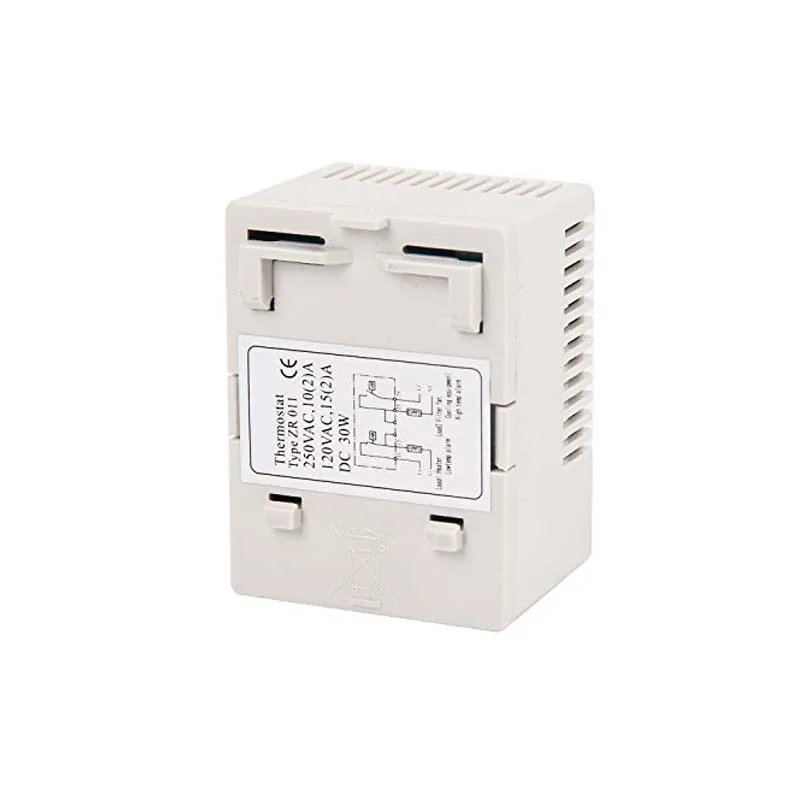

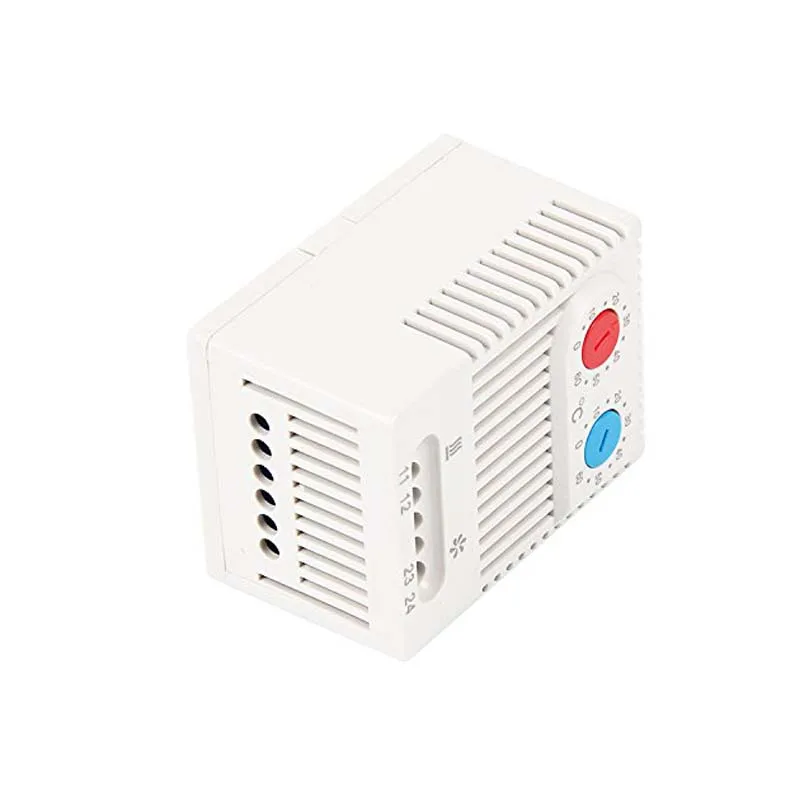

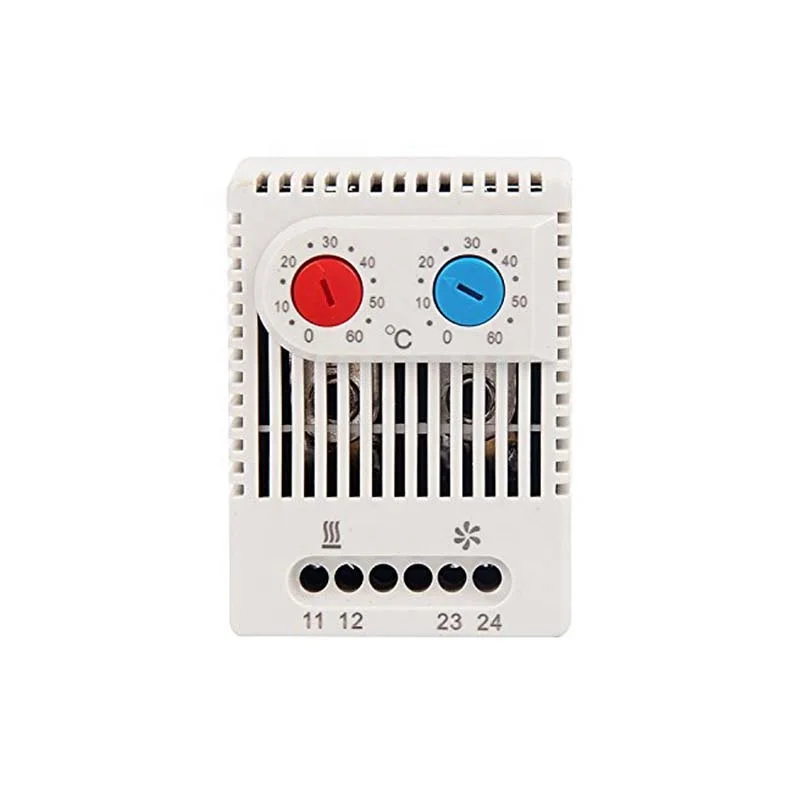

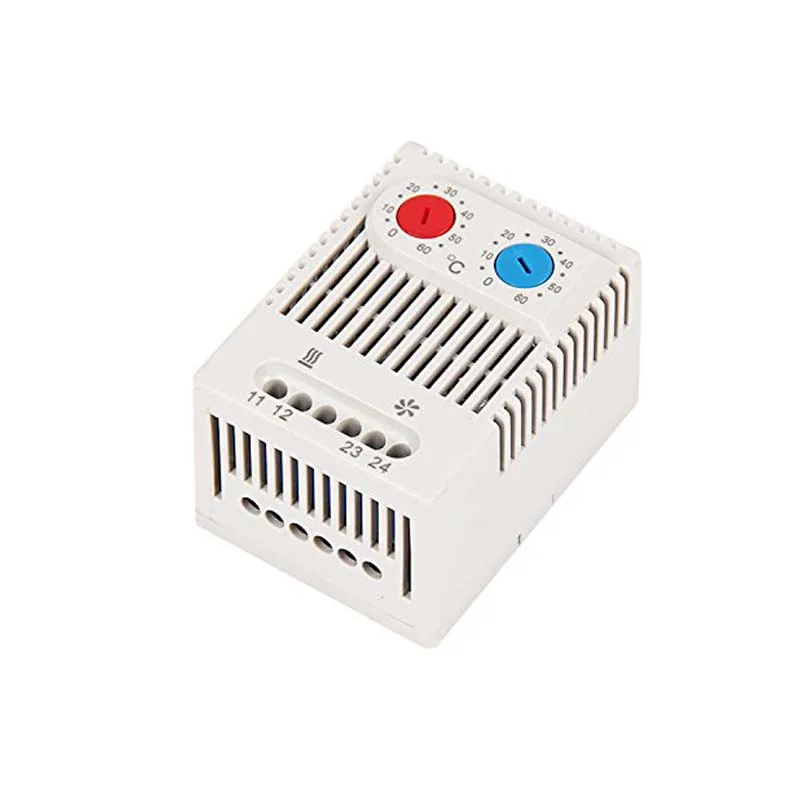

ZR011 Heating Cooling NC/NO Double Adjustable Dual Thermostat Temperature Control Controller Switch

 KTO 011   Normally Close(NC) Mechanical Stego Cabinet small compact  room thermostat

The ZR 011 houses two seperate thermostate.allowing the independent control of heating and cooling or other equipment.

Both thermostats offer wide adjustment ranges and are color coded for easy function recognition

Two hrrmostats in one unit-one Normally cloased (NC)& one Normally Open (NO)-or two Normally open(NO0

Each with wide adjustable temperature range

Din rail mountable

Technical Data

Maximum tolerance:+/_7.2°F(4K)

Sensor element:Thermostatic bi-metal

Switching capacity(max.load):

NC:15A resistive/2A inductive@250VAC

NO:15A resistive/2A inductive@250VAC

DC30W

EMI/EMC compliance:EN55015-1-2.EN61000-3-2 ,EN61000-3-3

Connections:4-pole terminal for AWG 14max,(2.5mm²)

Mounting:Clip for 35mm DIN rail (En50022)

Housing:Plastic

Dimension:67*50*46mm

Weight:90g

Operating/Storage temperature:-45 to 80°F

Protection type:IP20
