p7.62 96*16 red color led display for car parking or traffic

Product Overview

Description

Products Description:



This mode of LED display (P7.62, 16x96dot with steel housing and dark- red acrylic panel) is research and design for parking management system application. As we focus on provide full set of hardware for whom doing parking system installation and/or parking system integration.



Advance of the LED display:

1. 1.    Free SDK for help you integrate our LED display to your parking system software easy.


2. 2.    RS485 and RS232 communication output suit most parking system application, we can also provide TCP/IP and wireless communication option.


3. 3.    Single color (standard color option is red) design to make an economical solution, the practical value suit most requirement of the intelligent parking lots, the cost performance push every end user easy accept.


4. 4.    Real 1.2mm steel housing with spray painting and waterproof structure design for outdoor application. Suit both indoor and outdoor project.


5. 5.    Front dark-red acrylic panel for protect eyesight of driver and other people.


6. 6.    The adjustable bracket (the height of the pole from 90cm to 130cm adjustable) can help you widely use for all site of parking lots.



How to choose a LED display for parking system:



Before order, please consider below questions:



What kind of mode do you need?
•Indoor
•Outdoor
•Semi-outdoor



 What color do you want?
•Single color (1 red, 2 green, 3 yellow, 4 blue, 5 white)
•Double color (red/green, yellow/green, or others?)
•Full color?



 How many lines do you want to display?
•One line
•Two line
•Three line
•Four line
•More



Standard communication output
RS232 standard, but support TCP/IP, USB, RS485,etc.



Why us?
•Free English SDK, and close cooperation for help you solve hardware & software problems
•Focus on parking lot or traffic LED display more than 5 years
•Factory price
•Best quality and over six hundred type.
•We provide special customized service (OEM/ODM)



Feature
• High Contrast: 4000:1
• First-class LED chip: Epistar from Taiwan
• Clear vivid image quality even in direct, full-on sunlight
• Long-term Brightness capacity throughout product lifetime
• Easy Installation & Using
• Convenient Servicing
• Source compatibility: CVBS, YC, YUV, RGB, DVI, SDI, HD-SDI, and HDMI





Housing Specification:

Serial	Name	Specification
1	Housing Size	810 x 200 x 100mm
2	AC Power	AC220V
3	Support Pole Height	130cm(full high)
4	Paint Work	black color,not easy to fade



Technical Parameter:

Serial	Name	Specification
1	Pixel	7.62
2	Pixel of LED	16x96dot
3	LED	semi-outdoor LED module
4	Resolution	17222dots/m2
5	LED Brightness	>1000cd/m2
6	Driver for scaning	1/16
7	LED view angle	160
8	LED View Distance	about 100m
9	Voltage	AC11OV-240V
10	Power	5V20A or 5V40A
11	Max Power	5V40A
12	Temperature	-35℃~ +85℃
13	Humidity	≤90~95%
14	Net Weight	9.5kgs
15	LED PCB Coating	waterproof

 Free SDK avaiable, provide commmincation protocol, testing software, demo and source code for VB/VC/Delphi/Csharp.

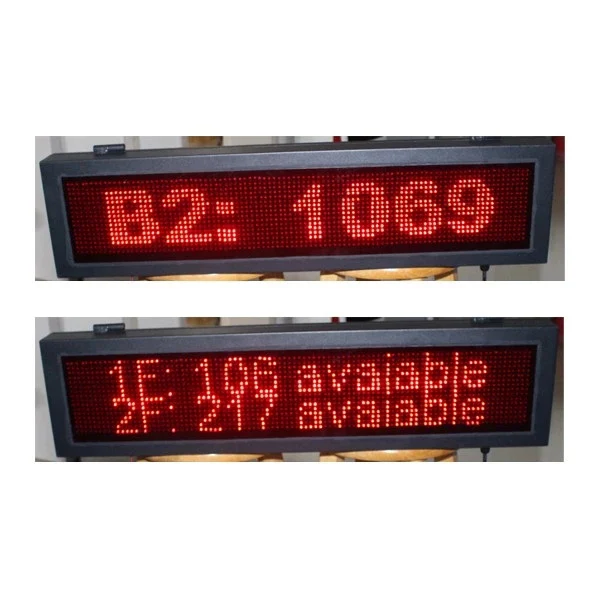

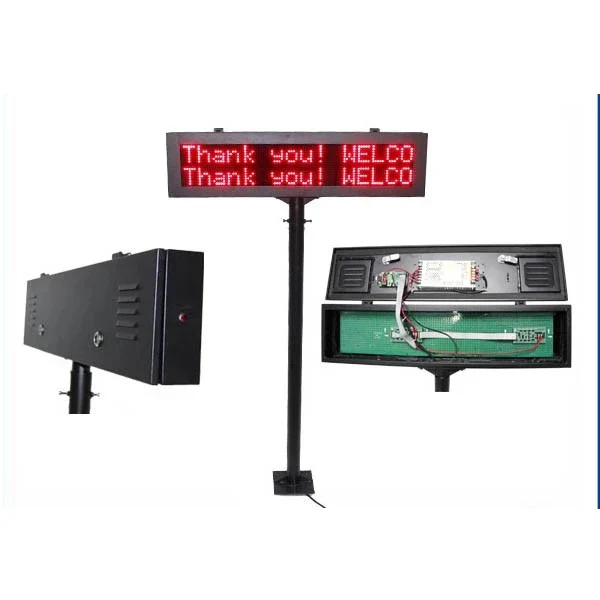

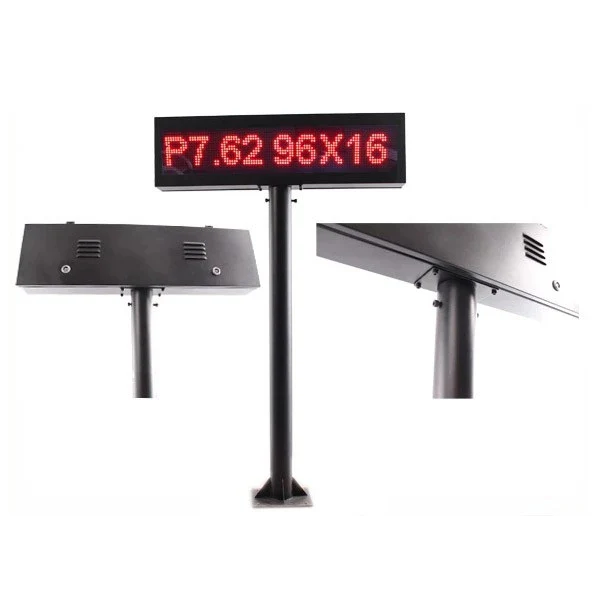

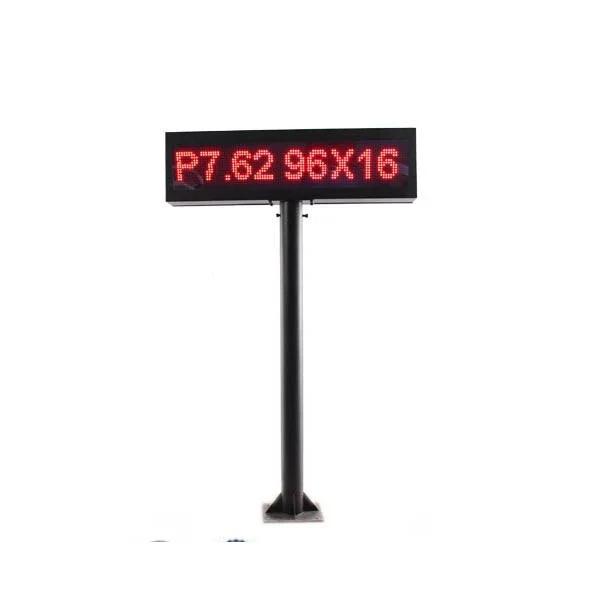

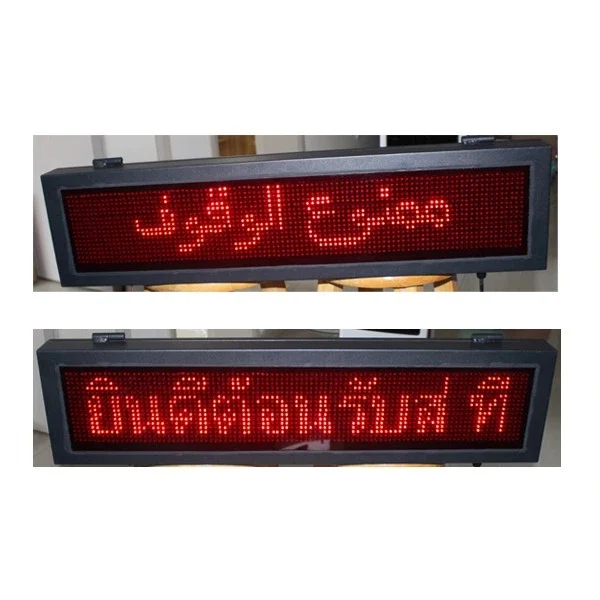

Picture for reference:
