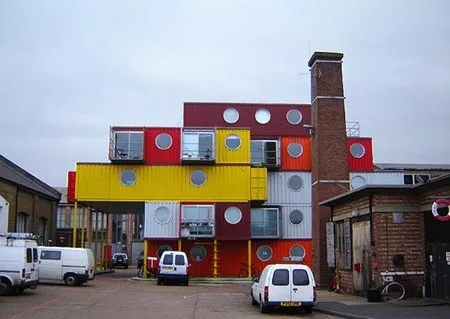

CONTAINER HOUSE----New type green construction: The standard container is a container unit, a freedom combination (horizontal or vertical)like building blocks, space layout is flexible, the function is prefabricated, to make the functions various, application field diversified.

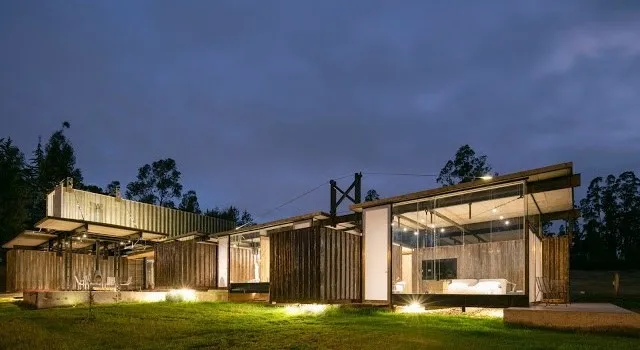

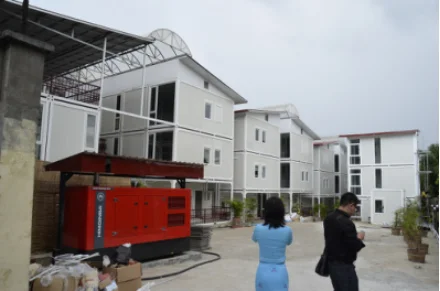

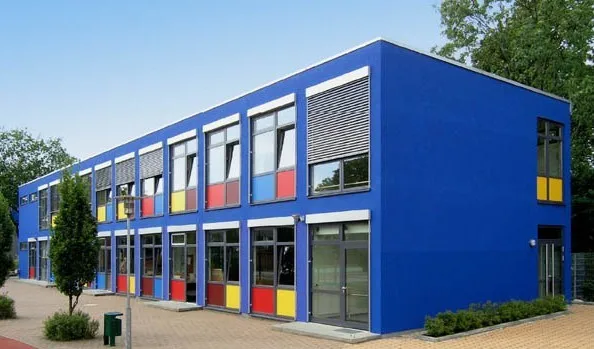

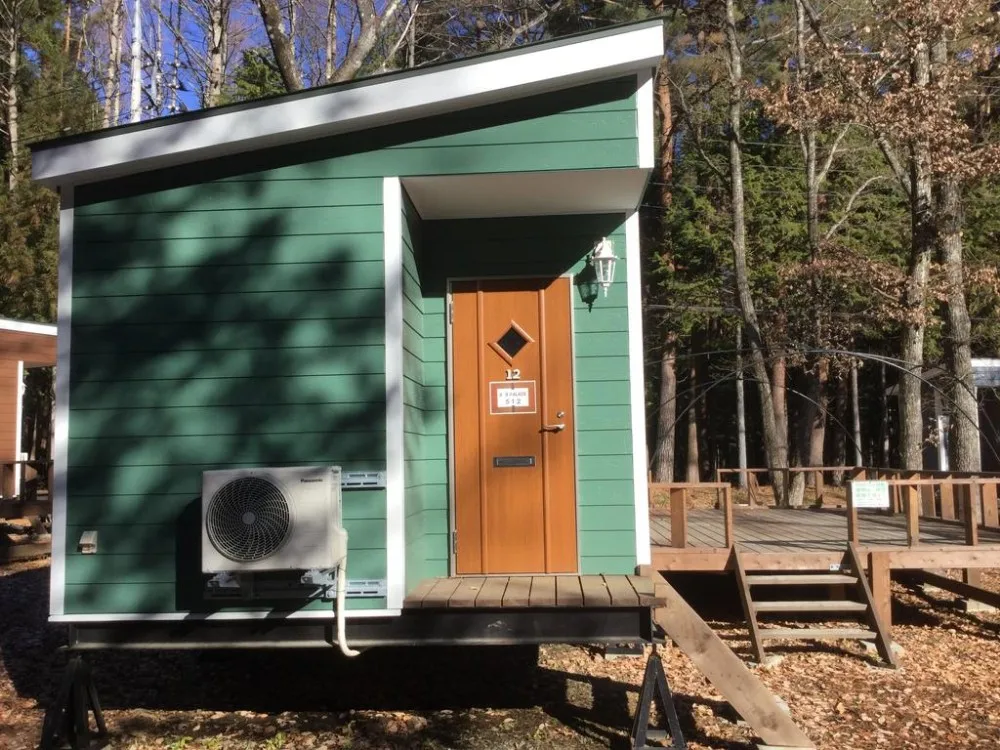

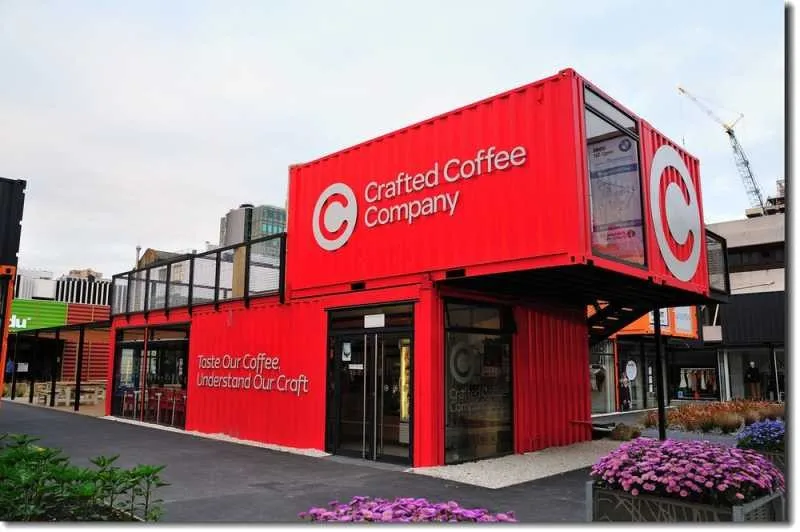

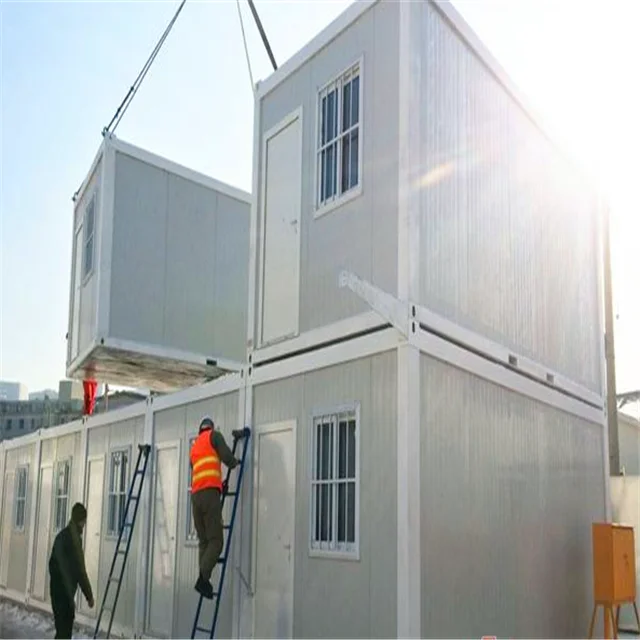

Products Show
Specification
Standard container
(2.4m)
Length(mm)
12000
Width(mm)
2400
Height(mm)
2700
Roof type
Flat roof, organized drainage
Floor
≤3 storeys
Design Parameter
Service life
20 year
Floor live load
2.0KN/㎡
Roof live load
0.5KN/㎡
Wind load
0.6KN/㎡
Anti-seismic capacity
8 degree

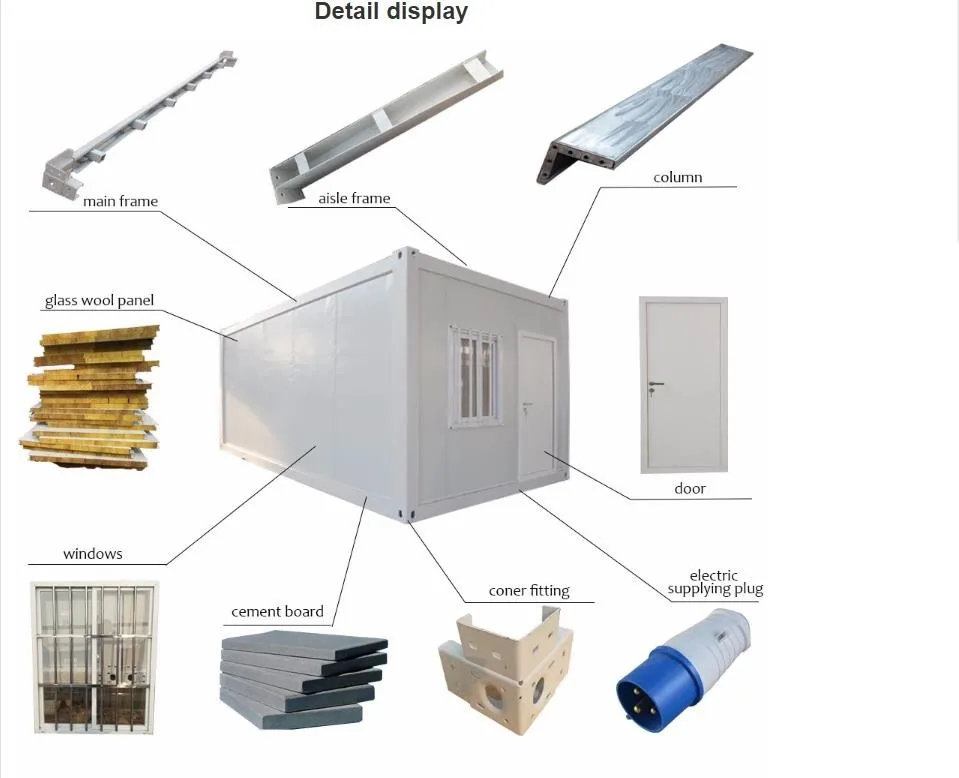

Structure
Corner post
Galvanized cold roll shape steel,t=3.0mm, material:Q235B
Roof main beam
Galvanized cold roll shape steel,t=2.5mm, material:Q235B
Roof sub beam
Galvanized cold roll C type steel,t=1.5mm, material:Q235B
Floor main beam
Galvanized cold roll shape steel,t=3.5mm, material:Q235B
Floor sub beam
Galvanized cold roll C type steel,t=2.0mm, material:Q235B
Paint
Graphene electrostatic spraying
Roof
Roof panel
0.5mm thick aluminum zinc color steel sheet, color: White grey
Insulation
100mm thick glass wool blanket with single aluminium foil, density≥14kg/m³, fire rating: class A(non-combustible)
Ceiling
0.5mm thick aluminum zinc color steel sheet, color: White grey
Floor
Surface
75mm thick color steel glass wool sandwith panel; outer plate:0.45mm Orange peel aluminum zinc color steel sheet, color: ivory white, PE coating; inner plate:0.45mm alumium zine color steel flat plate, color:grey, PE coating
Baseplate
75mm thick glass wool, density≥64kg/m³;fire rating: class A(non-combustible)
Insulation(optional)
100mm thick glass wool blanket with single aluminium foil, density≥14kg/m³, fire rating: class A(non-combustible)
Sealing bottom plate(optional)
0.3mm thick galvanized plate
Wall
Thickness
75mm thick color steel glass wool sandwith panel; outer plate:0.45mm Orange peel aluminum zinc color steel sheet, color: ivory white, PE coating; inner plate:0.45mm alumium zine color steel flat plate, color:grey, PE coating
Insulation
75mm thick glass wool, density≥64kg/m³;fire rating: class A(non-combustible)
4* five holes socket(10A),1* three holes A/C socket(16A)
Plumbing
Water service
PPR
Water drain
UPVC
Standard construction, use equipment and accessories conforming to national standards.
