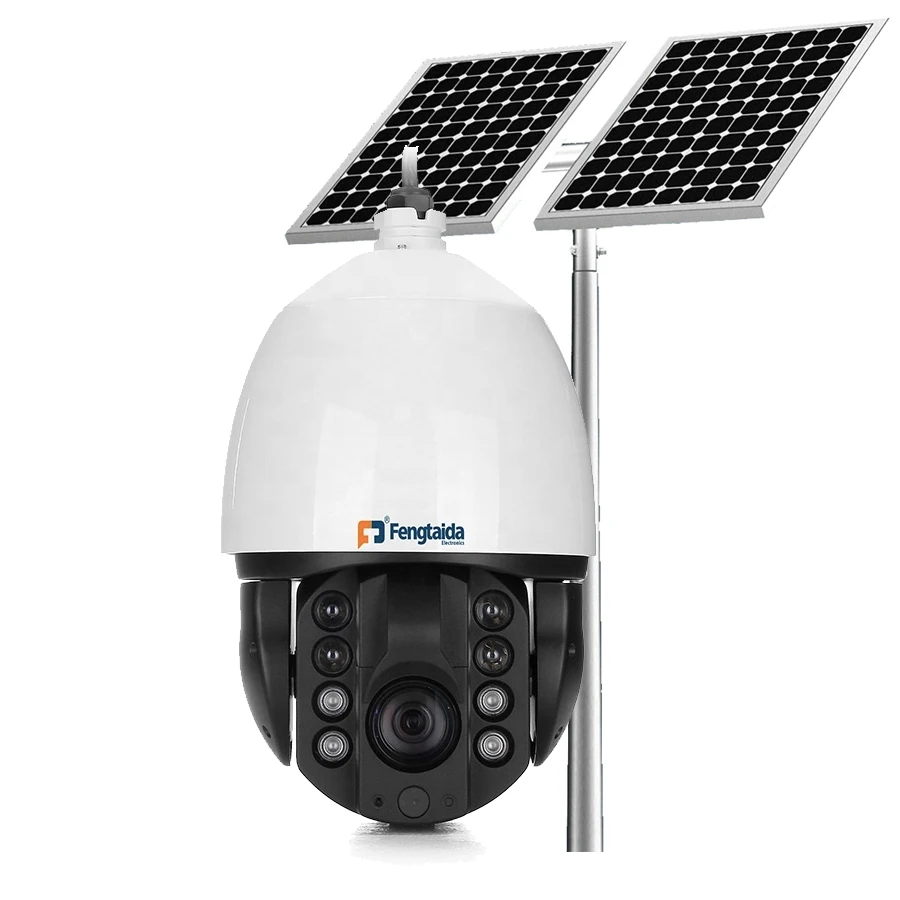

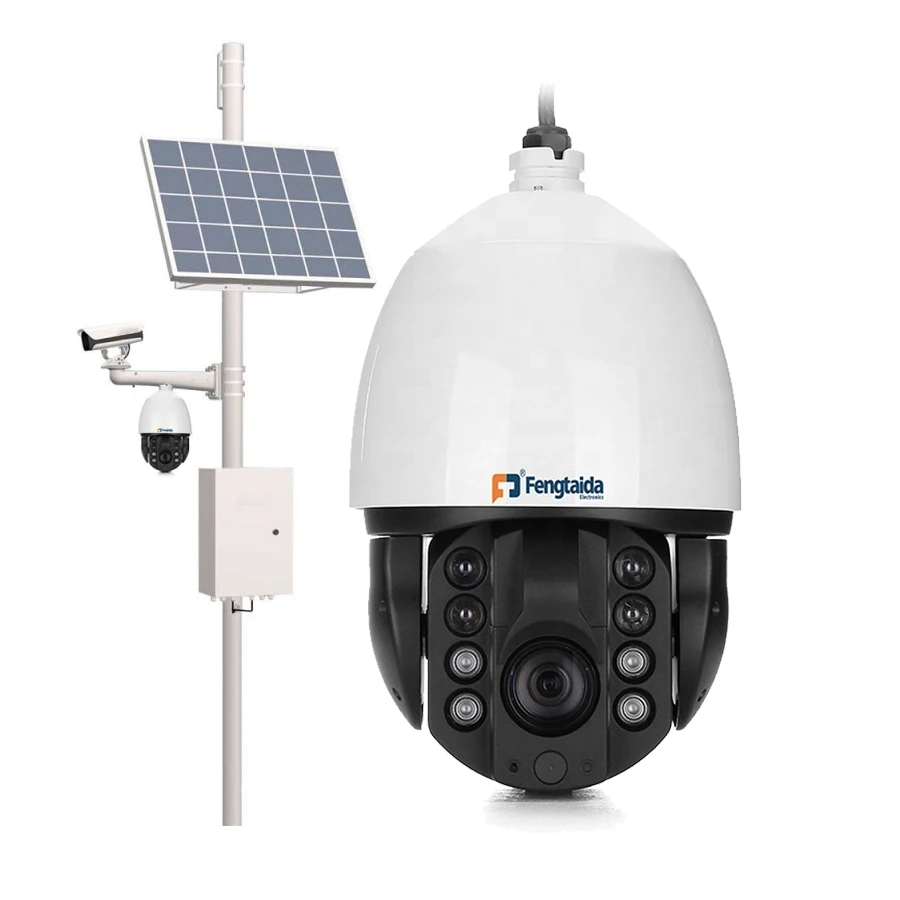

OEM POE Dome Wireless auto tracking solar camera surveillance wifi 4G outdoor ptz powered solar Security cctv Camera Outdoor
OEM POE Dome Wireless auto tracking solar camera surveillance wifi 4G outdoor ptz powered solar Security cctv Camera Outdoor
OEM POE Dome Wireless auto tracking solar camera surveillance wifi 4G outdoor ptz powered solar Security cctv Camera Outdoor
OEM POE Dome Wireless auto tracking solar camera surveillance wifi 4G outdoor ptz powered solar Security cctv Camera Outdoor
OEM POE Dome Wireless auto tracking solar camera surveillance wifi 4G outdoor ptz powered solar Security cctv Camera Outdoor

OEM POE Dome Wireless auto tracking solar camera surveillance wifi 4G outdoor ptz powered solar Security cctv Camera Outdoor

Share on (62030933087):


Price:RUB 6,823.62 - RUB 11,372.70

Quantity:


Product Overview

Description

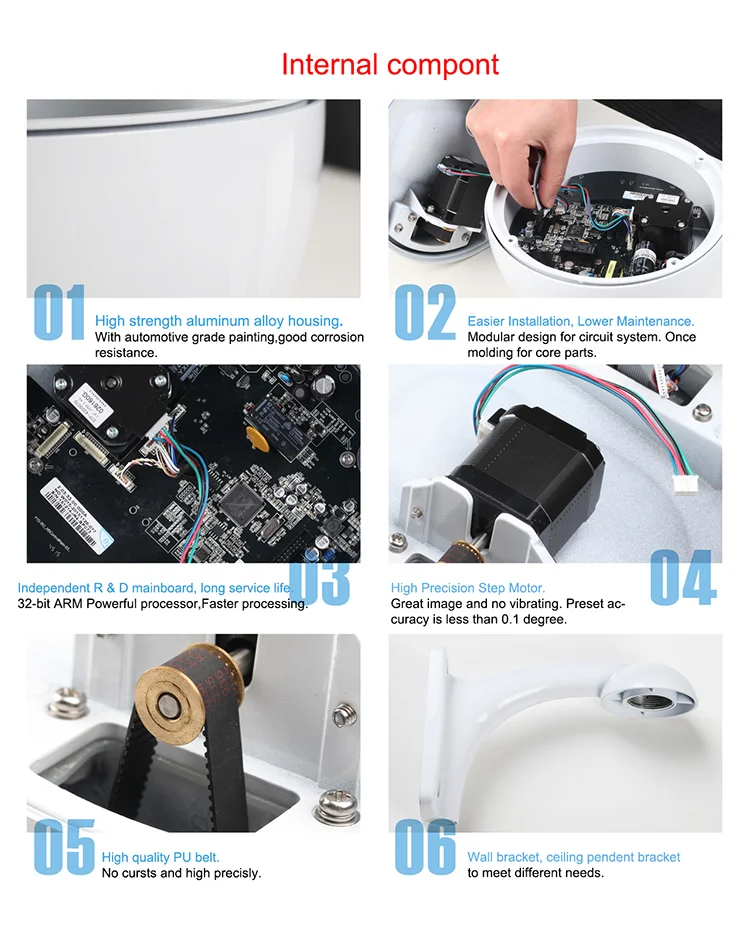

1.View Degree. Horizontal: Continuously 360°. Vertical: -10°~90° auto flip. 2. IP66 Rated for Weatherproof Outdoor Installations High strenght aluminun alloy housing with automotive grade painting，the durable PTZ network cameras perform good corrosion resistance and heat dissipation， and withstand extreme climate changes. They're compliance IP66、IK10 、6KV 3.Working envienment:-45°-70° ;flow duct design,automatic defog.(Double layer housing,allows to function at -45 °C；CTC technoloay,allows to function at 70 °C) 4.High Precision Step Motor ，Great image and no vibrating.，Preset accuracy is less than 0.1 degree. 5.High quality PU belt. No cursts and high precisly. 6.All-aluminum substrate Sensibly components layout ，Quicker heat dissipation，Longer service life 7.Easier Installation, Lower Maintenance，Modular design for circuit system，Once molding for core parts 8.Modular Design.I/O cable and waterproof plug to take a mold production，under long time use. High Waterproof Grade.
Dome type
IRS-001 Series High Definition IP Speed Dome Specifications
FTD-IRS-2122 (18X)
Network
Network Interface
Ethernet 10/100Base-T (RJ-45)
Network Protocol
TCP/IP，HTTP，NTP，IGMP，DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，P2P
Compatibility
Support Hikvision,XM,TOPSEE etc center platform management software
Interface Protocol
ONVIF2.4/GB28181(Option- Customize)
Mobile monitoring
Operating System
Android/IOS
Camera
Image Sensor
1/2.8” 2.0M piexls Sony IMX327 CMOS
Optical Zoom
18X
Minimum Illumination
Color: 0.03Lux at F1.5; B/W: 0.001Lux at F1.5; 0Lux(IR on)
WDR
More than 100dB
S/N Ratio
More than 48dB(AGC off)
Day/Night
Auto(ICR) / Color / B/W
Angle of View
72° ~ 3.8°
Electronic Shutter Speed
1/2 - 1/20,000s
Noise Reduction
DNR,3DNR
Defog
Support
Max. Aperture
F1.5~F2.7
White Balance
Auto, ATW, Indoor, Outdoor, Manual
Gain Control
Auto / Manual
Video
Compression
H.265/H.264/MJPEG
Video Interface
1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC (S/N ratio≥ 55dB)
Resolution
Main stream:1920x1080,1280x960,1280×720,720×576,640×480
Sub stream:640×480,352×288,320×240,176×144
MJPEG:1920x1080,1280×720
Max Frame Rate
H.265/H.264: 30fps@1920x1080
Bitrate
MainStream:10.0Mbps@VBR/Sub Stream:32Kbps@VBR
Audio
Algorithm
G711,PCM
Input
1 x Line-In (Mini-stereo, Single Mono)
Output
1 x Line-Out (Mini-stereo, Single Mono)
Pan/Tilt
Range
Pan : 360°(Endless)/ Tilt: -10~90°
Pan/Tilt Speed
Preset Max.:131°/sec
Manual : 0.1° ~ 131°/sec (Zoom Proportional)
Patrol : 1.4°~131° /sec
Preset
247Presets and 8 presets for special function
Patrol Scan
3 Group Patrol
Other Functions
Auto Flip, Auto Parking, Power-up Action & etc
Alarm
Alarm Input
1(ON/OFF signal)
Alarm Output
1(ON/OFF signal)
Infrared
IR distance
200m(Max.)
Wave
850nm
Physical
IP protection
With IP66
Operating Temperature
–35℃~60℃
Humidity
0%~98% (Non condensing)
WIFI/4G Module
Extend WIFI /4G module(Option- Customize)
Store
TF Card
Power Source
AC24V 3A 60Hz/50Hz;
Power Consumption
AC24V：8W-45W
