Face Recognition 3D Measurement Environment Perception VR AR 3D Structured Light Depth Camera

Features:

1:3D structured light depth camera , with face recognition, gesture recognition, human skeleton recognition, 3D measurement, environment perception, 3D map reconstruction.

2: High speed recognition, only tracking. Instant recognition, second measurement of target 3D data, with follow, SLAM, barrier, grab function

3: Ultra low power consumption and stable operation. Less than 2.5w of power consumption, it can also operate in low light. Capture stunning images in real time to ensure consistent image quality.

4: Application scenario: mobile device; 3D face recognition; living room ecology; robot vision: 3D scanning integrated machine; smart fitting room

specification:

Baseline: 75mm

Depth range: 0.6m-0.8m

Power consumption: less than 2.5w peak current less than 500mA

Depth resolution: 128*1024@7FPS, 640*480@30FPS 320*240@30FPS 160*120@FPS

Color map resolution: 1280*720@FPS 640*480@FPS 320*240@FPS

Accuracy: 1m: +-3mm

Depth FOV: H 58.4 V 45.5

Color FOV : H63.1 V49.4

Delay (ms): 30ms-45ms

Data transfer: USB2.0 or above

Supported operating system: Android/Linux/ Windows 7/Windows 10

Power supply mode: USB

Working temperature: 10-40

Safety: Class1 laser

Dimensions: 164.85 mm * 30.00 mm * 48.25 mm

 face payment

Payment level 3D face recognition, low recognition error rate, high security level, easy to use, can be used for face payment.

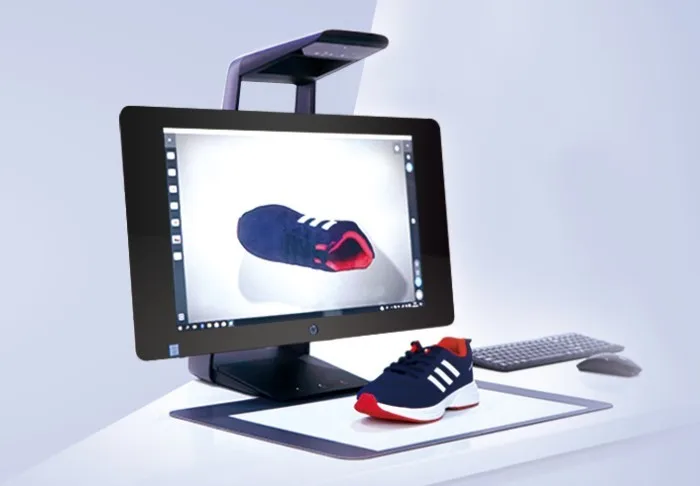

Model design

The user can acquire the 3D model of the object in a short time and perform model design work according to the 3D modeling results.
