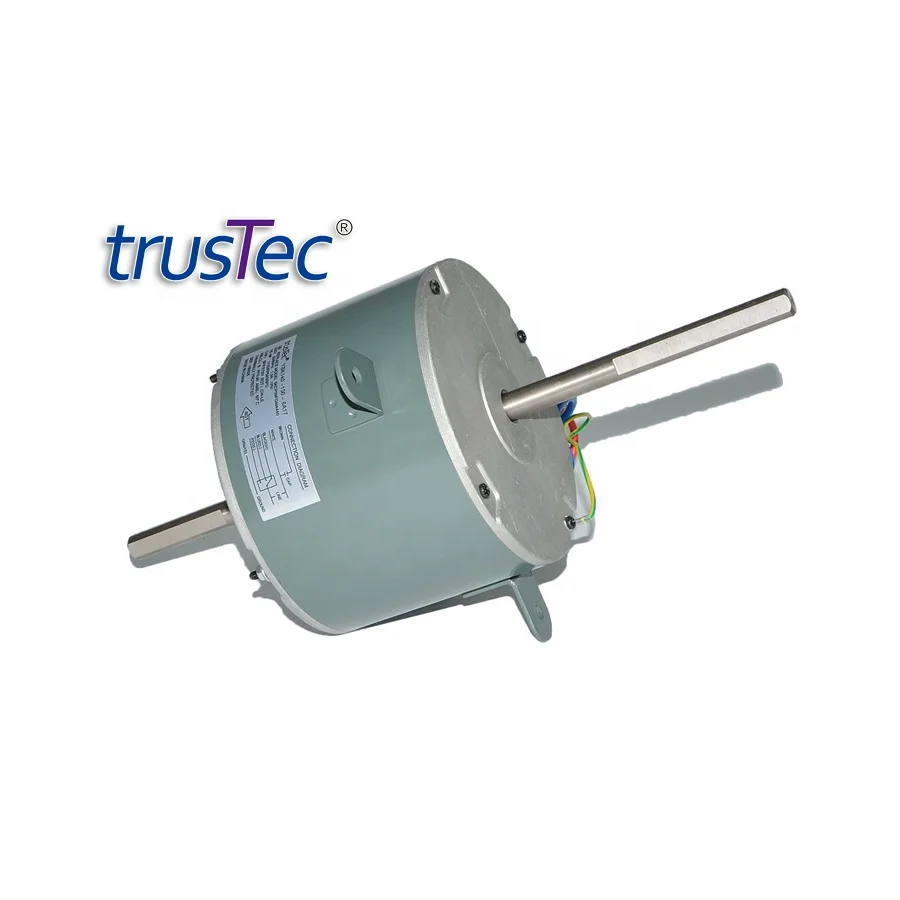

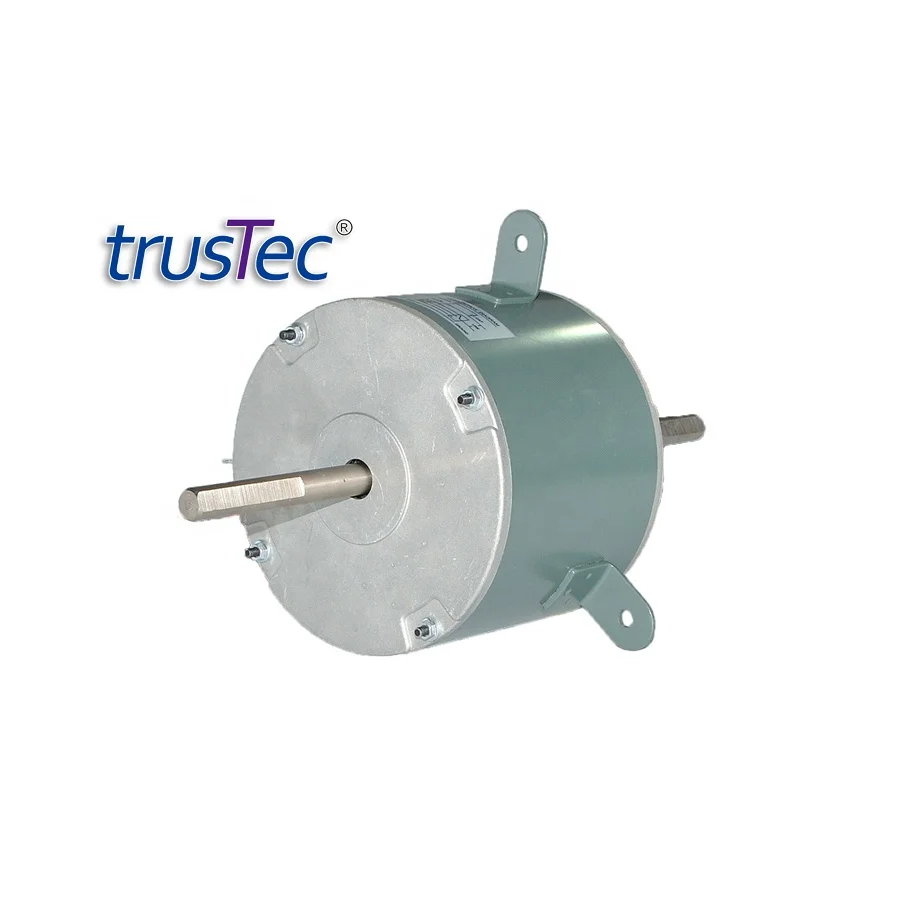

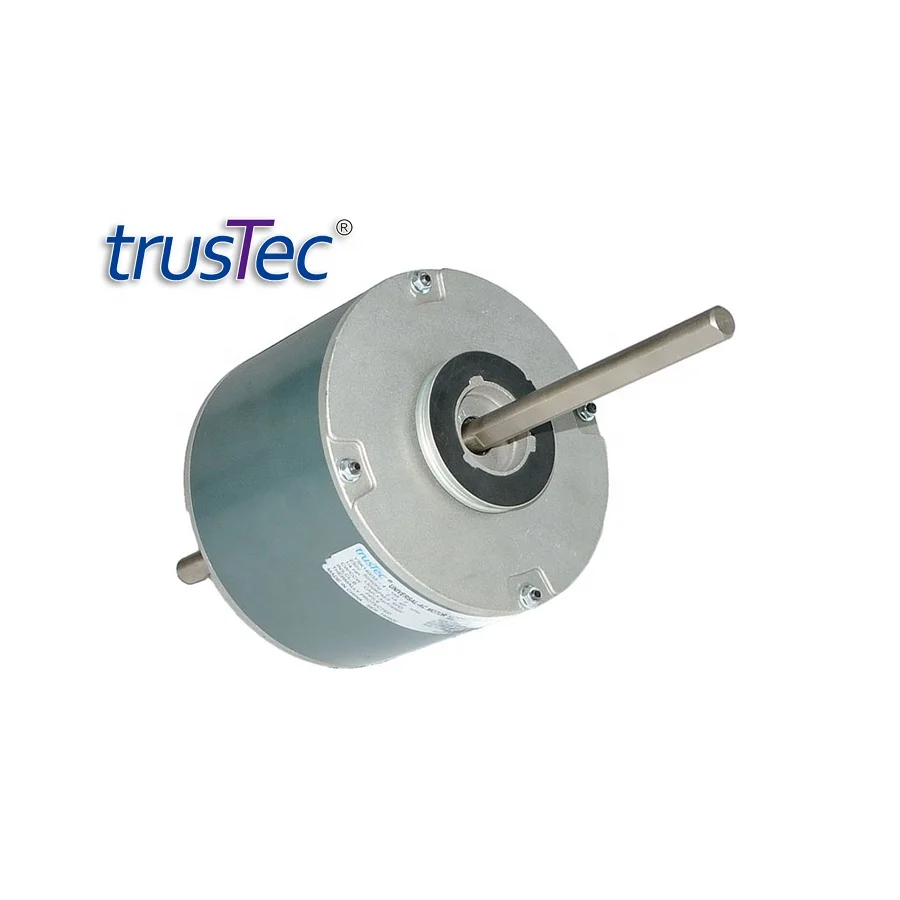

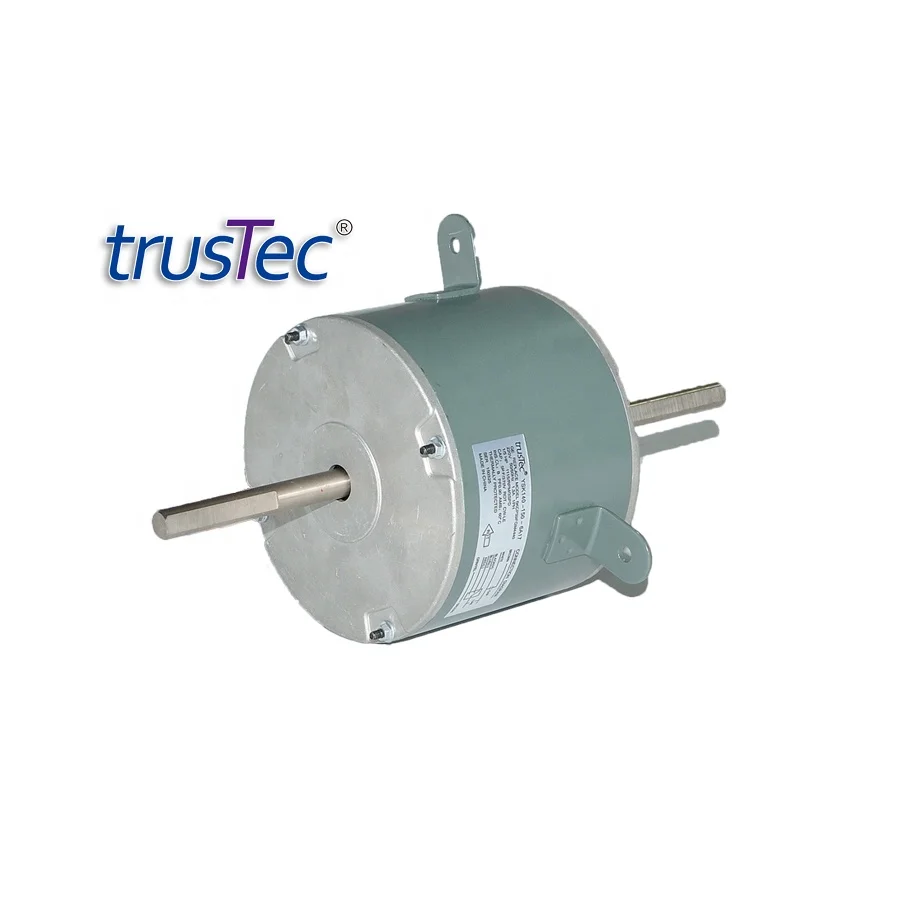

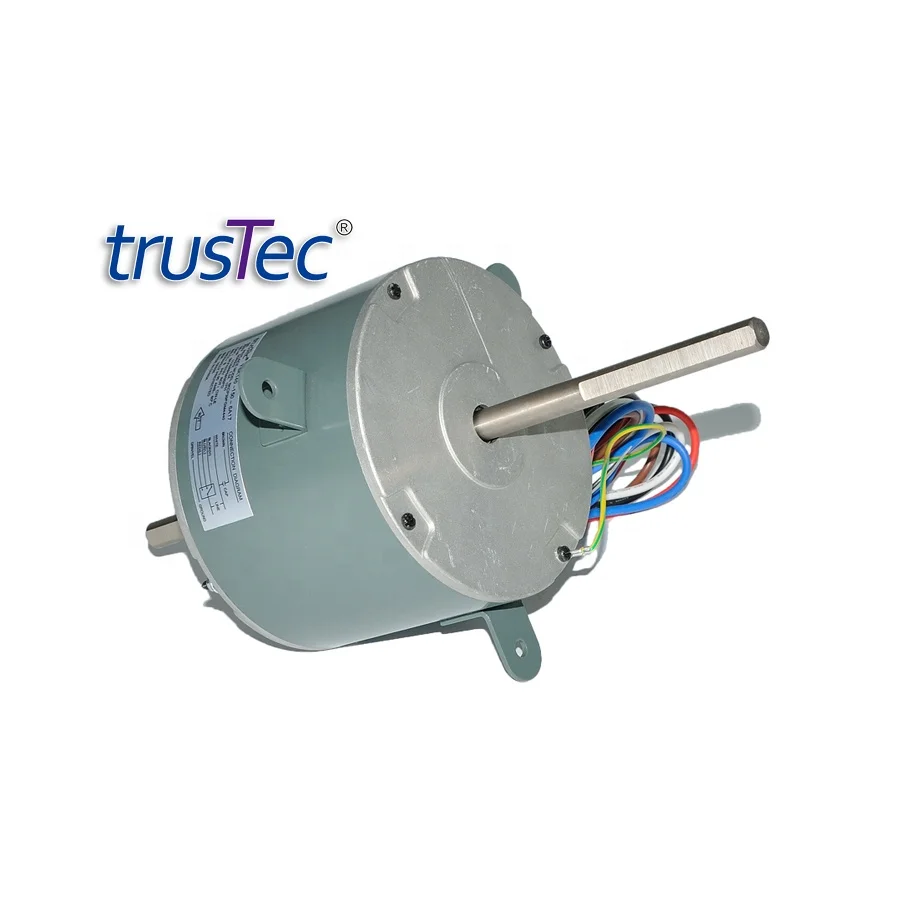

universal single phase asynchronous motor for air conditioner 250w
universal single phase asynchronous motor for air conditioner 250w
universal single phase asynchronous motor for air conditioner 250w
universal single phase asynchronous motor for air conditioner 250w
universal single phase asynchronous motor for air conditioner 250w
universal single phase asynchronous motor for air conditioner 250w
universal single phase asynchronous motor for air conditioner 250w

universal single phase asynchronous motor for air conditioner 250w

Share on (62031307516):


Price:

Quantity:


Product Overview

Description


Product Details

Listed are representative parts of air conditioner fan motor, the outline can be customized according to customer's requirement.

Product Application:

Window type air conditioner and fresh air ventilation system.

Product Features:

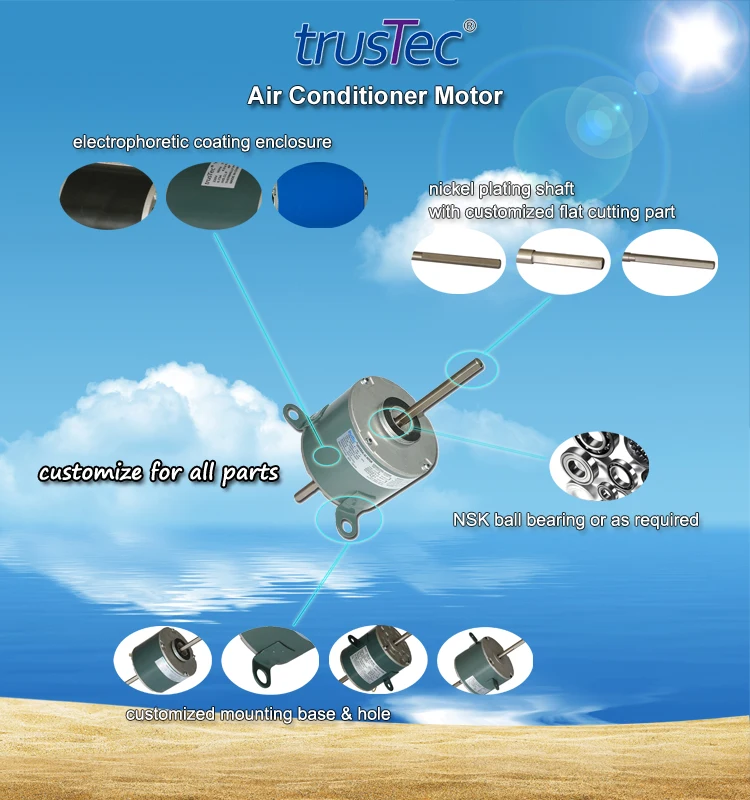

Use NSK low noise high quality ball bearing;
Nickel plating for shaft, electrophoretic coating for enclosure;

Reasonable structure, high efficiency, low temperature rise, low noise, small vibration.

Technical parameters:

\t
Model
\t
Voltage
V
\t
Frequency
Hz
\t
Output Power
W
\t
Speed
RPM
\t

YDK/YSK139/140
\t
115
208~230/240
460
\t

50/60
\t

100~1000
\t
200~3600
(1/2/3/Multi Speed)

Listed are representative motors, technical parameter and mounting dimension can be customized according to customer's requirement.

Our Products
\t
AC Motor Model
\t
Output Power
W
\t
Input Voltage
V
\t
Frequency
Hz
\t
Speed
RPM
\t
3.3''
\t
5~250
\t
110/115/120
208~230/220/240
380
\t
50/60
\t



200~3600
(1/2/3/Multi speed)
\t
YDK/YSK95
\t
6~40
\t
YDK/YSK110
\t
10~150
\t
YDK/YSK120
\t
30~300
\t
YDK/YSK139
\t
150~1100
\t
YDK/YSK155
\t
550~3000
\t
DC/EC Motor Model
\t
Input Power
W
\t
Input Voltage
V
\t
Frequency
Hz
\t
Speed
RPM
\t
EC094
\t
10~500
\t

24~480
AC/DC
\t

50/60(AC)
\t

200~10000
variable speed
\t
EC122
\t
200~2000
\t
EC139
\t
500~4000
\t
DC/EC Outer Rotor Motor Model
\t
Input Power
W
\t
Input Voltage
V
\t
Frequency
Hz
\t
Speed
RPM
\t
EC056
\t
2~100
\t
24~480
AC/DC
\t

50/60(AC)
\t



200~10000
variable speed
\t
EC074
\t
10~200
\t
EC083
\t
100~550
\t
EC112
\t
250~2000
\t
EC152
\t
500~4000
\t
EC200
\t
3000~7000
Product Application
Our Service

ODM

1. Depending on trusTec team's powerful designing and manufacturing ability, customers' special needs of the motors and fans, including performance parameters and mounting dimensions, will be perfectly fulfilled.
2. The beneficial ODM co-operative relation will be warmly established with trust and loyalty.

Quality Guarantee

1. All motors from trusTec are manufactured by strictly following the ISO9001 quality management system.
2. All motors enjoy at least 2 full years warranty since leaving the factory.
3. 100% replacement is guaranteed for any defect among the warranty period.

One-stop service.

1. Trustec company is not only a quality and competitive products manufacturing & sales enterprise, but also a reliable solution supplier for customers around the world.
2. From quick demand response, professional and high efficient following up, to helping optimize shipping & save cost, offering overseas technical support, trusTec will ensure customers the best matched motors and fans, as well as the best service.
3. Customers and partners will win the market without any worries behind, depending on trusTec team's after-sale service as a warm and powerful support.

Our Company

Changzhou Trustec Company is focus on the design and production of blower fan and motor over 10 years.
The monthly capacity can achieve to 100000pcs motors for HVAC&R line.
The brand name is trusTec, her lively meaning is to TRUST our Teams' Efficiency and Competence.
trusTec branded fan and motors have been exported to more than 60 countries and have been approved by the global markets.

FAQ

Q: Do you have the certificates?
A: All trusTec motors and fans have been approved by CE & ROHS, some have UL certification.


Q: How can you ensure the motor can drive the machine?
A: Our factory elaborately choose 100% pure copper wire and capacitor with appropriate volume, our professional manager is able to provide you accurate purchase guide.


Q: How can you control the noise?
A: Our producers carefully check the drawing and process the shaft and end cover; our inspectors check the dynamic balance repeatedly.


Q: How can you decrease the heat production?
A: Totally copper line lead to less heat production; IP55 class insulation paper avoid cutting-out; multiple inspections ensure no carelessness exist; professional application guidance.


Q: Do you attend exhibitions?
A: Every year we attend 4-5 HVAC&R fairs held in Asia, Europe, Mid east and America.
When you want to approve us, you can visit the exhibition nearby or directly visit us in China.
