Wholesale RGBW 4 in 1 led strip , 24V RGBW 4 chip in 1 flexible strip, RGBW Strisce led

Share on (62031449189):


Price:RUB 376.69 - RUB 753.38

Quantity:


Product Overview

Description

Product Information



 RGBW 4 in 1 led strip , 24V  RGBW 4 chip in 1 flexible strip,  RGBW Strisce led

1. Unique R/G/B/W in one LED

2. High CRI for W/WW

3. CE&RoHS

4. 3 year warranty



RGBW 4 in 1 led strip , 24V  RGBW 4 chip in 1 flexible strip,  RGBW Strisce led

1. High brightness 5050RGBW in one LED as light source;
2. CRI for white color Ra>90;
3. CE, RoHS;
4. Long lifespan with 3 year warranty





Other variants of RGBW led Strip as follows:



1. 5050RGB+3528 W/WW ,120 LED/m, Double rows,one row 60PCS 5050 RGB+one row 60pcs 3528 white;

2. 5050RGB+5050 W/WW ,96 LED/m, single row, one RGB+ one white;

3. 5050 RGB+5050 W/WW, 120 LED/m, 60pcs 5050 RGB+60pcs 5050 W/WW,double row;





RGBW 4 in 1 led strip , 24V  RGBW 4 chip in 1 flexible strip,  RGBW Strisce led   :

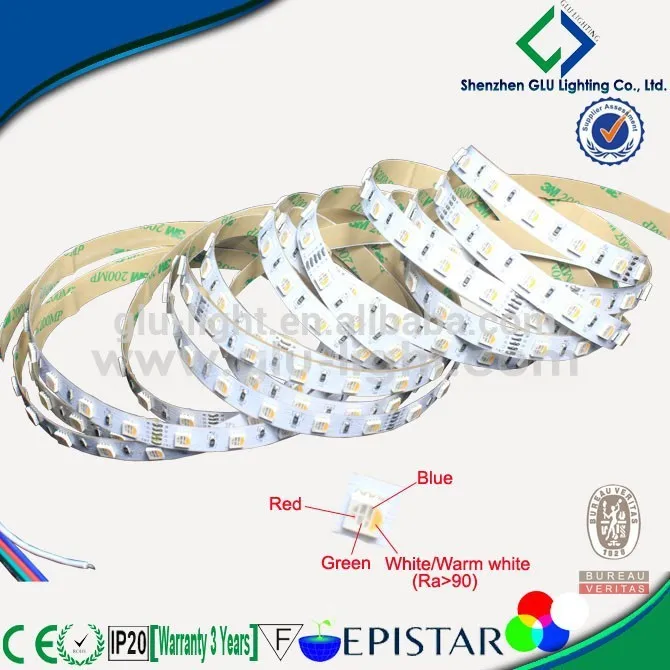

1. Unique LED source:we use unique Red/Green/blue/white in one LED as light source.
2. Double-faced soft FPC with thicker copper layer.
3. Flexible in length suitable for different applications.
4. DC24V with 12mm PCB width.

5.By using special 4 channel controller can achieve different lighting effect;

6. Environmental friendly: complied with CE and RoHS standard without harmful substance, such as lead or Mercury etc.
7. 3 Years warranty.







RGBW 4 in 1 led strip , 24V  RGBW 4 chip in 1 flexible strip,  RGBW Strisce led   Feature:













RGBW 4 in 1 led strip , 24V  RGBW 4 chip in 1 flexible strip,  RGBW Strisce led  technique data



Absolute Maximum Rating at TA=25°C

Parameter

Symbol

Absolute Maximum Rating

Unit

Forward Current

IF

0.6

A

Forward Voltage

VF

DC24V

V

Electrostatic discharge

ESD

400

V

Operating Temperature

Topr

-25~+60

°C

Storage Temperature

Tstg

-40~+80

°C



Electrical / Optical Characteristics at TA=25°C

Part No.    Color CCT/WLDLumen FluxCurrentPowerView Angle
FTBN-RGBW-60  W  2800-7000K320lm    3A  72W       120°
       R  620-625nm  402lm
       G  520-525nm
       B  465-470nm



Note: 1. The lumen flux tolerance is ±5%;

          2. The data above is based on 1 meters;

     3. Test Temperature (Ambient temperature: TA=25°C)











RGBW 4 in 1 led strip , 24V  RGBW 4 chip in 1 flexible strip,  RGBW Strisce led   dimension





RGBW in one.jpg

Notes:

1. All dimension units are millimeters.

2. All dimension tolerance is ± 0.5mm unless otherwise noted.













RGBW 4 in 1 led strip , 24V  RGBW 4 chip in 1 flexible strip,  RGBW Strisce led  Connection Diagram










Product Details








New Unique RGBW Strip.jpg











 RGBW 4 in 1 led strip , 24V 5050 RGBW 4 chip in 1 strip,  RGBW led light tape    Application





For Flexible Strips, they can be used as edge light, cove light, furniture light, sign light, backlighting for AdWords, lighting box etc., and widely used as decorative lighting for building outline, sidestep, exhibition stand, hotel, KTV, club etc. And also DIY Light for household use.










Packing Information















Our related products:





Hotsale led strip as below:





5630 Strip ( 0.5W per led, 50-55lm per led)  (30/60/120/180leds/m and CCT adjustable led strip),2835 Strip ( 0.2W per led, 22-24lm per led)  (60/84/120/168leds/m and CCT W+WW adjustable version).
