12V 1 Channel Touch Relay Module Capacitive Touch Switch
- Category: Switches >>>
- Supplier: Shenzhen Ruiqi Electronic Co. ltd
Share on (62031451429):
Product Overview
Description
Product Description

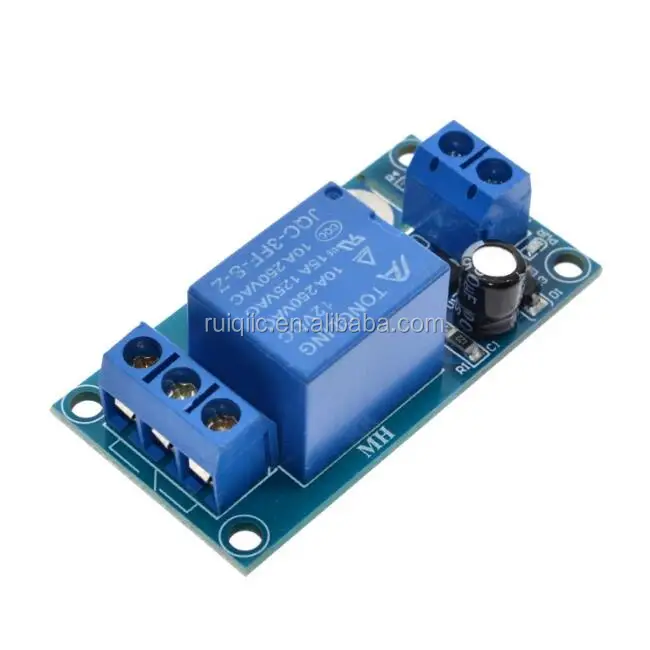

12V 1-Channel Touch Relay Module Capacitive Touch Switch
Module features:
1.Self locking type: self locking is touch, relay, and then touch, the relay closed. (similar to the touch key function).
2.Low power consumption.
3.Positive and negative can be used as a touch surface, and can replace the traditional touch keys.
4.4 kinds of 3MM screw positioning holes, easy to install.
5.Indicator:Red LED, power indicator; Green LED, lights when touch.

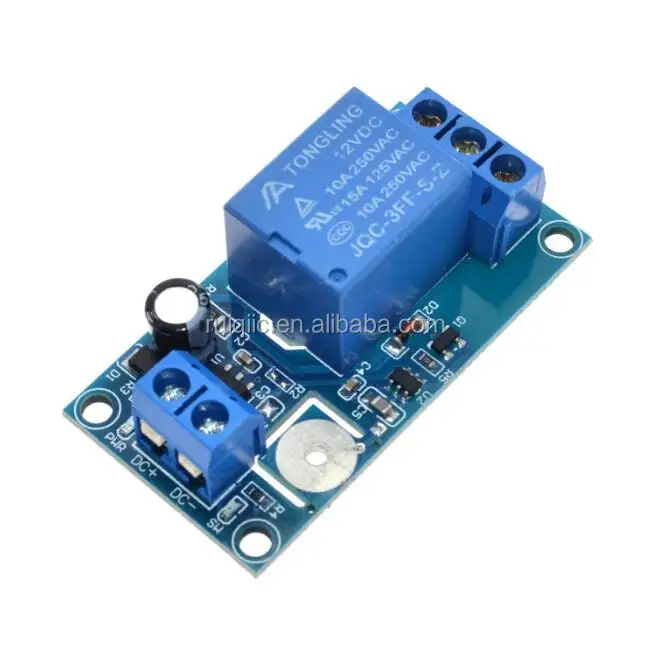

6.Touch area:Blank circular area, fingers gently touch can be triggered; also available leads to trigger.
7. Output form: load directly connected with AC 220V 10A or DC30V 10A.
8. Positioning hole: 4 M2 screw location hole, aperture 3mm, the module is convenient for mounting and positioning.
9. PCB size: 50mm*26mm
10. Electrical parameters:
Voltage version Quiescent Current Working current
5V 2.5mA 60mA
11.Relay contact capacity: 250V 10A (AC) or 30V 30A (DC) (theoretical is maximum load capacity), connected AC power should below 1500W, and DC should below 200W.

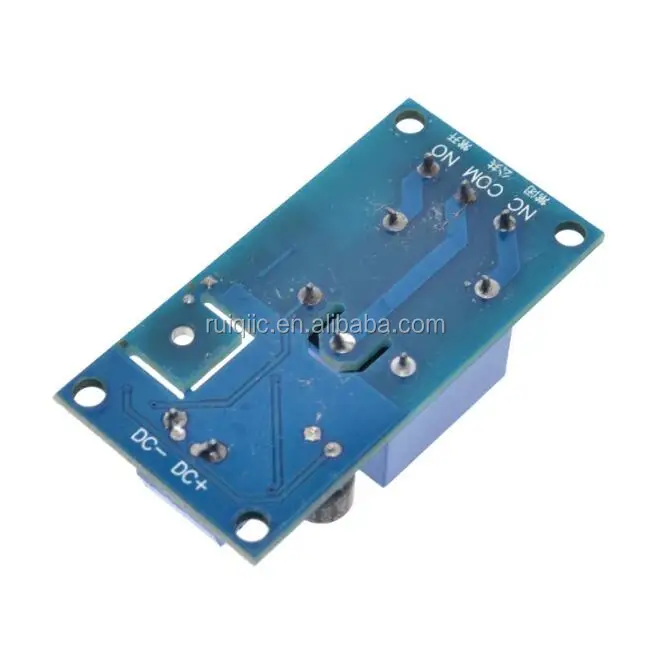

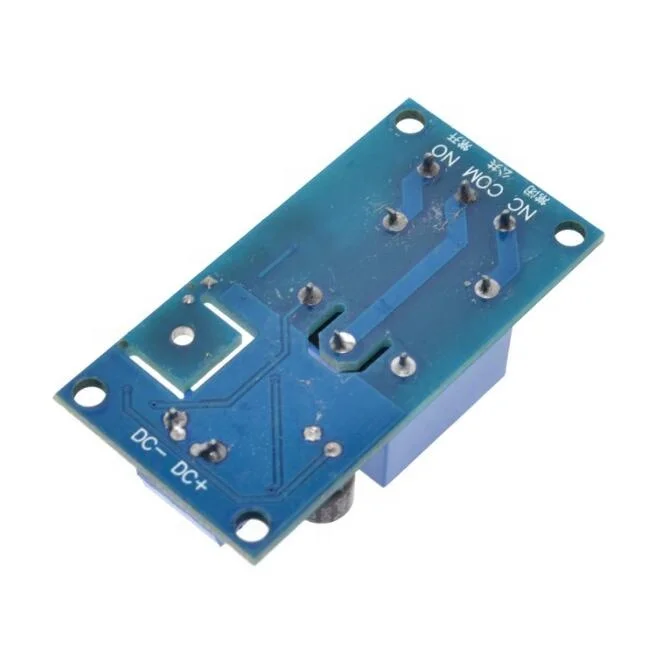

12.Module interface:
Input part:
VCC: Connect power positive
GND: Connect power negative
Output part:
Normally open(NO):Normally open relay,when the relay does not suck, disconnected with the common port,connected with the public port when turned on;
Common port(COM):The public port of relay;
Normally closed terminal(NC):Normally closed terminal of relay,connected with common port when relay does not turn on,and disconnected with common port.
Normally open wiring methods.
