New designed horizontal electrostatic automatic powder coating paint gun reciprocator robot

Product Overview

Description



New designed horizontal electrostatic automatic paint gun  robot



Electrostatic powder paint equipment  with automatic powder coating gun,especially designed to meet the requirements of serial production in powder coating, where reliability in automated operation, easy to handle operation and security are the most projecting advantages for the user.

The type and the number of installed control units could make as your requirements.

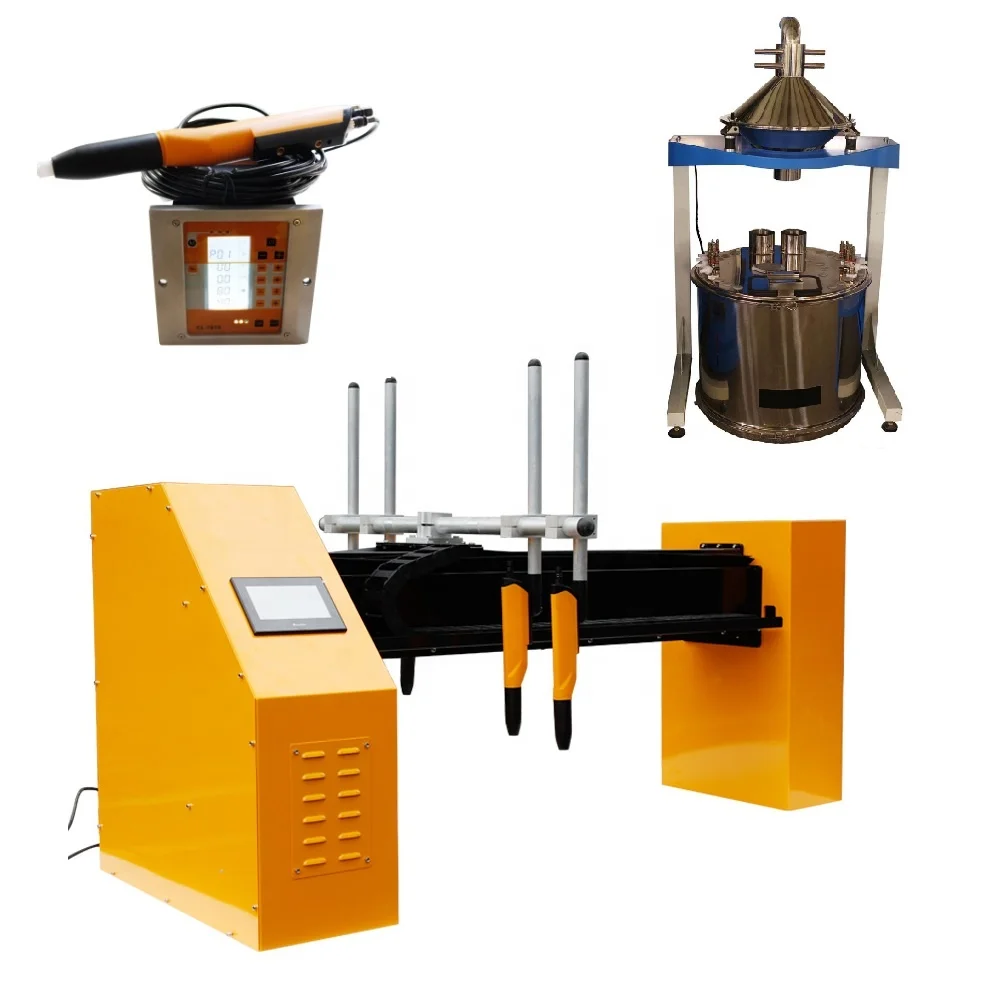

The equipment included :





1,Auto Powder Spray Gun Lifter and China Reciprocator

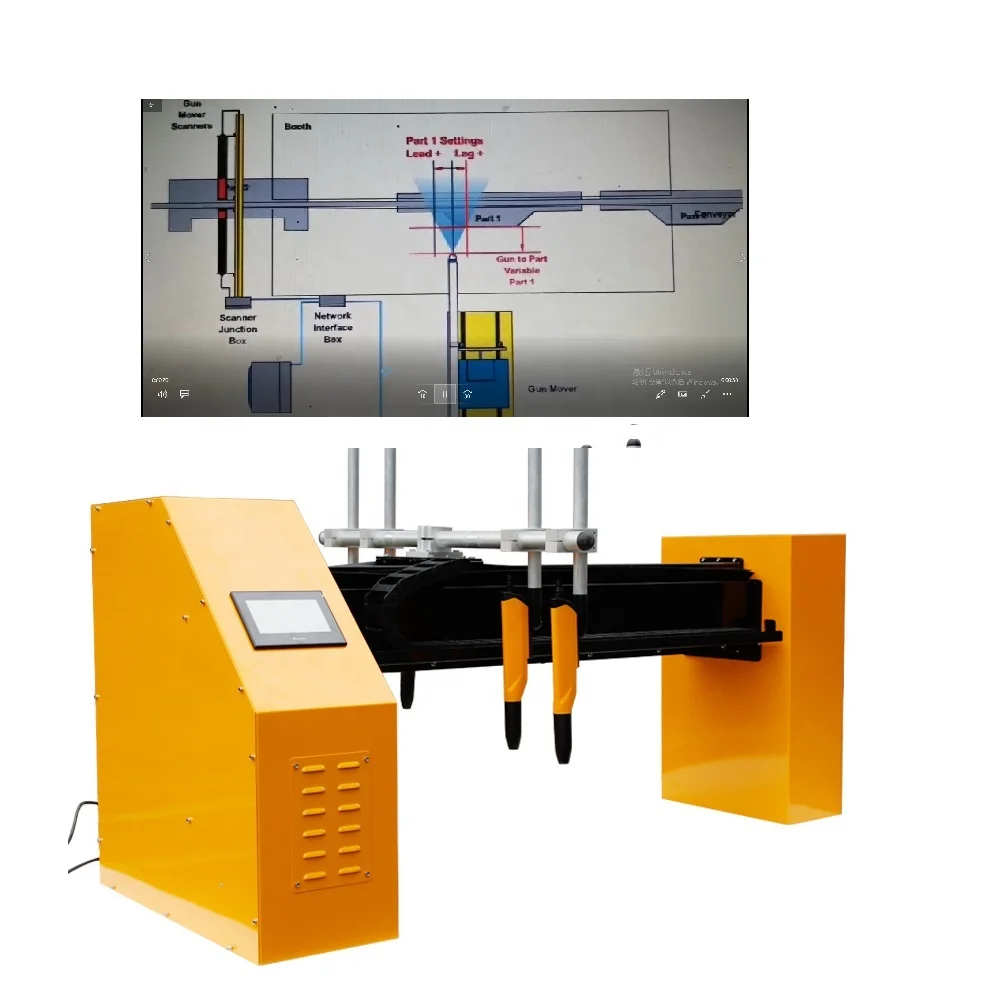

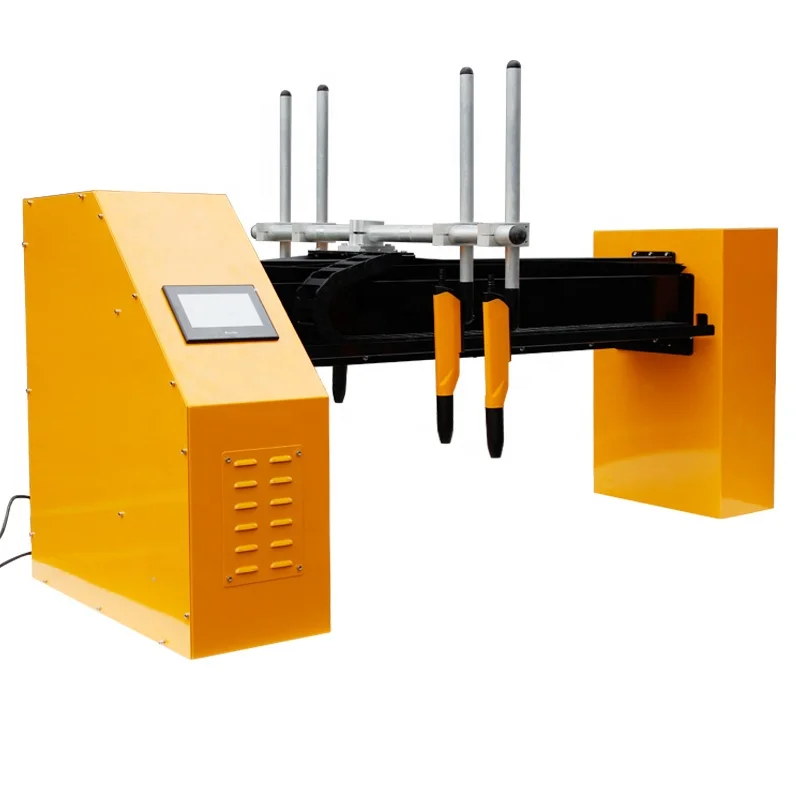

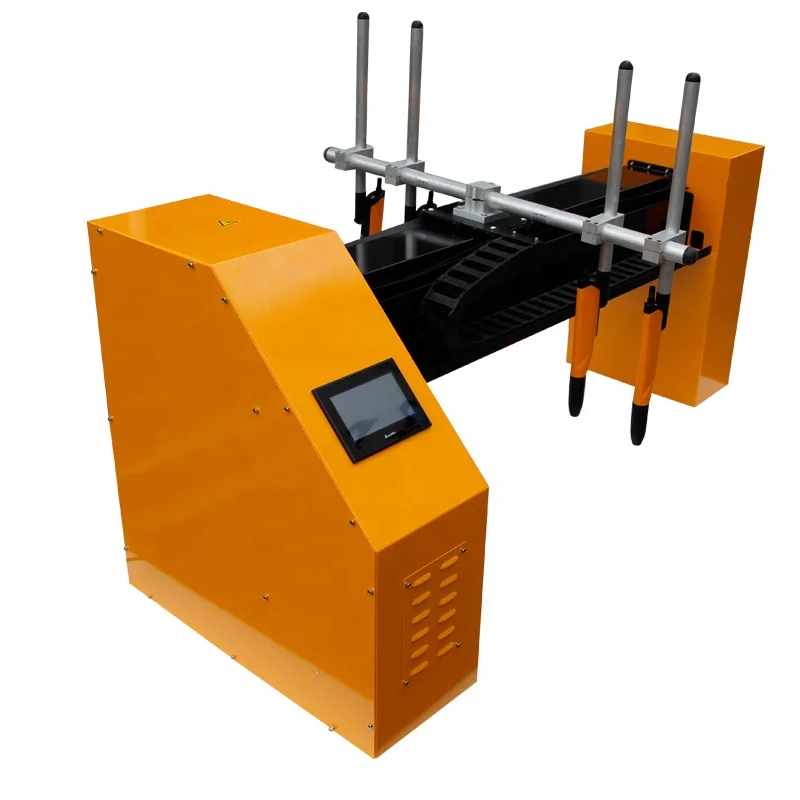

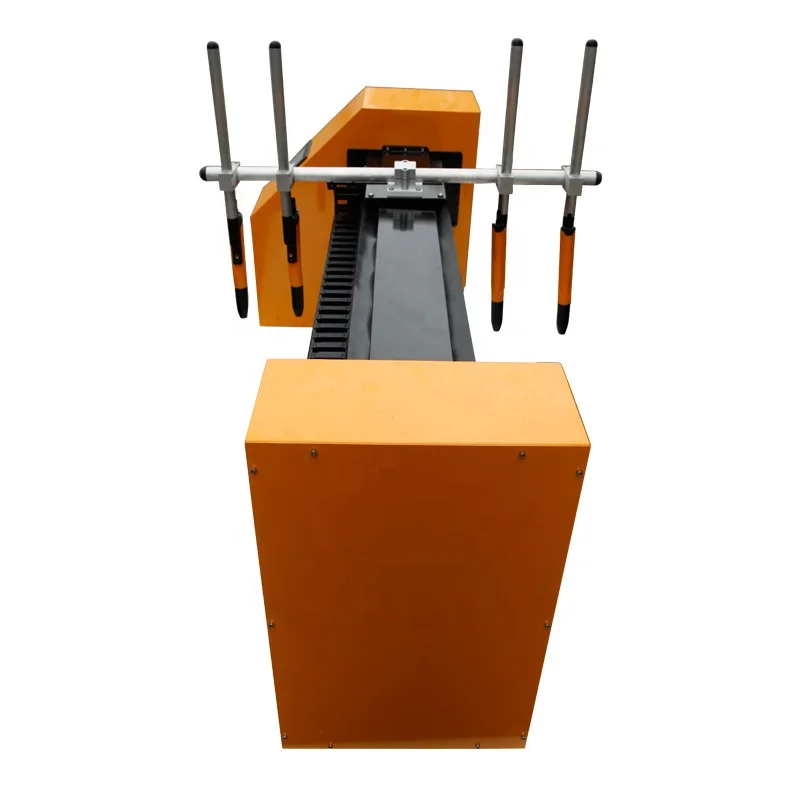

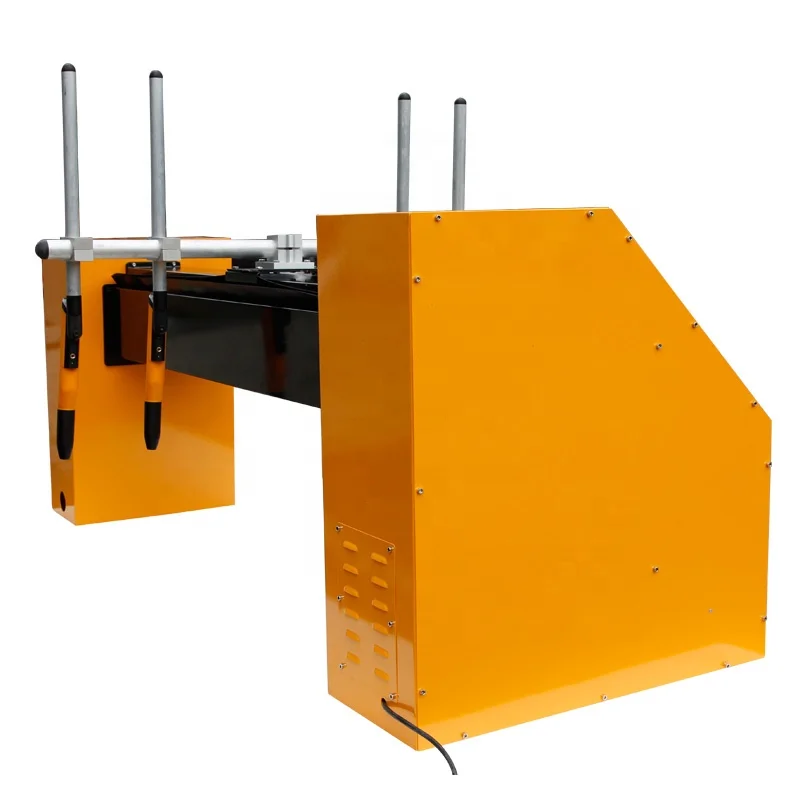

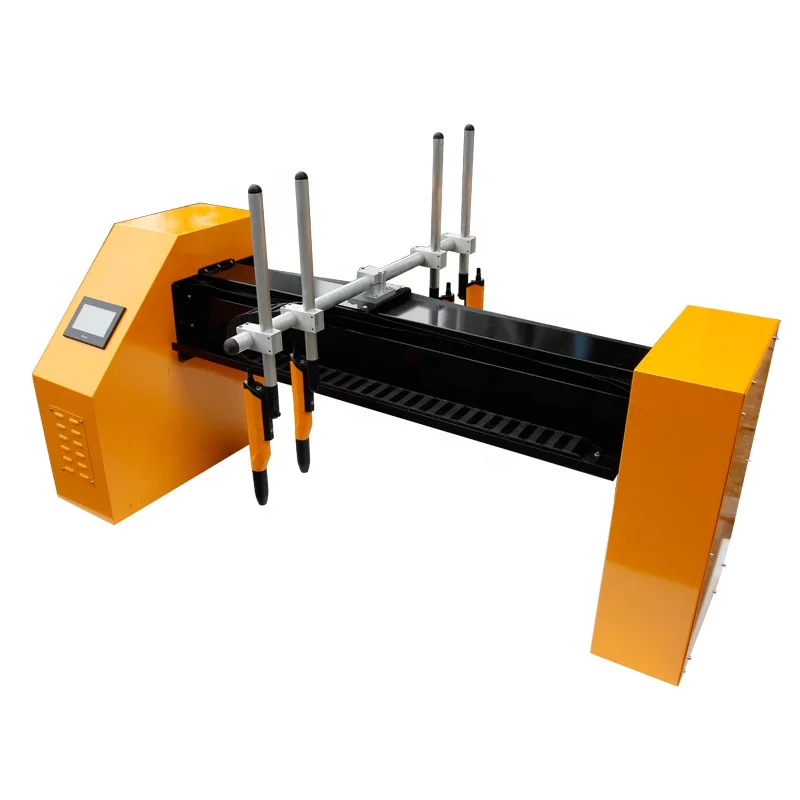

Reciprocator for powder coating line



Move to a new level of powder coating efficiency with the Reciprocator.

Summary of Benefits:

Increased Uniformity Advanced digital control.

Smooth, Swift and Precise movement for speedy and uniform coating.

Reduce powder consumption.

Quick Job Change Pre-programmable preset settings for automatic selection of stroke and speed.

User-friendly touch screen control to control speed and stroke length.

Adjustable counterbalance weights allow perfectly balanced gun movement.







powder coating equipment Function description

the powder gun through the powder hose . The powder is electrostatically

charged at the nozzle of the gun. In addition, an electrostatic field is

created between the gun nozzle and the grounded object. The charged

powder spray remains adhered to the surface of the object.

The powder is fluidized by air forced through a porous plastic plate from

below. The powder acquires, thereby, fluid-like characteristics.

The conveying air, supplementary air, and rinsing air are set on the control

Unit

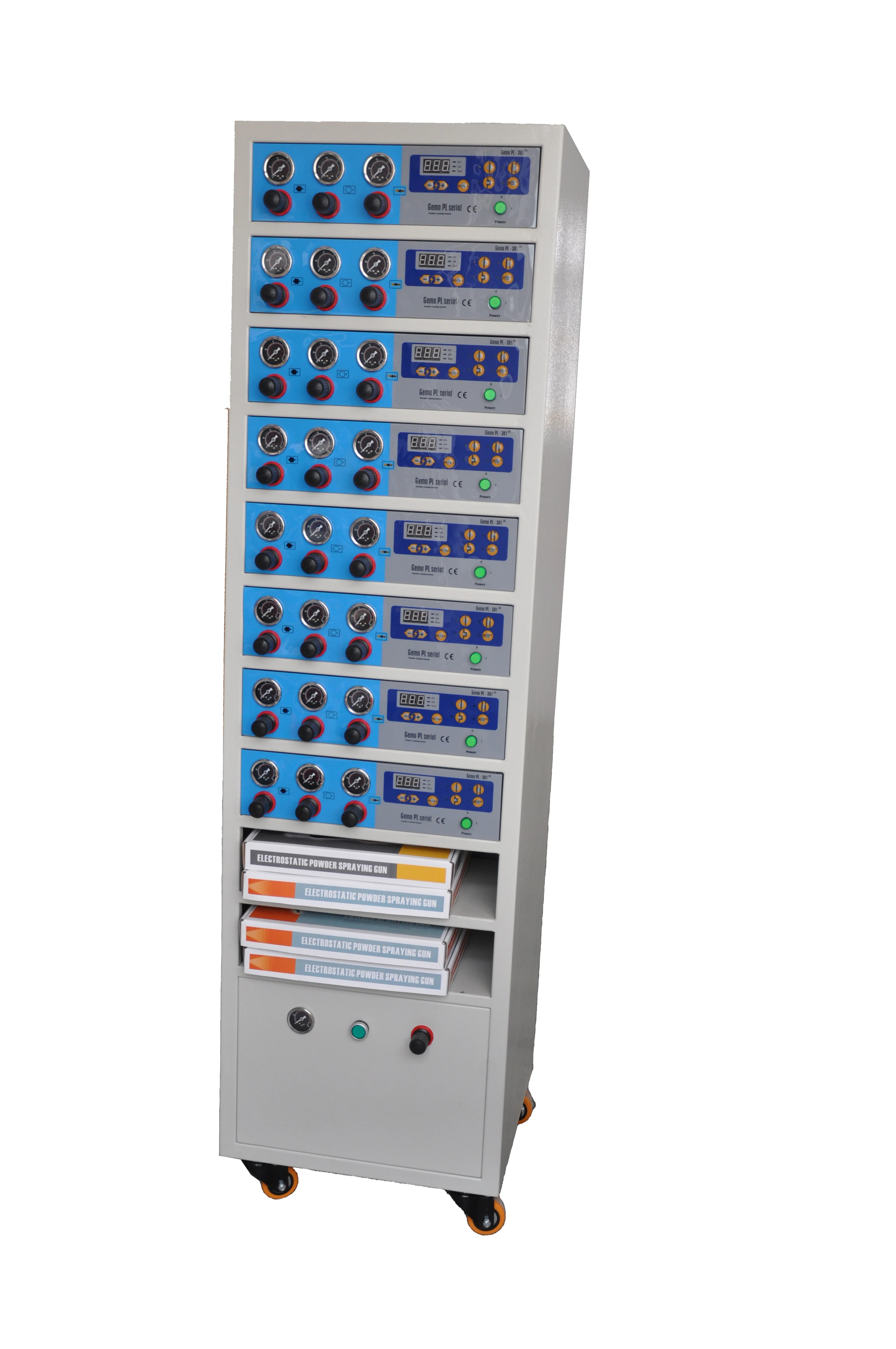

2,And the Central automatic spraying control cabinet  also could avaiable

for 4 ~ 10 sets electrostatic powder coating spray equipments.











 3,The automatic spray gun could be several models





Electrical data
Mains input voltage	100-240 VAC
Operating frequency	50-60 Hz
Input power	50W
Nominal output voltage (to the gun)	max. 12 V
Nominal output current (to the gun)	max. 1 A
	IP54
Ambient temperature range	0°C - +40°C (+32°F - +104°F)
Max. operating temperature	85°C (+185°F)
Approvals	CE
Pneumatical data
Compressed air connection	1/4" male quick release
Max. input pressure	10 bar / 145 psi
Min. input pressure (while unit in operation)	6 bar / 87 psi
Max. water vapor content of the compressed	air 1.3 g/m³
Max. oil vapor content of the compressed air	0.1 mg/m³





4,Automatic powder cycling and recovery system could avaiable,you could order .





Powder sieving machine- Used in powder coating area, to go with the Automatic



reciprocator.
To Automatic recycling the powder lost in the process
