Product Overview
Description

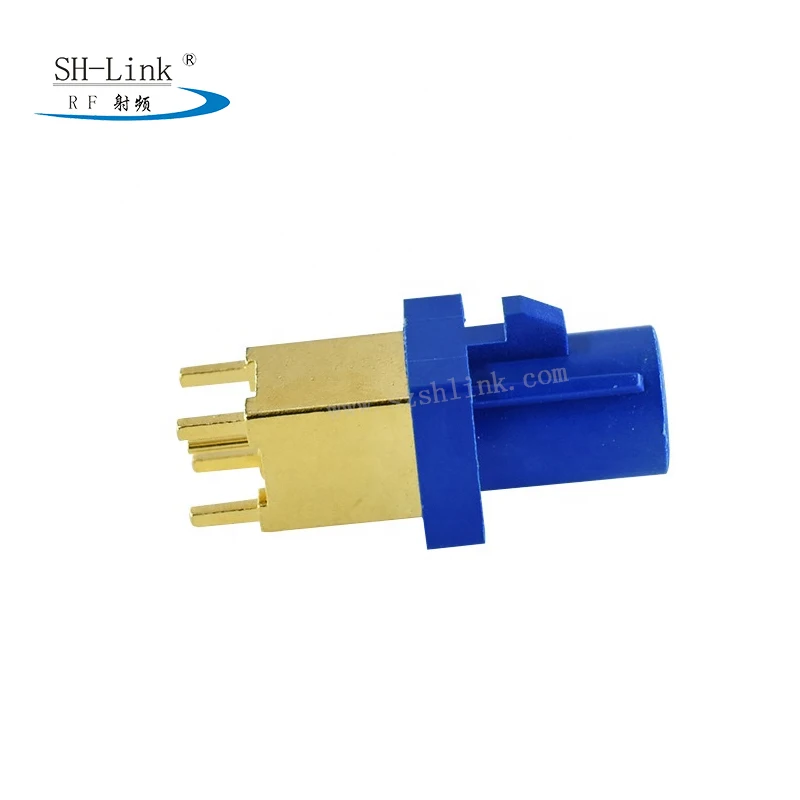

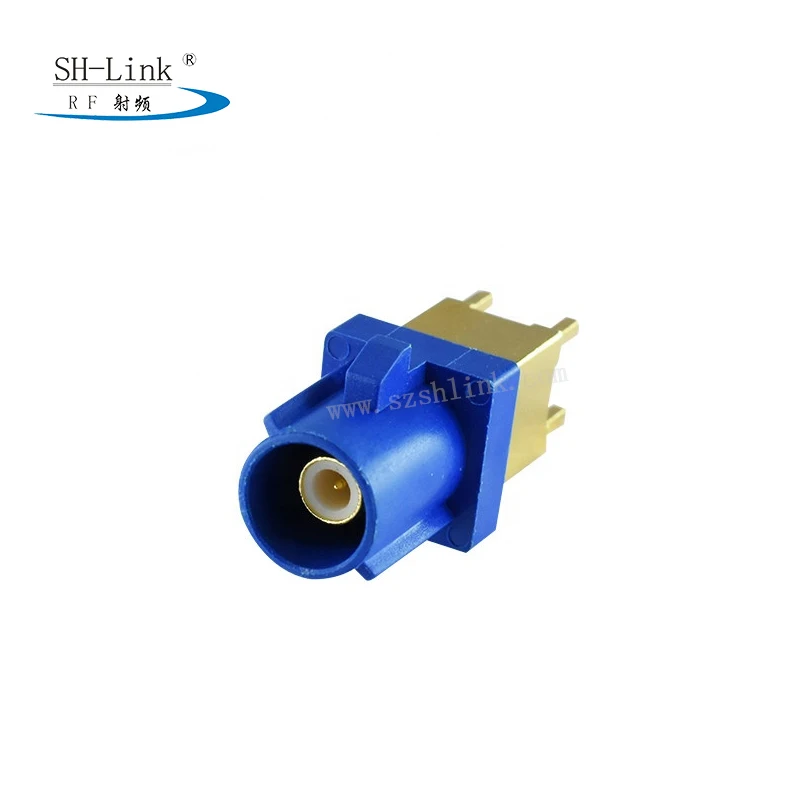

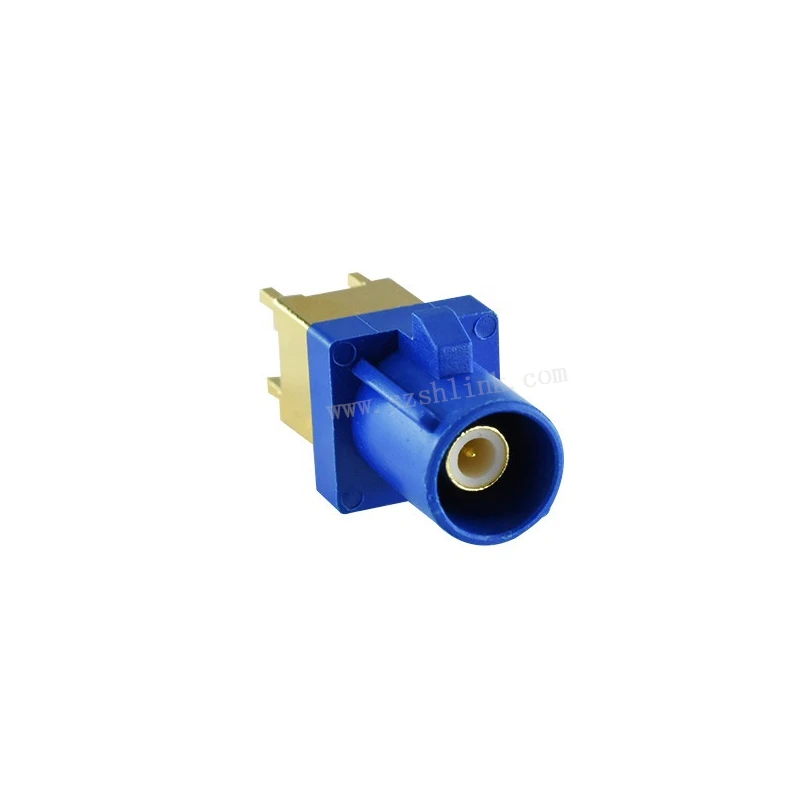

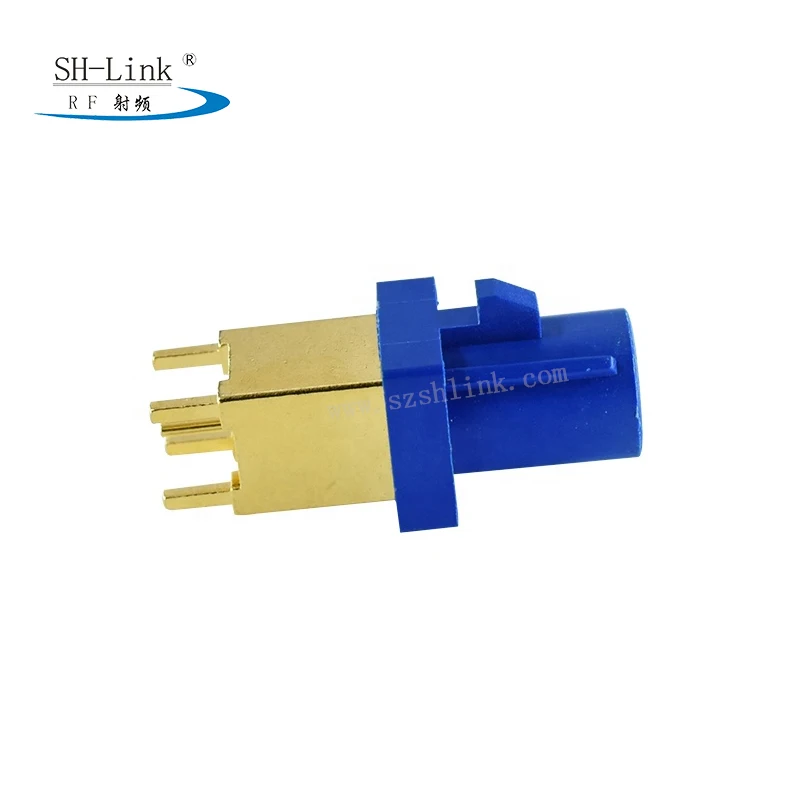

FAKRA SMB-50JE C type for pcb connector supplier
Description:
FAKRA connector is one of the auto parts. They are widely used in GPS, Remote control, car phone, car TV, hi-fi equipment, antennas, etc. It is mate with the same colors or connector and socket, and the structure is to be double-locked and fool-proofing for them.
Major characteristics:
Double-locked, fool-proofing assembly with the color and the structure The connector is be protected by the cap . Easy to assembly Many difference between the connector and the cap. | |
The product technical characteristics: | |
Body: | Brass, Ni-plated |
Socket: | beryllium-copper, Gold-plated |
Pin contact: | Brass |
Insulator: | PTFE |
Crimp ferrule: | brass, Ni-plated |
O-ring: | beryllium-copper |
Shell: | PA66+30%GF |
Technical characteristics |
|
Impedance: | 50Ω |
Frequency Range: | 4GHz |
Withstanding Voltage: | 1000V(RMS) |
Contact resistance: |
|
Center contact: | ≤ 20m |
Outer contact: | ≤10m |
Insulation: | ≥1,000MΩ |
VSWR: | DC - 2GHz<1.2 |
Mechanical characteristics: |
|
Assembly: | locked |
Durability: | ≥ 500 cycles |
Temperature: | - 40 - +85°C |
