Paper Towel Making Machine Toilet Tissue Rewinding Machine 2 4tons/day Production Capacity 4 Pcs 100 300 Mm 1 4 Sets /

Toilet paper full embossing roller slitting rewinding machine is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area. The highest production speed is 200-250M/min.

It has HMI, Chinese-English switch; synchronous frequency conversion drive;integration of mechanics,electrics and photo. It is equipped with whole trouble information. It can detect and adjust every action of the rewinder automatically to keep the rewinder in optimal situation.For example:There is a web tension system in the line,It can control speed according to the tension of web so it can adapt different type of jumbo roll.So it is the best choice to produce top-grade bathroom tissue and kitchen towel for paper company.

Technical Parameter:

Model	1400mm, 1500mm, 1800mm, 2000mm,2200mm,2800mm, 2900mm
Jumbo roll width	1350mm,1450mm,1750mm,1930mm,2150mm,2750mm,2850mm
Max. diameter of jumbo roll	≤ 1500mm (other size to be specified)
Jumbo roll core size	Φ76mm (other size to be specified)
Finished roll diameter	Φ 90-300mm(Tightness is adjustable)
Finished roll core diameter	Φ 35-80mm

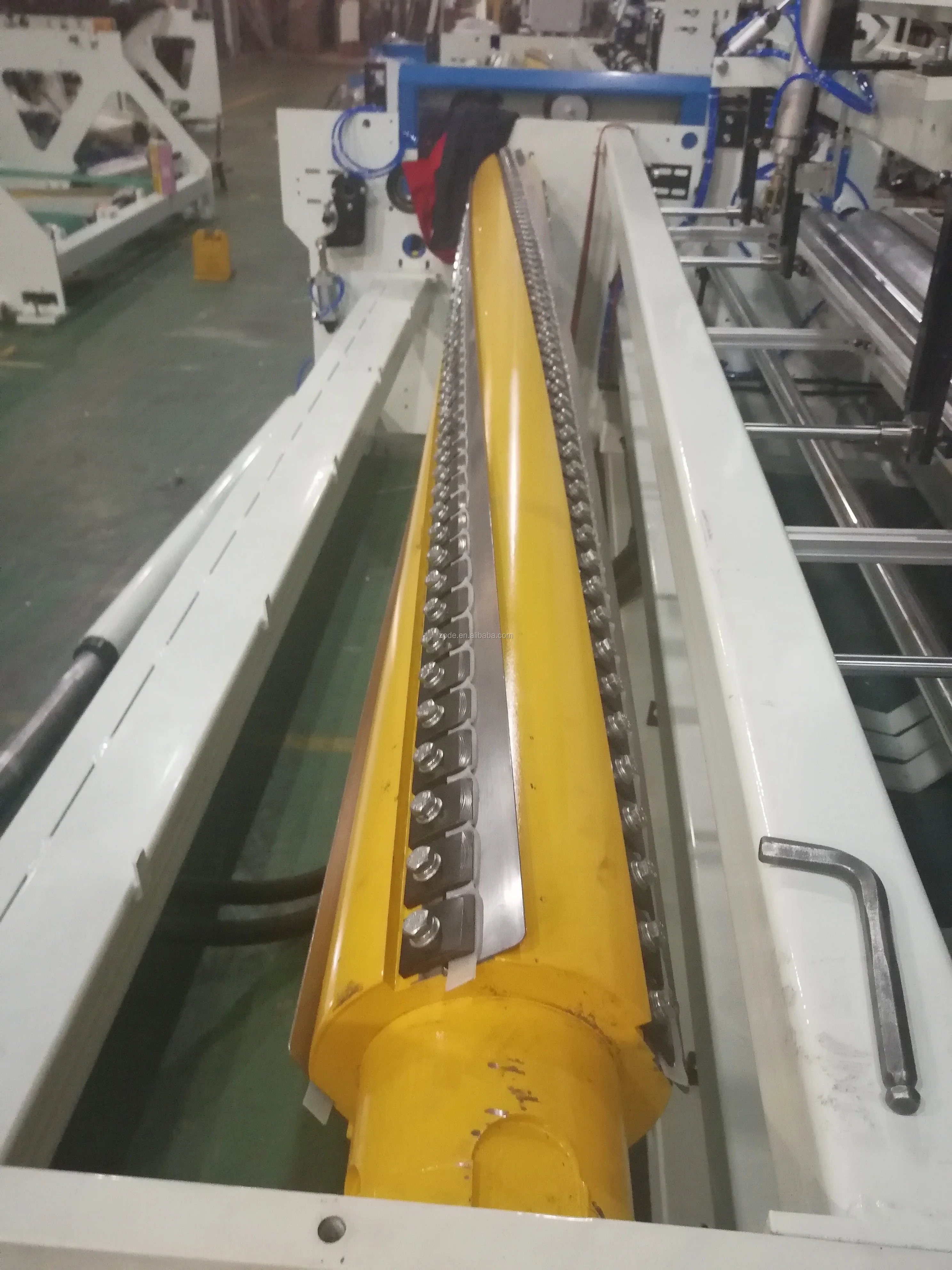

Perforation distance	4 blades, 90-160mm, 180-300mm
Lamination device	Steel to rubber glue lamination roller
Full embossing device	Steel to rubber full embossing device



Details:

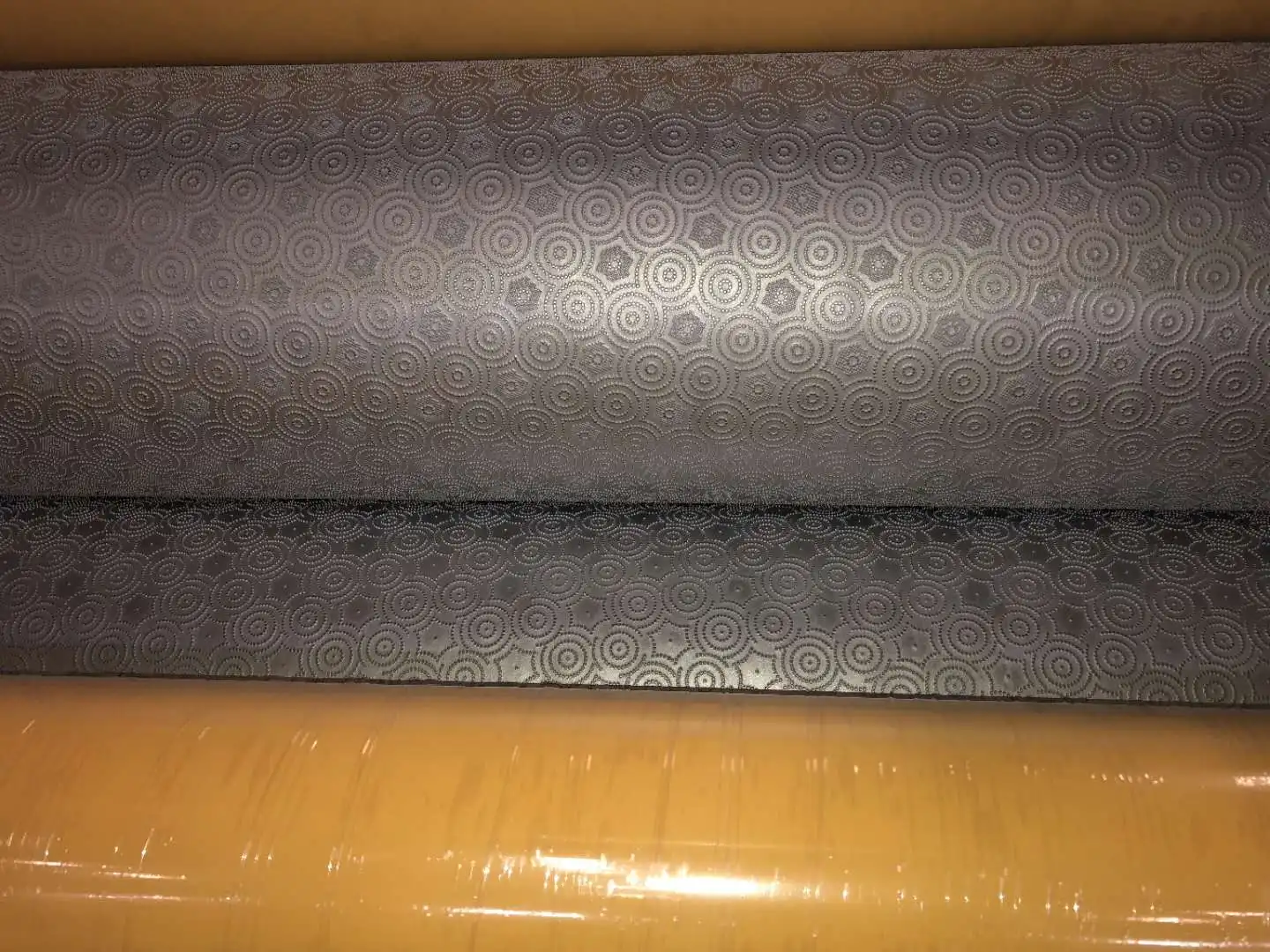

Full embossing device

This embossing unit can engrave the pattern without color,the diameter of roller is 240mm, and the pattern is engraved by computer, it it very clear and regular.



















Jumbo roll stand

Independent wall-type jumbo roll stand, stucture is simpler and stronger, easy to clean. It is controled by the independent frequency motor, and the tension is tracked by the encoder.















Glue lamination device

This glue lamination unit can add colors, but one glue lamination can only engrave one kind of pattern, the diameter of the embossing rollers are 394mm.And the pattern is engraved by computer, it it very clear and regular.

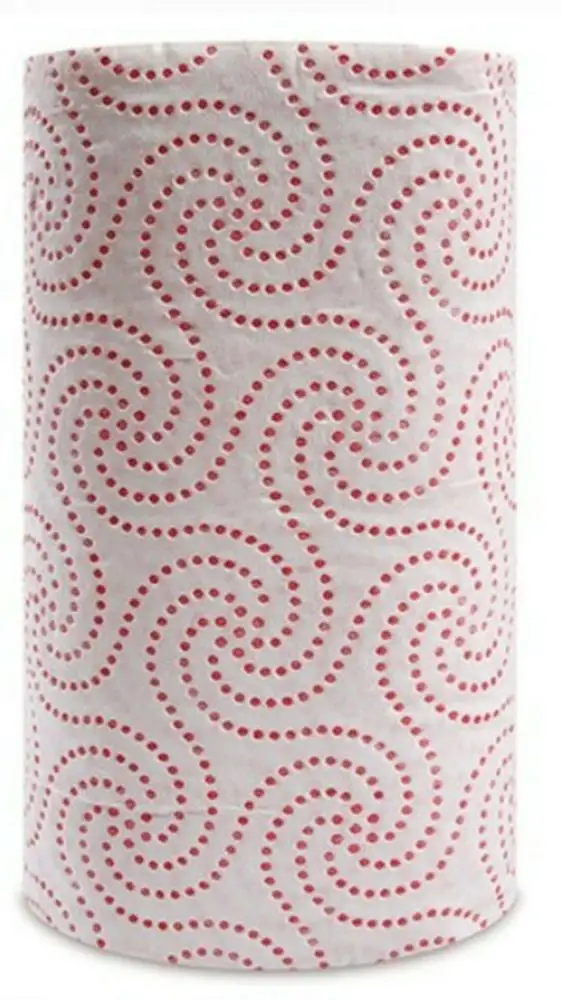

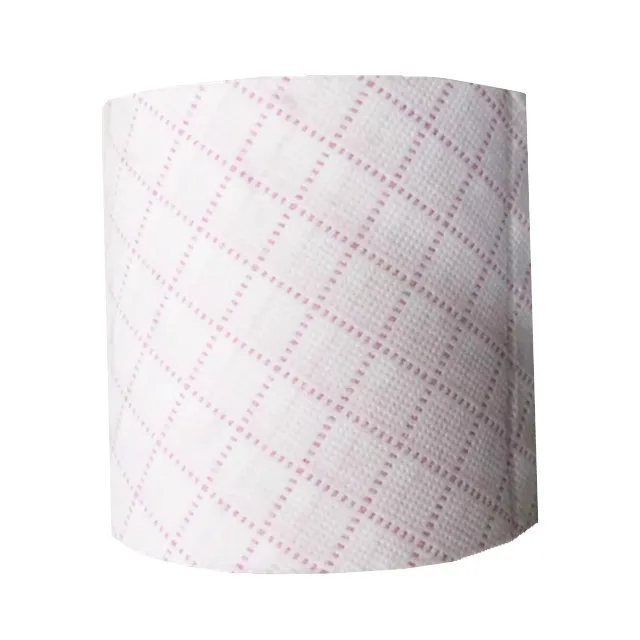

Pattern can be any logo, words, flowers,etc

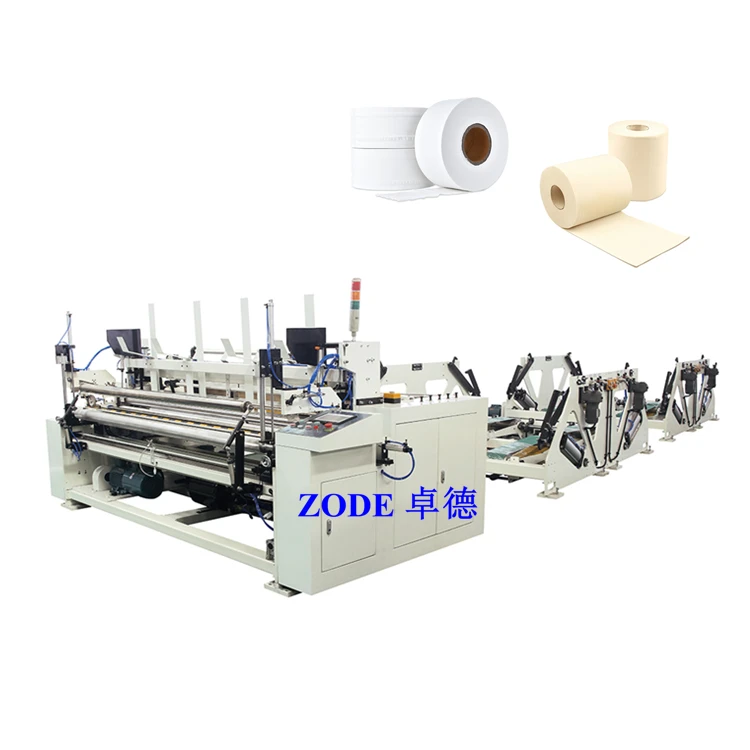

Real machine model:

1 rewinding unit + 1 glue lamination unit + 2 full embosing units + 2 junbo roll stands





Toilet paper making mahcine production line:



Related products:







Zhuode Machinery had passed international certification I S O 9 0 0 1 and several national invention patents, with full independent intellectual property rights. Our strength is our powerful research and development team that can rapidly customize unique solutions to meet the every changing market demands and individual customer needs.

Serve the facial tissue converting and packing production line, toilet tissue and kitchen towel rewinding and packing production line, napkin tissue folding and packing production line, diaper packing machine, jumbo toilet roll band saw cutting machine and other household tissue paper processing machine around the world. Our main market is Middle East, Southeast Asia, Africa, South America, Europe and America.

Factory:

Exhibition:

Certifications:

1. One year maintenance service.Any damage spare part can be exchanged from our company directly(excluding the easy damaged goods).
2. After one year, we will continue to assist you both on technical problem and the quality level for long-term.
3. The easy damaged goods will be along with the machine.
4. We welcome you to offer us the paper sample, we can design the machine in OEM.

1)Inside package is plastic film, outside is wooden or plywood case

2)full automatic instant porridge machine packaging is based on the customers' need).
3)Only plastic film nude packing with wooden pallet.
4)We can supply fumigation package and certificate.
5)Shipping, train, express or upon clients' demands.

1: Are you trading company or manufacturer ?
A: We are factory.

2: How long is your delivery time?
A:30-60 days after received a deposit, it is according to quantity.

3: Do you provide design ?
A:we can provide solutions to customers from products choosing, designing, installing and training.

4: What is your terms of payment ?
A: 30% T/T in advance , balance before shippment.

5. How much area the whole production line needs?

A: The best way is telling us your workshop area, then we will draw a draft for you to ensure the rational use of your space.

6. If the power supply is not 3ph 380V 50HZ, could you offer the suitable machine?

A: Yes, we can offer the suitable machine according to your power supply, for example 3ph 380V 60HZ, 3ph 415V 60 HZ, 3ph 220V 60HZ and so on.
