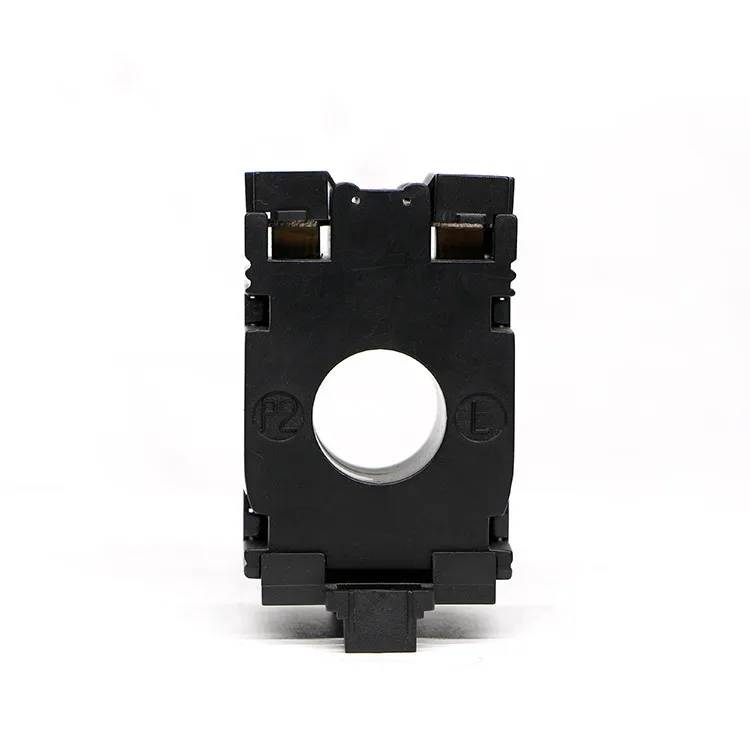

DM20 Current Transformer for Din rails 06KV Class 1.0 30/5A 50/5A 100/5A 150/5A
- Category: >>>
- Supplier: Yueqing Annai Electrical Co. Ltd.
Share on (62032065722):
Product Overview
Description
AF Miniature CT
Product Description

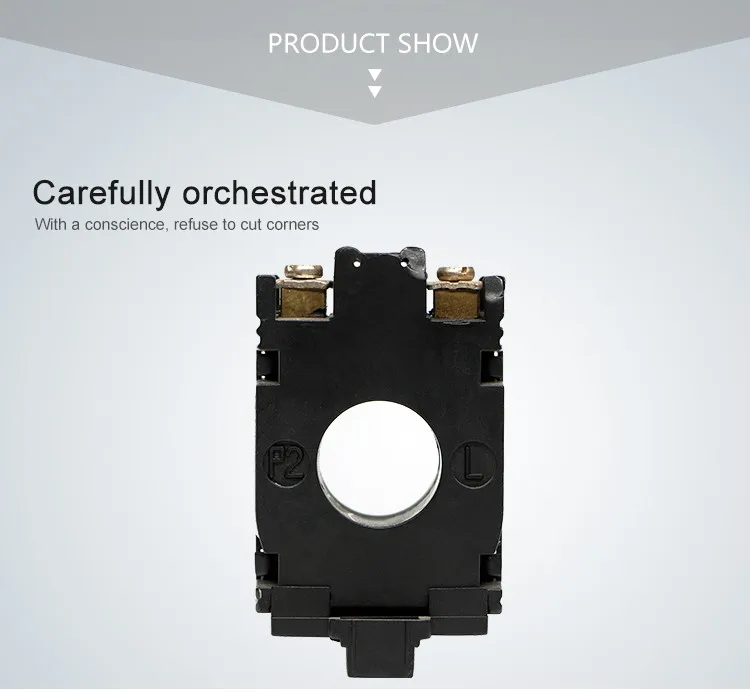

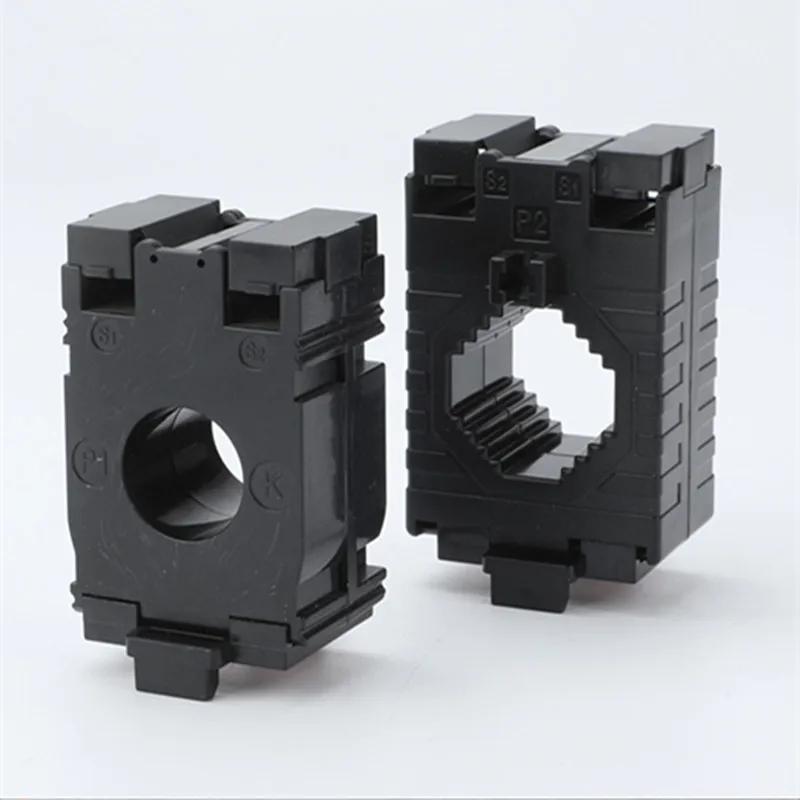

A world famous mini design plastic case current
transformer. Its snap on body is wildly used in
generators.
Features

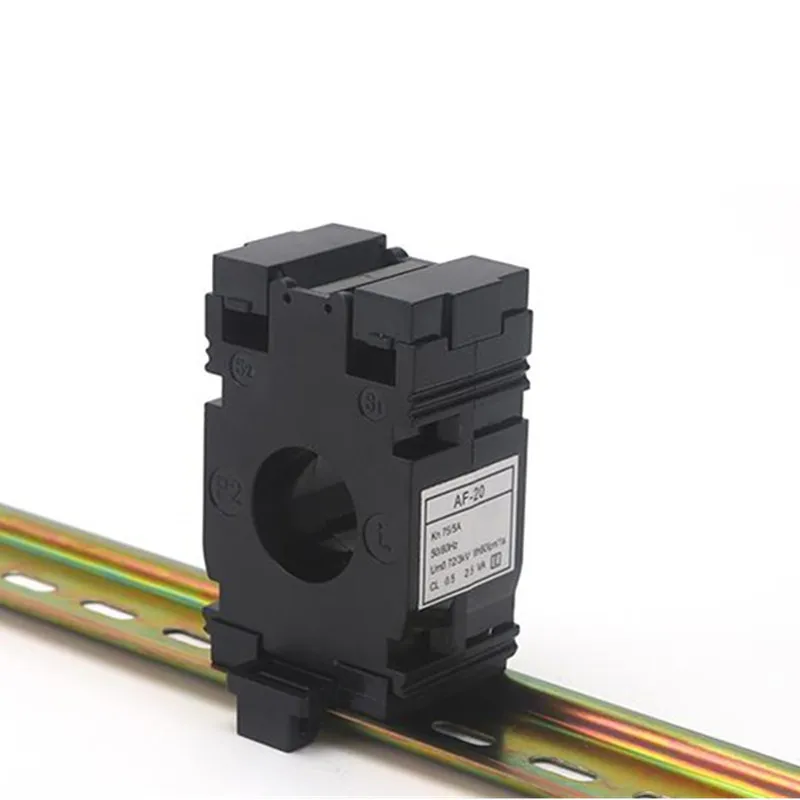

Two built in fixing methods: din rail/busbar
Built in hinged terminal cover
Primary current from 5A to 300A
Product Description
Rated frequency | 50/60Hz | ||||
Rated test voltage | 3Kv AC (1 min) | ||||
Rated short-time thermal current (Ith) | 60In | ||||
60In Rated dynamic current (Idyn) | 2.5Ith | ||||
Rated voltage (Um) | 0.72Kv AC | ||||
Continuous overload (Id) | 1.2In | ||||
Operating temperature | -10℃ to 50℃ | ||||
Housing self-extinguishing class | VO | ||||
Safety factor | FS 5 | ||||
Secondary current | 5A/1A | ||||

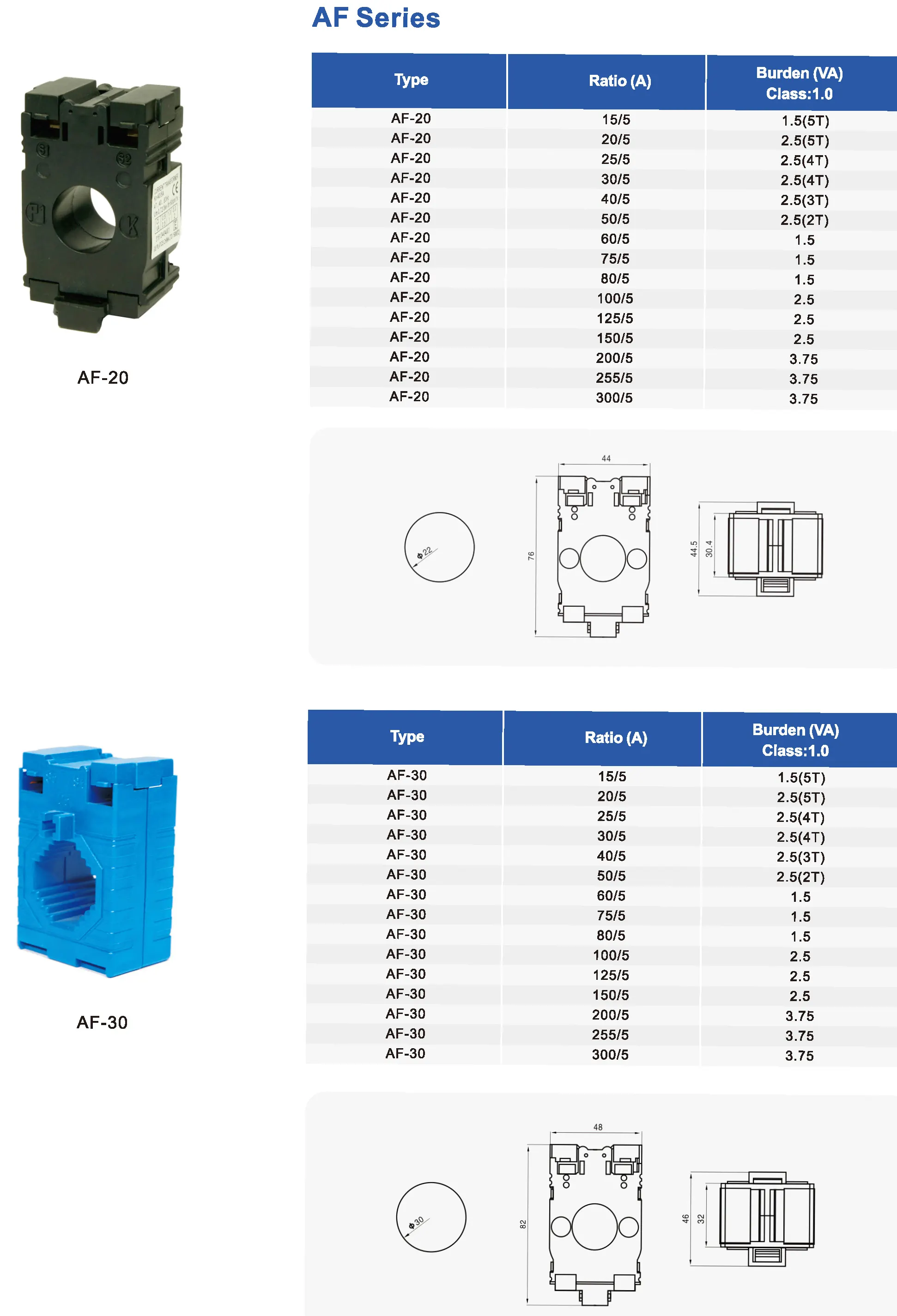

Model | Ratio (A) | Burden (VA) for Class 1.0 | ||
AF-20 | 15/5 | 1.5 (5T) | ||
AF-20 | 20/5 | 2.5 (5T) | ||
AF-20 | 25/5 | 2.5 (4T) | ||
AF-20 | 30/5 | 2.5 (4T) | ||
AF-20 | 40/5 | 2.5 (3T) | ||
AF-20 | 50/5 | 2.5 (2T) | ||
AF-20 | 60/5 | 1.5 | ||
AF-20 | 75/5 | 1.5 | ||
AF-20 | 80/5 | 1.5 | ||
AF-20 | 100/5 | 2.5 | ||
AF-20 | 125/5 | 2.5 | ||
AF-20 | 150/5 | 2.5 | ||
AF-20 | 200/5 | 3.75 | ||
AF-20 | 250/5 | 3.75 | ||
AF-20 | 300/5 | 3.75 | ||
