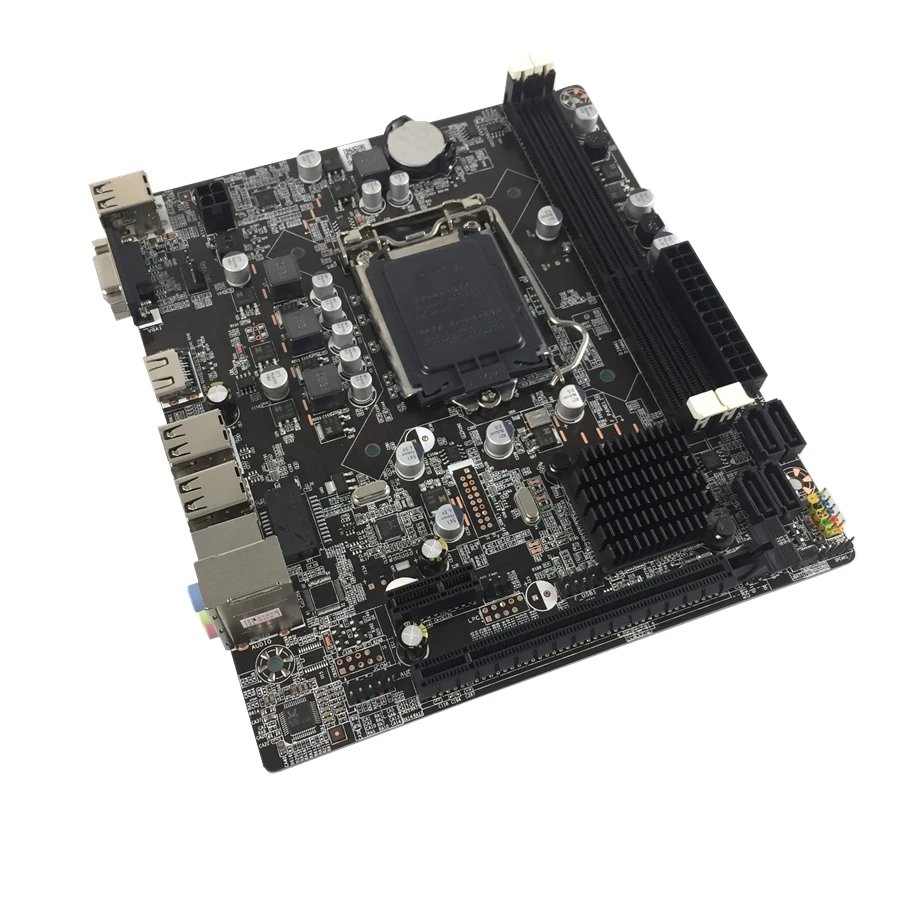

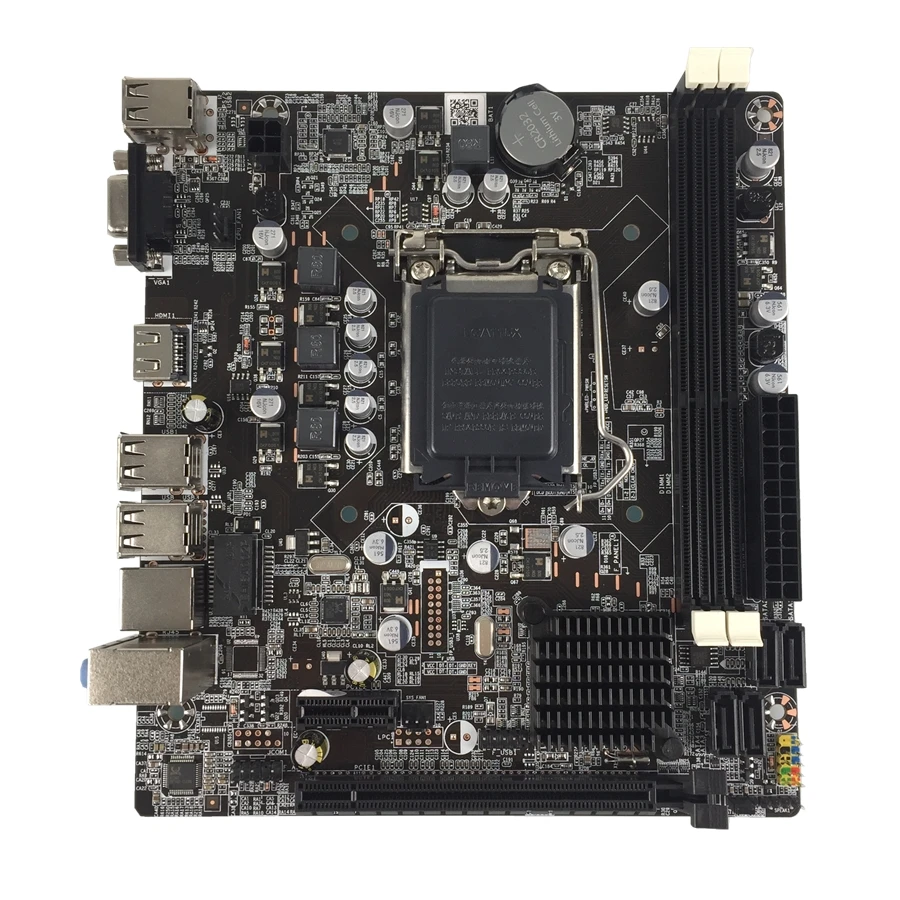

H61 LGA1155 DDR3 MOTHERBOARD
Support for Inte1® Core™ i7 processors/Inte1® Core™ i5 processors/ Inte1® Core™ i3 processors
/Inte1® Pentium® processors/Inte1® Celeron® processors in the LGA1155 package.
L3 cache varies with CPU.
Inte1® H61 Express Chipset
2 x 1.5V DDR3 DIMM Sockets Supporting up to 16 GB of System Memory,
Support for DDR3 1600/1333 MHz Memory Modules.
- 1 * PCI Express x16 Slot
- 1 * PCI Express x1 Slot
- 4 * Serial ATA 2.0 devices
Internal I/O Connectors
- 1 * 24-pin ATX Power Connector
- 1 * 4-pin ATX 12V Power Connector
- 2 * USB Connector Support Additional 4 USB Ports
- 1 * Front Panel Audio Connector
- 1 * System Panel Connector
Back Panel I/O Ports
- 1 * PS/2 Mouse & Keyboard
- 1 * VGA
- 1 * HDIM
- 4 * USB 2.0
- 1 * LAN Port (RJ45)
- 3 * Audio Jacks
Realtek® GbE LAN Chip (10/100/1000 Mbit)
Chip Integrated by Realtek ALC661, Supports 5.1-channel Audio-out
- Micro ATX (240*168 mm)
- User Manual
- Drive CD
- I/O Panel
shenzhen BAI ZHAN BAI SHENG Technology has over 20 years manufacturering desktop mainboard &graphic card & rams experience, specializing in the R&D, manufacturing and wholesale; is one of the leading manufacturers of desktop mainboard &graphic card & rams etc. in the consumar electronics industry. We are also the first followers of ARM & Intel Platform Internet of things technology research and development and market application. We have strong technical team, high-quality professionals, all over the marketing network and perfect after sales service system.
Packaging Details Packaging Details
Port Shenzhen Port, Guangdong
Lead Time Shipped in 5 days after payment
