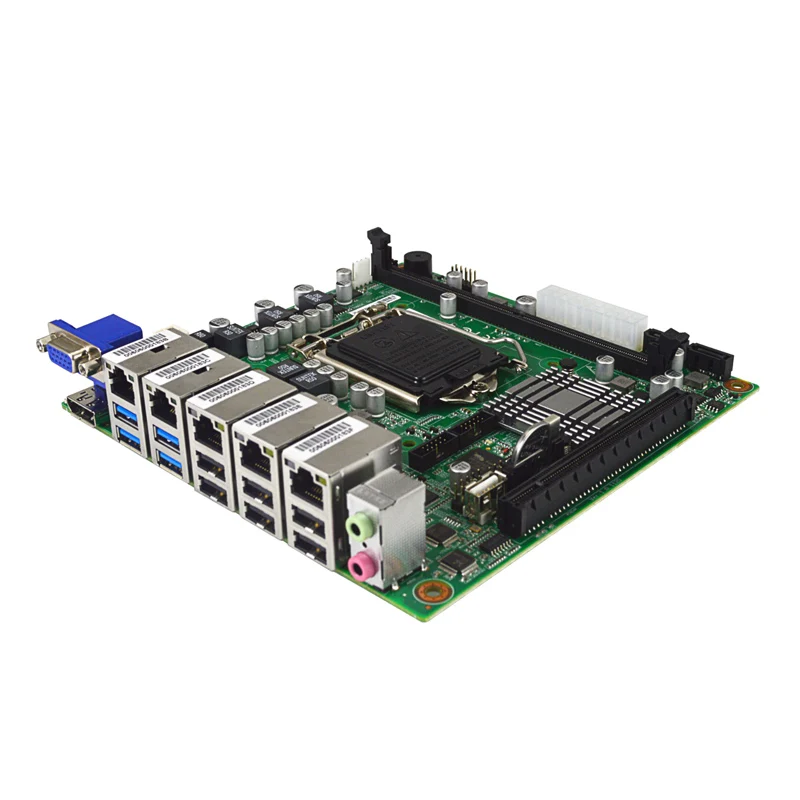

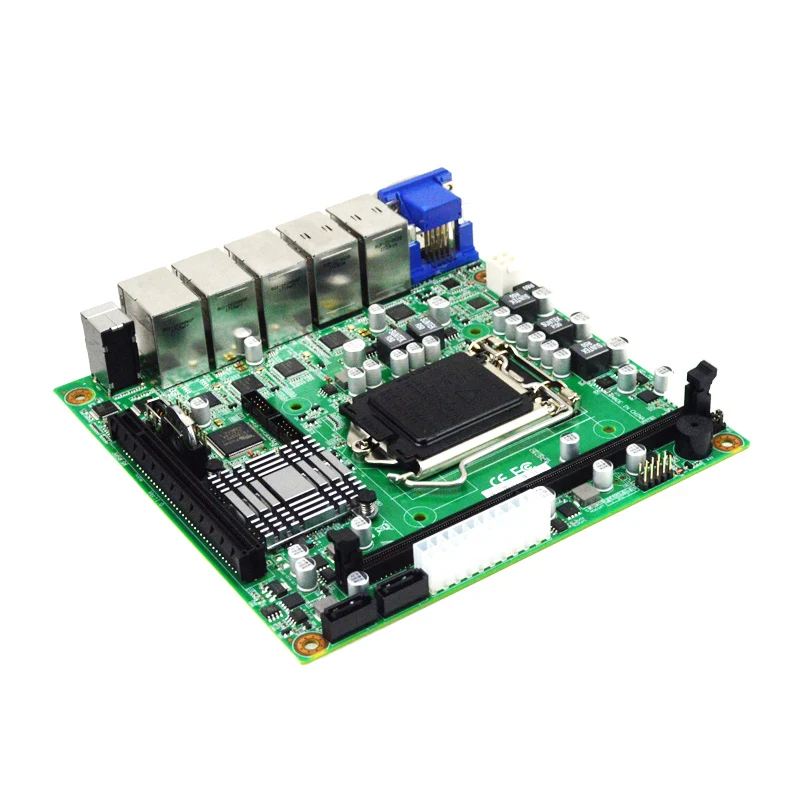

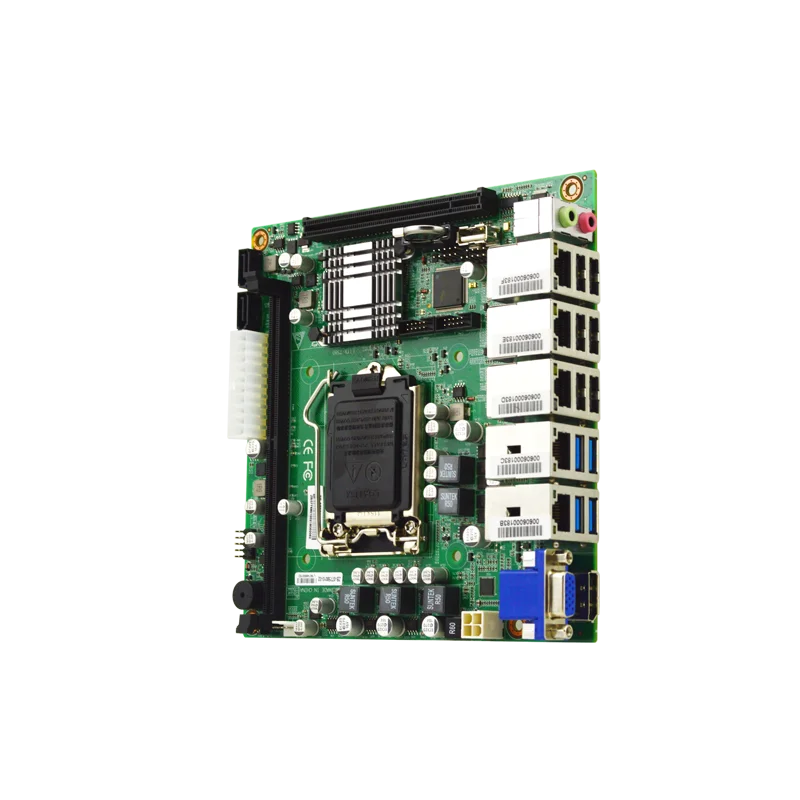

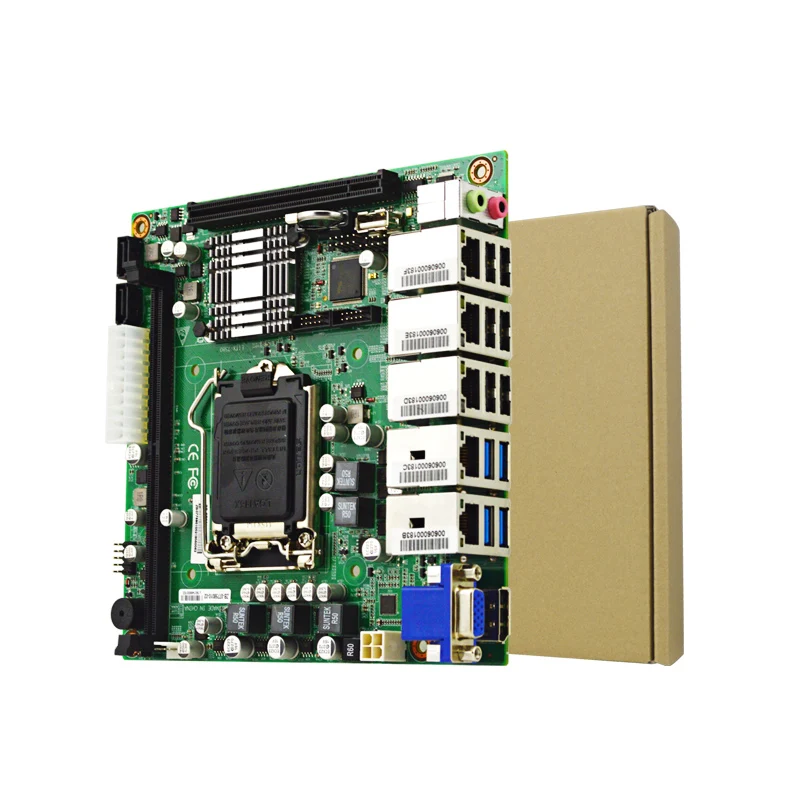

ETIX-7580 was based on Intel Skylake/KabyLake-S platform dedicated visual control Mini ITX embedded motherboard. Adopted Inter H110 Chipset, support Intel 6th/7th processors;
1 single channel UDIMM slot, support DDR4 1866/2133/2400MHz memory, capacity up to 16GB;
2 serial ports, support RS232 mode; 2 standard 7Pin SATA interfaces; 13 USB interfaces (4 rear USB3.0 interfaces, 6 rear USB2.0 interfaces, 1 built-in vertical USB2.0 interface and 1 USB pin interface);
A standard DB15 VGA interface;1 standard DP interface;5 Intel gigabit RJ45 network interfaces, using Intel i211 network card chip;1 standard PCIE x16 slot and 1 standard MINI PCIE slot (support MSATA function).
It can meet the needs of most professional customers in the market. And can be widely used in visual control, network security, firewall, industrial automation, intelligent network terminals and other industries.
Detailes parameters of EITX-7580 MINI-ITX motherboard:
Model NO.
EITX-7580
CPU
Support Intel Haswell LGA1150 Onboard Processors
Chipset
Intel H110 | Maximum power consumption:6W
Memory
1*single channel UDIMM sockets support DDR4 1866/2133/2400 MHz (up to 16GB) | Not support ECC PS: Skylake CPU Maximum resolution 2133MHZ, Kaby Lake Maximum resolution 2400MHz
BIOS
AMI EFI BIOS
Super I/O
Fintek F81866AD 2*Rs232 extracted from SIO 1*GPIO contact pin(2x5 pins) extracted from SIO | support 8 channels I/O
Ethernet
5*LAN Intel I211 10/100/1000Mbps LAN support forr adaptive and WOL functions
Graphic control
Intel HD Graphics 630
Display interface

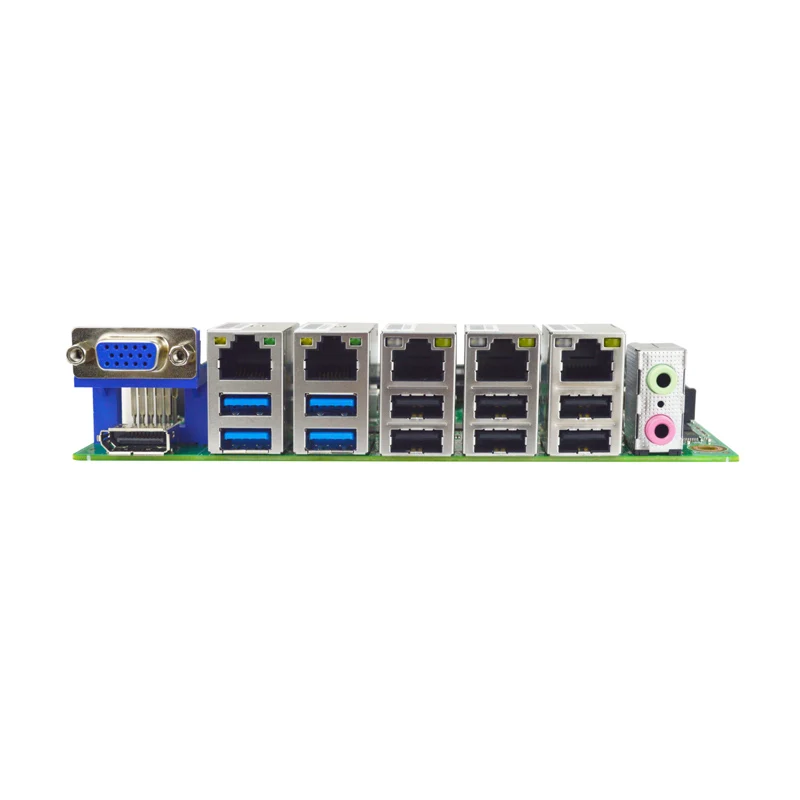

1*DB15| Maximum resolution:1920x1200@60Hz DP:1*DP | Maximum resolution: 4096*2304@60HZ support VGA+DP Independent 2 displays
SATA interface
2*SATA3.0, 1*MSATA
USB interface
4*USB3.0, 6*USB2.0, 1*USB2.0 1*2x5 pin2.54mm extracted from USB2.0 PS:choose USB11 or MIni PCIE
Serial port
2*2x5 Pin 2.0mm contact pin COM1-COM6 can transfer to DB9 COM1 COM2 both all support RS232
Audio
Realtek ALC662 audio control chip 1*Green is Line_out 1*pink is Mic_in Two single-hole sockets
Humidness:5%~95% Relative humidity with non-condensation Storage temperature:-40~80℃
Size
170mm*170mm
Product characteristics of EITX-7580 MINI-ITX motherboard:
1. Adopt Intel 100 series chipset, support Intel Skylake/Kaby lake-s processor;
2. 5 Intel i211 gigabit network CARDS, support adaptive;
3. VGA+DP display interface, support independent double display;
4. 13 USB ports, 4 of which support USB3.0;
5. 1 standard MINI PCIE interface, support MSATA function;
6. 1 standard PCIE X16 slot for easy extension of peripherals.

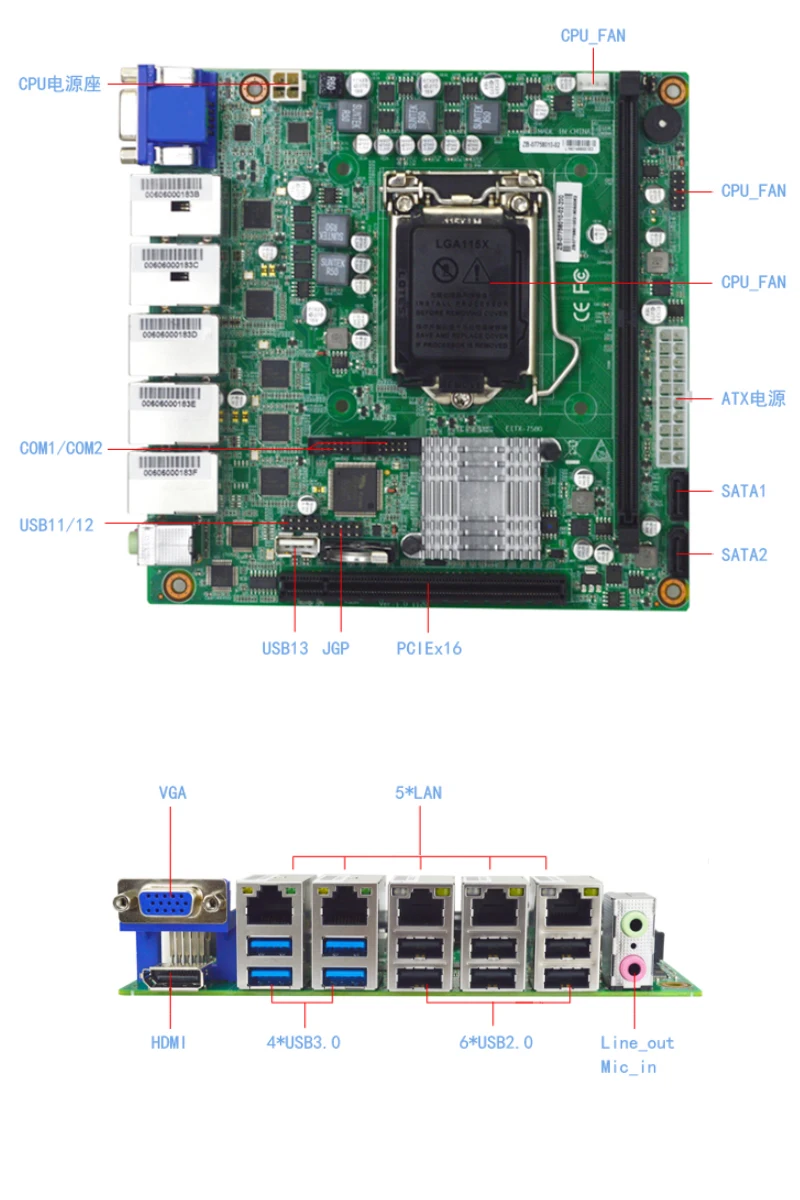

Detailed Images
