X8132 China High Quality Universal Tool Milling Machine
- Category: >>>
- Supplier: Tengzhou Sosen Co. Ltd.
Share on (62032306342):
Product Overview
Description

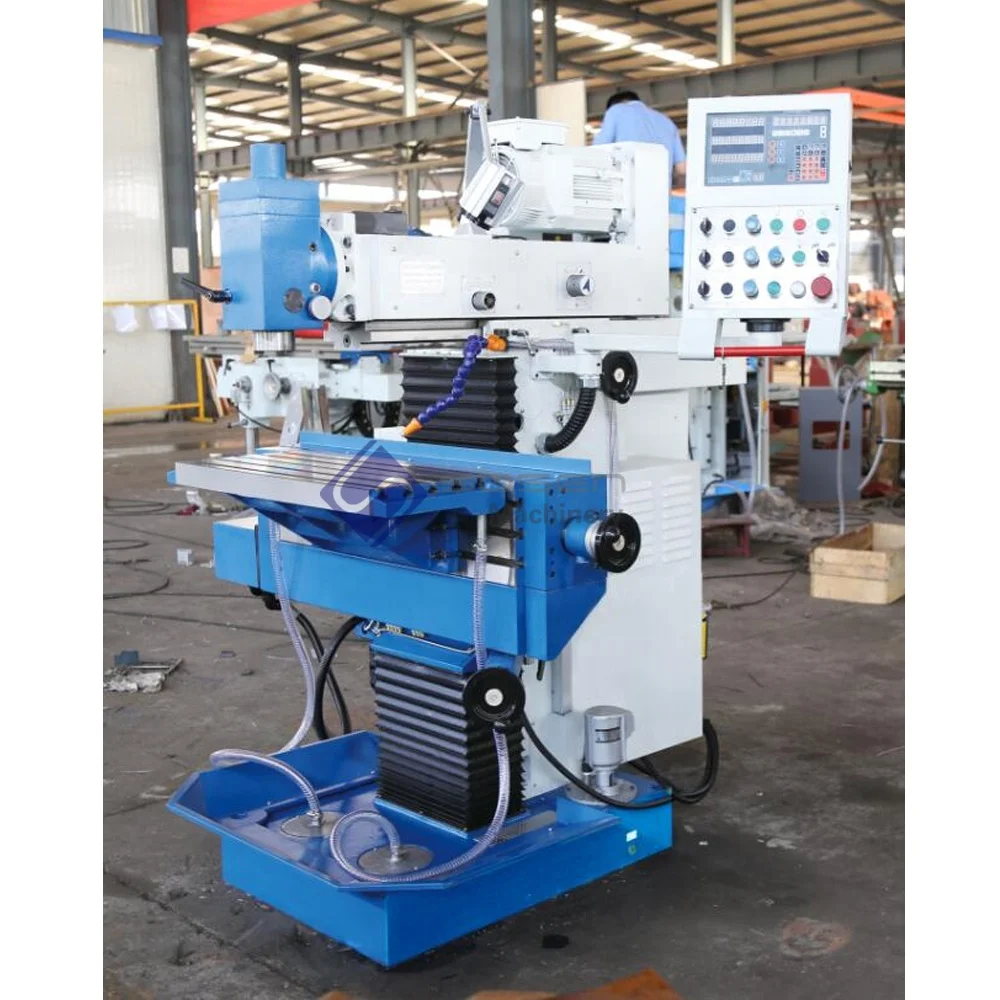

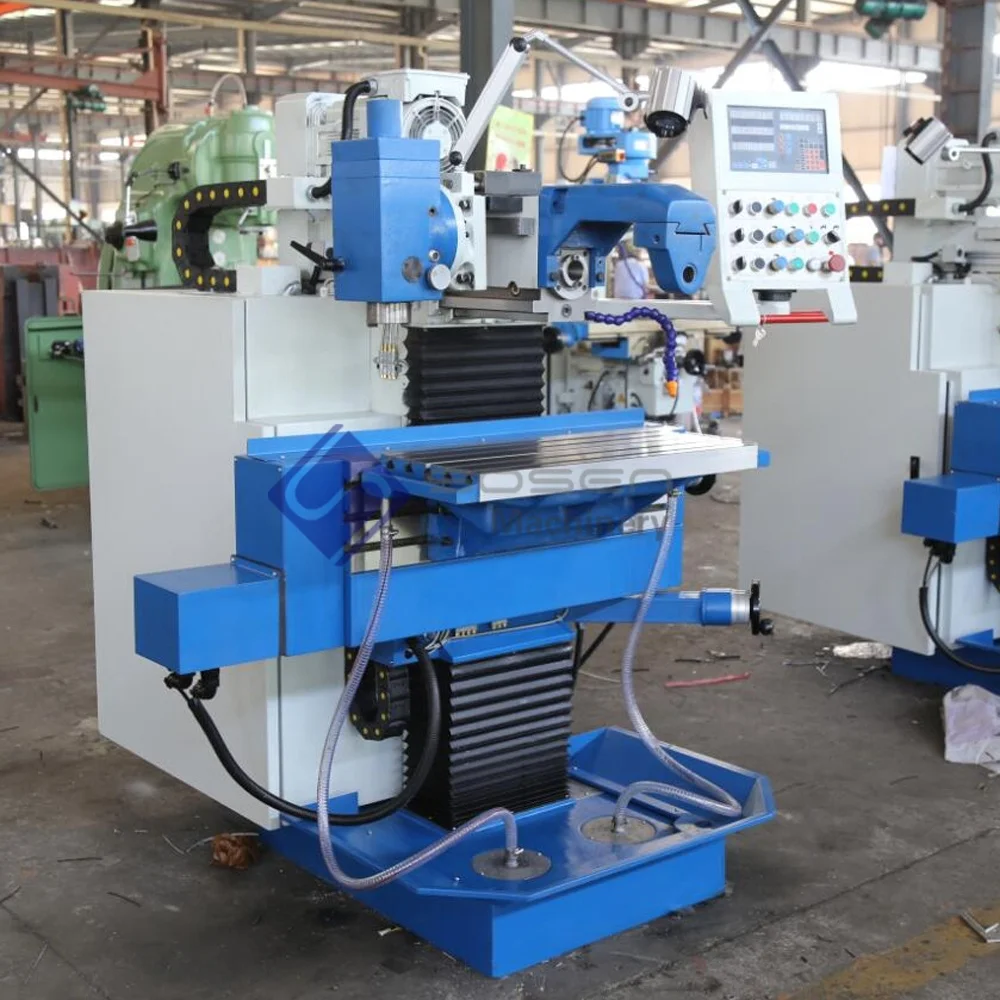

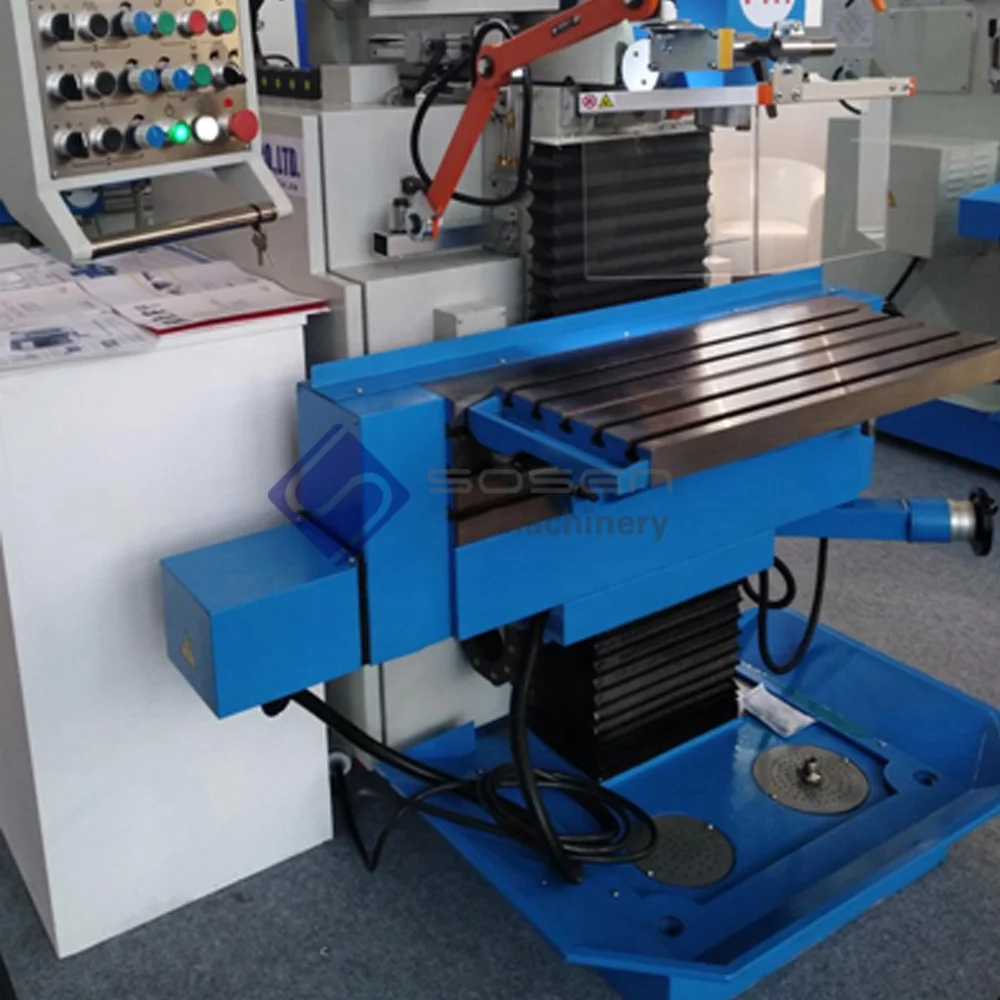

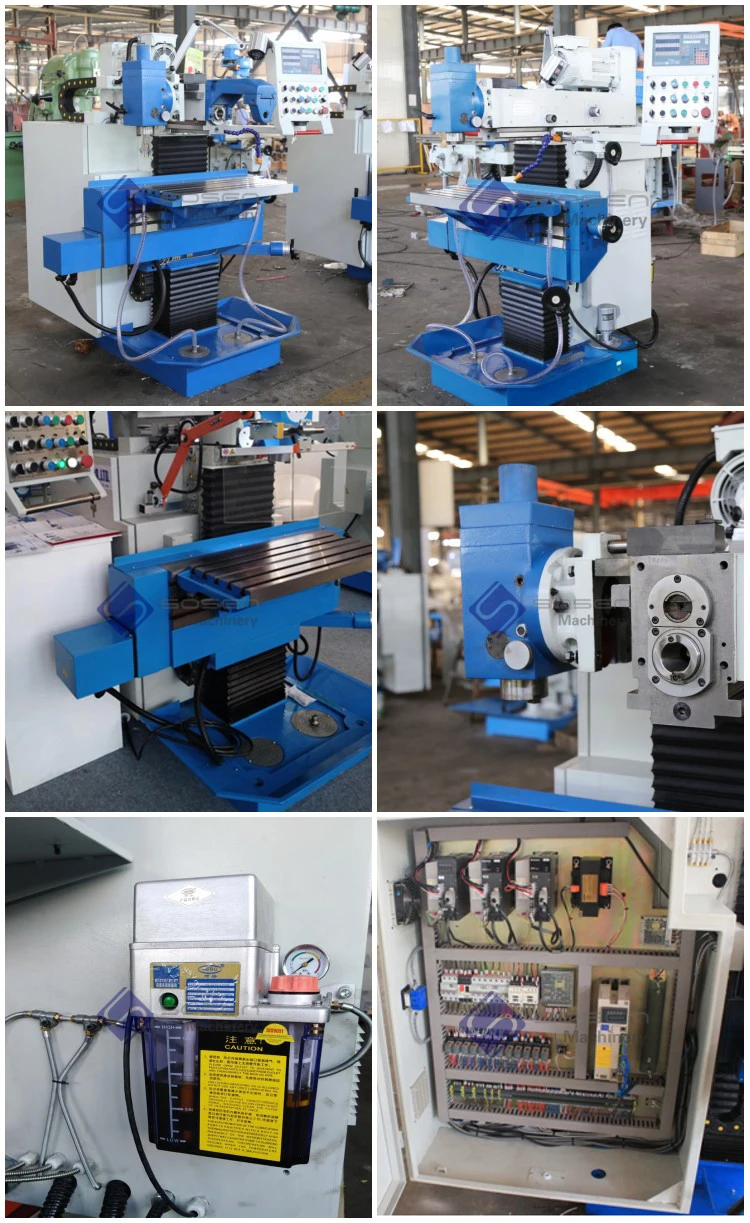

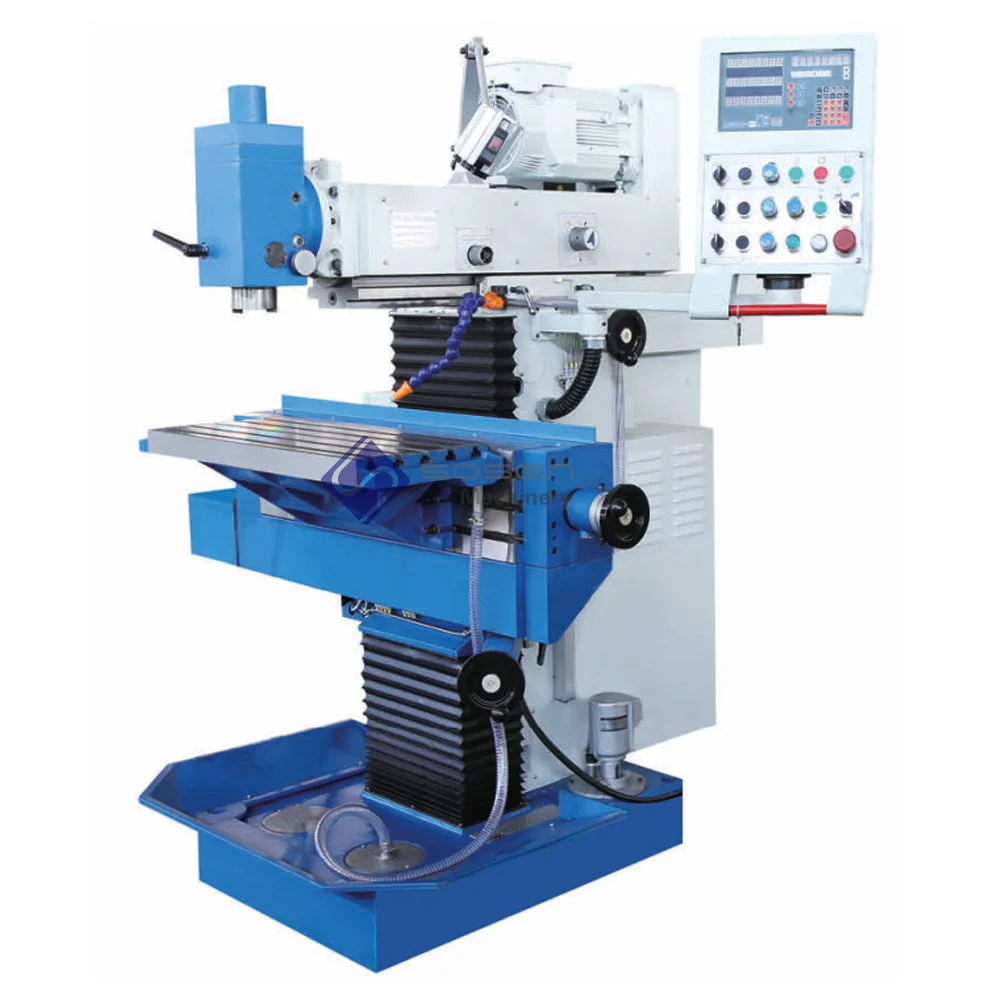

X8132 China High Quality Universal Tool Milling Machine
Product Description

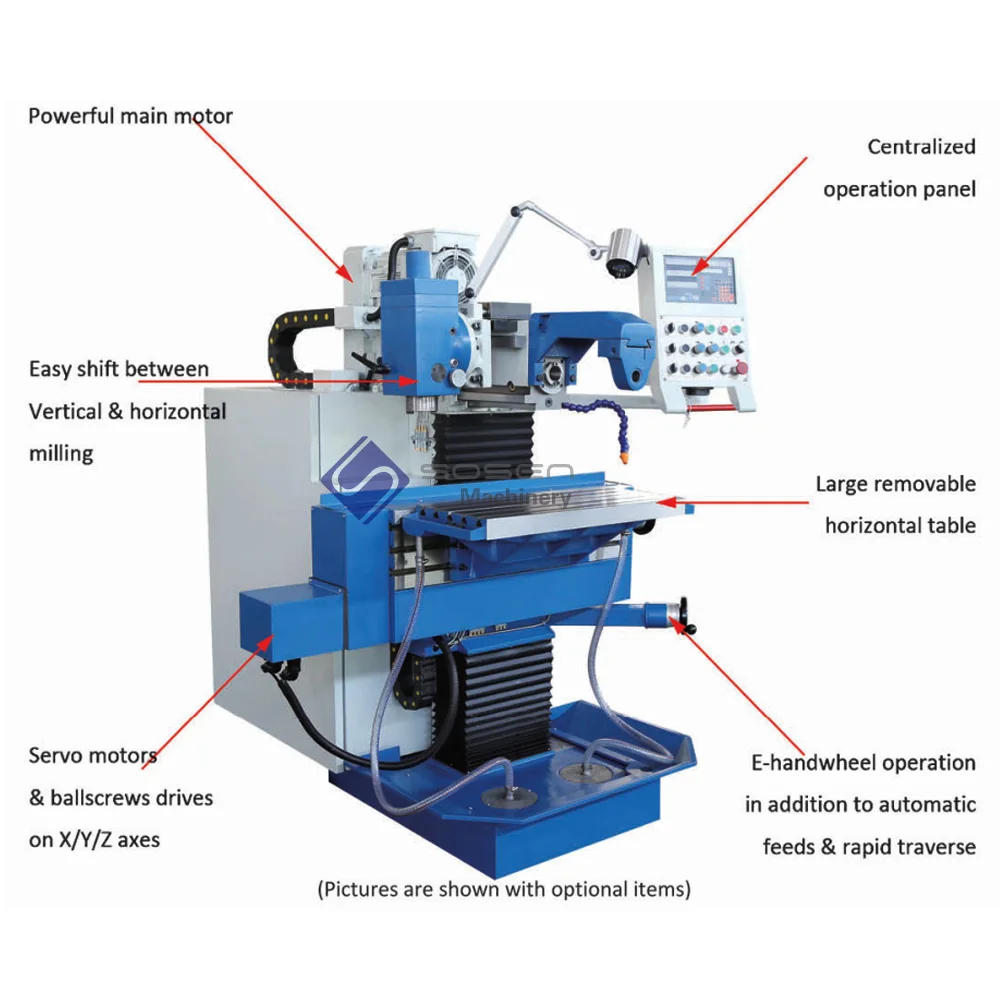

Main features:

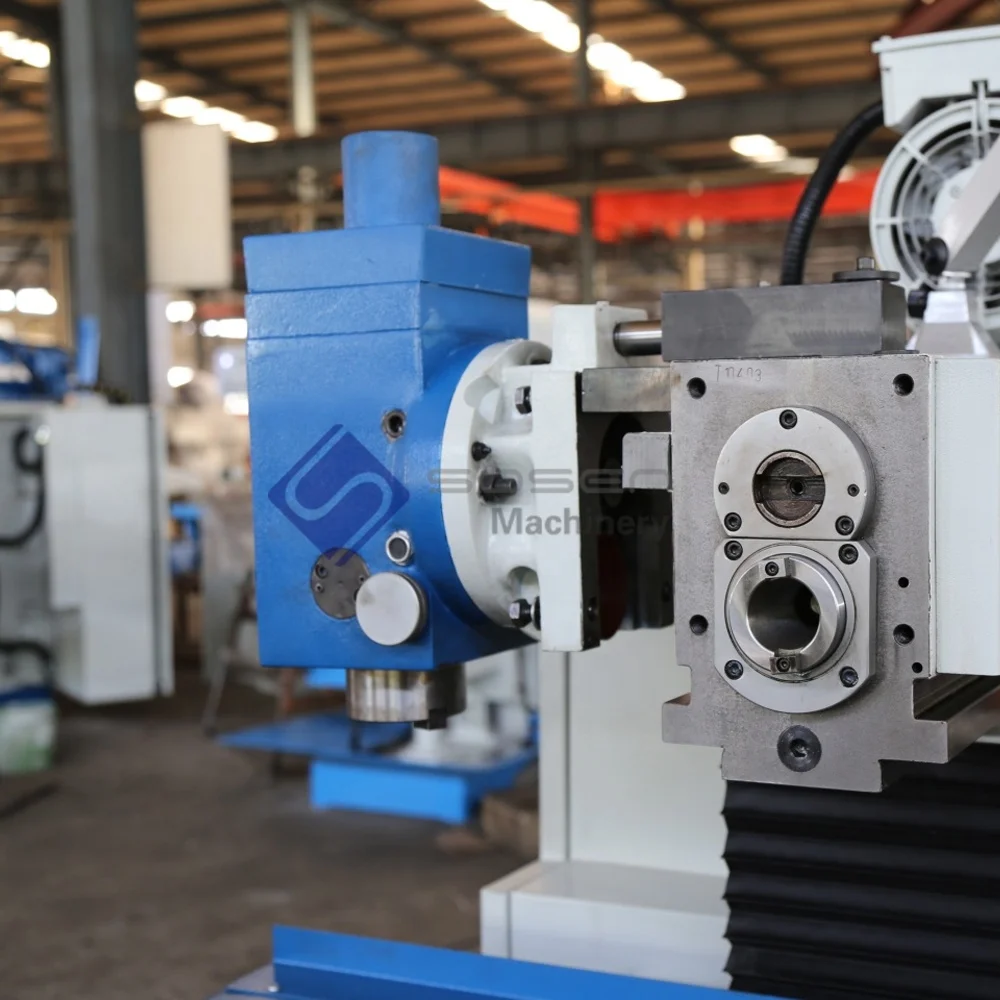

a. Combination of H&V spindle;
b. Designed with flexible modules;
c. Ideal for workshop & training.
2. High accuracy:
a. Variable spindle speeds in 2 steps;
b. Servo motors on X,Y and Z axes;
c. Ballscrews on X,Y and Z axes.
3. High Efficiency
a. Centralized operation panel;
b. E-handwheel or AUTO operation;
c. Automatic lubrication.

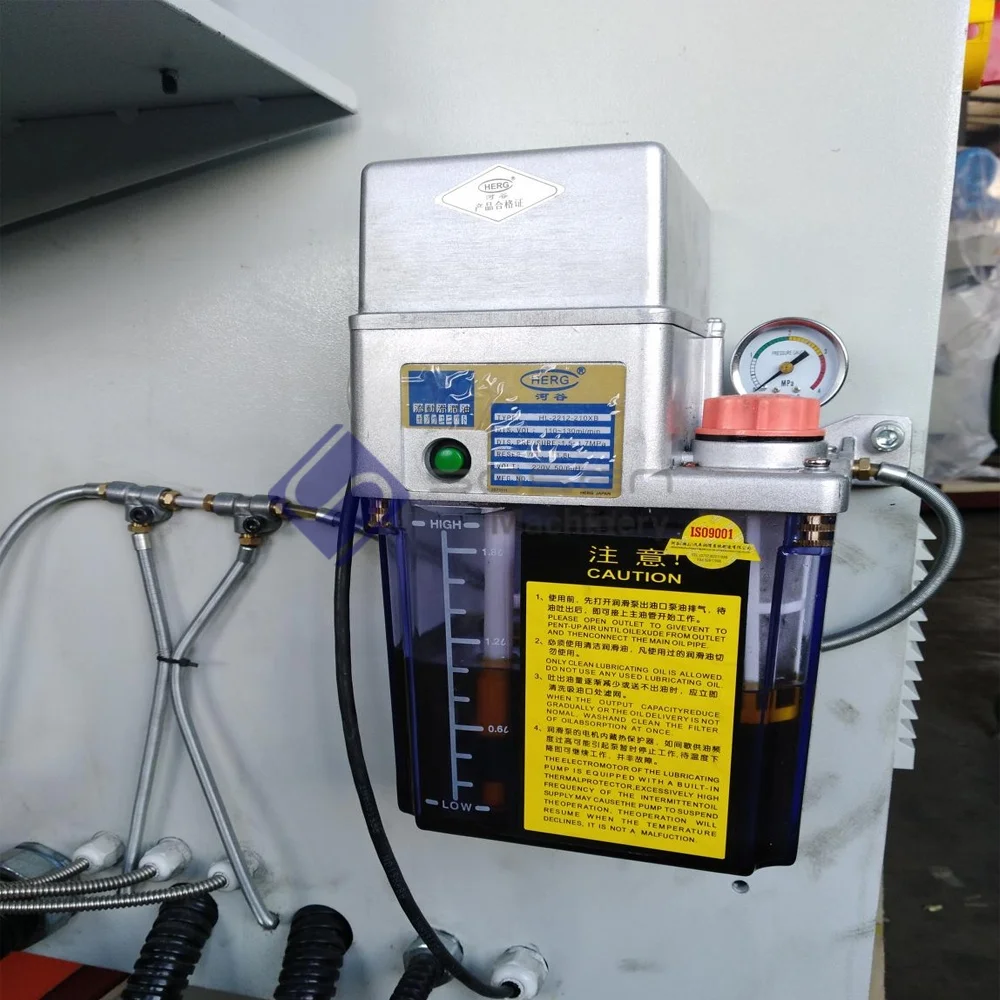

1. Automatic lubricator and cooling system
2. CE Schneider electric
3. Servo motors and ballscrews on X,Y and Z axes
Featuring High flexibility, High accuracy and High Efficiency, the universal tool milling machine has a wide variety of applications, ie drilling, milling & boring on tools, jigs, moulds and other complex jobs in instrument, workshops as well as training.
Specifications:
| X8132 China High Quality Universal Tool Milling Machine | Unit | XL8132 | |
| Work space dimensions | Mm | 750*320 | |
| Vertical table dimensions | Mm | 890*225 | |
| T-slots,work table | Mm | (5)14*63 | |
| T-slots,vertical table | Mm | (3)14*63 | |
| Table load capacity | Kg | 160 | |
| travels | Longitudinal(X) | Mm | 405 |
| Transverse(Y) | Mm | 305 | |
| Vertical(Z) | Mm | 400 | |
| Spindle axis-to-table surface distance | Horizontal spindle | Mm | 145-545 |
| Vertical spindle | Mm | 50-450 | |
| Speed range | Rpm | (2)40-2000 | |
| Spindle mount | ISO40 | ||
| Feeds X Y Z axis | Mm/min | 10-1000 | |
| Rapid feed | Mm/min | 1200 | |
| Quill stroke | Mm | 60 | |
| Main motor rating | KW | 3.7 | |
| Feed motor rating | N.M | 7.7/7.7/10 | |
| Dimensions (L*W*H) | Mm | 1500*1700*1800 | |
| weight | Kg | 1400 | |
Standard Accessories:
| Items | specification |
| Milling Arbors | Φ-16,22,27,32mm |
| Reducing sleeves | MT1,2,3 |
| Collet chuck with collets | 2,3,4,5,6,8,10,12mm |
| Draw bar | |
| Coolant system | |
| Chip collector tray | |
| Oscillation elements | |
| Outer arbor support for horizontal milling | |
| Work lamp | |
| Operating instructions |
Optional Accessories:
XC Series Vertical milling head
XC Series Universal milling head
Universal dividing head
Swivel table
Indexable carbide mill tool
Sizing block
Clamping kit
Milling chucks
Packaging & Shipping
Company Information
FAQ
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.Can I trust you?
Sure, we’re Alibaba Gold Suppliers, Alibaba Assessed Supplier, Alibaba Trade Assurance Supplier.
Q7.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing. Please contact our SOSEN sales representative for details.
Q8.How about your after-sale service?
Our after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 3 days.
Q9.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
