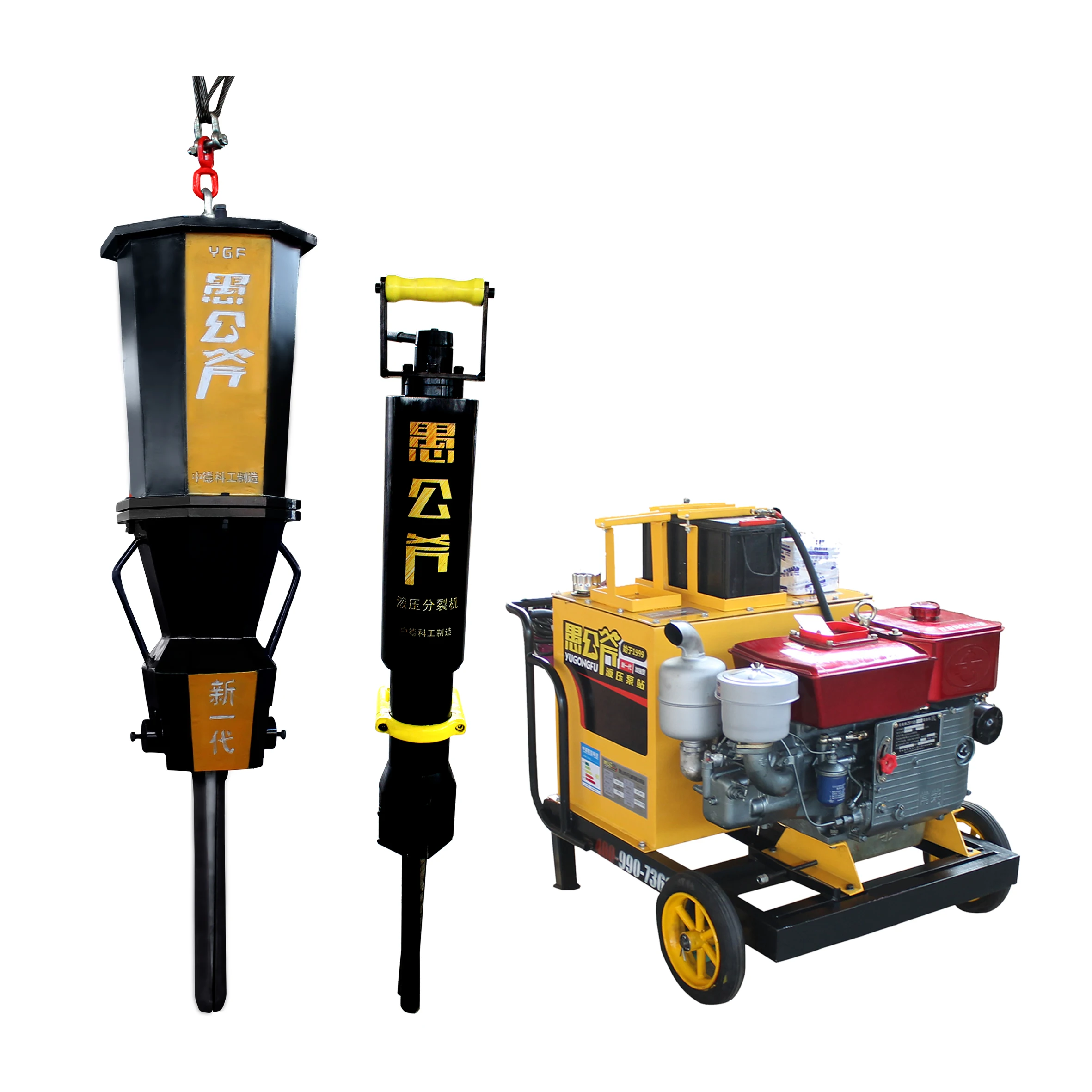

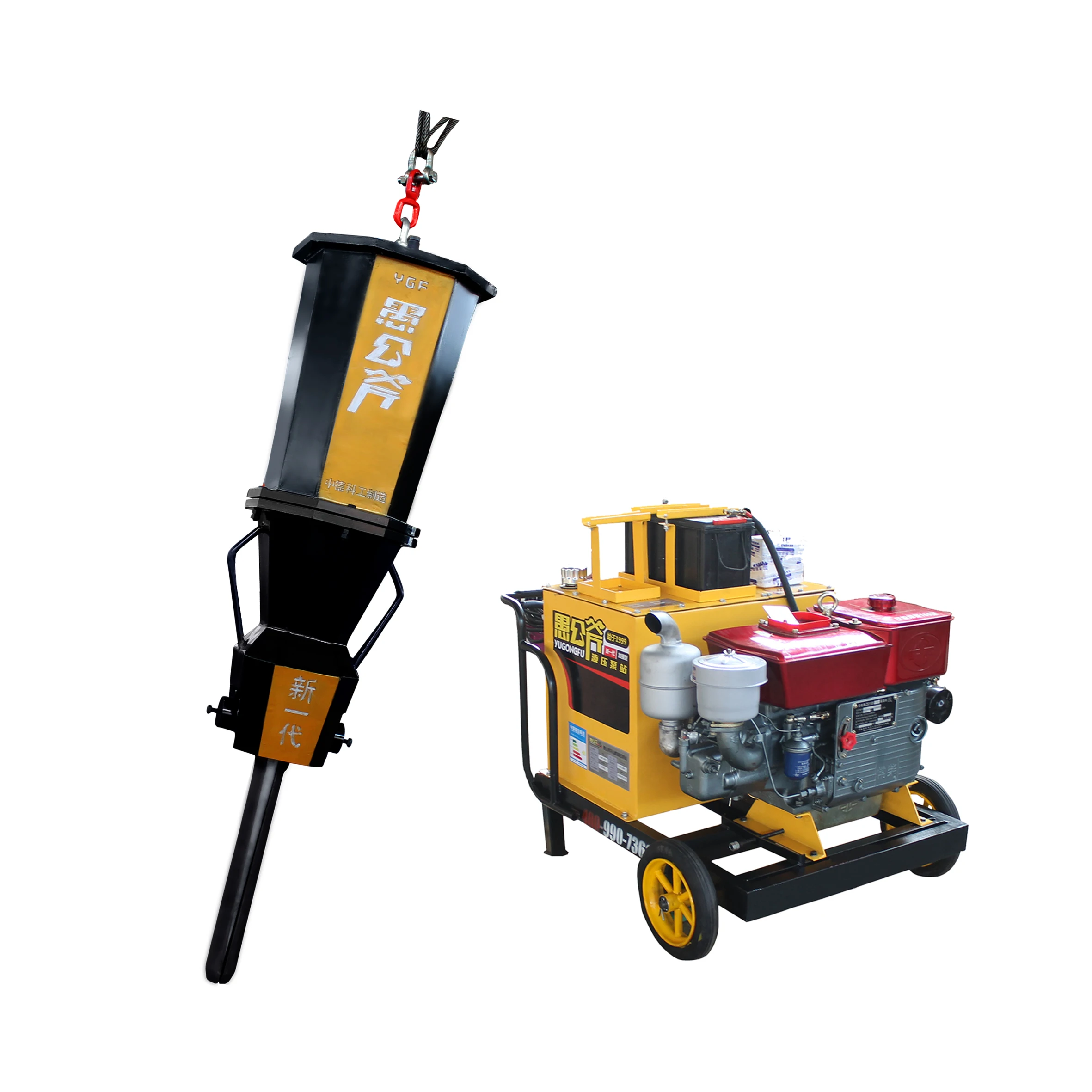

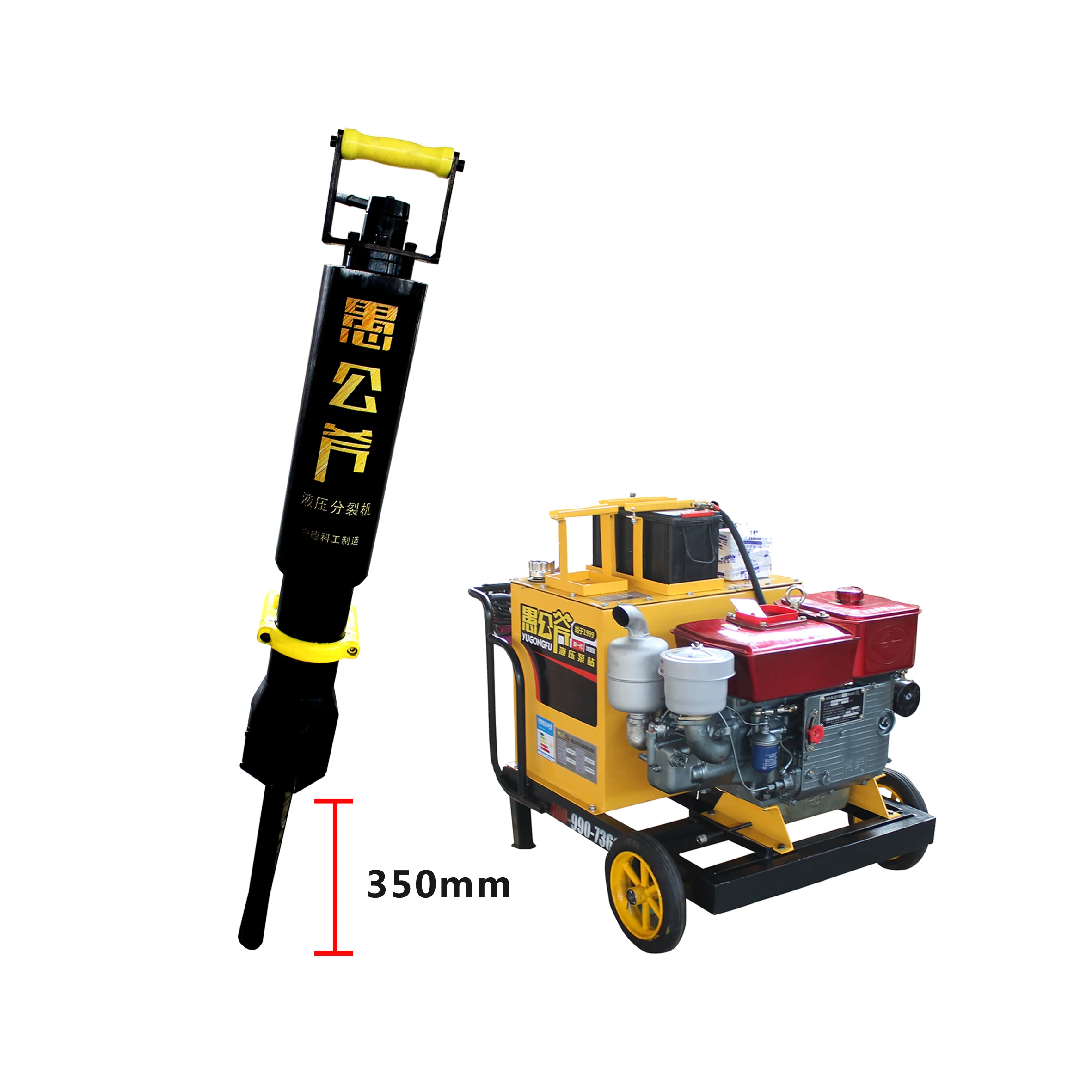

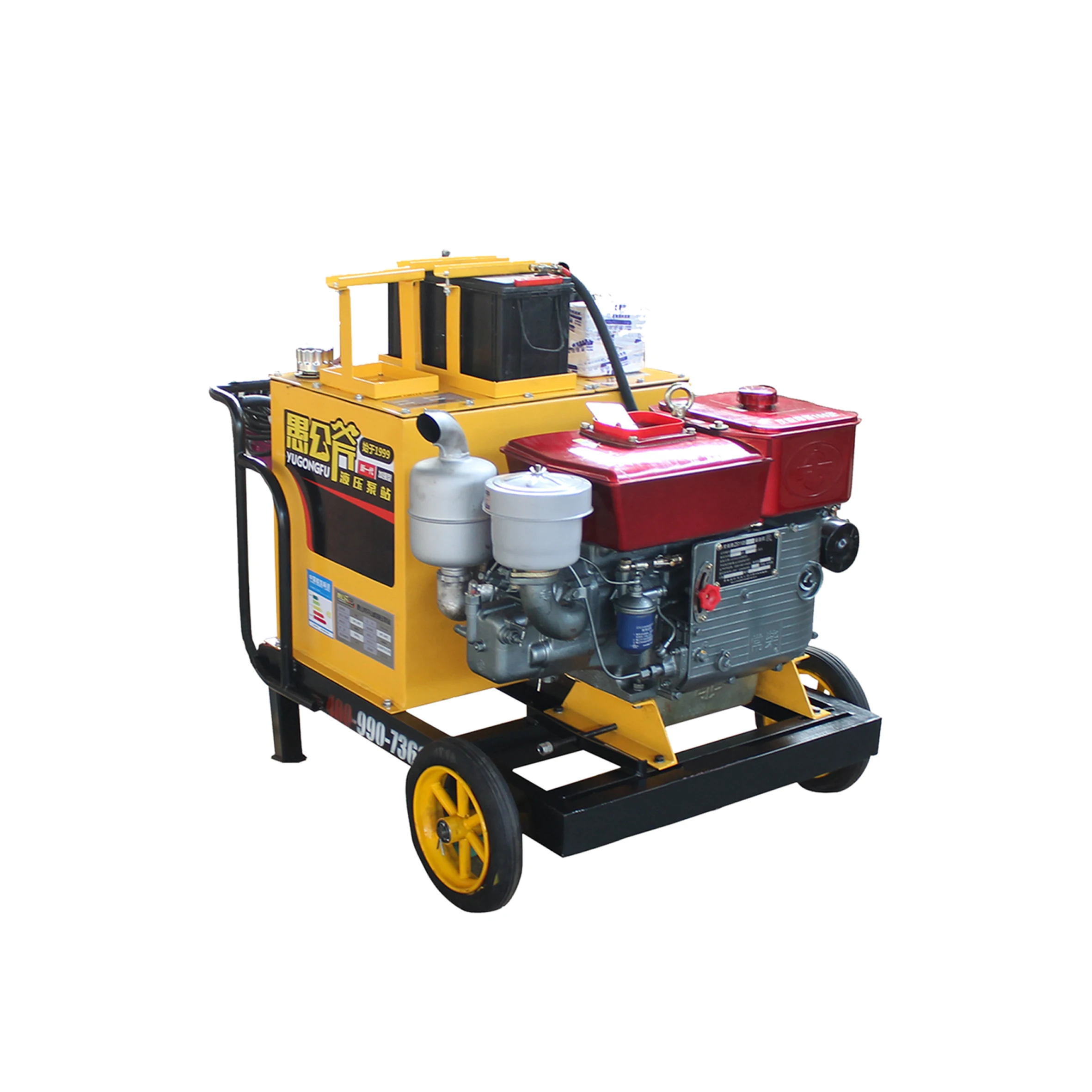

Дизельный разветвитель камней, машина для разрезания камня, инструменты для разрезания бетона

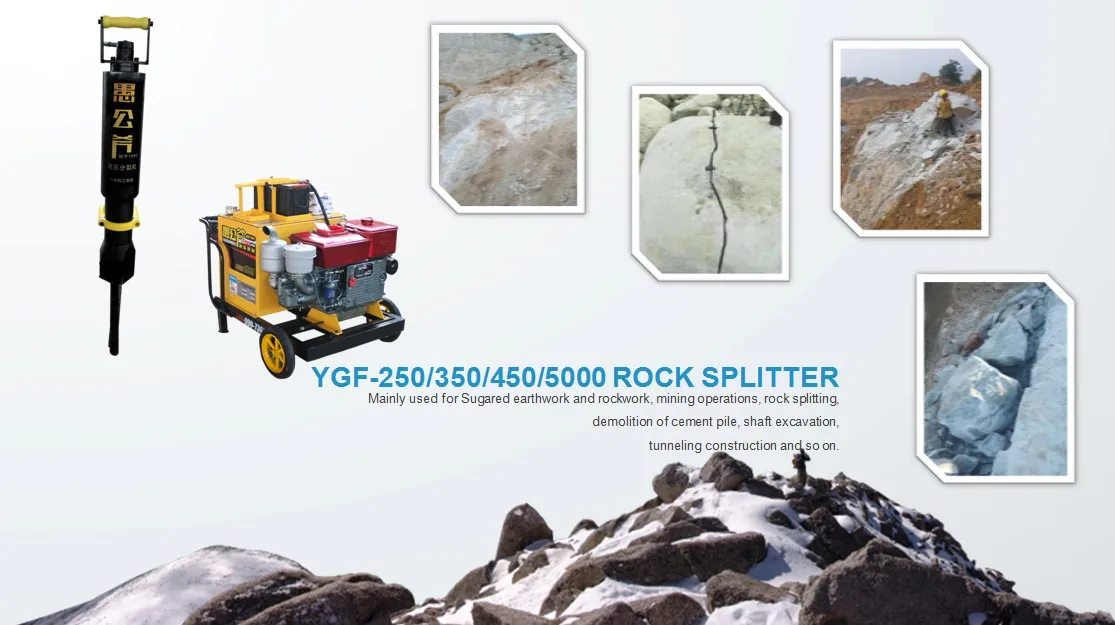

YGF rock splitting machine is mainly used for Subgrade earthwork and rockwork, mining operations, rock splitting, demolition of cement pile, shaft excavation,  tunneling construction and so on.

Compared with the traditional operation methods in the above fields, It has the characteristics of simple structure, convenient operation, small size, light weight and large splitting force (single unit splitting force up to 800T), no vibration, no impact, no noise, fast splitting during operation.

Compared with similar foreign products, it has the price (about 1/4 of the price of similar foreign products), high efficiency (double speed), good performance, and is more suitable for the secondary disintegration of large ore.

PRODUCT PARAMETER

PRODUCT PATENT CERTIFICATE

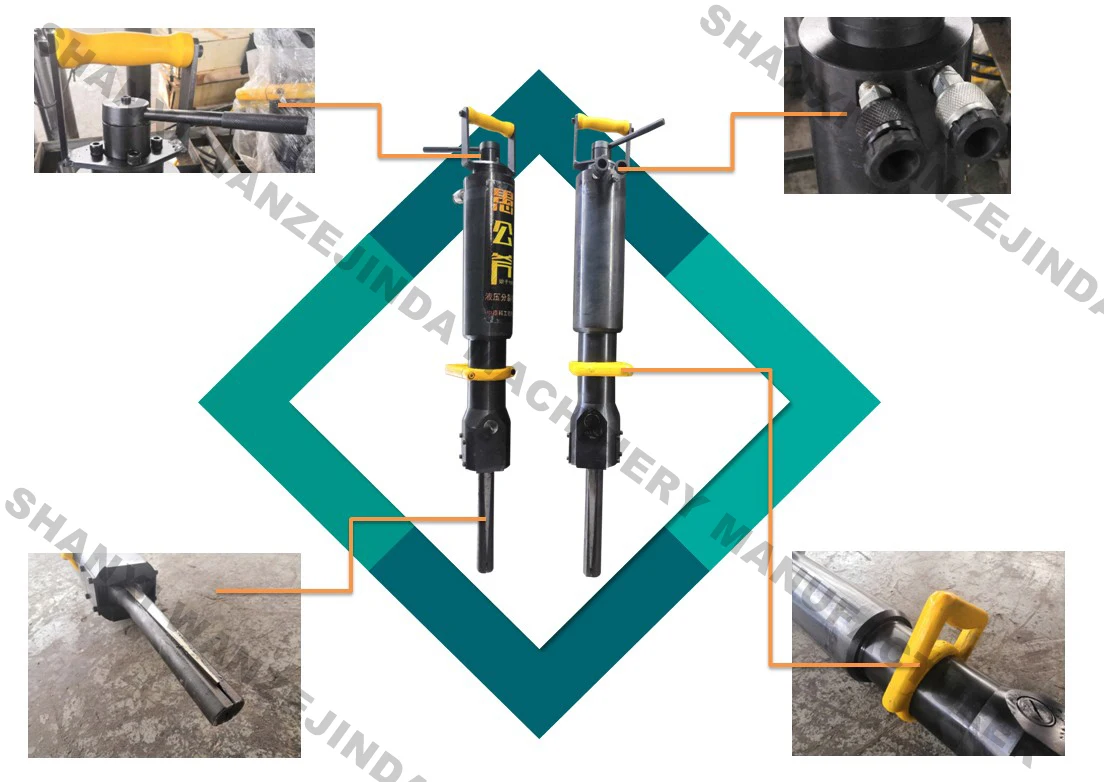

THE DETAILS OF PRODUCTS

A hydraulic splitting machine is mainly composed of one or several splitting guns, a hydraulic power station, a set of high pressure hydraulic connecting pipes and quick joints.

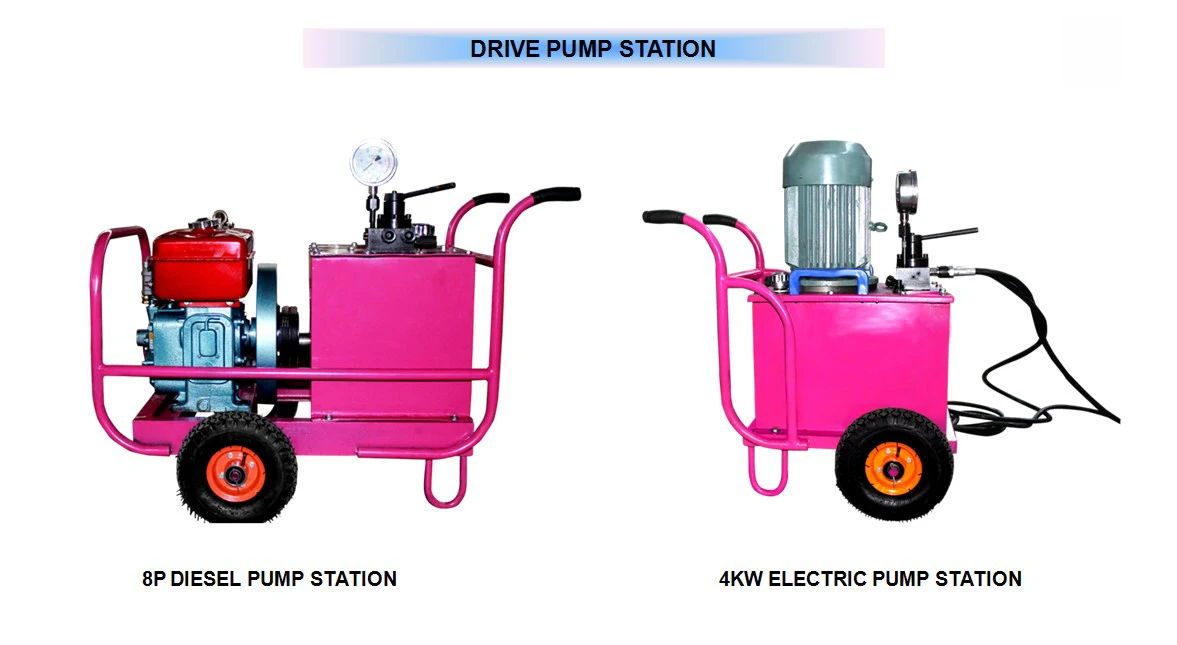

A drive pump station can carry 1-6 pcs gun, at most 6pcs gun, according to the actual needs of customers can increase the number of guns.

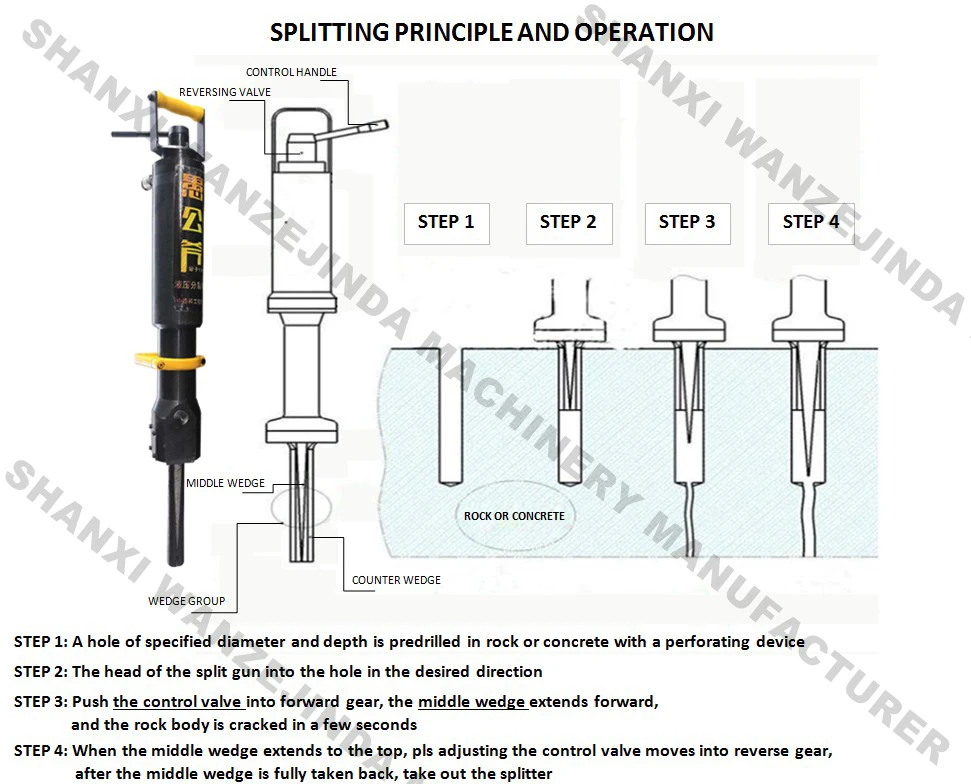

WORKING PRINCIPLE OF MACHINE

OPERATION INSTRUCTION

1.A hole of specified diameter and depth is predrilled in rock or concrete with a perforating device.

2.Place the head of the split gun into the hole in the desired direction.

3.Push the control valve into forward gear, the middle wedge extends forward, and the rock body is cracked in a few seconds.

4.When the middle wedge extends to the top, pls adjusting the control valve moves into reverse gear, after the middle wedge is fully taken back, take out the splitter

 PRODUCT ADVANTAGES

1. Security

 The hydraulic splitter is a controllable work in a static hydraulic environment. Therefore, there are no hidden dangers like blasting and other impact demolition and rock drilling equipment, and no complicated safety measures are required.

2. Environmental protection

When the hydraulic splitter works, it will not generate vibration, shock, noise, dust and flying debris, etc., and the surrounding environment will not be affected. Work in a densely populated area or indoors, as well as close to the equipment, without interference.

3. Economics

The hydraulic splitter can complete the splitting process in a few seconds and can work continuously and without interruption; its efficiency and operation are very low; there is no need to isolate or other time-consuming and expensive safety measures like blasting.

4. Usability

The user-friendly use of the hydraulic splitter and the durable structural design ensure that the method of use is simple and easy to learn, only requires single operation; convenient maintenance; long service life; consignment of the splitter and power station is also very convenient.

5. Accuracy

Unlike most conventional dismantling methods and equipment, the hydraulic splitter can accurately determine the direction of splitting, the shape of the split, and the size of the part to be taken out, with high precision in splitting and dismantling.

6. Flexibility

The hydraulic splitter has the characteristics of small size, light weight and large splitting force (maximum force up to 500 tons). It can be easily dismantled and split indoors or in narrow spaces. It can also be operated underwater.

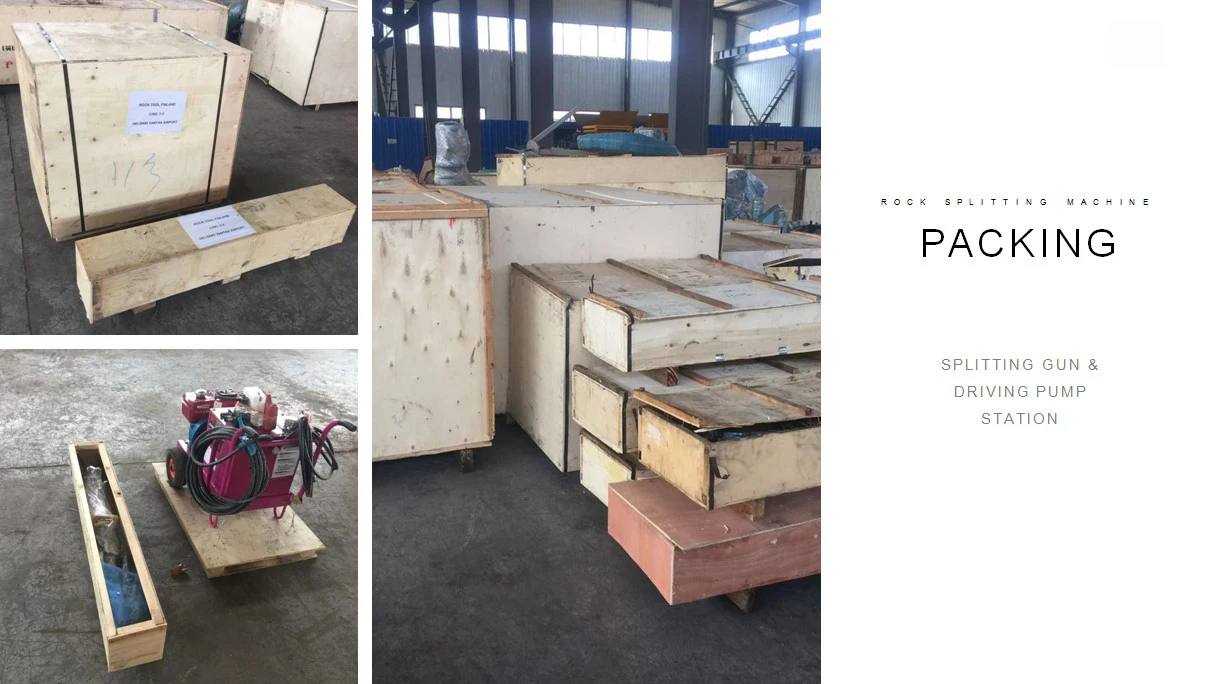

PACKING OF PRODUCTS

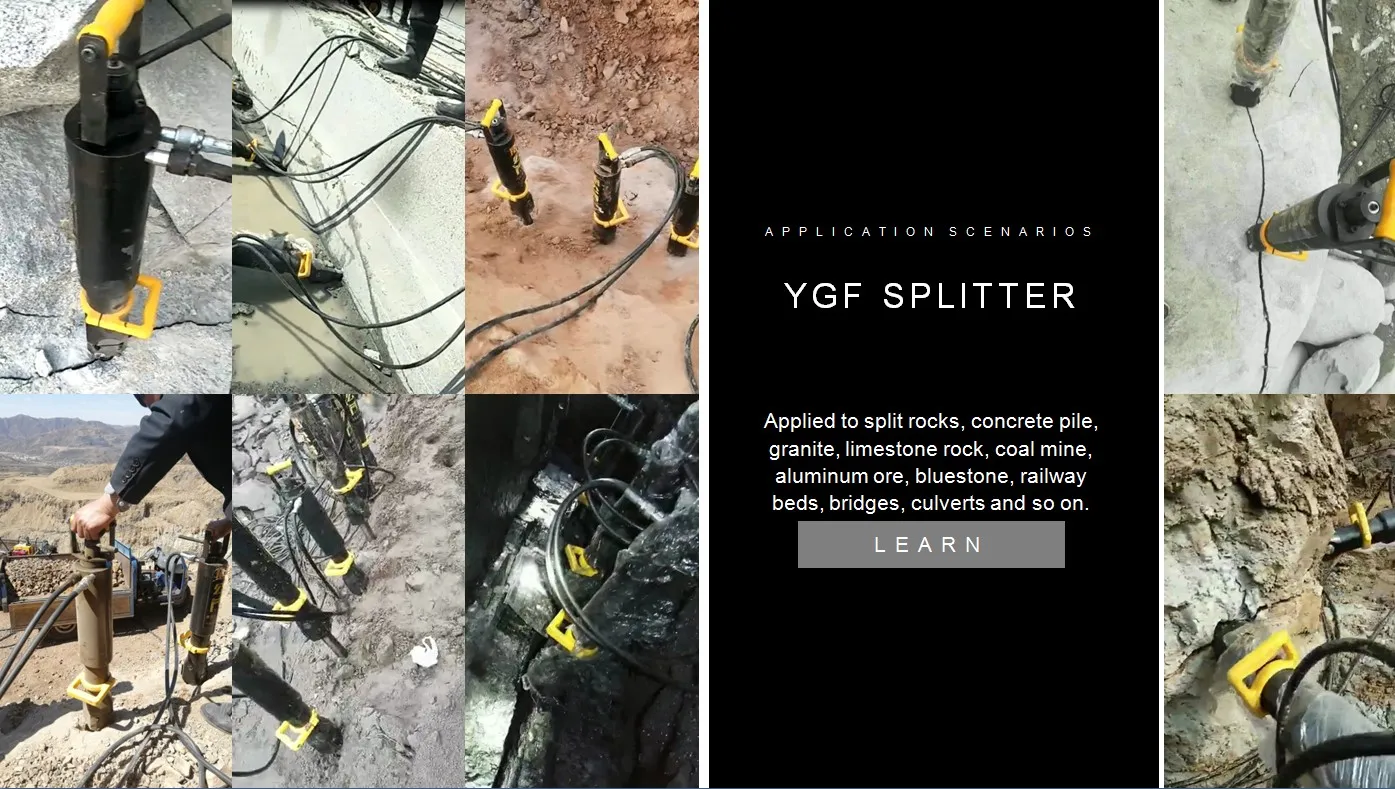

APPLICATION SCENARIOS
