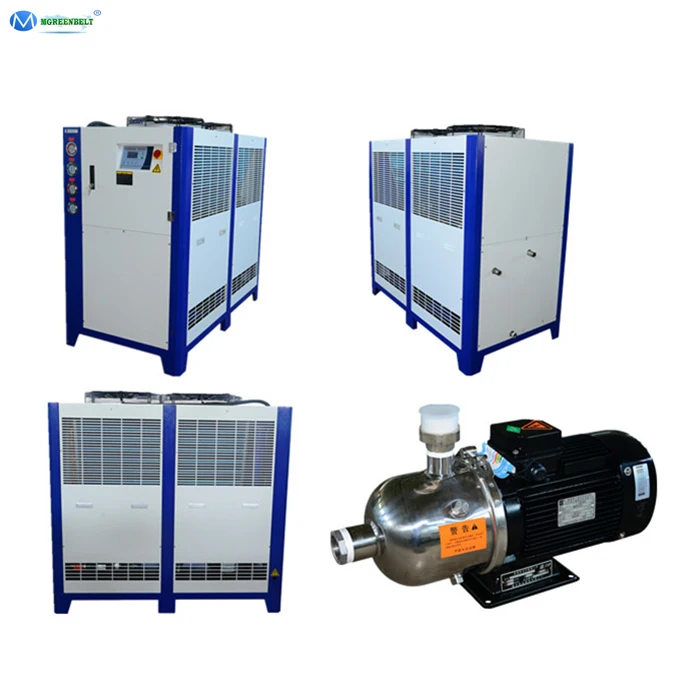

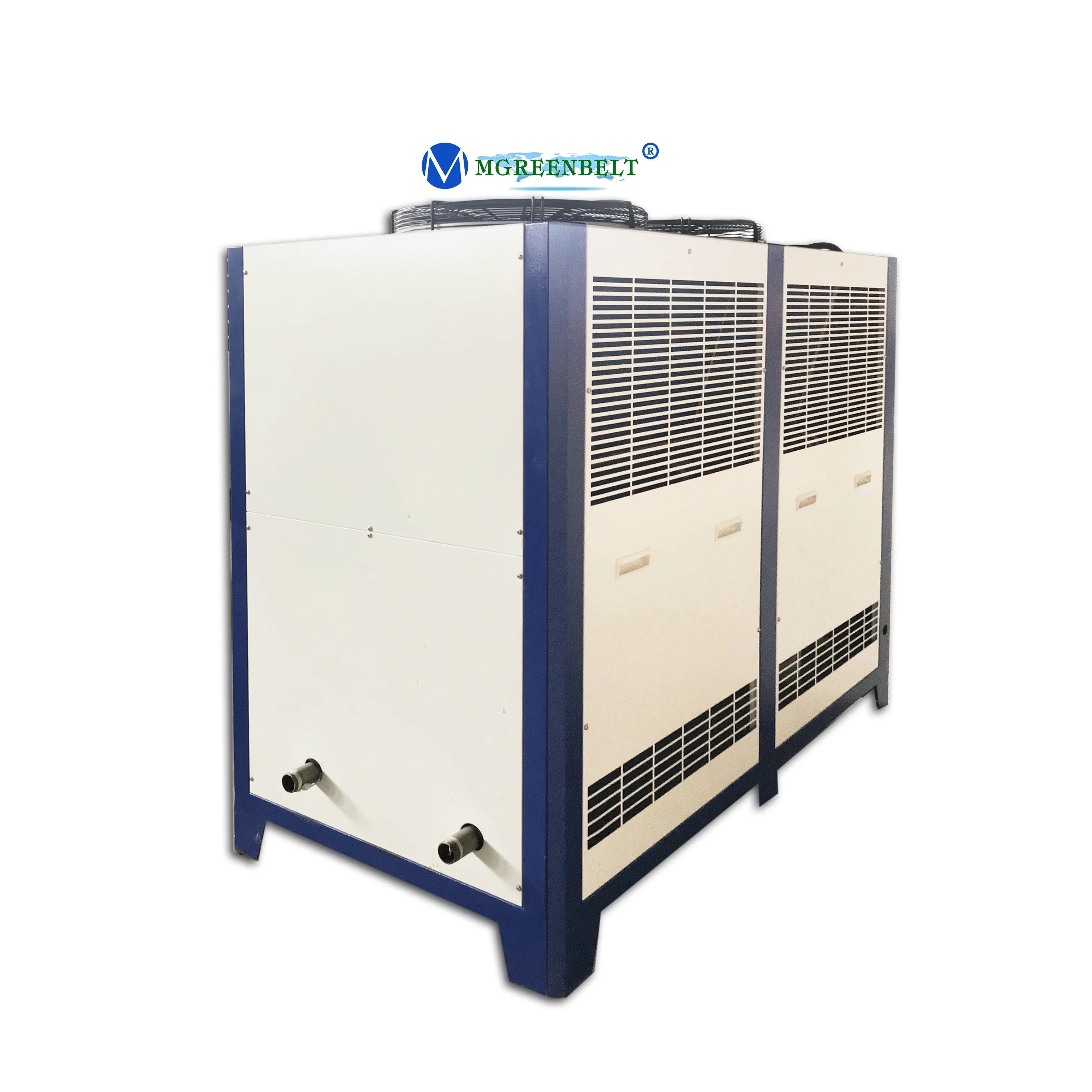

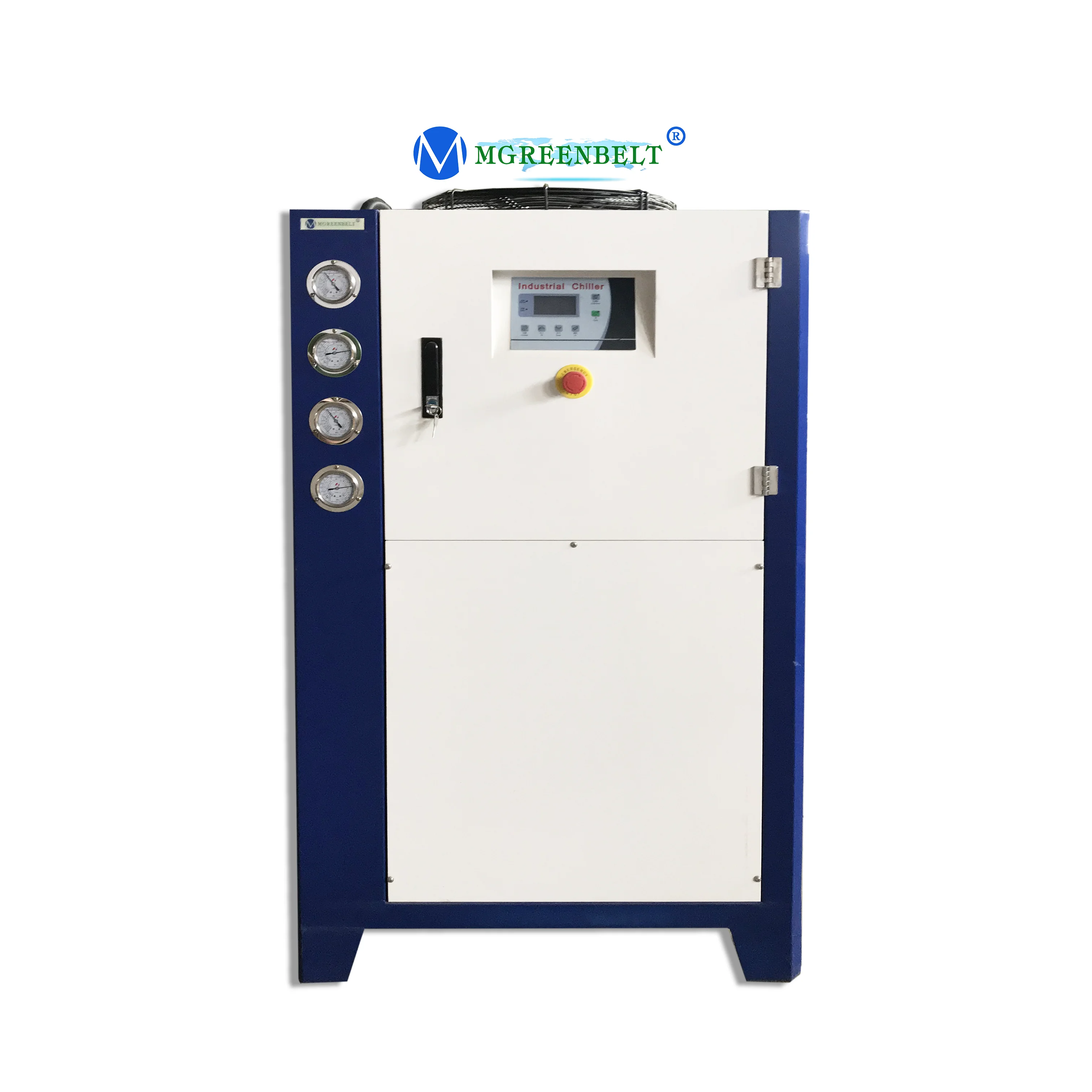

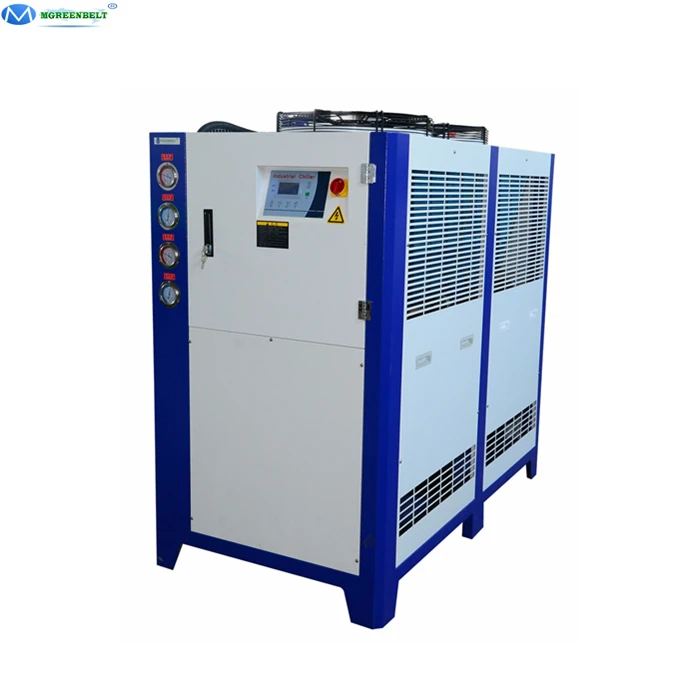

Air Cooled Water Chiller 10 HP for Horizontal Bead Milling

• Easy Installation and does not need cooling tower, not need assemble when customer get the chiller
• Japan Panasonic , USA Copeland, Denmark Danfoss compressor, high efficiency, low noise, quiet operation
• Emerson refrigeration parts
• Electrical are German SIEMENS genuine, to ensure stable operation of the machine
• Take a large capacity condenser to release the heat into the air through air blower
• Minimize floor space and ease of installation
• All pipe insulation design, to prevent local convection of the pipeline
• Finned condenser, better heat transfer, faster heat dissipation
• Box type evaporator is provided with an automatic water replenishing device

adopt electronic water flow meter to control the water flow by customer requirement

1) Adopted world famous Copeland, Danfoss, Panasonic brand compressors and high efficiency condenser and evaporator, ensure high cooling efficiency, low energy consumption, low noise and long service life.
2) Chilled water temperature range 5ºC to 35ºC.
3) R22 charged, CFC free type R407C, R410A, R404A, R134A for option, high cooling efficiency.
4) Over sized evaporator and condenser ensure the chiller unit running under 45C high ambient temperature.
5) Microcomputer control system offering accurate temperature stability within ±1ºC.
6) Low noise and big volume air blower.
7) Standard equipped Iron pump, stainless steel or high lift pump for option.

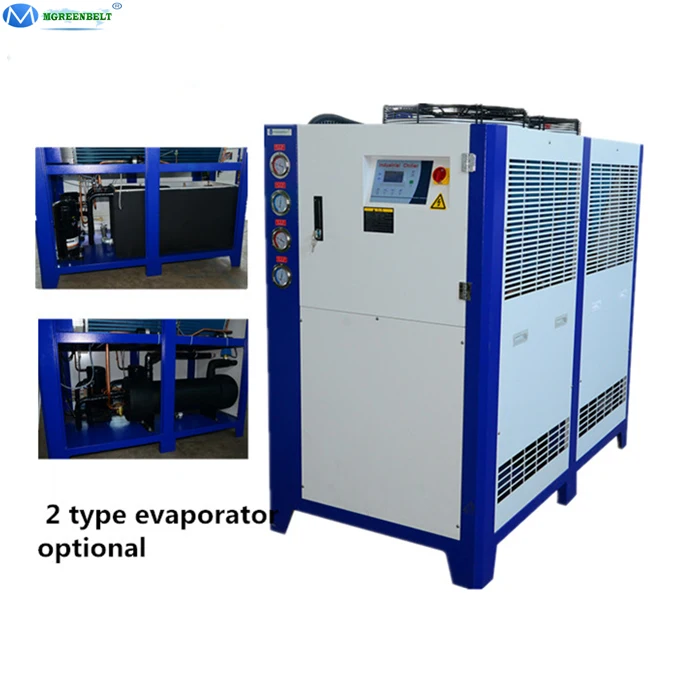

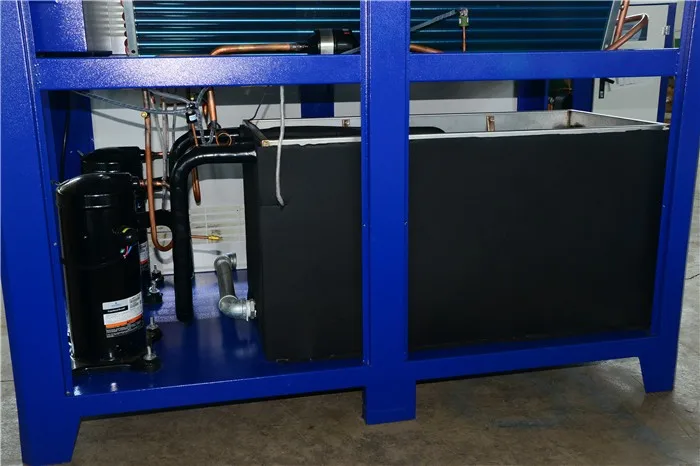

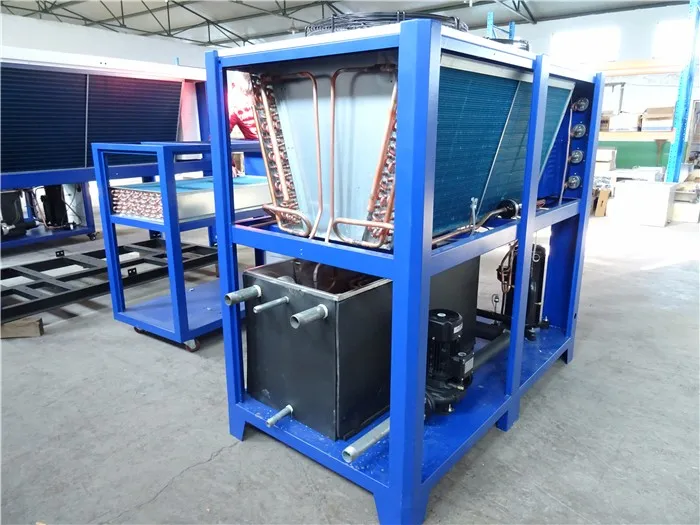

8) The innovative evaporator-in-tank configuration ensures a steady water temperature offered, as the evaporator also cools the tank itself, reduces ambient heat gain, and increases the efficiency.
9) Industrial air cooled water chiller adopted aluminum fin/copper tube type condenser, easy for cleaning and installation.
10) Muti- protection devices ensure the chiller unit running safely: -Compressor inner protection,Over current protection,High/low pressure protection,Over temperature protection ,Flow switch,Phase sequence/phase missing protection,Low coolant level protection,Anti freezing protection ,Exhaust overheat protection.

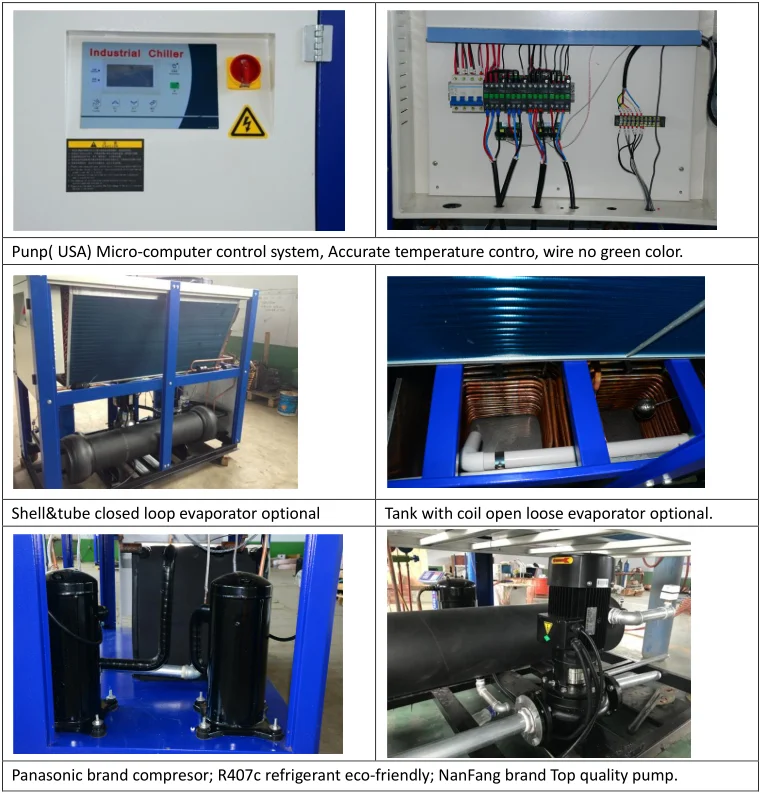

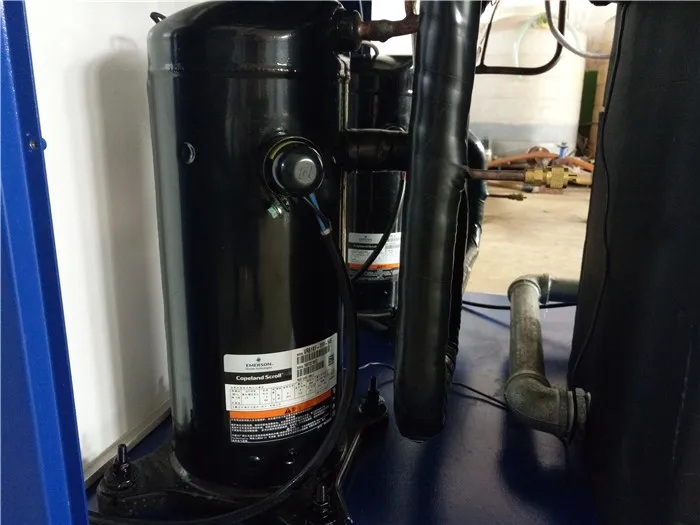

Compressor:

Different brand compressors for options, all is working well and durable.

Brand: Copeland, Panasonic, Danfoss, Daikin

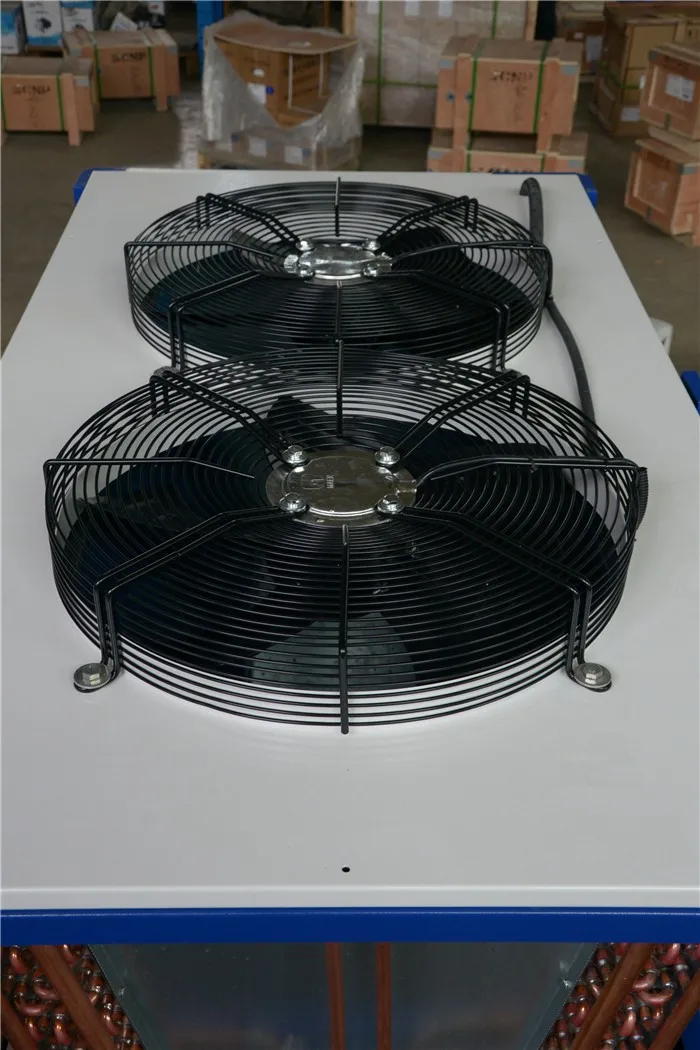

Air Fans:

Large volume axial fans

both Maer, Dunli and other brand available

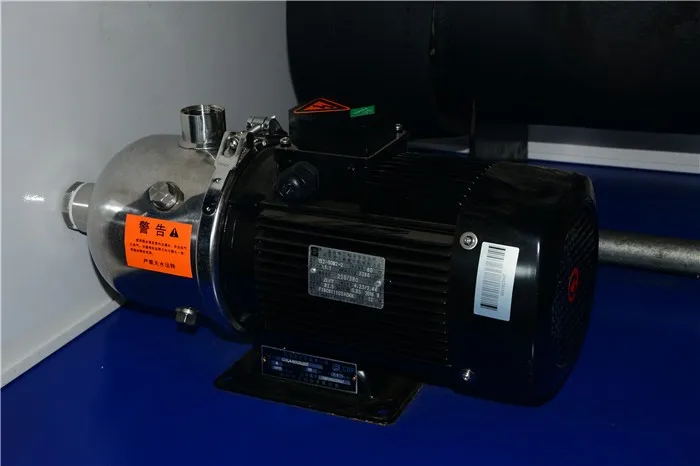

Water pump

Centrifugal type

Stainless steel material

Water tank

Food grade stainless steel and with cover, all is insulation and sealed

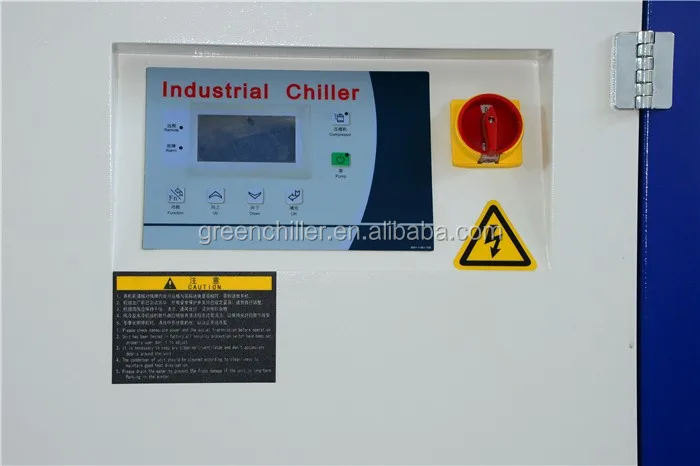

Control system

Microcomputer control system,  display working situation and fault alarm

Pipeline

Food grade stainless steel 304 material or 316

1).Food (Beverages, Confectionery, Chocolate, Storage)
2).Plastics (Injection, Blow Molding, Extrusion, Film Extrusion, Thermoforming)
3).Paper (Manufacturer, Printing, Card Board, Labels, Plastic Film)
4).Chemical (Petro Chemical, Paints, Solvents, Temperature Control)
5).Mechanical (Welding, Cutting, Profiling, Polishing, Rolling, Grinding)
6).Other (Wood, Ceramics, Gold & Silver, Pharmaceutical, Textile)

A. Order service
Inquiry-Quotation-Agreement-Order Confirm-Proforma Invoice-Deposit Advanced Payment-Production-Testing --Balance Payment- Packing &Delivery- Customs declaration- Documents to consignee- Assist of custom-cleaning --Instruction of Installation&Operation-Feedback
B. Technical service
1, We calculate the capacity and recommend the best models.
2, We design and develop the new products according to your requirement besides our standard products.
3, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
4, We supply the spare parts and technical support in & after the warranty time.
5, We supply the training course to your workers at our factory if you need.
C. After sale service
1. One-Year guarantee for whole unit and all parts free
2. Life time maintenance
3. Machines have to be strictly adjusted before delivery and deliver with firm & reliable packing and transportation.
4. Supply the professional refrigeration technical support and electronic technical support for your installation, debugging, operation and maintenance.
5. Supply free training course to your workers at our factory if you need.
6. Supply the spare parts and technical support in & after the warranty time.
7. Spare parts and technical support at most economic prices after the warranty.
8. 24 hours on line service each day by telephone.

A. Order service

Inquiry-Quotation-Agreement-Order Confirm-Proforma Invoice-Deposit Advanced Payment-Production-Testing --Balance Payment- Packing &Delivery- Customs declaration- Documents to consignee- Assist of custom-cleaning --Instruction of Installation&Operation-Feedback

B. Technical service

1, We calculate the capacity and recommend the best models.
2, We design and develop the new products according to your requirement besides our standard products.
3, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
4, We supply the spare parts and technical support in & after the warranty time.
5, We supply the training course to your workers at our factory if you need.

C. After sale service

1. One-Year guarantee for whole unit and all parts free
2. Life time maintenance
3. Machines have to be strictly adjusted before delivery and deliver with firm & reliable packing and transportation.
4. Supply the professional refrigeration technical support and electronic technical support for your installation, debugging, operation and maintenance.
5. Supply free training course to your workers at our factory if you need.
6. Supply the spare parts and technical support in & after the warranty time.
7. Spare parts and technical support at most economic prices after the warranty.
8. 24 hours on line service each day by telephone

1) Chiller water temperature control
2)Cooling capacity: _____ Kcal/hr or _____KW _____Ton
3)Refrigerant: R22 or R404a or R407c or _____
4) Voltages and Frequency : ______V/PH/HZ
Please contact below lady and send above information to get quick answer and offer.
Ms Libra Zhang
Email: libra(at)mgreenbelt.com
WhatsApp/ Wechat: +8618769762328
Skype: libra5813
