High precision Lithium Battery Tab Japanese sunny scanner laser welding machine

 Machine Parameter

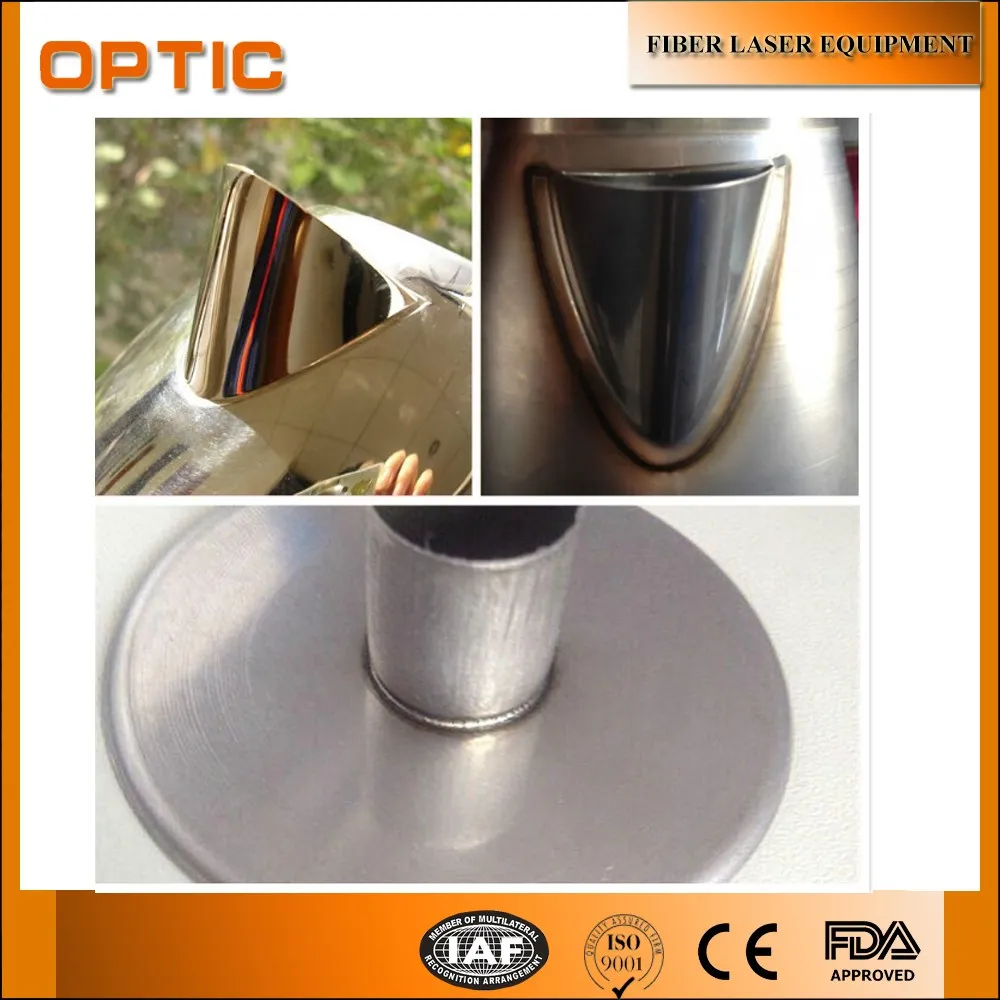

Products Application

Machine Features

When compared with other welding processes, laser welding has the following advantages:

• No undercut/sink of the weld or base metal surrounding the welded area when proper techniques have been used.

• Minimal heat input to the mold base metal resulting in no or the lowest possible distortion to precision features in close proximity to the weld repair area.

• Minimal weld metal deposited resulting in minimal machining to restore the part to its original dimensions.

• Hard, tough resultant weld metal attributable to the fine grain structure of the weld metal, which is a result of the extremely rapid solidification of the laser weld.

• Extremely precise control of the weld metal location, which allows for welding within a few thousands of an inch of features that are not to be disturbed on the mold.

• Little to no discoloration of the weld and the surrounding base material.

Laser Equipment Safety

The laser equipment can be very hazardous. The high voltages present in the laser power supply and the laser cavity are lethal. Only trained personnel should be allowed to repair the laser equipment. The laser light can cause permanent damage to the eye - the collimated nature of the laser light allows for focusing of the light on the retina in the eye. Direct laser light or scattered laser light allowed to enter the eye can cause partial to total permanent blindness. A laser safety program should be initiated and laser safety training should be given to all individuals before using any laser welding system.

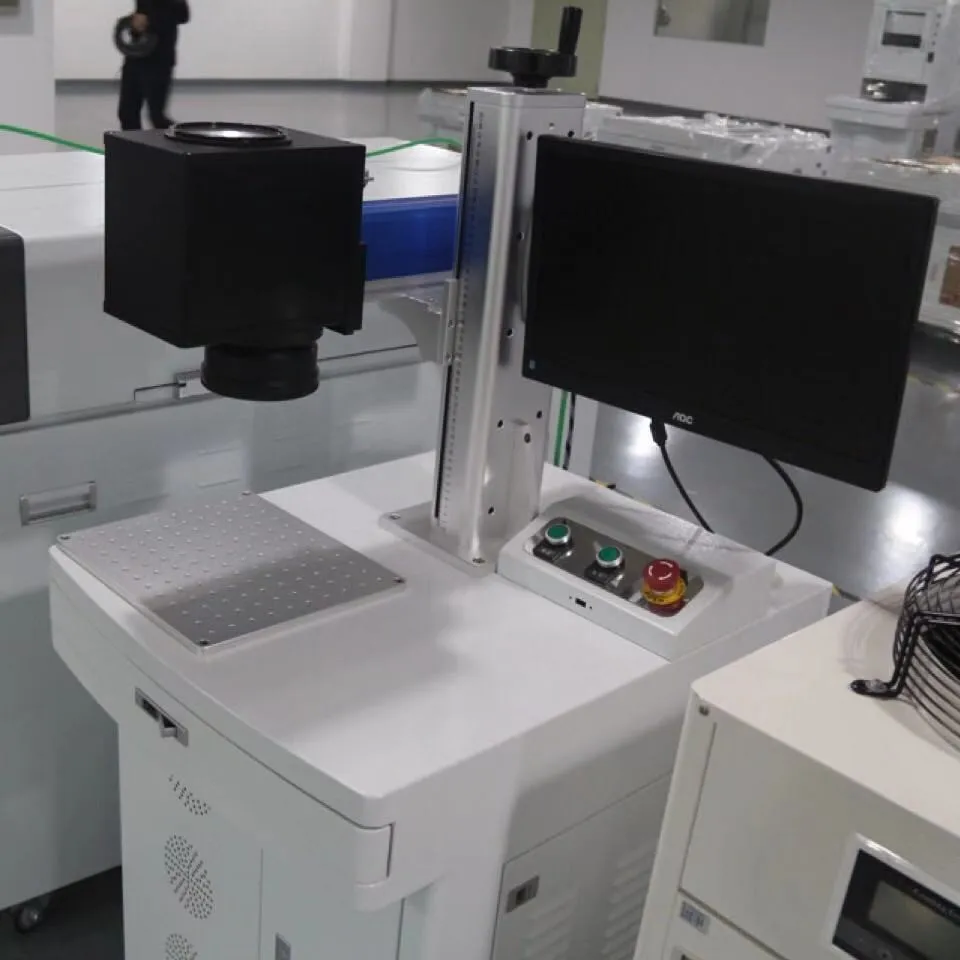

                                                                          galvo scanner

                                                                             fibel laser power

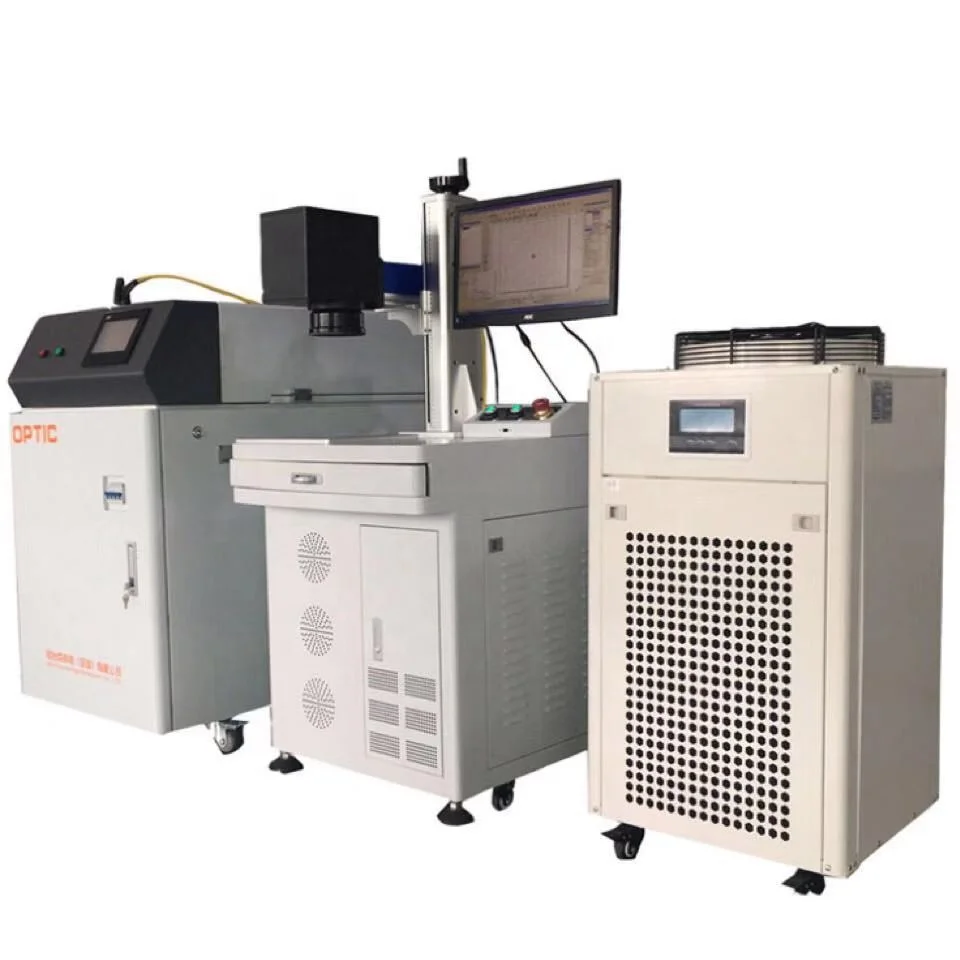

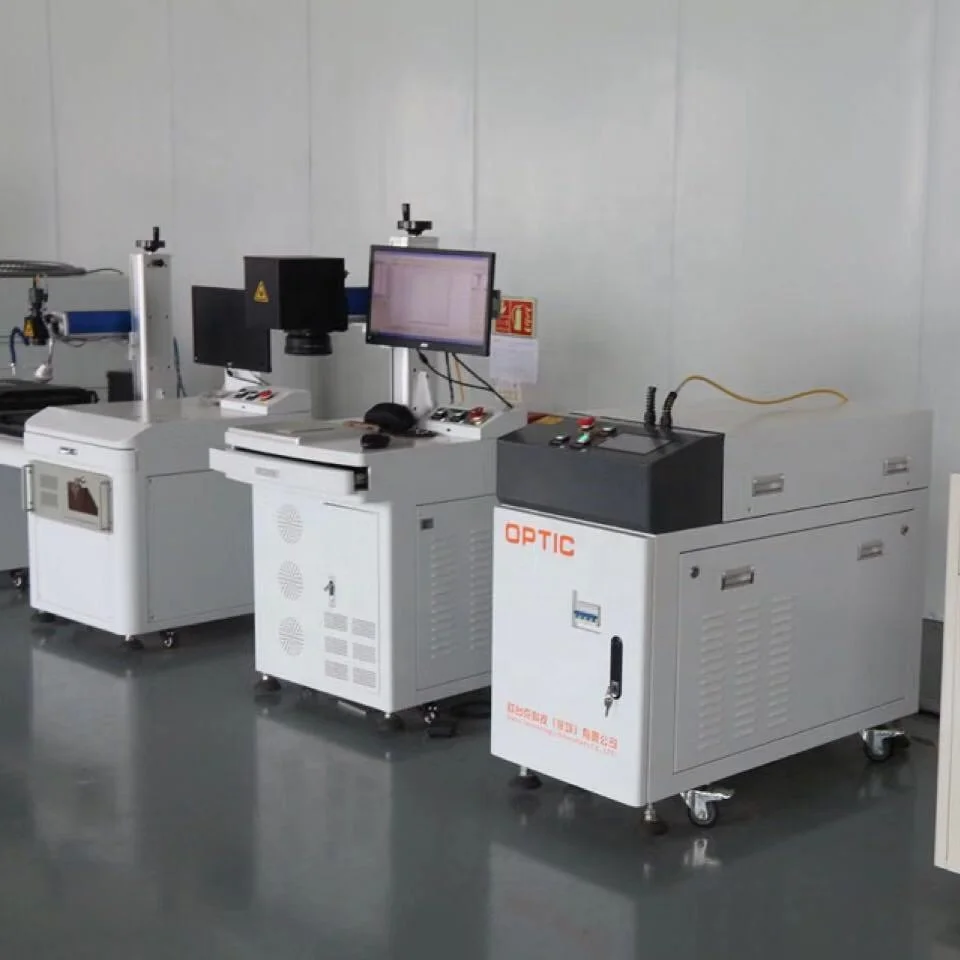

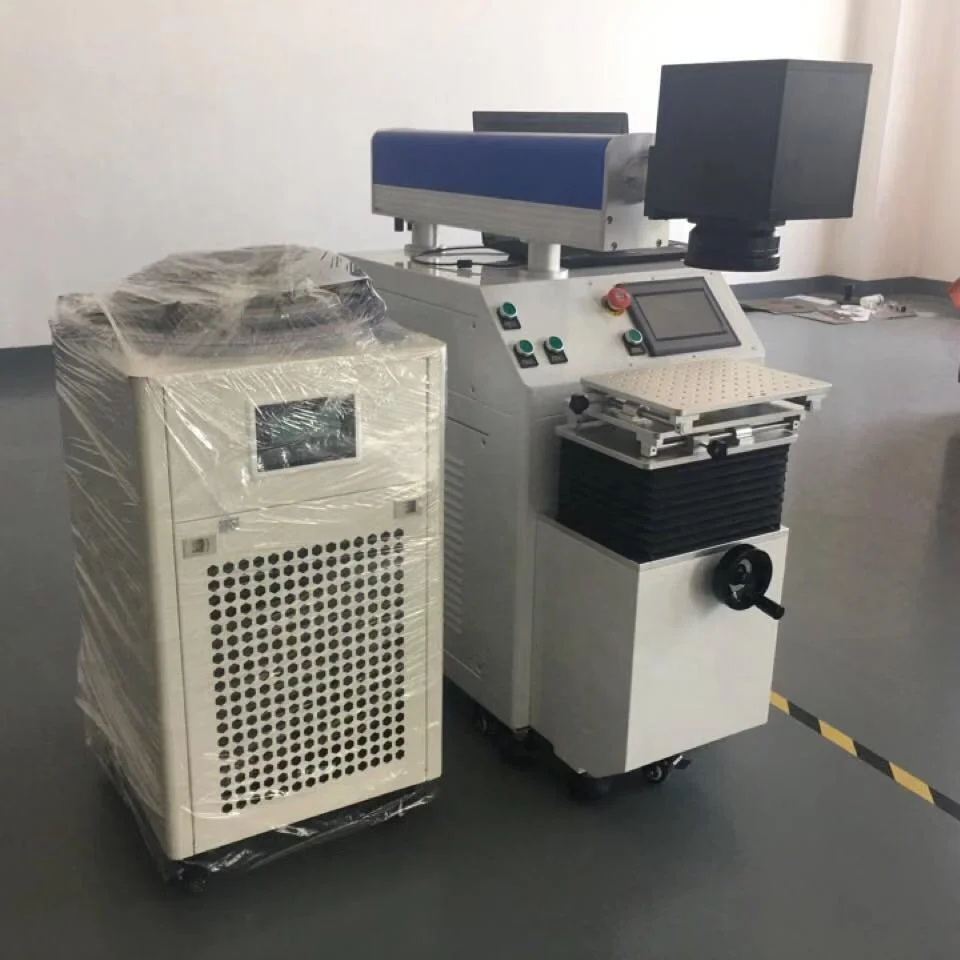

                                                                                  Total machine

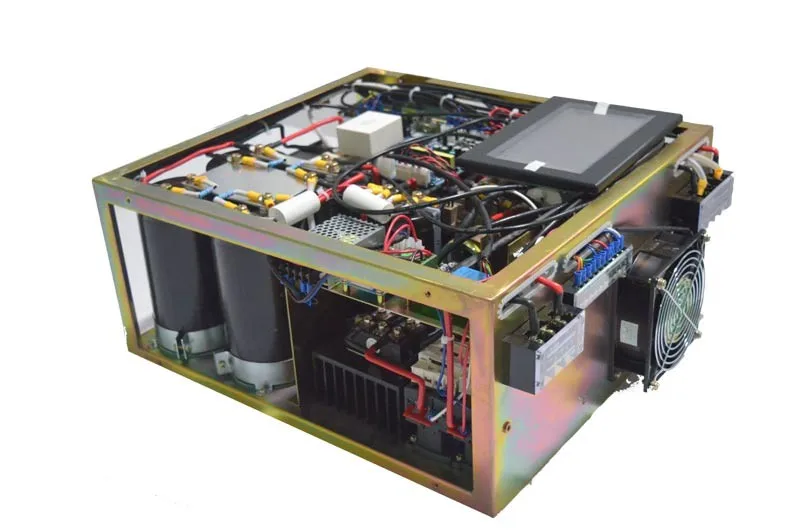

laser power supply

Brand:OPTIC
Origin: China
power: 3kw/6kw
Do real 80J pulse energy, 5.5KW rated power, single floor model suitable with desktop size.
Stable, powerful, and smart.

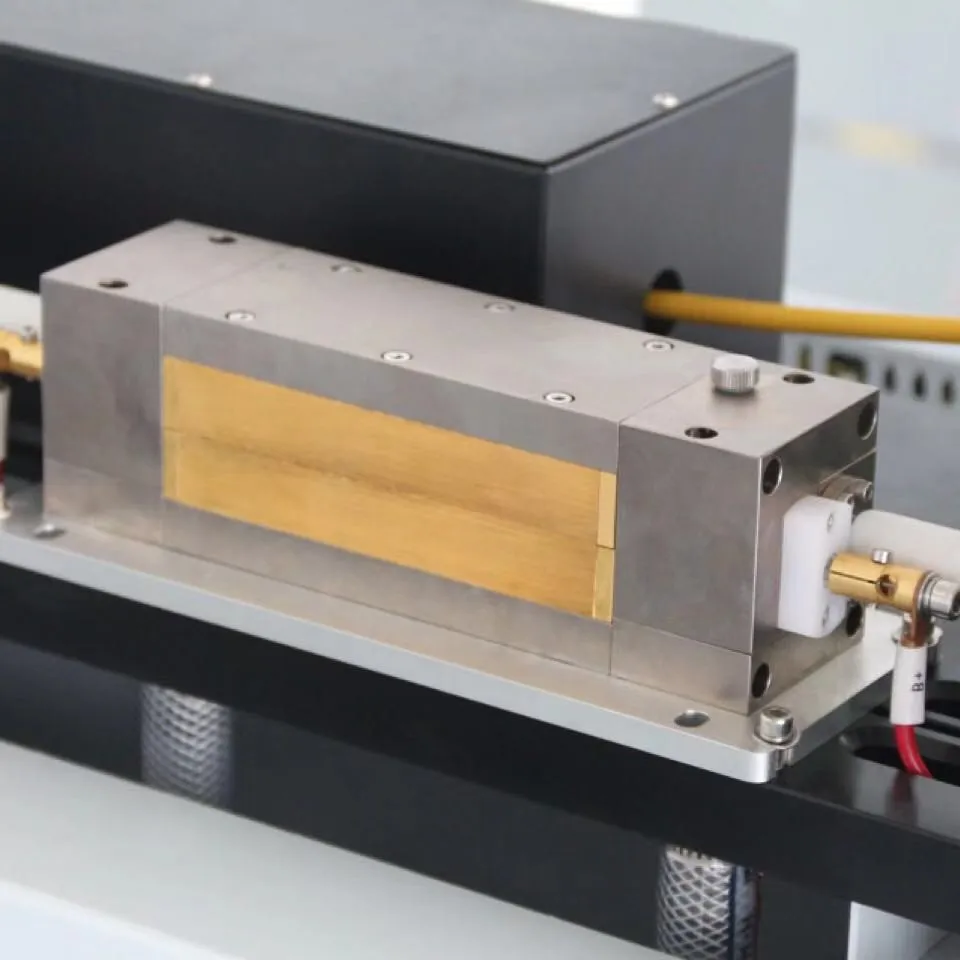

Ceramic cavity

Brand: OPTIC
Origin: China
Use ceramic core with YAG crystal (6*130mm) and xenon lamp,make sure 1064nm laser beam shooting out with continuous and stable power

Xenon lamp: Dayu

Origin: China
Xenon lamp is the the power source of laser,when xenon lamp finished,just need to change a new one and your welder can get back to work.

Dayu xenon lamp is the best quality in China,special for jewelry laser welder

Lifetime: 3,000,000 times

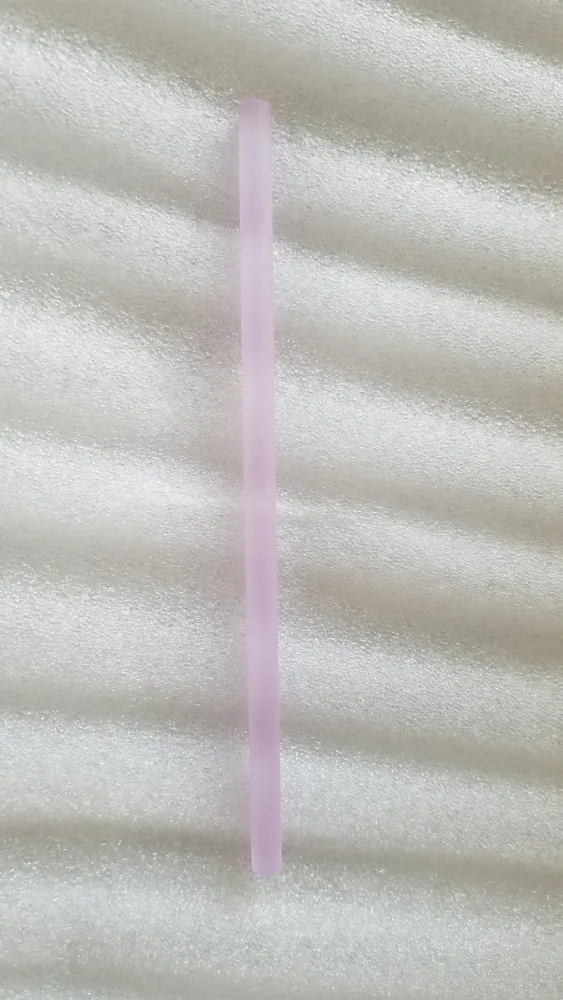

YAG Crystal

1.High gain,High efficiency and HIgh optical quality
2.Low threshold,Low loss at 1.06um
3.Good thermal conductivity and thermal shock characteristics
4.Mechanical strength
5.Material characteristics allow for various modes of operation (CW,pulsed,Q-switched,mode locked and cavity dumped
6.High optical quality

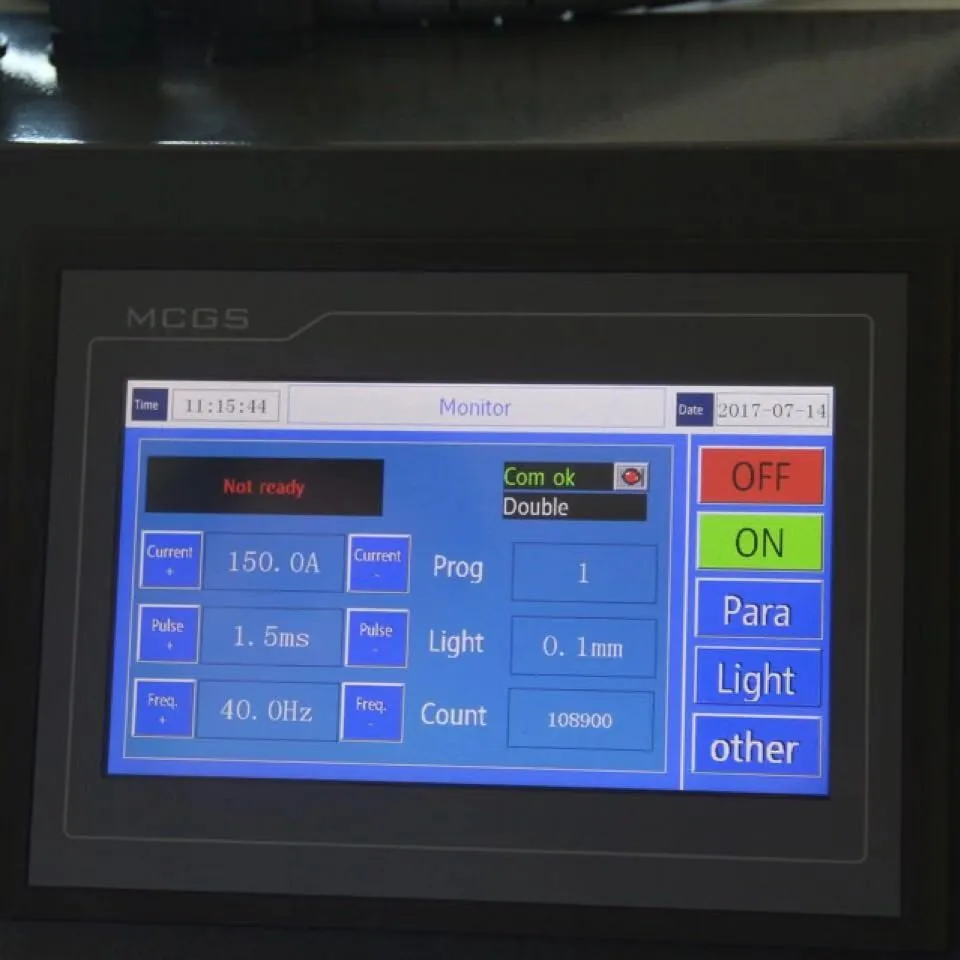

Touch screen

1.It is easy to control the machine

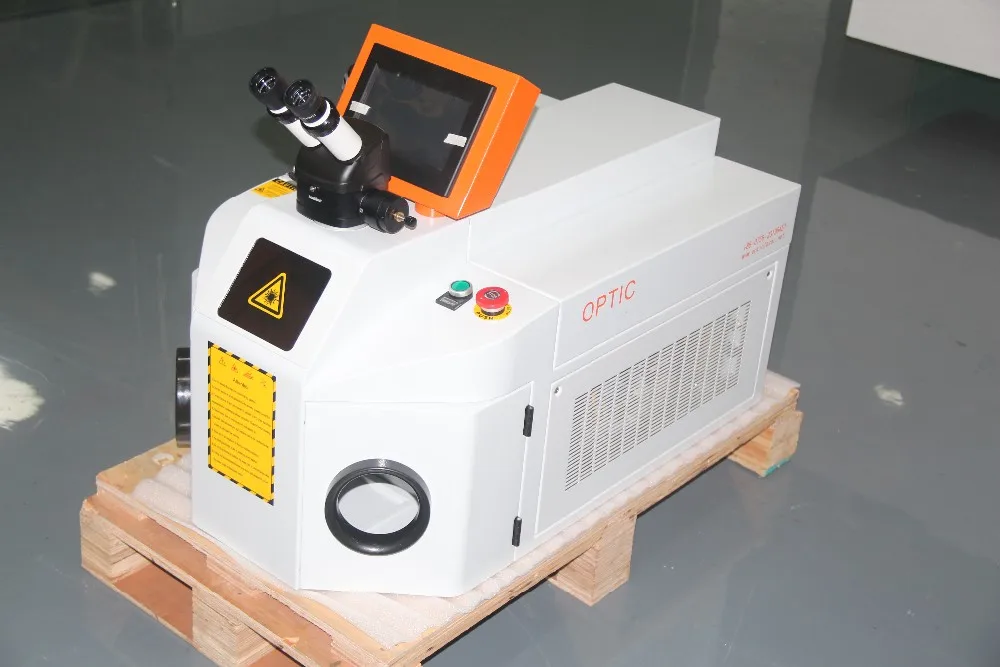

                200W jewelry welding machine

                              200W jewelry welding machine

Packing

Our Service

1. Warranty
1 years warranty for this fiber laser welding machine

Our customer will be fully trained for the operation and maintaining technology after the order confirmed

24-hour full after sales service: our skilled engineer will help customer to solve the problem by WHATSAPP, SKYPE, WECHAT etc in time when problems happen, if necessary, overseas service is available.


2. Quality Control
Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure.
All finished machine we delivered are 100% strictly tested by our QC department and engineering department.


3. OEM Service

Customized and OEM orders are welcome due to our aboundant experiences.
All the OEM services are free, customer only need to provide us with your logo drawing, function requirements, colors etc.
No MOQ required.


4. Privacy
None of your personally identifiable information ( such as your name , address , email address ,bank info ,etc ) will be disclosed or shared with any third parties.

Contact: All of your inquiries or questions or helps will be answered within 24 hours, even in holiday. Also, please feel free to call us if you have any emergency questions
