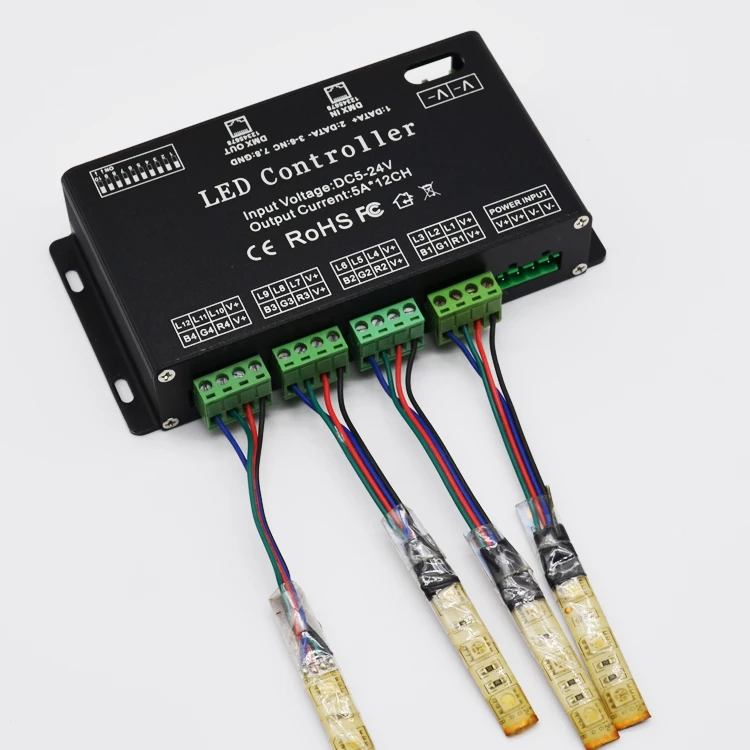

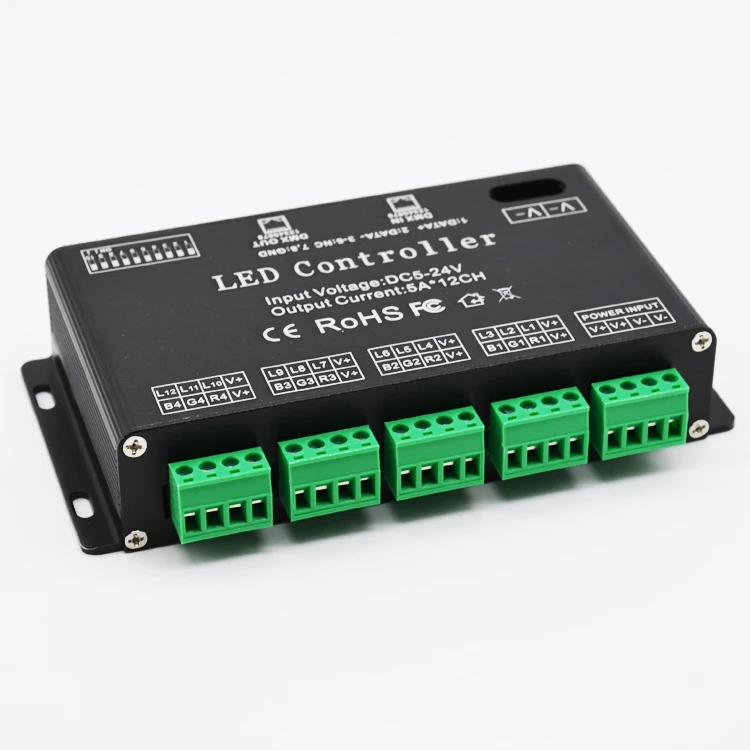

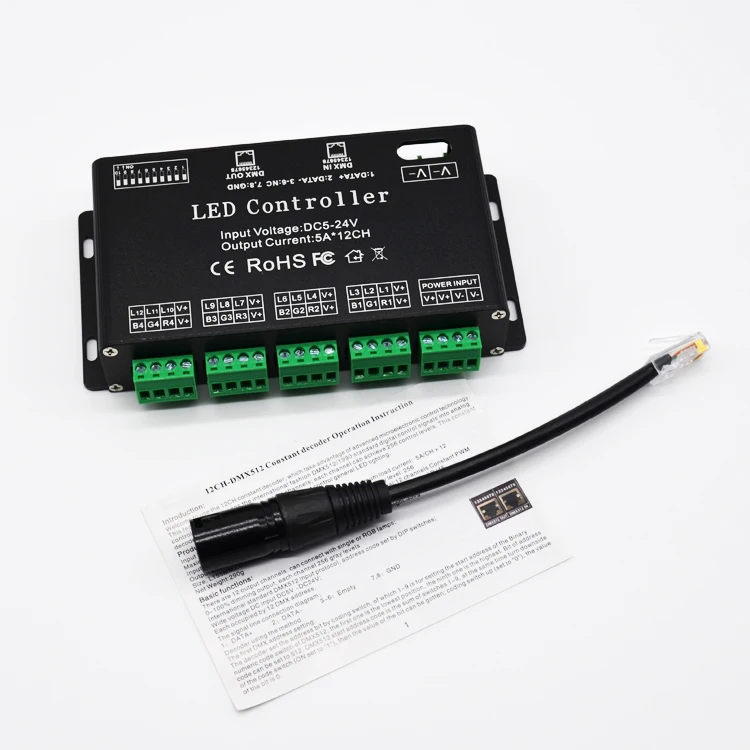

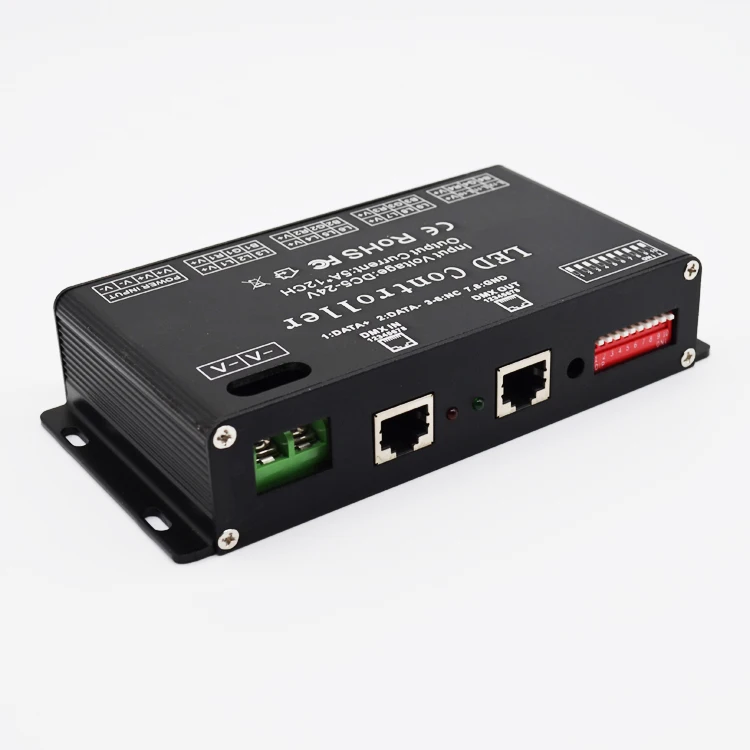

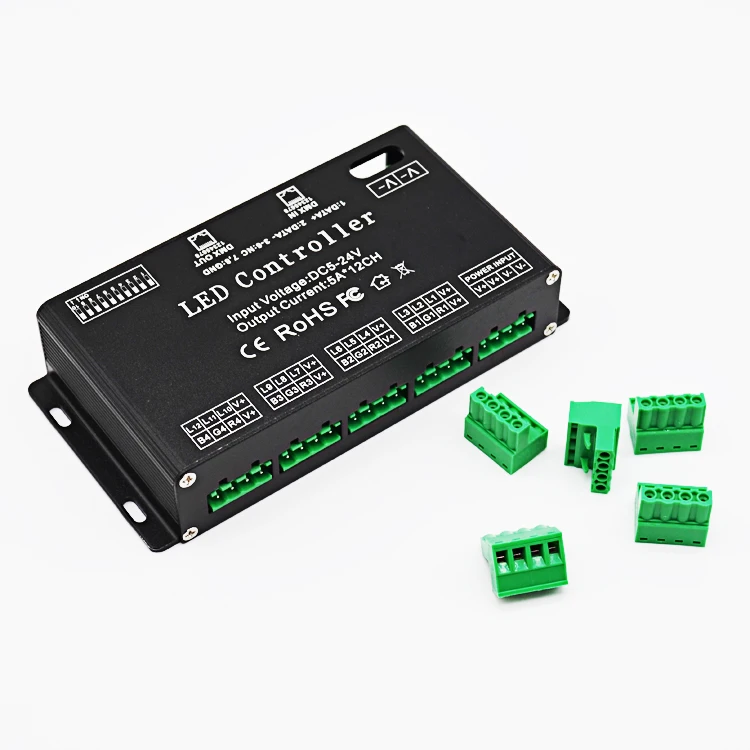

12 Channel LED DMX512 1990 Constant Decoder 5VDC to 24VDC 5A per Channel PWM Output signal RJ45
- Category: >>>
- Supplier: Huizhou Karrey Plastic Metal Eelectronic Co. Ltd.
Share on (62032670626):
Product Overview
Description
Product Description
| 12CH DMX512 LED Decoder | |
| Input Power | 5-24V DC |
| Max. Current | 5A/CH*12 |
| Max. Power | 300w(5v),720w(12v),1440w(24v) |
| Output gray level | 256 |
| Input Signal | DMX 512/1990 |
| Output Signal | 12 Channels Constant PWM |
| Application | Single, RGB LED lamps |
| Warranty | 2 years |
12 Channel LED DMX512 1990 Constant Decoder 5VDC to 24VDC 5A per Channel PWM Output signal RJ45
Wecome to use the 12CH constant decoder, which take advantage of advanced microelectronic control technology. This technology changes the international fashion DMX 512/1990 standard digital control signals into analog control signals. There are 1~12 output channels; Each channel can achieve 256 control levels. This constant decoder is used when DMX512 control equipment control general LED lighting.
Basic Features:
***There are 1~12 output channels, can connect with single or RGB lamps.
***0~100% dimming output, each channel 256 gray levels.
***International standard DMX512 input protocol, address code set by DIP switches.
***Wide voltage input voltage is 5~24VDC.
***Each occupied by 12 DMX address.
Product Instruction
Example1:
DMX512 Function
The item have DMX512 function, can be used in serval online.
There are DMX512 mode and Automatic mode.
1. DMX MODE
In this mode, you can control the LED decoder with DMX512 console or PC DMX512 console.
Note: FUN=OFF (the tenth code switch up) means to accept DMX512 signal mode.
The first DMX address setting:
The decoder set the address bit by coding switch, of which 1-9 is for setting the start address of the Binary numeric code switch of DMX512, the first one is the lowest position, the ninth one is the highest.
Bit of address code can be set to 512.
DMX512 start address code is the sum of switches 1-9, at the same time turn downside of the code switch (ON set to "1"), then the value of the bit can be gotten; coding switch up (set to "0"), the value of the bit is 0.
Example1:
As the following Schematic 1, DMX512 start address is set to 38, encoding the No. 6,3,2 position on switch dial to "1", others set to "0", then the sum of the switch 1-9 code value is 32 + 4 + 2, that is the DMX512 start address 38.
Example 2:
As the schematic 2, DMX512 start address is set to 388,
encoding the no. 2,3,6,8 switch dial to "1", others set to "0", then the sum of the switch 1-8 code value is 4 + 128 + 256 = 388, that is the DMX512 start address 388.
2. AUTOMATIC MODE
In this mode, the LED decoder will run automatically.
Note: It will be automatic mode when the No.10 switch is turned down.
Effect choice (DIP switch No.1 to No.4):
| No. | Dial code | Effect | | No. | Dial code | Effect |
| 1 | No.1 | Automatic cycle | 2 | No.2 | Seven-color cycle gradient | |
| 3 | No.3 | Seven-color cycle jump | 4 | No.4 | Single color right scan | |
| 5 | No.1&2 | RGB fade in and out | 6 | No.1&3 | RGB cycle jump | |
| 7 | No.1&4 | Single color left pile up | 8 | No.2&3 | Single color fade | |
| 9 | No.2&4 | Single color right pile up | 10 | No.3&4 | Single color left and right pile up | |
| 11 | No.1&2&3 | Single color left scan | 12 | No.1&2&4 | Single color left and right scan | |
| 13 | No.1&3&4 | Single color red | 14 | No.2&3&4 | Single color green | |
| 15 | No.1&2&3&4 | Single color blue |
Speed Choices (DIP switch No.5 to No. 8):
| No. | Dial code | Effect | | No. | Dial code | Effect |
| 1 | No.5 | 0.5 second | 2 | No.6 | 1 second | |
| 3 | No.7 | 1.5 second | 4 | No.8 | 2 second |
