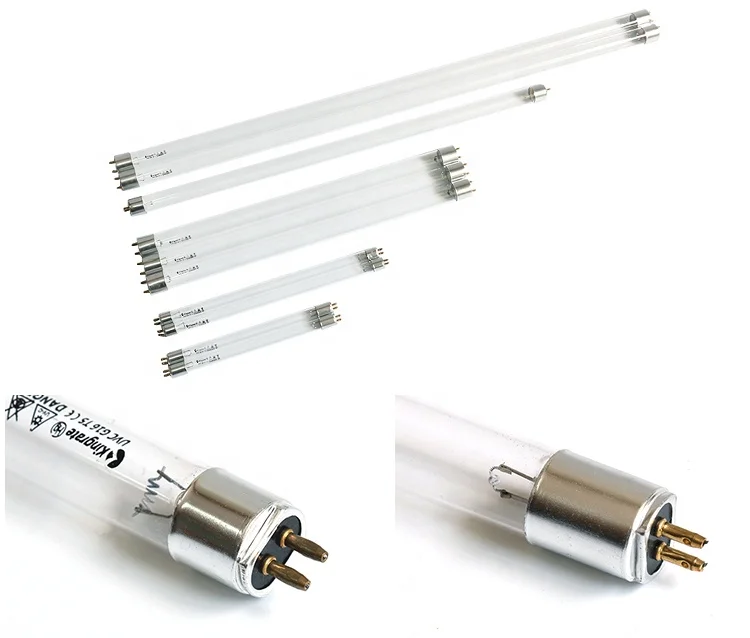

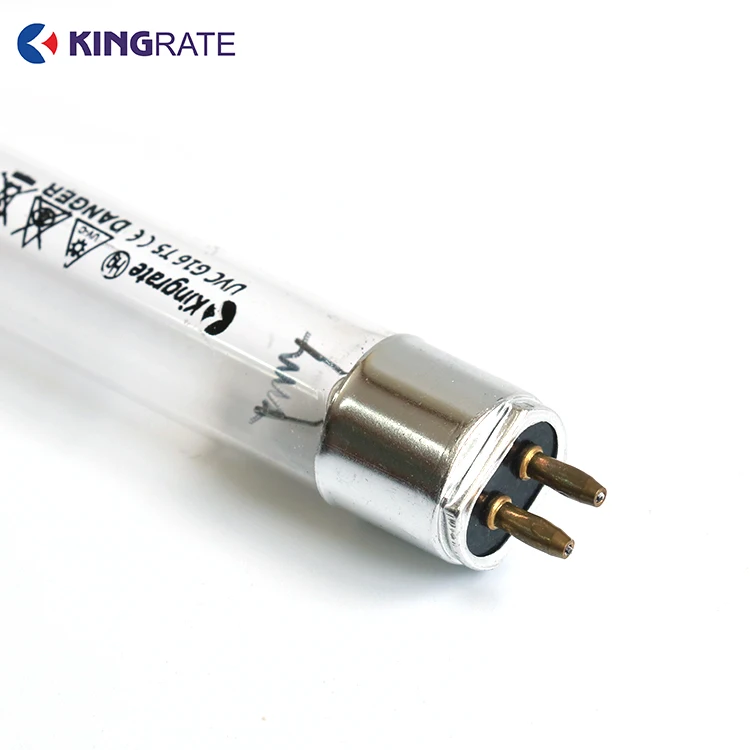

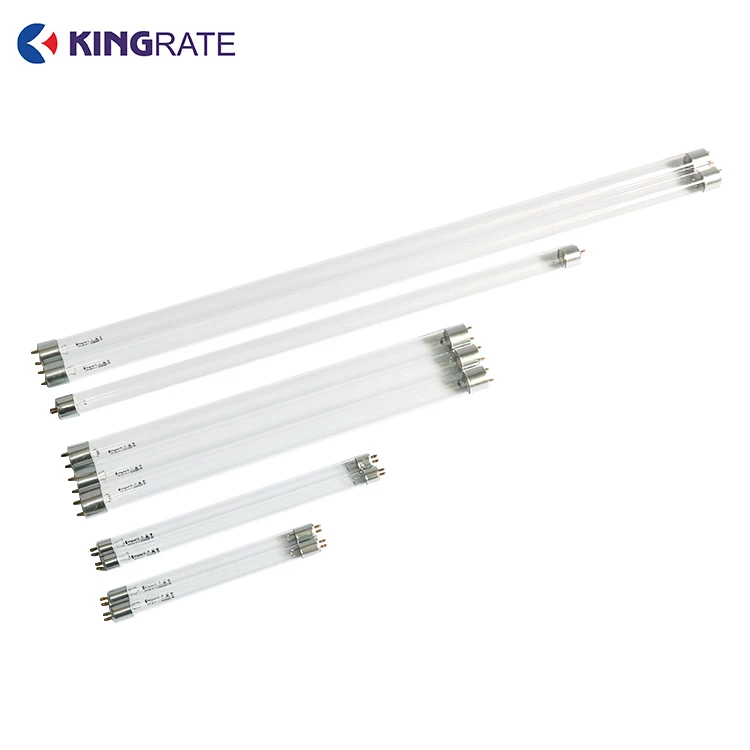

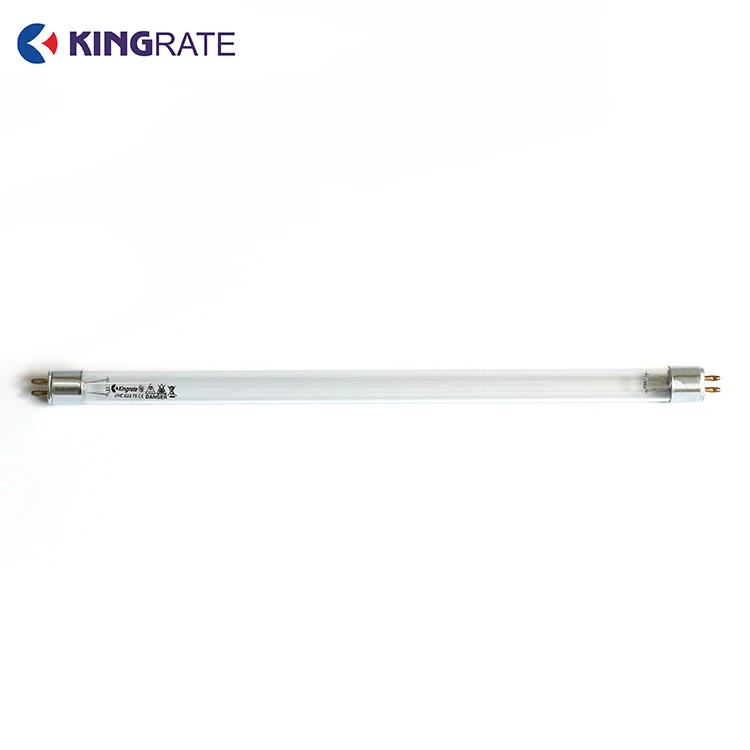

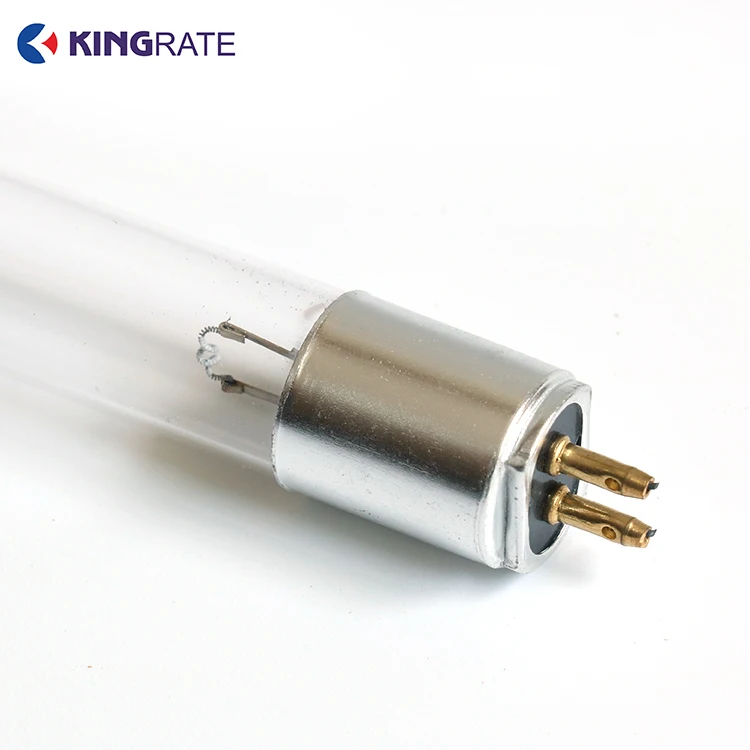

254NM 185NM Quartz Ultraviolet Sterilize Germicidal UV Lamps Tube 2 Side 2 Pins 6W 8W 11W 16W UVC Germicidal Light T5

Product Overview

Description

Speciality

  1,The high purity quartz glass tube is adopted and treated with special technology,

   which further reduces the impurity content and makes the efficiency of lamp tube more stable.

   2,Advance technology enables our lamp with high initial uv radiation and low uv light decay.

   3,Ozone type and non-ozone type are available.

   4,High output UV lamp is a better choice for reducing system size and maintaining uv output.

   5,Corresponding quartz sleeve and ballast are available.

Main Application

• Aquarium disinfection


• Water treatment


• Air cleaning and disinfection


• Air conditioning pipe disinfection


• Purifier

Type	Length	Power	Current	Voltage at 50/60Hz	Voltage at High Freq	UV Output at 1M		Base	Standard Life	Long Life
	MM	W	MA	V	V	uv/cm²	W		H	H
T5≈Lamp Dia. 15mm(D)
G4T5	135	4	170	28	23	9	0.9	G5	8000	10000
G6T5	212	6	160	42	34	16	1.6	G5	9000	12000
G8T5	288	8	150	56	45	21	2.1	G5	9000	12000
G11T5	212	11	330	49	10	22	2.2	G5	10000	13000
G16T5	288	16	350	54	44	36	3.6	G5	10000	13000
T6≈Lamp Dia.19mm(D)   T8≈Lamp Dia.25mm (D)
G10T8	331	10	230	46	36	23	2.3	G13	10000	13000
G15T8	437	15	340	51	44	47	4.7	G13	10000	13000
G25T8	437	25	600	43	41	70	7	G13	10000	13000
G30T8	894	30	370	100	80	100	11.2	G13	10000	13000
G55T8	894	55	780	84	70	160	17	G13	10000	13000
G75T8	1199	75	850	110	85	200	26	G13	10000	13000
Remark:The product parameters and data are provided by Kingrate and for reference only.

For more product information, please click. Contact us

For more product, please click. Contact us



Q1:Can I have a sample first for the UV lamps?

A:Yes, we welcome sample order to test and check quality.

Q2:What's your lead time?

A:Samples would be need 5-7 days; mass production would be need 1-4 weeks according to the order quantities.

Q3: What is your shipping method and how long does it take to arrive?

A:We usually ship via DHL, UPS, FedEx or TNT and it usually takes 3-5 days to arrive. Both Air shipment and sea shipment are also optional.

Q4:Do you offer guarantee for the products?

A:Yes, we offer 1 years warranty to our most of our UV lamp, and half of one year warranty to the submersible UV lamp.

Q5:Can I use my own design package and logo on the products ?

A:Yes, We can accept OEM as per customers’requirements.
