bank central air conditioning Panel filter Synthetic fiber 595x595x96mm for Air Handling Unit
- Category: >>>
- Supplier: Xinxiang Great Filter Equipment Co. Ltd.
Share on (62032913545):
Product Overview
Description
Contacts
Welcome to Inquiry .Welcome to Comstomize.
Please tell us following information Photo , Efficiency, Precision,Life working time , Filter Media , Frame Materials
Efficiency | primary | medium | high | |||
Precision | 5um | 3um | 0.3um | |||
Efficiency | 45%-95% | 45%-95% | 95%-99.99995% | |||
G1 45%-60% | F5 45%-55% | H10 | ||||
G2 60%-70% | F6 55%-65% | H11 9 | ||||
G3 70%-80% | F7 65%-75% | H12 | ||||
G4 80%-95% | F8 75%-85% | H13 | ||||
F9 85%-95% | H14 | |||||
Life | About 2 months | 6-8months | 1year | |||
Filter Media | Filter cotton | Rayon | HV Fiber Glass | |||
Non-woven | Filter Cotton | Wood pulp Paper | ||||
Nylon Mesh | Filter Cotton | Wood pulp Paper | ||||
Type | Pocket or Panel | Pocket or Panel | Panel or V-W type | |||
Frame Materials | Paper, aluminum alloy, ABS plastic (high price) galvanized sheet, stainless steel | |||||
Activated carbon air filter Yes or NO | ||||||
High Temperature Yes or NO | ||||||
Product Description
bank central air conditioning Panel filter Synthetic fiber 595x595x96mm for Air Handling Unit
Dimension:23-3/8″×23-3/8″×11-1/2″ (592×592×292)mm
Replaces p/n :67731158 1X8259
Weight:22.4kgs
Filter area:13.4sqm
Filter material: glassfiber
Separator: aluminum
Initial pressure drop:ΔPo≤190Pa
Final Pressure drop:ΔPmax=450Pa
Filter Efficiency:η≥ 99.9% @ 2μm
Air Flow:Q=4200m³/h @164Pa
Application for High Temperature Primary Efficiency Panel Filter
Application:The primary filter is suitable for primary filtration of air conditioning system. It is mainly used to filter dust particles above 5 um.

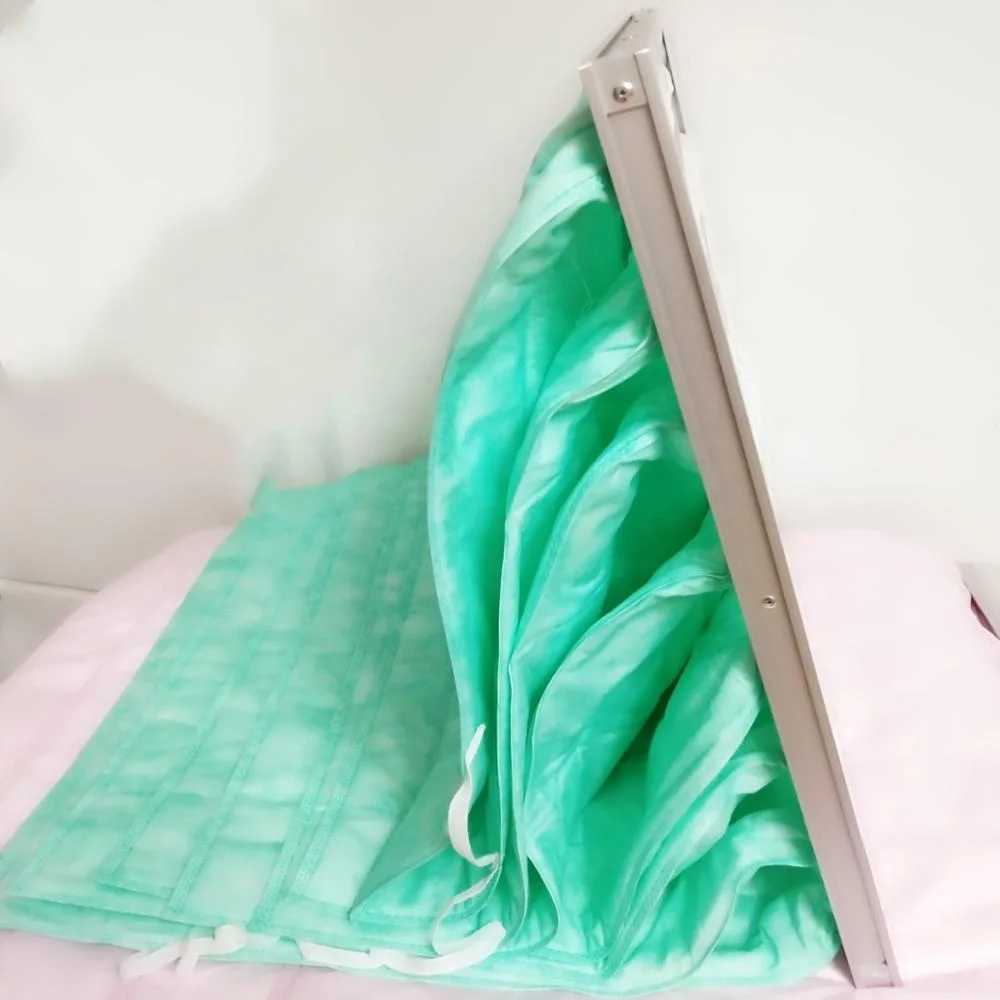

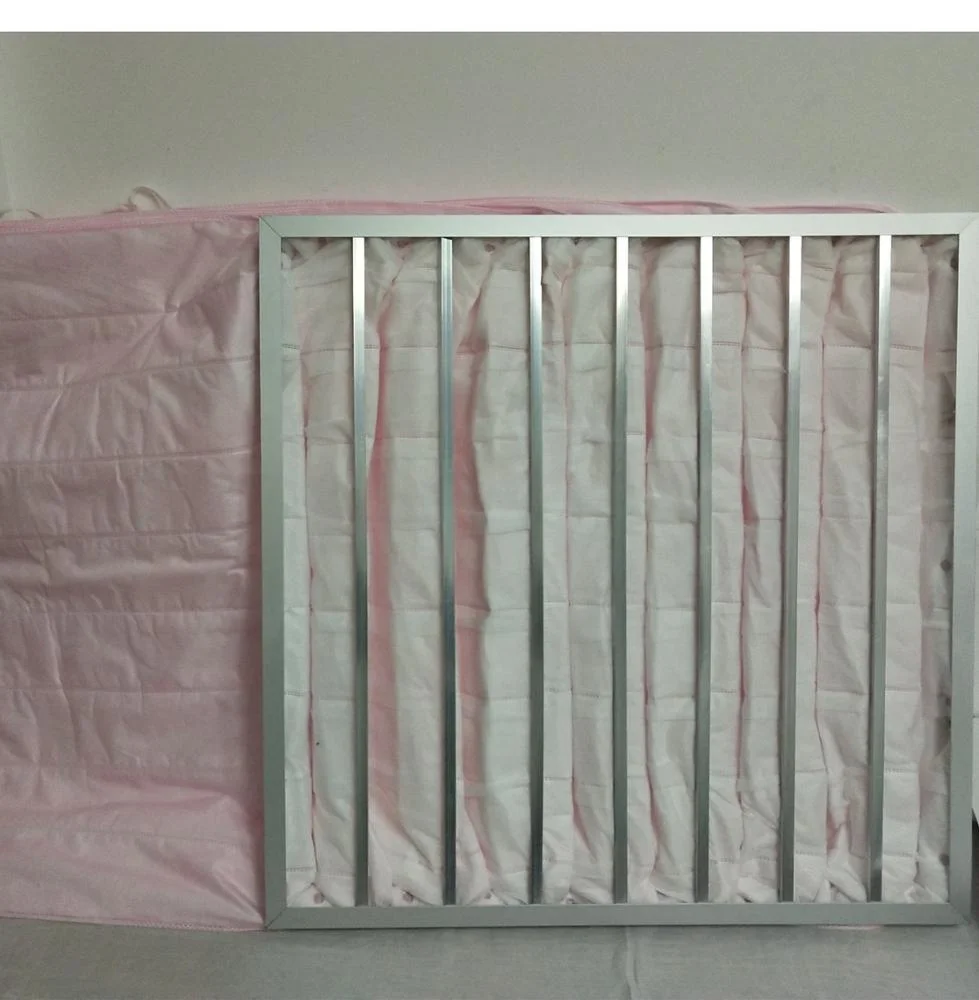

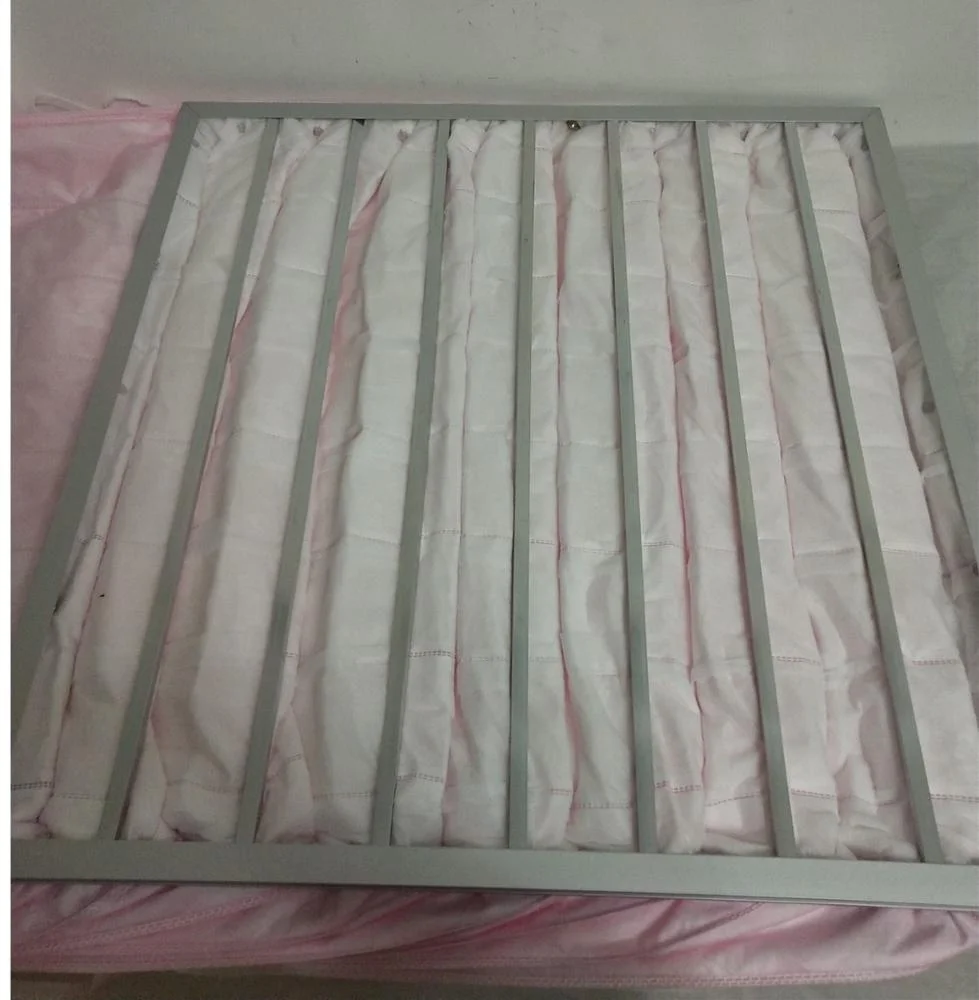

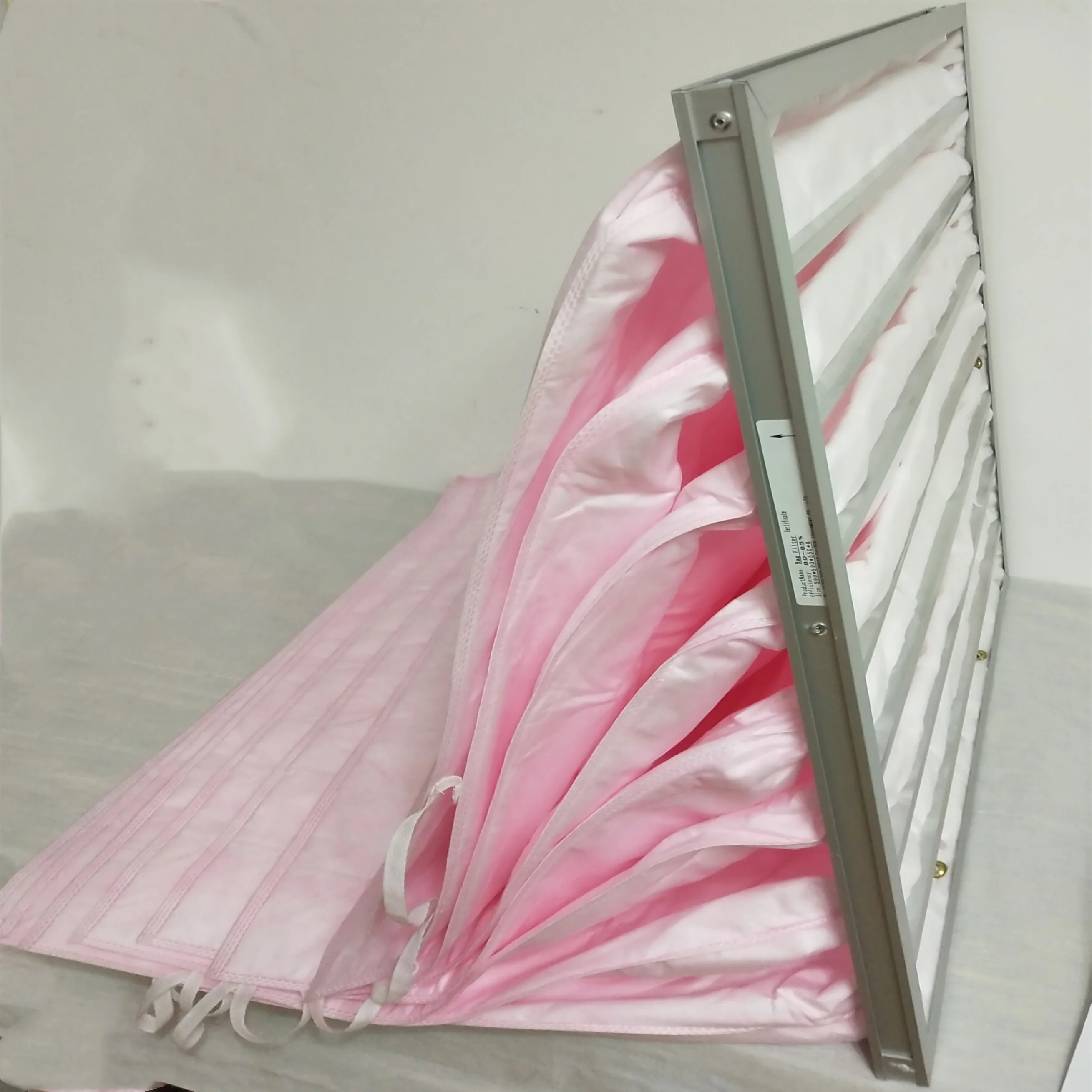

Style : Panel filter ,Pleat filter ,pocket filter
Frame material : paper frame, aluminum frame, galvanized iron frame,
filtration materials: non-woven nylon nets, activated carbon filters, metal mesh, protective net :with double spray wire and double-sided galvanized wire mesh
Advantage:for High Temperature Primary Efficiency Panel Filter
1.large effective filter area , large dust content, small resistance , the large ventilation capacity
2.the frame and the supporting frame can be used repeatedly; you can only change, and the operation cost is greatly reduced. Widely used in the electronic, pharmaceutical, medical, food and other industries filtration system, is the best structure of the medium efficiency filter.
It has the advantages of low price, light weight, good versatility and compact structure.
Mainly used:for High Temperature Primary Efficiency Panel Filter
1.Central air conditioning and central ventilation system pre filtration
2.Large scale air compressor pre filtration
3.Clean air return system
4.Pre filtration of local HEPA filters
5.High temperature air filter, stainless steel frame, high temperature resistance, filtration efficiency of 250-300 degrees
6.This efficiency filter is commonly used for primary filtration of an air conditioning and ventilation system, and is suitable for simple air conditioning and ventilation systems requiring only primary filtration.
7.G series of coarse effect air filter is divided into eight varieties, namely: G1, G2, G3, G4, GN (nylon mesh filter), GH (metal mesh filter), GC (activated carbon filter), GT (high temperature coarse effect filter).
High temperature resistant filter Parameters
Size | Flow | Initial resistance | Final Resistance | Filtration Area | Dust holding Capacity | Filtration Efficiency |
(W×H×D mm) | (m³/h) | (≤pa) | (≤pa) | m2 | (g) | |
595*595*50 | 3000 | 40 | 100-200 | 1.12 | 180 | G3 |
610*610*50 | 3100 | 40 | 100-200 | 1.15 | 184 | G3 |
990*400*50 | 3330 | 40 | 100-200 | 1.22 | 195 | G3 |
968*484*50 | 3800 | 40 | 100-200 | 1.42 | 228 | G3 |
320*320*46 | 800 | 40 | 100-200 | 0.31 | 50 | G3 |
305*305*46 | 700 | 40 | 100-200 | 0.27 | 43 | G3 |
600*600*40 | 2800 | 40 | 100-200 | 1.05 | 167 | G3 |
484*484*46 | 1800 | 40 | 100-200 | 0.66 | 105 | G3 |
280*280*21 | 400 | 40 | 100-200 | 0.14 | 23 | G3 |
Paper Pre Filter
Item | Flow(m³ /min) | Dimension(size) mm | ||||||
A | B | C | D | |||||
15/30 | 18 | 61 | 397 | 381 | 86 | |||
20/30 | 32 | 61 | 524 | 508 | 86 | |||
30/30 | 40 | 61 | 776 | 760 | 86 | |||
30/50 | 48 | 89 | 776 | 760 | 140 | |||
Activated Carbon
Size | Flow | Initial resistance | Filtration Area | Removal odor rate |
(W×H×D mm) | (m³/h) | (≤pa) | m2 | (>) |
592*592*21 | 1150 | 40 | 0.09 | 135 |
287*592*21 | 550 | 40 | 0.47 | 207 |
490*592*21 | 970 | 40 | 0.77 | 112 |
592*592*46 | 1200 | 40 | 0.97 | 67 |
287*592*46 | 650 | 40 | 0.52 | 112 |
490*592*46 | 1080 | 40 | 0.86 | 173 |
495*295*21 | 504 | 40 | 0.4 | 115 |
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 60 (L) * 60 (W) * 60(D) | |
Weight | 15KG | |

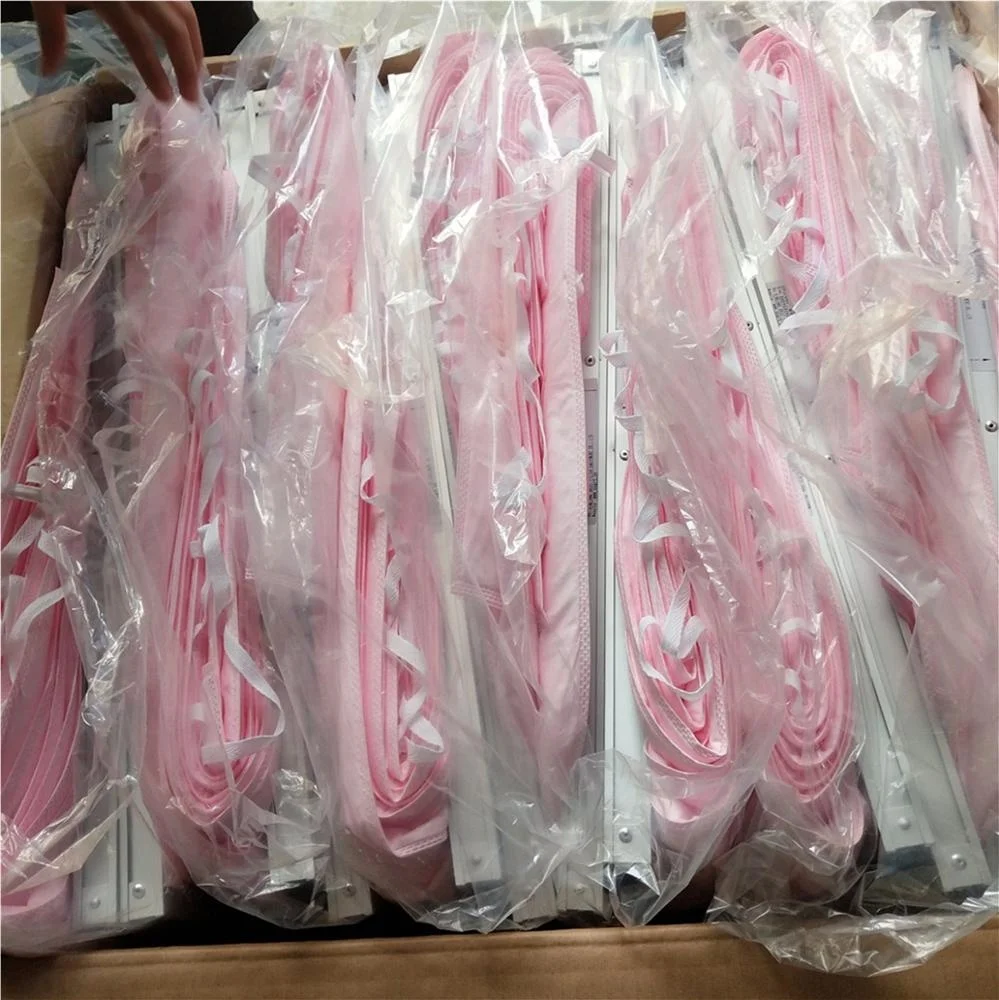

Packaging Details | The normal package is carton box(Size: L*W*H).we will use pe film for packing or pack it according to customers special request. | |
Our Company
Contact Us
1.Our Engineer have 15 years experience on filtration area
2.Full experience on exporting business .With us your money in safe,your business in safe!!
3.Fast Delivery Time:5-7days
4.Special Price
5.7*24hours after-service
6.Imported Micro Glass from USA HV Company
7.99.99% filtration efficiency !&100% Inspection Management System
NOTICE
All product photos displayed on this website are taken by our factory and .All photos are not allowed to be reproduced for commercial use without authorization.On this website Product quotation and parameters are for reference only, please contact us for specific quotation. Our company's biggest features can be designed and manufactured according to customer needs. The products displayed on the company's website are only part of the product. Quality assurance, reputation first!Welcome inquiry !
We also replacement supply spare parts suitable for Brand Compressor .Notice Our filter is replacement with neutral packaging. it's not a genuine part!!
XXGRT (XINXINAG GREAT FILTER)is an independent supplier of aftermarket filters and is not affiliated with the manufacturers mentioned in this web site.Original equipment manufacturer (OEM) names are the trademarks of each manufacturer.OEM names and part numbers are for reference only and do not indicate the manufacturer of our products.
