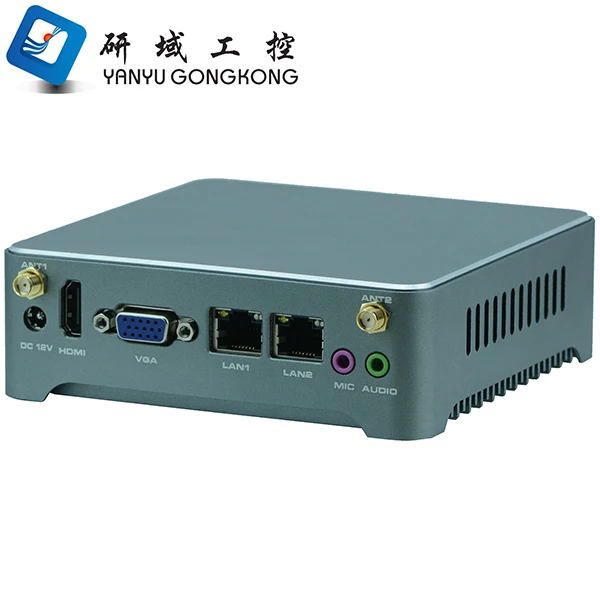

Hot sales Nuc J1900 PC mini computer nano itx motherboard MINI PC Nuc
- Category: >>>
- Supplier: Yentek (shenzhen) Technology Co. Ltd.
Share on (62032917815):
Product Overview
Description
Hot sales Intel Nuc J1900 PC mini computer nano itx motherboard MINI PC Nuc
Product Description
We are an Intel IoT Solutions Alliance Affiliate Member with professional R&D Team
16 years' manufacturing experience | OEM/ODM services | Exporting to the US and Europe
YANYUGONGKONG - Intel industrial Firewall Industrial Motherboards /Appliance.
YANYUGONGKONG also provide the service of custom design to meet your special requirement.
Chassis / PVC membrane etc can custom.
oem network appliance/ Nano computer etc.

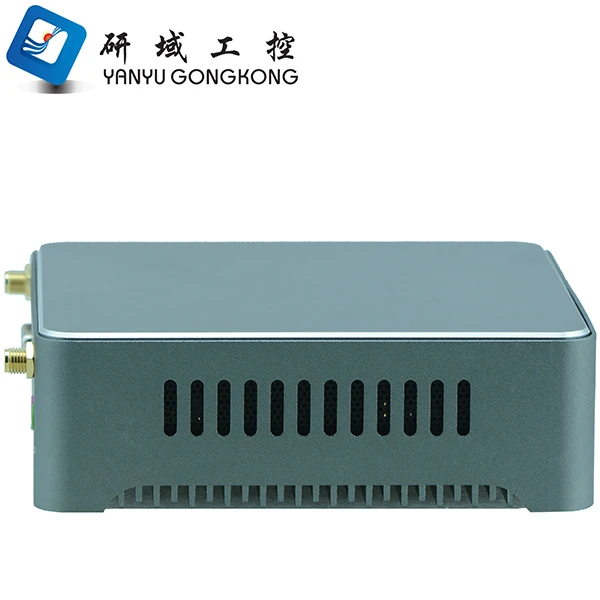

Fanless cooling structure
♦ Full aluminum alloy, compact structure, flexible installation
♦ 1xVGA, 1xHD OUTPUT, support synchronous/asynchronous display
♦ Integrated Intel® Haswell i3 dual core processor
♦ 2 Gigabit Ethernet port, support Wake On LAN

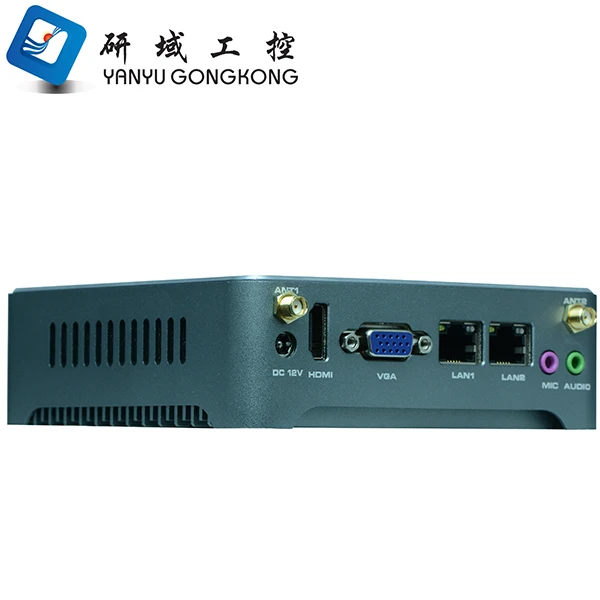

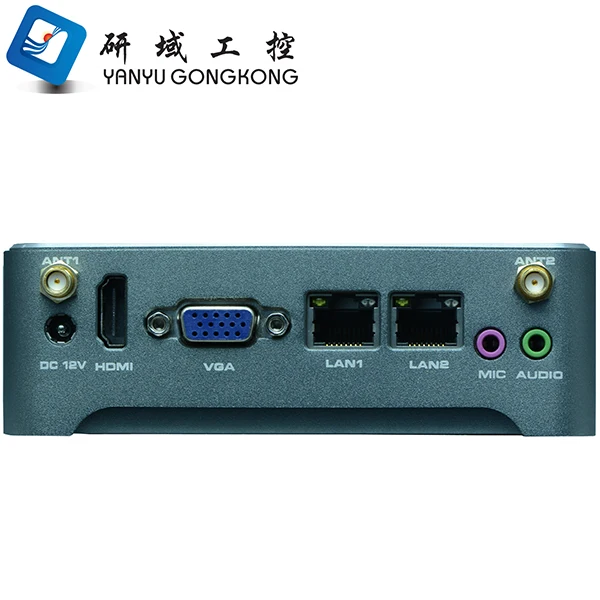

♦ Rich IO: 1*DC Jack, 4*USB, 1*HD OUTPUT, 1*VGA, 1*Audio, 2*LAN
Order Information
No. | Model | Processor | Motherboard | Memory | SSD | LAN | USB | WiFi | Adaptor | OS |
1 | N3929SZ | J1900/2.00GHz | N39_19 | / | / | 2*RTL8111F | 4 | N/A | 12V/3A | / |
2 | N3923SZ | 4020Y/1.50GHz | N92_I3 | / | / | 2*RTL8111F | 4 | N/A | 12V/3A | / |
3 | N3925SZ | 4210Y/1.50G | N92_I5 | / | / | 2*RTL8111F | 4 | N/A | 12V/3A | / |

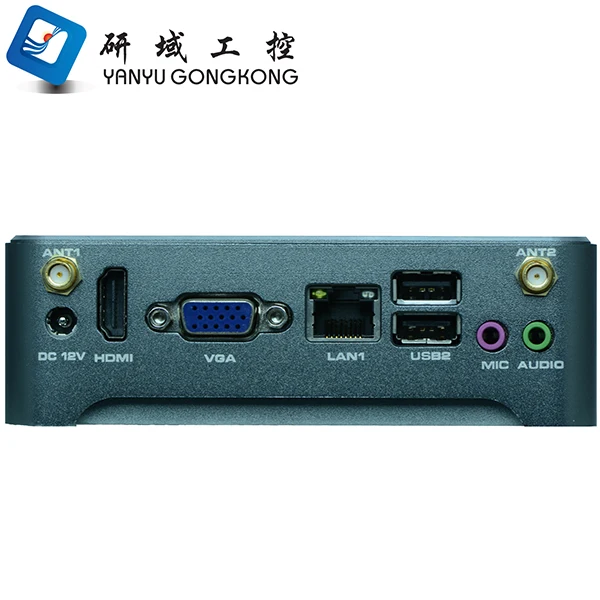

4 | N3919SZ | J1900/2.00GHz | N39 | / | / | 1*RTL8111F | 6 | N/A | 12V/3A | / |
5 | N3905SZ | N2805/1.46GHz | N39_05 | / | / | 1*RTL8111F | 6 | N/A | 12V/3A | / |
Chassis | Color | Iron gray |
| Dimension | 128mm*128mm*41mm(L*W*H) |

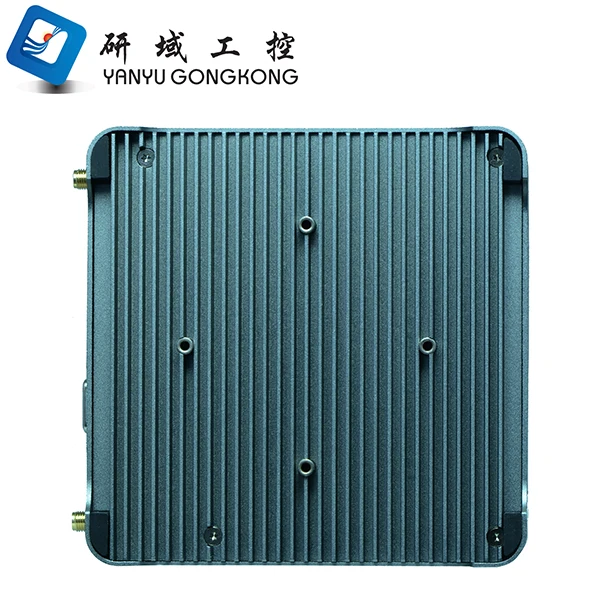

| Structure | Full aluminum fanless cooling structure |
| Material | Aluminum alloy |
| Installation | Desktop type or wall-mount installation |
Motherboard | Model | STX-N39_19 |
| Processor | Integrated Intel® Celeron J1900 quad core 2.0GHz processor |
| Chipset | Intel® Bay trail SOC chipset platform |
Graphics | HD Graphics | Integrated Intel® HD Graphics, support DirectX 11.1, OpenGL 3.2, support VGA, HD OUTPUT synchronous/asynchronous display. |
| Resolution | VGA: max support 2560 x 1600 @ 60HZ HD OUTPUT: max support 1920 x 1080 @ 60HZ |
Storage | Memory | 1* SODIMM 1600/1333MHz DDR3L/1.35V memory, max up to 8GB |
| SATA | N/A |
| CF | N/A |
| SSD | Support 1*MSATA SSD expansion |
Audio | Audio | Integrated ALC662 6 channels Hi-Fi audio controller, support MIC, Line_out |
Network | Ethernet | 2*RTL8111 Gigabit LAN, support Wake On LAN /PXE |
| WiFi | Provide 1xMini-PCIE slot, support WiFi, 3G module |

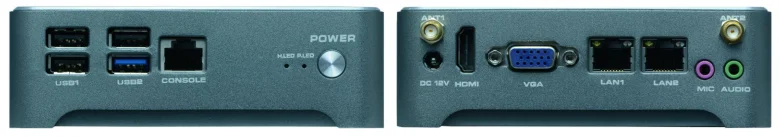

I/O Port | Serial Port | 1*CISCO standard serial port |
| USB | 3* USB2.0, 1*USB3.0 |
| Power Switch | 1* Power switch |
| LED indicator | 1*HDD LED, 1*Power LED |
| LAN | 2*RJ45 Gigabit LAN port |
| Display | 1*VGA, 1*HD OUTPUT |
| Power | 1*12V DC IN Jack |
| Antenna | 2*WiFi/3G SMA antenna (Optional) |
| Audio | 1*Line-out, 1*MIC |
Power | Power Adaptor | 12V/5A adaptor |
Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ |
| Relative Humidity | 5%-95%, no condensing |
| Vibration | 0.5g rms/5-500HZ/random/operating |
Operate System | Support Windows7, Windows8, Windows10, Linux OS | |
About us
YANYUGONGKONG(HANZSUNG)
MEMBER OF INTEL® INTELLIGENTSYSTEMS ALLIANCE, is a R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products.
Our products include:mini-itx motherboard,all-in-one motherboard, 3.5'' industrial motherboard, firewall motherboard, NVR&industrial motherboard, Mini PC , HTPC,All-in-one PC,Embedded PC ,Vehicle computers,Cloud Terminal,Networking Security,OPS Mini PC Computer,OEM / ODM available.
Warranty
1-3 YEARS MANUFACTURER'S LIMITED WARRANTY
Hanzsung products have been tested for quality control and free of defects prior to shipping. If a product is not working properly, please contact our technical support staff so they may assist you.
Please send product only, do not send accessories or other parts if not requested as they may not be returned.
8/f,Building 3, Guo Le
High-tech Industrial Park ,Li Rong Road .Dalang,
Longhua,BaoAn District,
Shenzhen City,China
Shenzhen Hanzsung Technology Co., Ltd.
Hanzsung confirms the feasibility of the repair and issues a RMA number to the customer for tracking the repair status.
