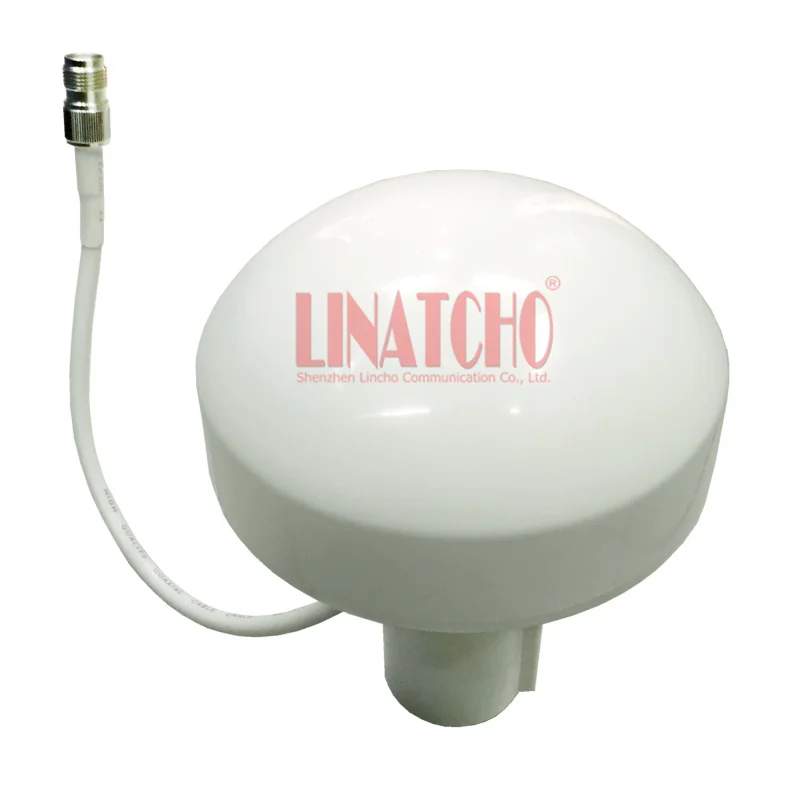

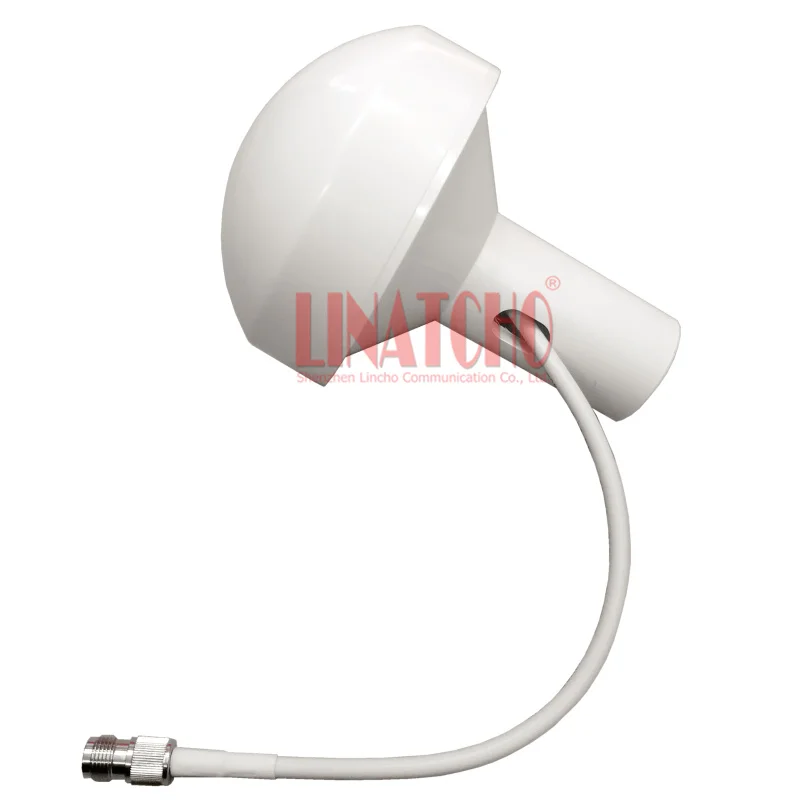

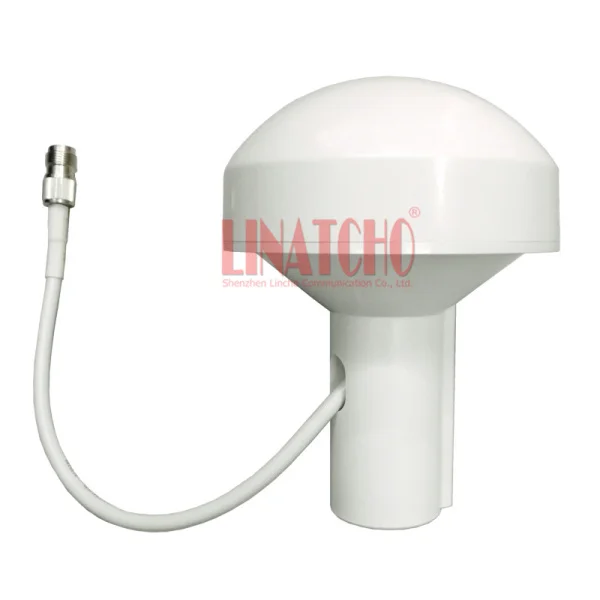

Nautical positioning marine chart dual band marine gps antenna tnc

Product Overview

Description



Dielectric antenna specification

Center frequency: 1575mhz+/-5 MHZ

V. S. W. R: <1.5

Band width: CF±5MHz

Impendence: 50 ohm

Gain: ≥28DB

Polarization: RHCP



Lna specification

Lna gain(without cable): 42±2dB

Filter Insertion Loss: <3dB

Noise figure: <1.3

Current Consumption: 18~35mA

Dc voltage: 3~5V DC

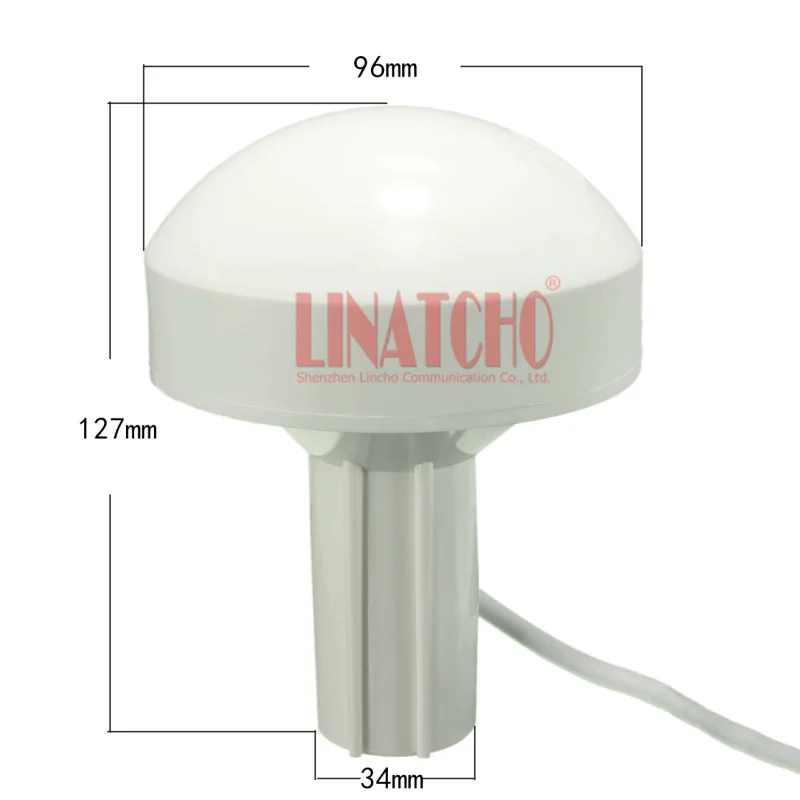

Mechanical specification

Weight: 335g

Cable: SYV-50-3

Cable Length: 30cm(can be customized)

Connector: TNC female

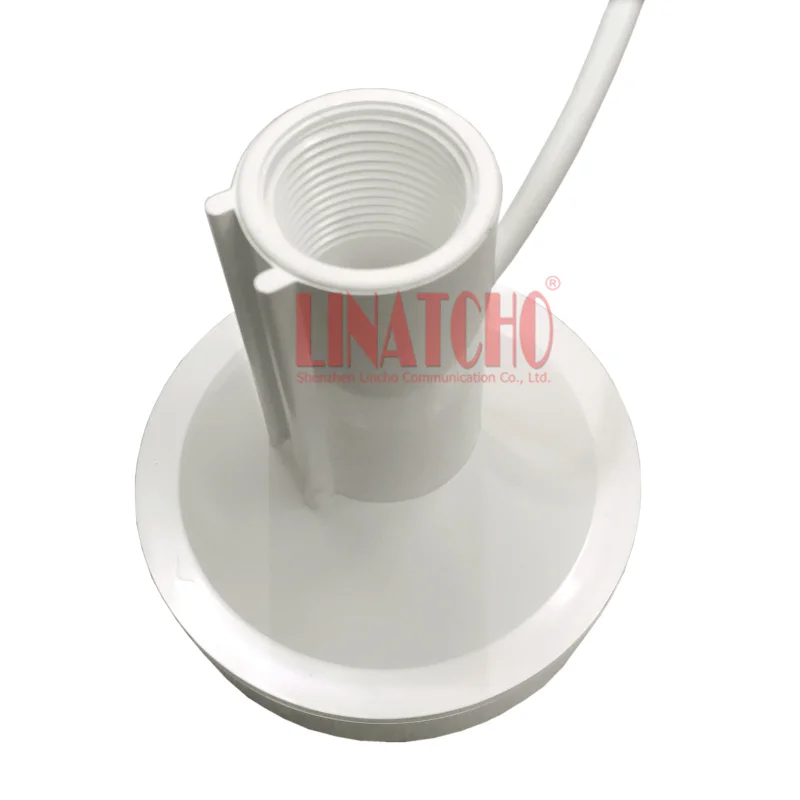

Mounting base: screw thread connection ( G3/4 )



Environmental specification

Working temp: -40~+60

Storage temp: -50~+85

Vibration sine sweep: 1g(0-p)10~50~10hz each axis

Humidity: 95%~100%rh

Weatherproof: 100%





1.PACKAGE:

Natural carton package or OEM service.



2.LEADTIME:

3-5days for samples, order depand on the quantity.



3.SHIPPING METHOD:

DHL,EMS,UPS etc as you want







4.PAYMENT:

T/T, Western Union, paypal in small amount.

Our prices DO NOT include any customs duty or tax.

Please be responsible for custom tax if your local custom charge some custom tax.





5.RETURN and WARRANTY:

100% QC inspection before shipment. Accept exchange within 7 working days after you received.



Pls contact us before you return. Our service representitive will help you.



Antennas and other accessories 6 month warranty, Repeaters 1 year warranty.



6.MINIMUM ORDER:

2 pcs, Sample order and trial order are welcome.





1. We are professional antenna and accessories mamufacturer for 8 years.



2. Our sales manager will reply your inquiry in 24 working hours.



3. Customized design is available, OEM are welcomed.



4. Excellent after-sales service.
