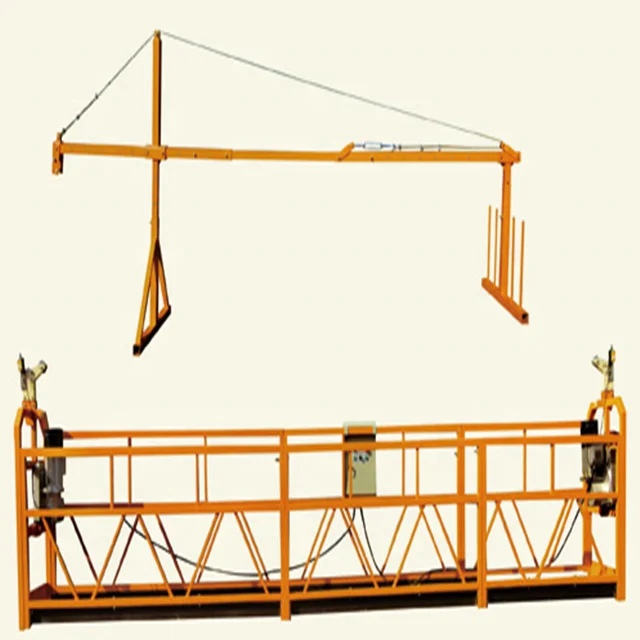

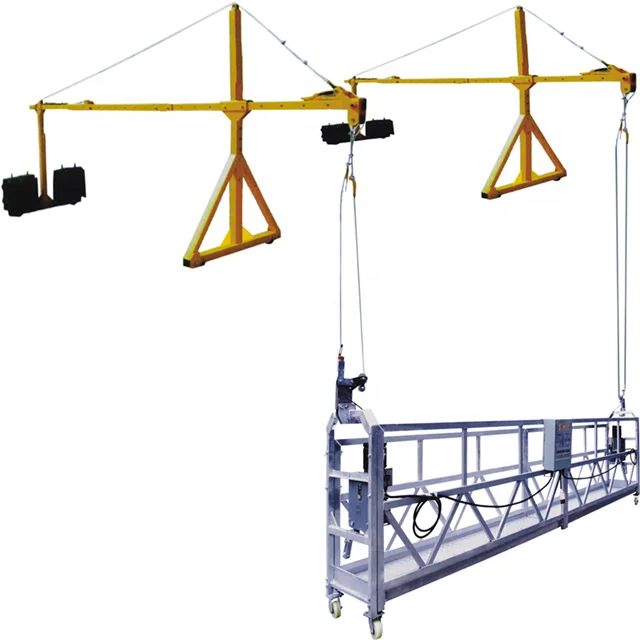

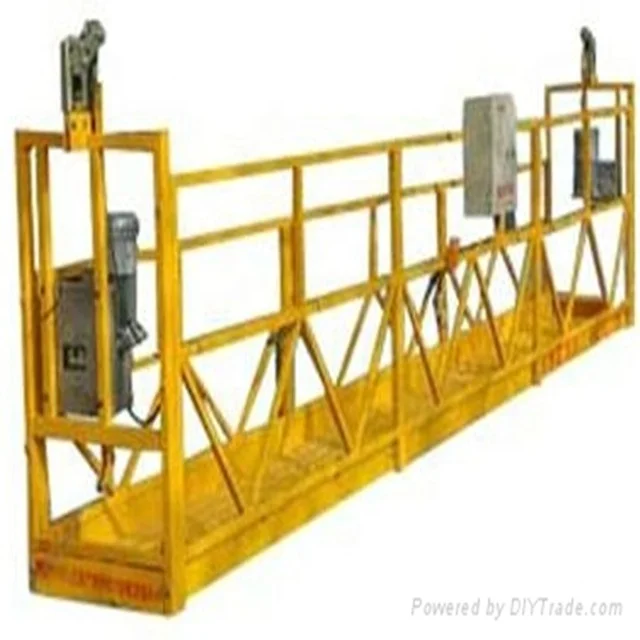

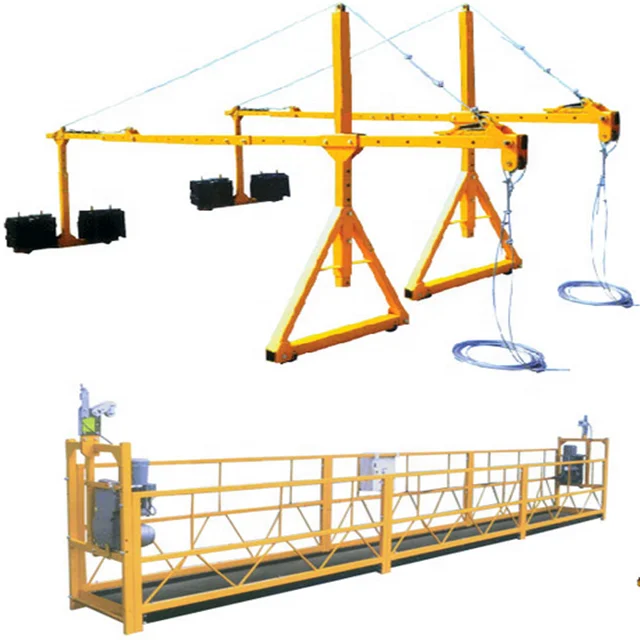

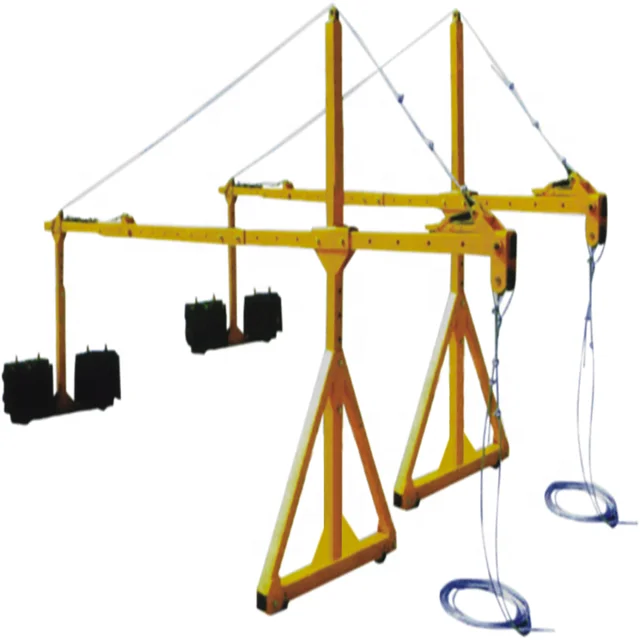

ZLP800 hoist hanging wire rope suspended platform
ZLP800 hoist hanging wire rope suspended platform
ZLP800 hoist hanging wire rope suspended platform
ZLP800 hoist hanging wire rope suspended platform
ZLP800 hoist hanging wire rope suspended platform
ZLP800 hoist hanging wire rope suspended platform
ZLP800 hoist hanging wire rope suspended platform
ZLP800 hoist hanging wire rope suspended platform

ZLP800 hoist hanging wire rope suspended platform

Share on (62033090472):


Price:

Quantity:


Product Overview

Description


Our Company

Hefei Huake Construction Machinery Co.,Ltd is a high-tech enterprise specialized in design, manufacture, sell and leasing the building lifting machinery equipment and aerial work equipment. We have qualified specialists, professional CAD design center, laboratory, advanced CNC manufacturing center and highly appreciated by clients from many European and American countries.

The main products are: the C series BMU, ZLP series aerial working platform, SC series construction lifters, scissor or stationary type hydraulic aerial lifting platform and etc. We have innovative technology, advanced manufacturing equipment, complete inspection methods and first class professional management team. The products are very popular all over the world, which have been exported to Southeast Asia, ASEAN, Central Asia, Europe, North America, South America, Latin America,America, the Middle East, more than 20 countries and regions, have won high recognition and praise from customers.

Your satisfication is our eternal pursuit. We would like to express our warmly welcome and sincerely thanks to your interest and attention. We believe that we can give professional service and best quality back to all of you. We hope we could establish good relationship with all of our customers.

Product Description

Product Application:

It is widely used in high-rise building construction, glass wall and curtain wall decoration, maintainence, window cleaning, painting, and so on. And it is also widely used in elevator installation, shipyard, big tank, bridge, embankment and chimney.

\t
Model
\t
ZLP150
\t
ZLP300
\t
ZLP500
\t
ZLP630
\t
ZLP800
\t
ZLP1000
\t
Material
\t
Steel/Steel with Dipping Zinc/Aluminum Alloy
\t
Height
\t
100m
\t
Rated load(kg)
\t
150
\t
300
\t
500
\t
630
\t
800
\t
1000
\t
1000
\t
Length of platform(m)
\t
1.5
\t
3
\t
5
\t
6
\t
7.5
\t
7.5
\t
10
\t
Safety lock type
\t
LSG20
\t
LSG20
\t
LSG20
\t
LSG20
\t
LSG20
\t
LSG20
\t
LSG20
\t
Hoist model
\t
LTD6.3
\t
LTD3.0
\t
LTD5.0
\t
LTD6.3
\t
LTD8.0
\t
LTD10.0
\t
LTD10.0
\t
Volume(m³)
\t
1.6
\t
2.3
\t
2.9
\t
3
\t
3.2
\t
3.3
\t
3.5
\t
Weight(kg)
\t
800
\t
1700
\t
1650
\t
1850
\t
2000
\t
2300
\t
2400
\t
20GP container(pcs)
\t
12
\t
10
\t
9
\t
8
\t
8
\t
7
\t
6
\t
Counter weight(kg)
\t
25*16PCS
\t
25*28PCS
\t
25*30PCS
\t
25*36PCS
\t
25*40PCS
\t
25*50PCS
\t
25*60PCS
\t
Diameter of steel rope(mm)
\t
8.3
\t
8.3
\t
8.3
\t
8.3
\t
8.6
\t
8.6/9.2
\t
9.2
\t
Voltage(v)
\t
380
\t
380
\t
380
\t
380
\t
380
\t
380
\t
380

ZLP series high operation suspending part name and size:

Main Products

Main Parts of Suspended Platform:

1.Electric Control Cabine:

Electric Control Cabine

Electric control system consists of many protection devices, eg.auto-limited, electric leakage proof, overheat protection, sudden-stop, over-current protection, it is reliable and very easy to operate.

Electronic Control Cabine


Electronic Control Cabine


Electronic Control Cabine


2.Hoist:

\t
Hoist Model
\t
LTD6.3
\t
LTD8.0 a& S Type
\t
Adjusted Specification
\t
ZLP150, ZLP300, ZLP500, ZLP630
\t
ZLP800
\t
Rated Lifting Load
\t
6.3KN
\t
8KN
\t
Lifting Speed
\t
9-11m/min
\t
8-10m/min
\t
Motor Power
\t
1.5KW
\t
1.8KW-2.2KW
\t
Steel Wire Rope Dia
\t
8.3mm
\t
8.6mm







3.Safety Lock:

\t
Safety Lock Model
\t
LST20/LST30/LSG20
\t
Adjusted Specification
\t
All models
\t
Allowable Compact Force
\t
20KN-30KN
\t
Adjusting Range of Rope Lock Angle
\t
3°~8°
\t
Rope Lock Distance
\t
≤100mm
Our Plant
Packing & Delivery
Certifications
Our Customers

                                                            Customers visited our company

We attended industrial exhibitions in different countries, such as Brasil, India, Canada, Italy and so on.

We attended industrial exhibitions in different countries, such as Brasil, India, Canada, Italy and so on.


Main Applications

Contact info:(Echo Zhang)

Tel:+86-551-62991910        Mobile:+86-15805598397       Whatsapp:+86 15805598397           Wechat:+8615805598397
