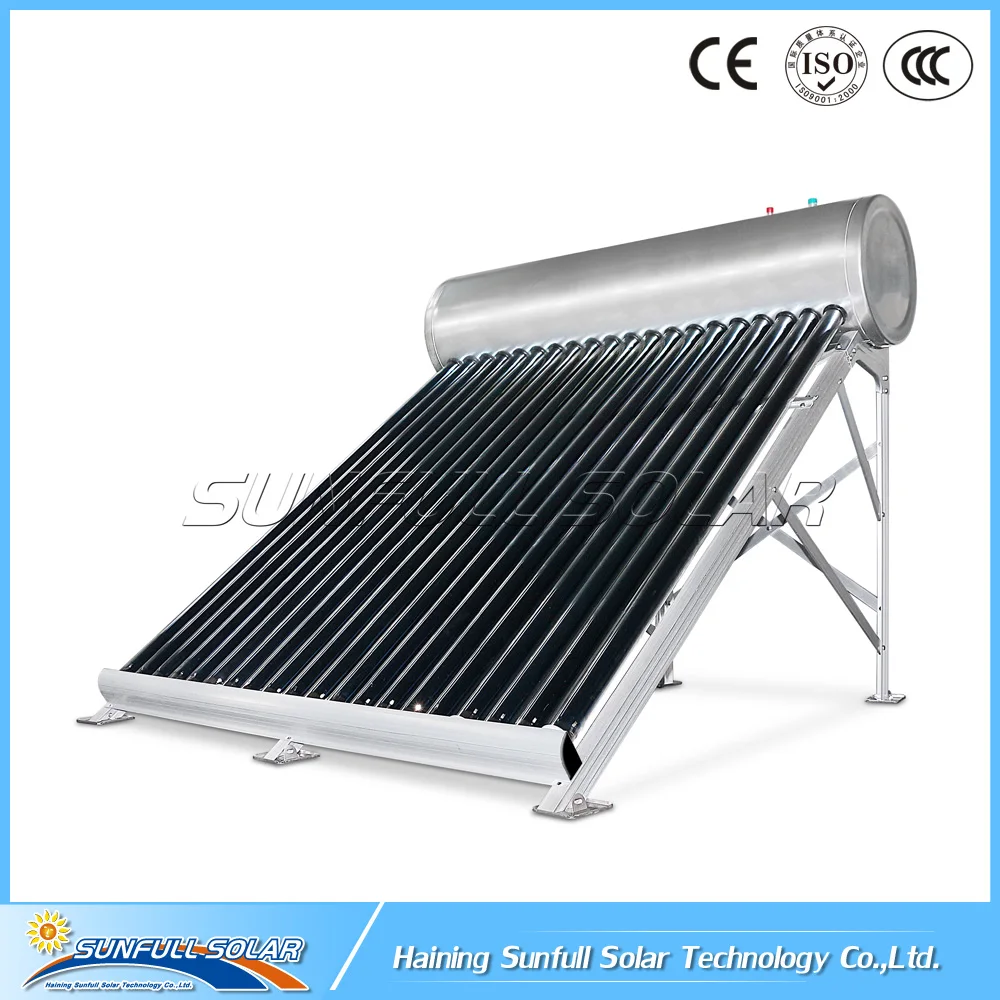

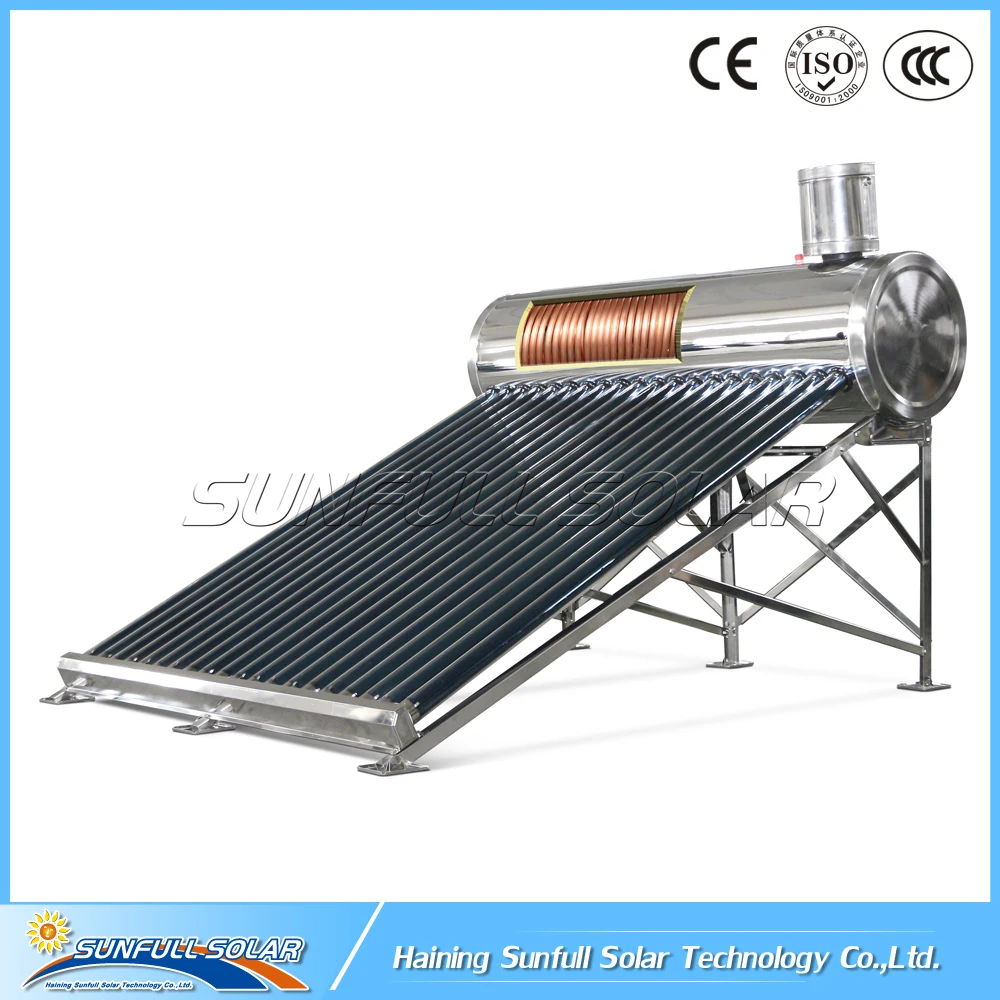

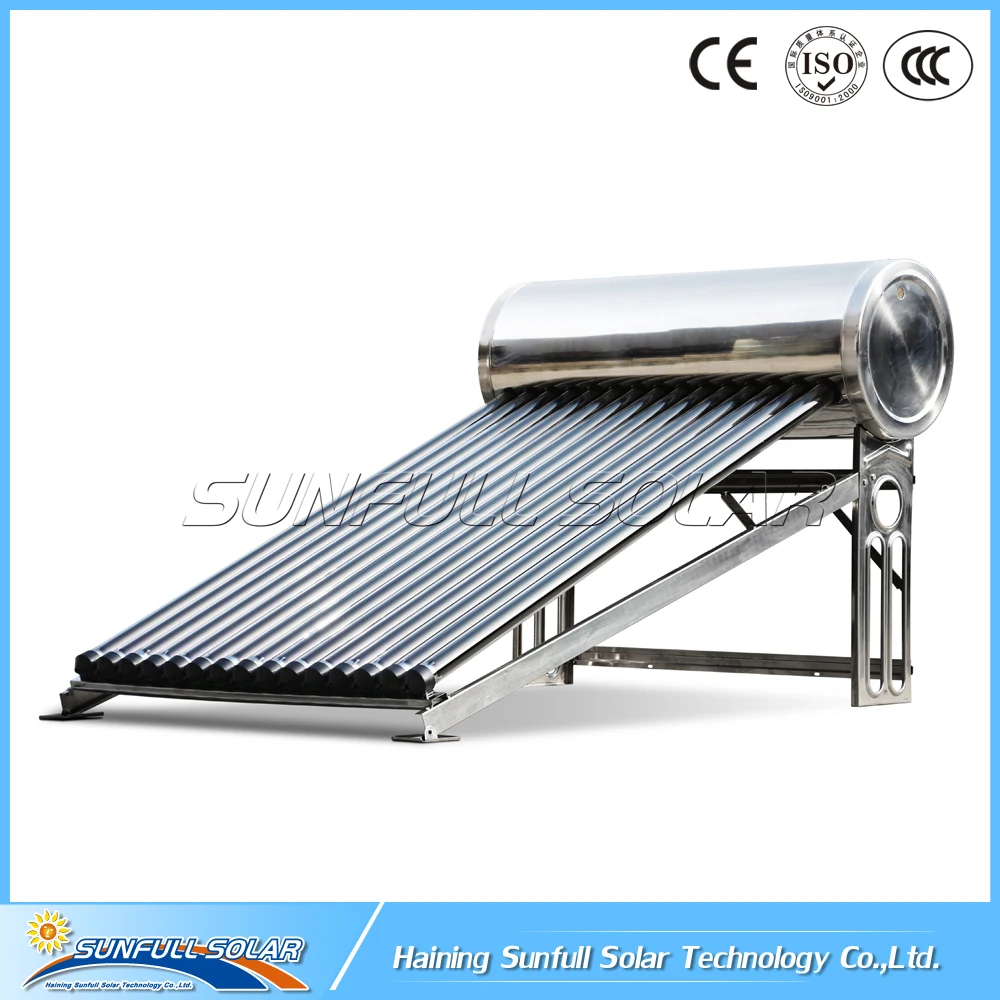

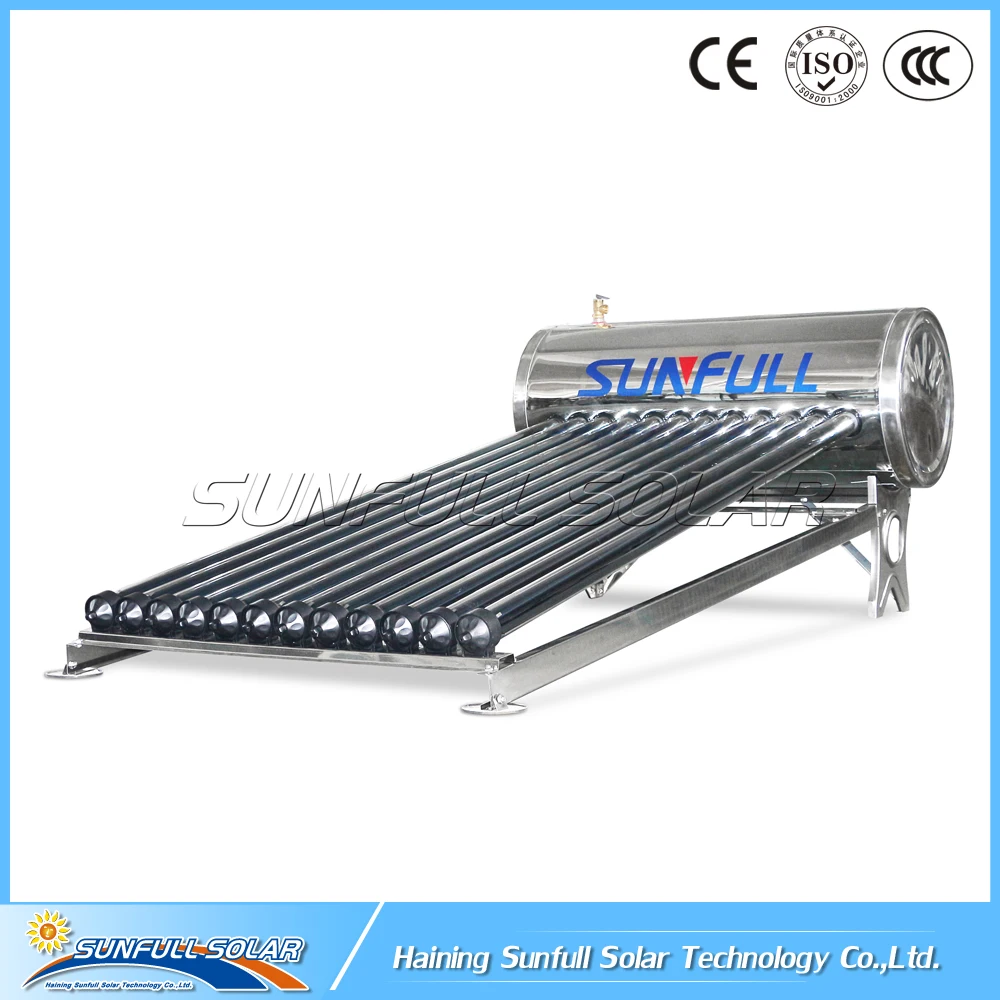

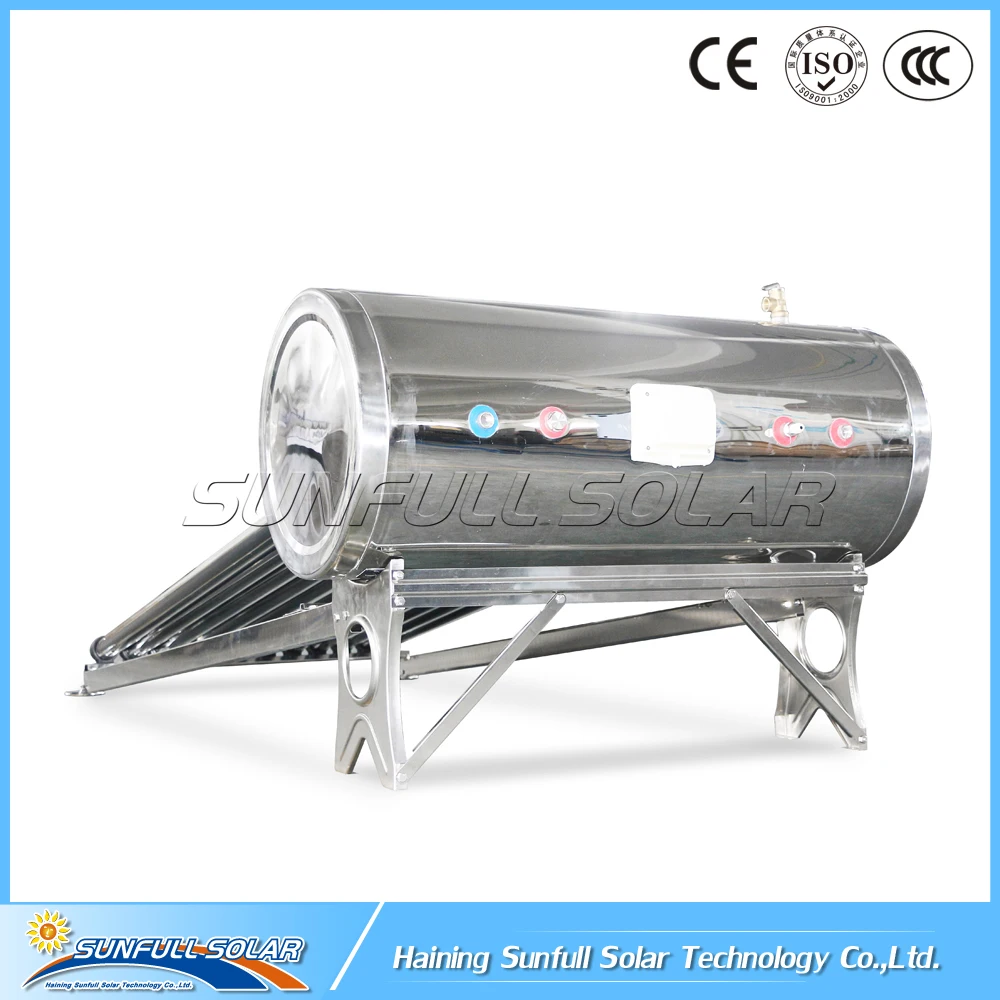

Pressurized heat pipe vacuum tube stainless steel solar water heater by manufacturer SUNFULL

Pressurized heat pipe vaccum tube stainless steel solar water heater

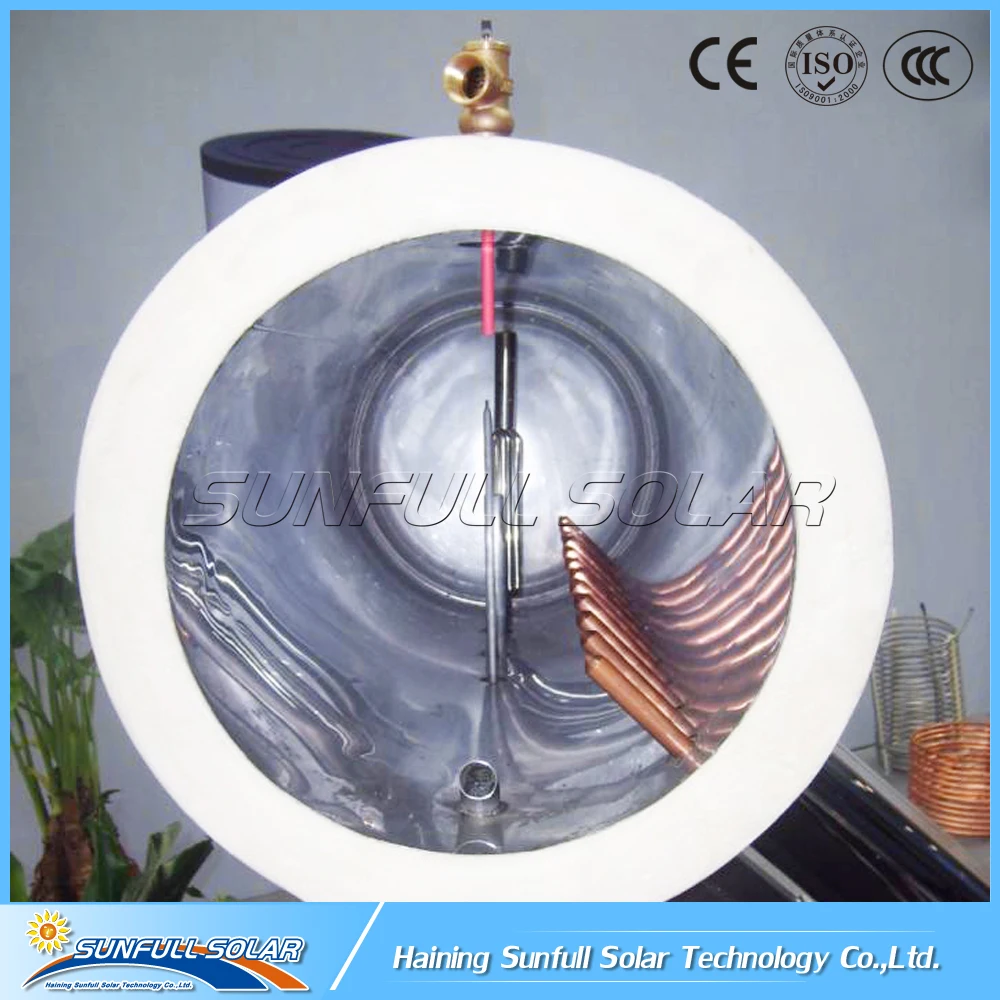

Inner tank material: Stainless steel SUS304-2B, 1.2mm thickness (SUS316 is available)

Outer tank material: Stainless steel 201( SUS304-2B, Galvanized steel is available)

Tank insulation: High density polyurethane foaming, 50,55,60mm thickness

Inner tank diameter:380mm, Outer tank diameter:480mm.

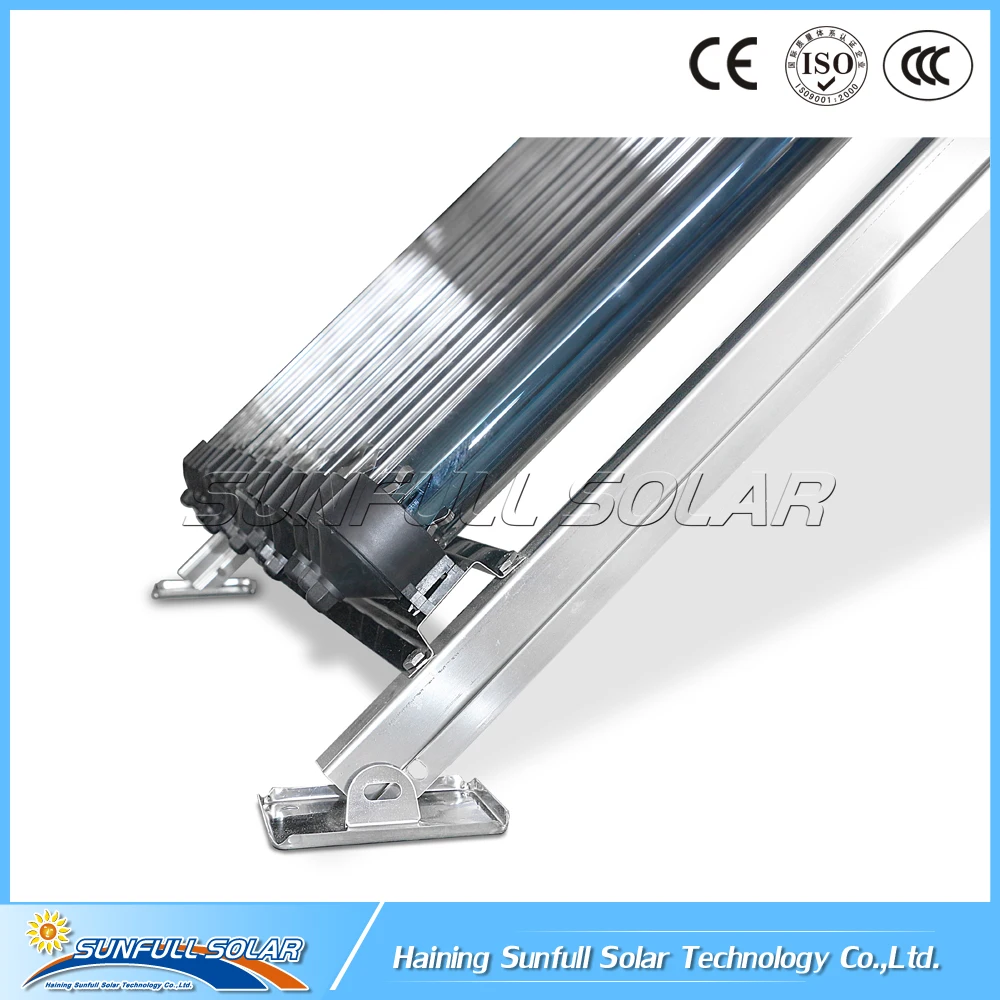

Bracket: Stainless steel 201, have several types for choose( Aluminum alloy, galvanized steel is available)

Bracket angle: 15°(20°,25°,27°,30°,35°,38°,45° all available.)

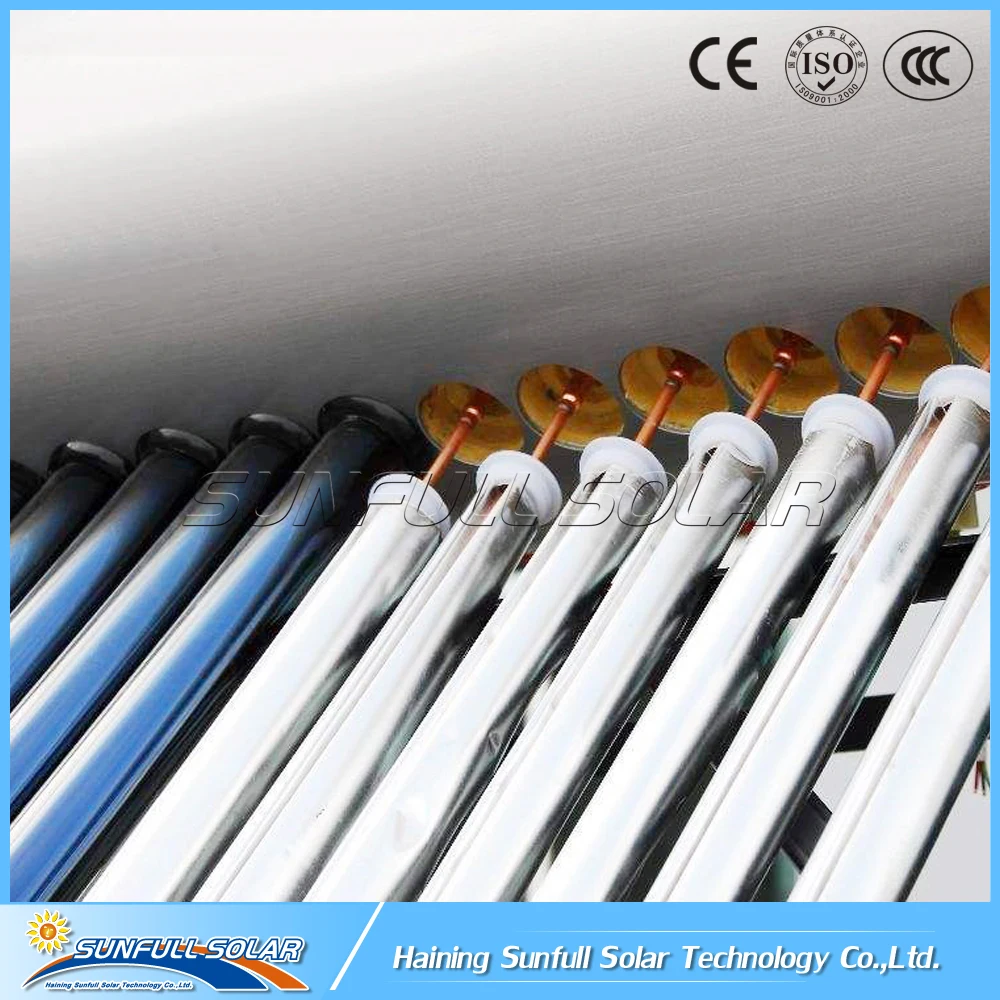

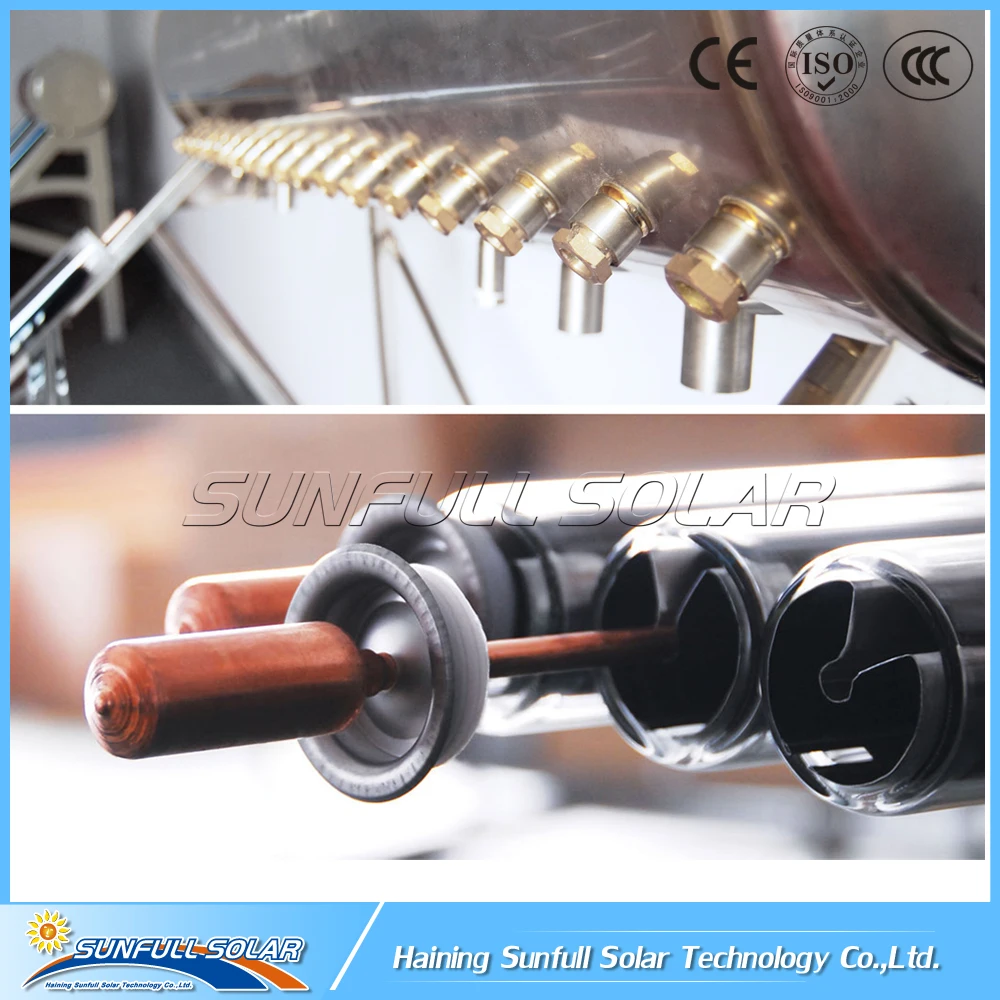

Vacuum tube: 58*1800mm three target heat pipe vacum tubes

Include safty valve, check valve and Magnisium bar

Daily efficiency: ≥55% (≥42% in winter)
Working pressure: 6Bar; Anti freeze: -40 °C.

We can design and produce according customers request(Have our own designer and research & development center)

MOQ: a 20'GP container

Delivery period: 7-15 days
