Product Overview

Description

Product Description







Application of  Carbide rods and bars

Purpose: Fine performance, suitable for processing of non-ferrous metal, plastic materials, carbon fiber, chilled cast iron and heat-resistant alloy steel, high-temperature alloy steel, stainless steel, high manganese steel, etc. Used in the manufacture of various metals and non-metal cutting tools such as drills, end mills, reamers. Also widely used in stamping tools and wear-resistant tools, etc.



Specification of  Carbide rods and bars

GRADE   YL06C YL10.2 YL10A YF06 XF20S XF30S XT30S XU30 XU09S XU10W
Drilling   * * * * *
Milling   * * *   * * * * * *
Reaming         *
P General carbon steel   ^   # ^ ^   #
M Stainless steel          #   ^
K Cast Iron   ^ #   ^ ^   #
S Ti         #   ^
  HRSA           #
N Al-Mg   ^ # ^ ^ ^   #
H Hard steel                 ^
Others Plastic   #     #
  CFRP ^(coated)
  Wood         ^ #       ^
  Ceramic ^(coated)

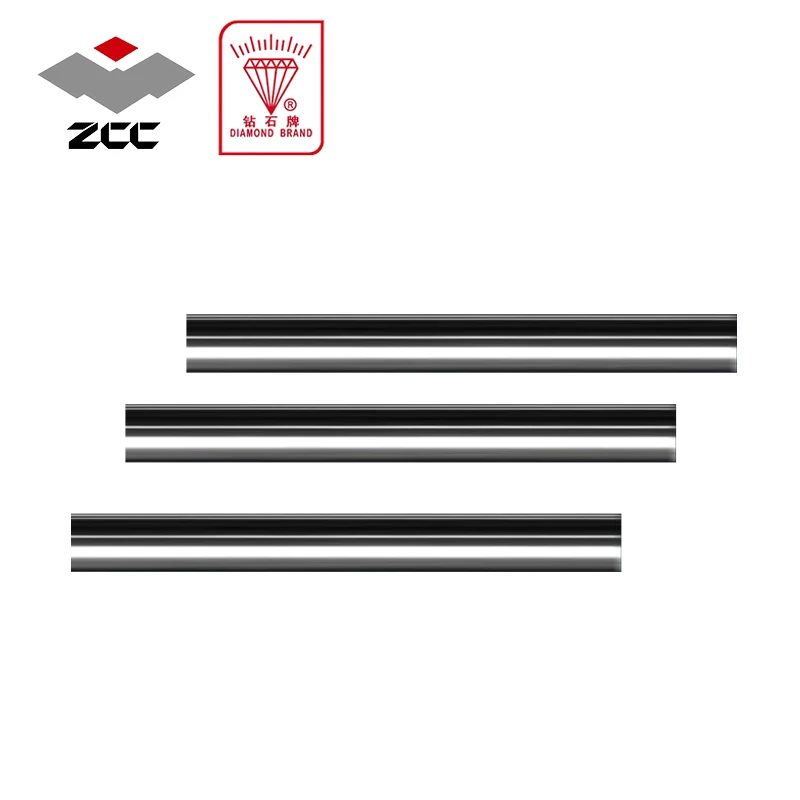

Cemented Carbide Rods for PCB Tools

Type Diameter(mm) Tolerance(mm) Length(mm) Tolerance(mm)
BΦ3.21×38.5 3.21 0/+0.02 38.5 -0.10/+0.2
BΦ3.22×40 3.22 0/+0.04 40 0/+0.5
BΦ3.22×45 3.22 0/+0.04 45 0/+0.5
BΦ3.25×50 3.25 0/+0.05 50 0/+0.5
BΦ3.25×38.7 3.25 0/+0.05 38.7 -0.20/+0.3
BΦ3.5×38.5 3.5 +0.05/0.25 38.5 ±0.20
BΦ4.0×38.5 4.0 +0.05/0.25 38.5 ±0.20
BΦ4.5×38.5 4.5 +0.05/0.25 38.5 ±0.20
BΦ5.0×38.5 5.0 +0.05/0.25 38.5 ±0.20
BΦ5.5×38.5 5.5 +0.05/0.25 38.5 ±0.20
BΦ6.0×38.5 6.0 +0.05/0.25 38.5 ±0.20
BΦ6.5×38.5 6.5 +0.05/0.25 38.5 ±0.20
BΦ1.2×110 1.2 0/+0.2 110 0/+2
BΦ1.35×110 1.35 0/+0.2 110 0/+2
BΦ1.5×110 1.5 0/+0.2 110 0/+2
BΦ1.8×110 1.8 0/+0.2 110 0/+2
BΦ2.0×110 2.0 0/+0.2 110 0/+2

Other types
BΦ3.5*12.5  BΦ3.5*13.0  BΦ3.5*13.2  BΦ2.0*24.5 BΦ3.25*12.5
BΦ4.0*12.5  BΦ4.0*13.0  BΦ4.0*13.2  BΦ2.0*25.5 BΦ3.25*12.7
BΦ4.5*12.5  BΦ4.5*13.0  BΦ4.5*13.2  BΦ2.0*26 BΦ3.25*13.1
BΦ5.0*12.5  BΦ5.0*13.0  BΦ5.0*13.2  BΦ2.0*28 BΦ3.25*14.5
BΦ5.5*12.5  BΦ5.5*13.0  BΦ5.5*13.2  BΦ2.0*31 BΦ3.3*13.1
BΦ6.0*12.5  BΦ6.0*13.0  BΦ6.0*13.2  BΦ3.26*14.0 BΦ4.0*46
BΦ6.5*12.5  BΦ6.5*13.0  BΦ6.5*13.2  BΦ3.25*11.5  BΦ6.0*40
BΦ7.0*12.5  BΦ7.0*13.0  BΦ7.0*13.2  BΦ3.25*12.0 BΦ6.0*50
