SY1300  Tape Slitting Machine



Product Description

Technical parameters:

Width of mechanical roller1400mm
Max. unwinding diameter700mm
Slitting widthAccording to customers request
Rewinding tube dia.3"(76.2mm)
Rewinding dia.Four-axis exchange 25.4mm-76.2mm
Tool useInduatrial straight knife
Mechanical speed0-180m/min
Power supply380v  50Hz  3phase
Air compressor5kg (prepared by customer)
Weight1100kg
Demension1200mm(L)×2300(W)×1500(H)

tape slitting machine

DETAIL
Discharge shaftManual1 Pcs
Discharge brakePneumatic brakes 10Kg1 Group
Discharge rollerHard chrome on steel1 Group
Main motorDecelerates motor 5HP1 Set
CounterThree-stage electronic counting control 1 Group
Transition rollerAluminum surface anodizing1 Set
TransmissionSteel surface embossed teflom1 Set
Slitting toolIndustrial straight knife 60×22×1.2t(prepared by customer)
Slitting tool transmissionPneumatic1 Set
Edge material rewindingRoller-type bilateral synchronous coiling2 Pcs
Automatic roll change systemAC mator 1HP1 Set
Rewinding rollerAluminum with slip bushing4 Pcs
Unwinding wheelSurface covered with rubber, diameter 100mm1 Pcs
Noise cancellation 1 Set


 Features of tape slitting machine

1. Automatic consecutive 4-shaft changing:TAPE SLITTING MACHINE

    When the rewinding operation is finished on one set of shafts, the machine will change automaticlly onto another set of shafts without any stop. It will have higher efficency.TAPE SLITTTING MACHINE

2. Three-step length counter:TAPE SLITTING MACHINE

    Giving accrate pre-setting of rewinding length.TAPE SLITTING MACHINE

3. Pneumatic brake:TAPE SLITTING MACHINE

    Brings the machine to an immediate halt when working at high speed because of inertia, ensures excellent steady performance.TAPE SLITTING MACHINE

4. Automatic tension control.

5. The noise reduction function is added to the original equipment.TAPE SLITTING MACHINE

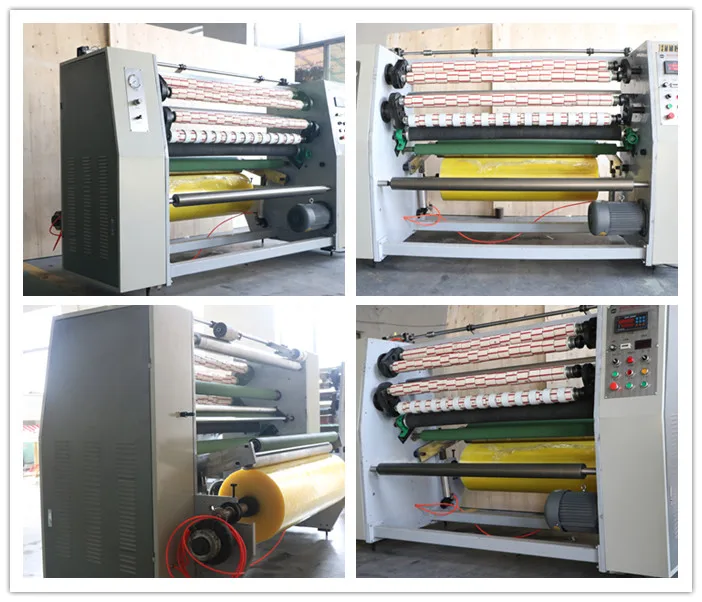

tape slitting machine



Double plates 4-shaft rotary rewinding, automatic changing, consecutive working

Banana roller to eliminate tape wrinkling and flat rewindingtape slitting machine5
tape slitting machine4tape slitting machine2Preset tape length in advance, it can make accurate rewinding length and auto stop
Centralized control paneltape slitting machine1

Samples for tape slitting machine

 jiaodai



Packaging & Shipping

 Packaging Detail  :  Wooden case or according to the customers' request

 Mode of transportation  :  By Sea

 Port of shippment  :  Main  port  in  China mainlan

tape slitting machine
