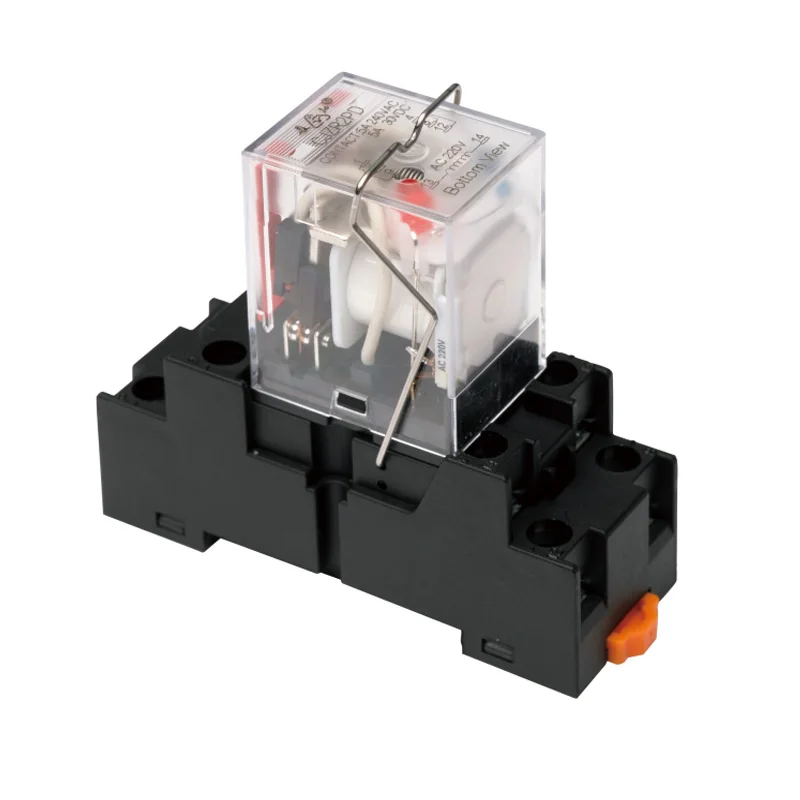

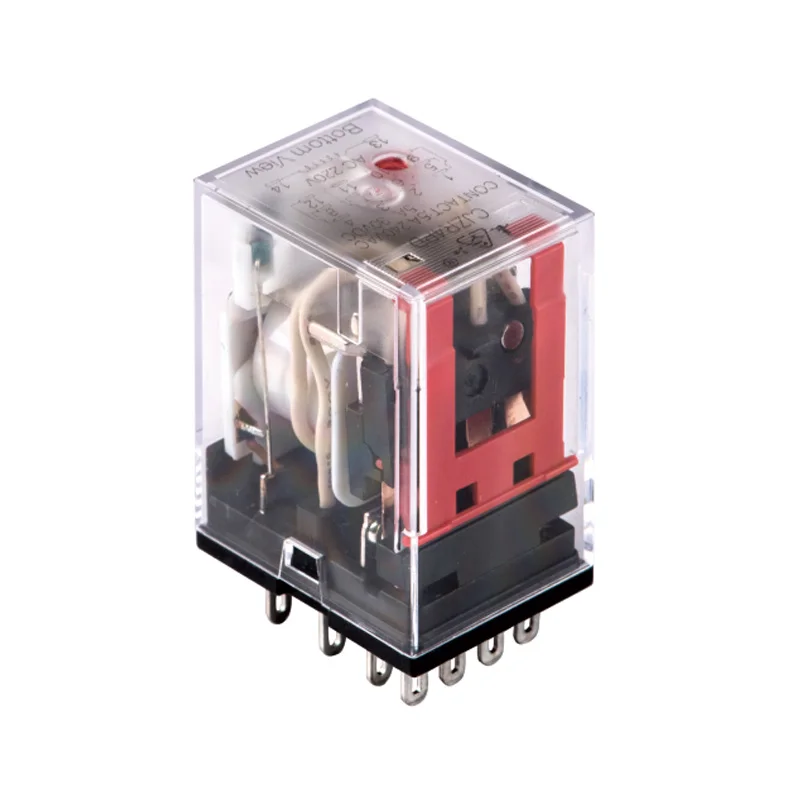

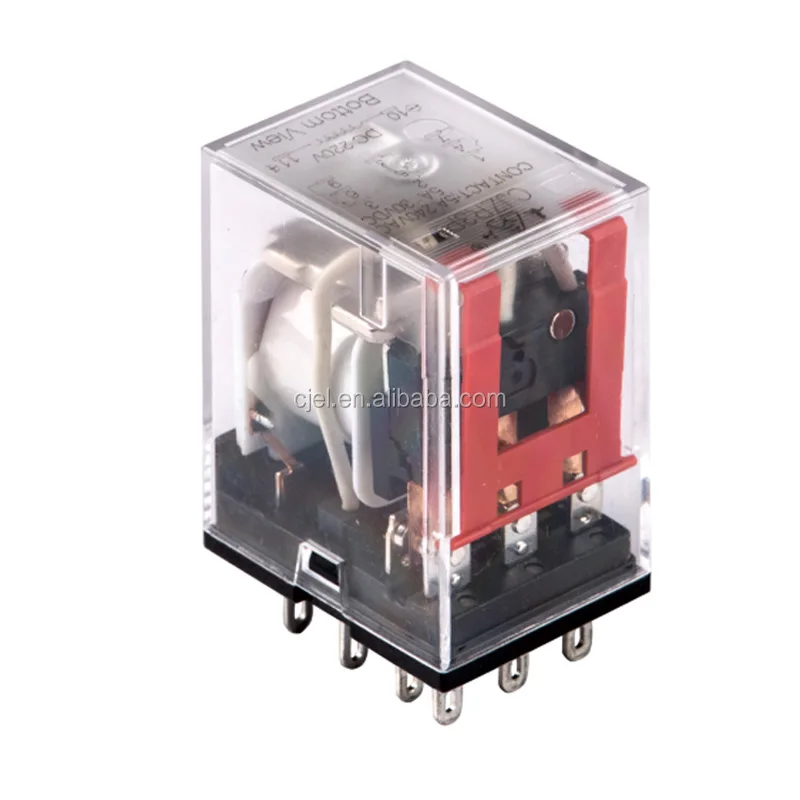

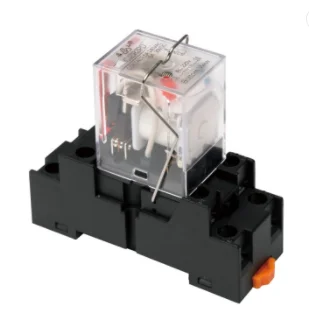

14pin 5A 4 Way general purpose relay socket type 12V control relay
- Category: Relays >>>
- Supplier: Jiangyin Changjiang Electric Appliance Co. Ltd.
Share on (62033126464):
Product Overview
Description
Product Description
Product Name：14pin 5A 4 Way general purpose relay socket type 12V switch relay
Miniature control relay is an electronic component for the industrial control circuits. Its main function is to control a larger current circuit by another circuit with smaller current. Connecting the coil at the first circuit to control the cothers by the contacts of the relay to achieve the switching circuits , security protection and automatic adjust function. In the industrial and domestic control circuits the intermediate realy usually for the following purposes: replace the small contactors, increase the number of the contacts, increase the capacity of the contacts, switching the connecting type, voltage switching and eliminate the interference of the circuits.Detailed Images
Product Parameter
Product model | CJZR2P | ||||||||
Name | Miniature Control Relay | ||||||||
Product performance standards | GB/T14048.5 | ||||||||
Operation Condition | Altitude height | Relative humidity | Working environment temperature | Pollution class | Install type | ||||
≤2000m | 5-85%RH | Standard type:-55℃~+70℃ Relay with lamp type:-40℃~+70℃ | 3 | II | |||||
Main technical index | Electrical life | 200,000 times(1800 times/1 hour) | |||||||
Mechanical life | DC:20,000,000 times,AC:50,000,000 times | ||||||||
Maximum operating voltage | ≤110% Ue | ||||||||
Operation voltage | AC: ≤80% Us;DC: ≤75% Us | ||||||||
Release voltage | AC: ≥30% Us;DC: ≥10% Us | ||||||||
Contact resistance | <50mΩ | ||||||||
Maximum switching frequency | Machinery | 18000 times/1 hour | |||||||
Rated load | 2400 times/1 hour | ||||||||
Withstand voltage | Between coils and connection point | AC 1500V 50/60Hz 1min (leakage current 1mA) | |||||||
Between different pole contacts | AC 1000V 50/60Hz 1min (leakage current 1mA) | ||||||||
Between Same pole contacts | AC 1000V 50/60Hz 1min (leakage current 1mA) | ||||||||
Insulation resistance | >100M Ω(500VDC) | ||||||||
Vibration | 10-55Hz,double-amplitude 1.0mm | ||||||||
Impact | 200m/s2,11ms | ||||||||
Size

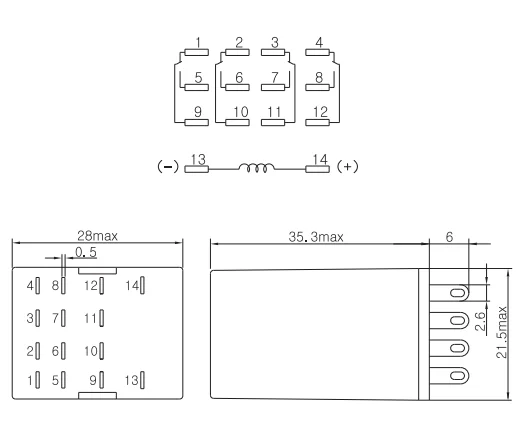

Outline size and Wiring diagram

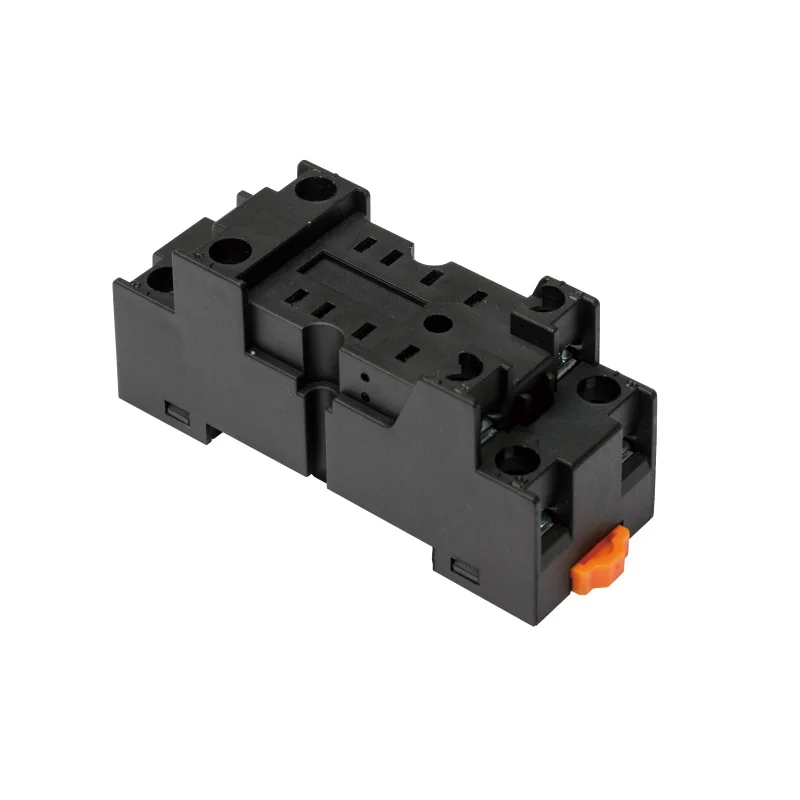

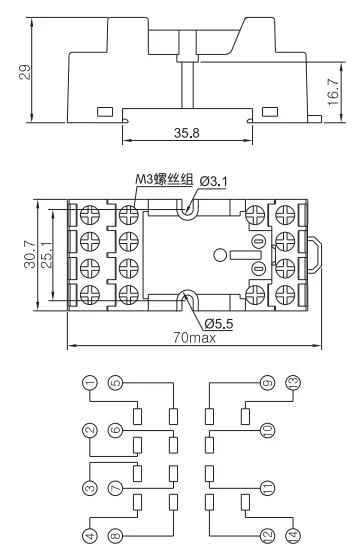

Socket Drawing
Socket Model：CJ58X-E
