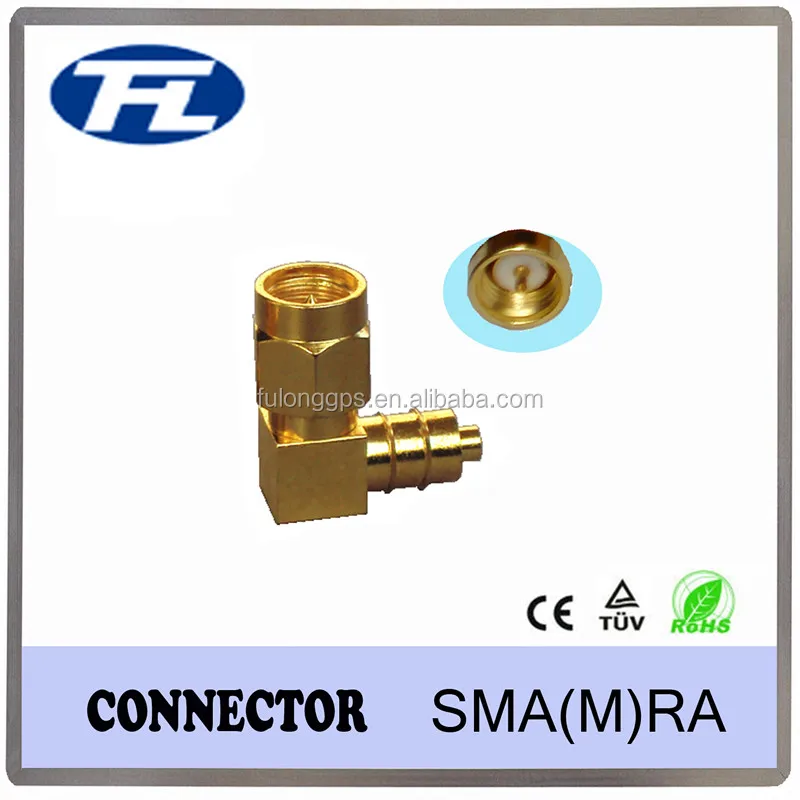

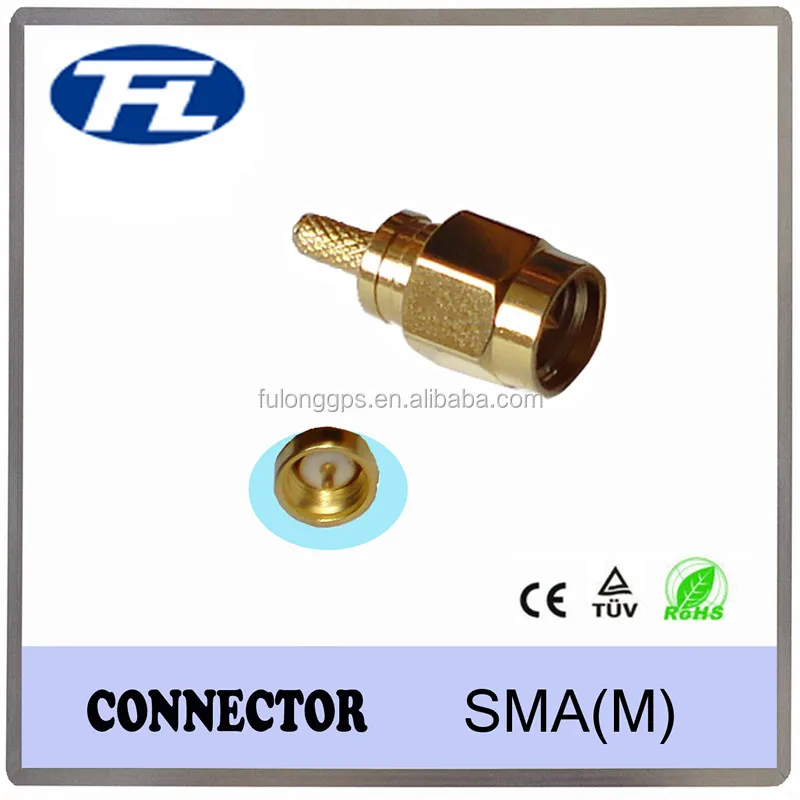

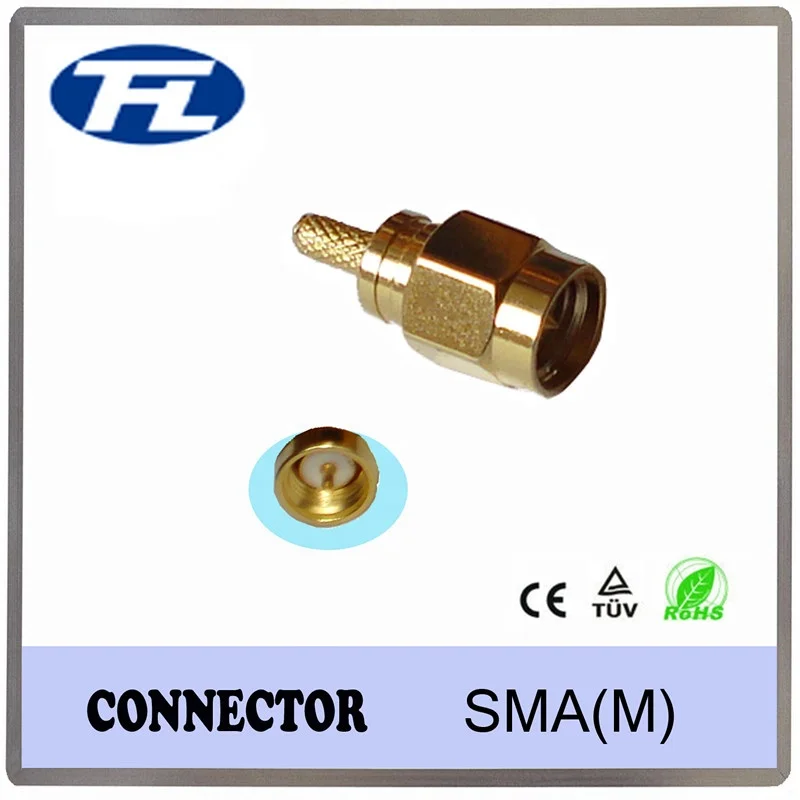

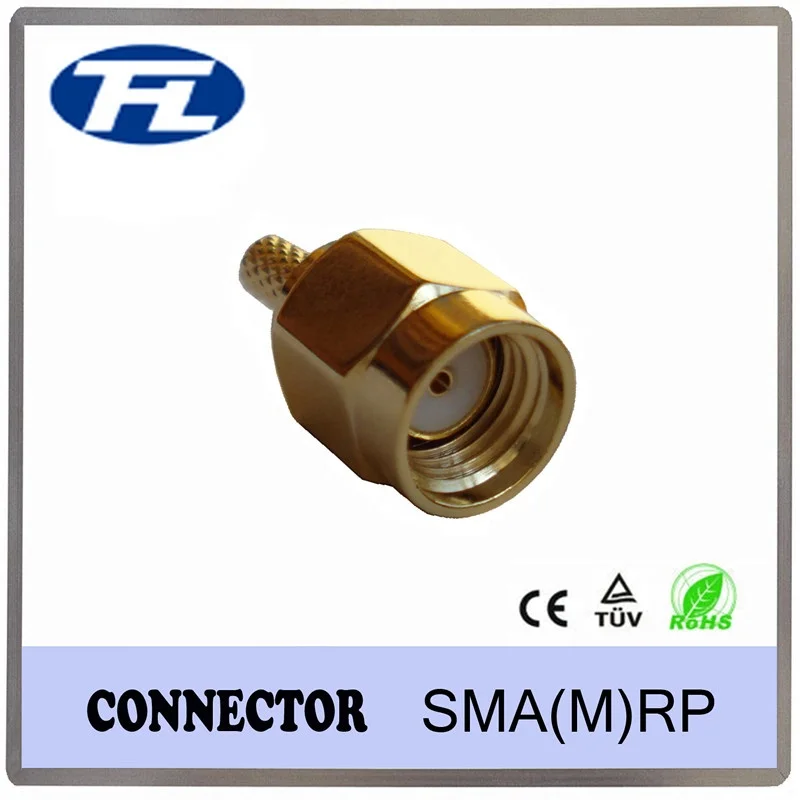

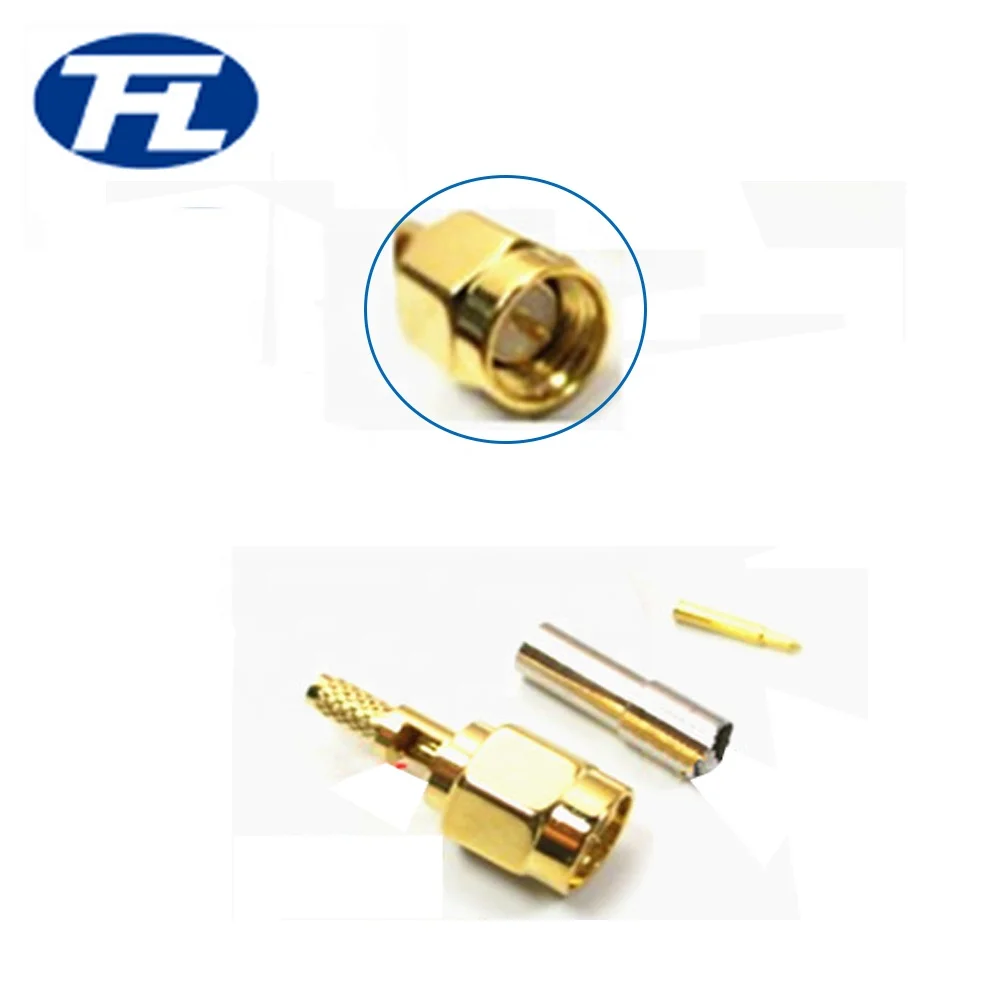

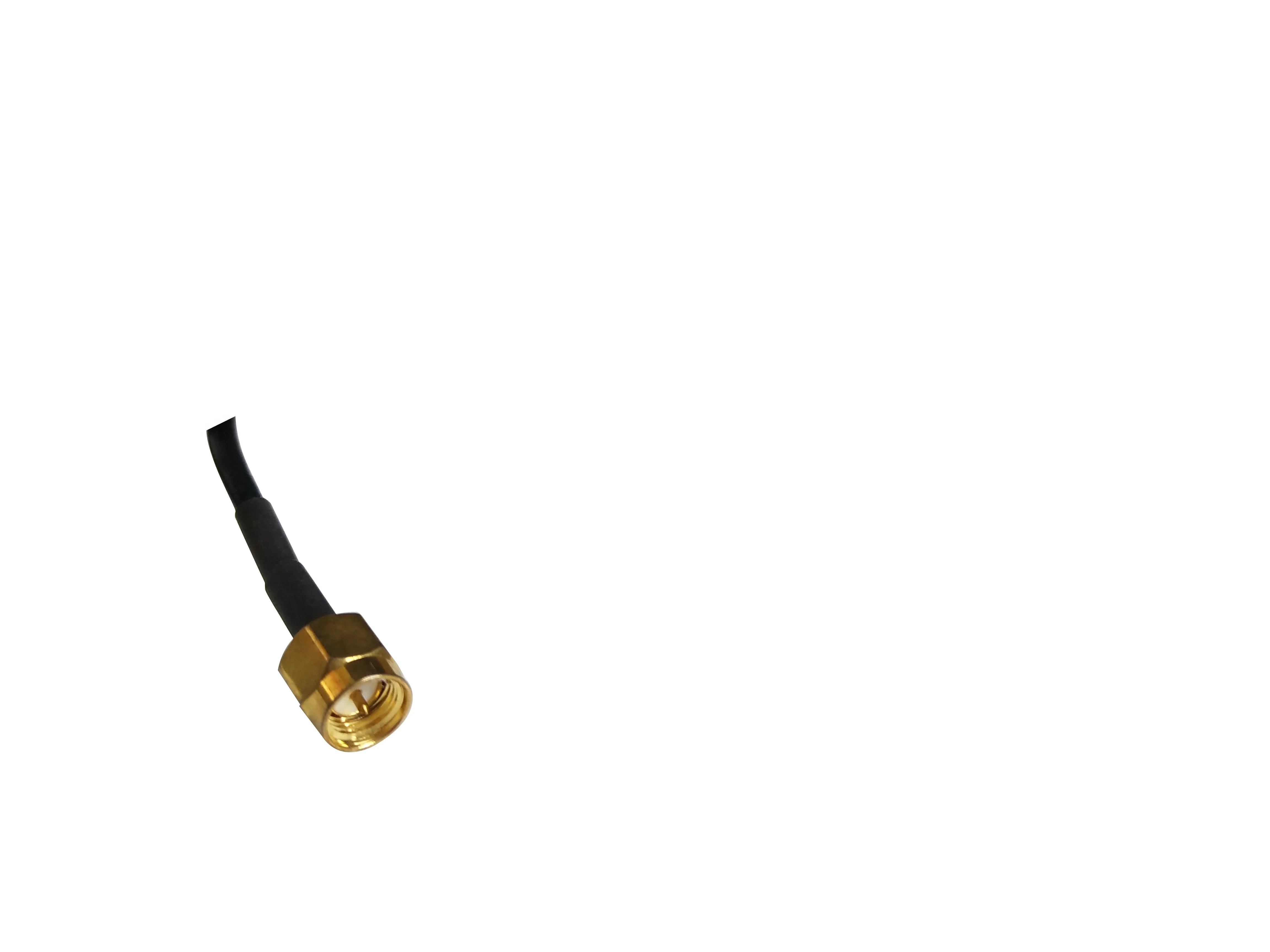

2023 Hot sale product antenna connector mini smt pcb mount RF SMA m/f connector
- Category: >>>
- Supplier: Taigu Fulong Electronic Technology Co. Ltd.
Share on (62033136578):
Product Overview
Description
Product Details
| Technical Data | |||
| 1)Material/Plating | |||
| Material | Plating | ||
| Connector Body | Brass per(QQ-B-626) | Nickel or gold plating | |
| Stainless steel per(QQ-S-764 # 303) | Passivated | ||
| Center contact male | Brass per(QQ-B-626) | Gold plating | |
| Center contact female | Beryllium copper per(QQ-C-530) | Gold plating | |
| Insulator | PTFE | ||
| Crimp ferrule | Annealed copper | Nickel or gold plating | |
| Gasket | Silicone rubber | ||
| 2)Electrical | |||
| Nominal impedance | 50Ω | ||
| Frequency range | 0-12.4.GHz flexible cable, 0-18 GHz Semi-rigid cable | ||
| VSWR | 1.10+0.01 X f GHz straight connector typical | ||
| 1.20+0.015 X f GHz R/A connector typical | |||
| Working voltage | 335 Volts rms | ||
| Dielectric withstanding voltage | 500 volts rms | ||
| Insulation resistance | 5000MΩ min | ||
| Contact resistance | Center conductor 3.0mΩ | ||
| Out conductor 2.0mΩ | |||
| 3)Mechanical&Environmental | |||
| Mating | 1/4"-36 UNS Thread coupling | ||
| Cable retention | 20 lbs typical | ||
| Durability | ≥500 cycles | ||
| Coupling nut retention | ≥40 lbs | ||
| Temperature range | -55℃ to + 155℃ | ||
https://fulonggps.en.alibaba.com/
♦ODM/OEM ♦No MOQ. ♦Sample 1 piece Ok. ♦Nice Quality ♦Factory Direct Price
♦Confidentiality Agreement Business Secret Contract
A:T/T(50% deposit as place order, 50% before shipment), Western Union, MoneyGram, Paypal
Q: Have antenna 100% assembles well in stock?
A: No, all antenna will be newly assembled according to your orders including the samples.
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q:How can you guarantee the product quality?
