High Precision FTTH telecommunication cheaper fusion splicer price, fiber optic tools splicing machine splicer fusion

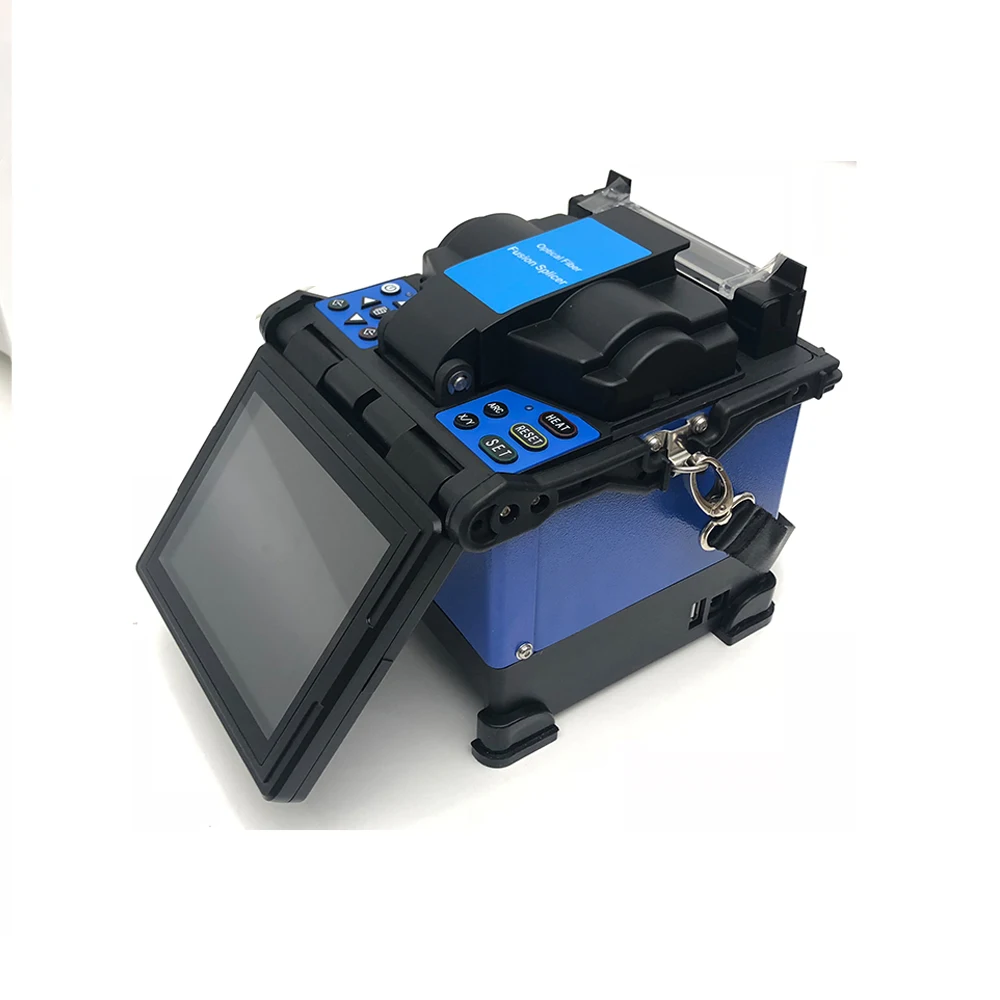

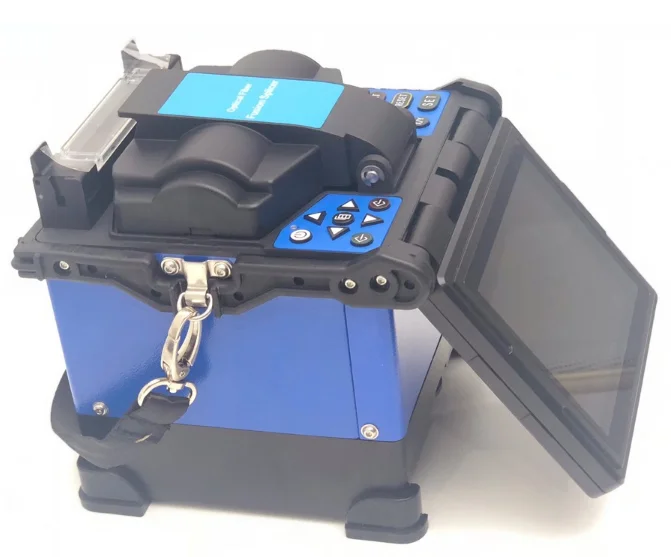

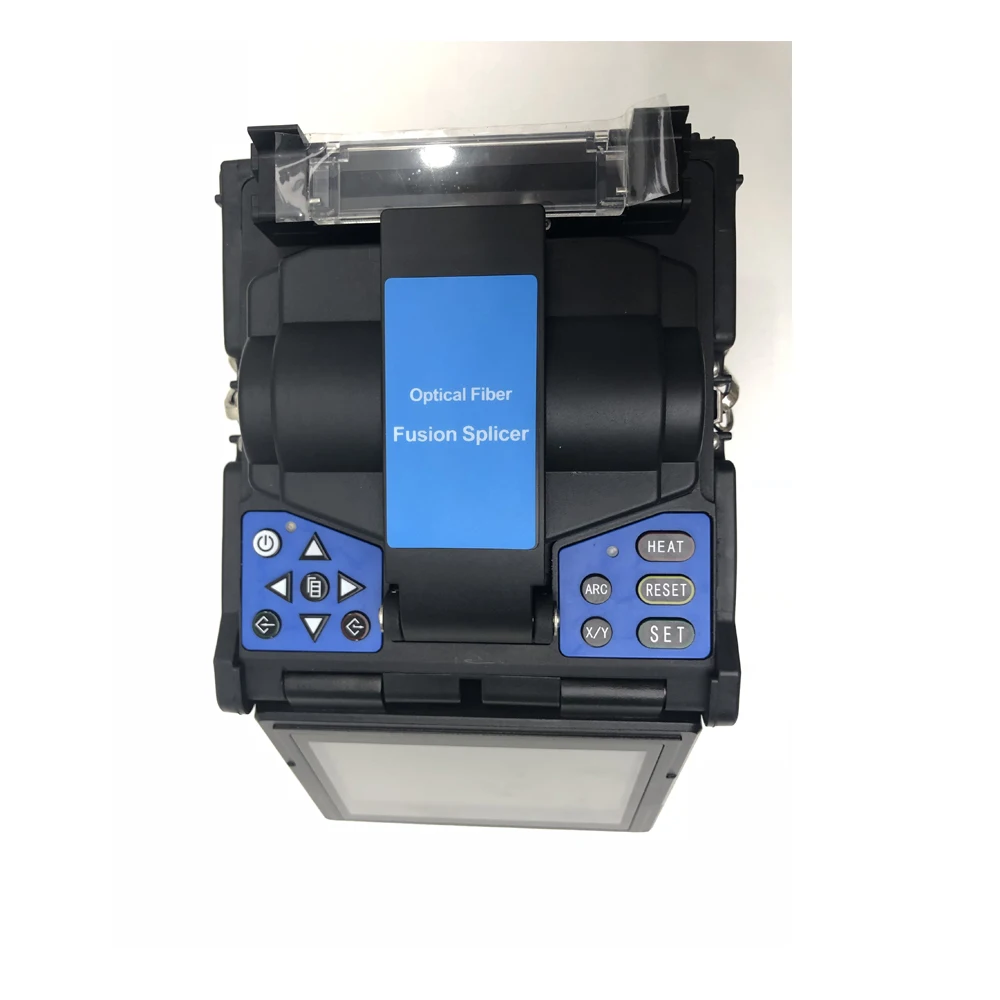

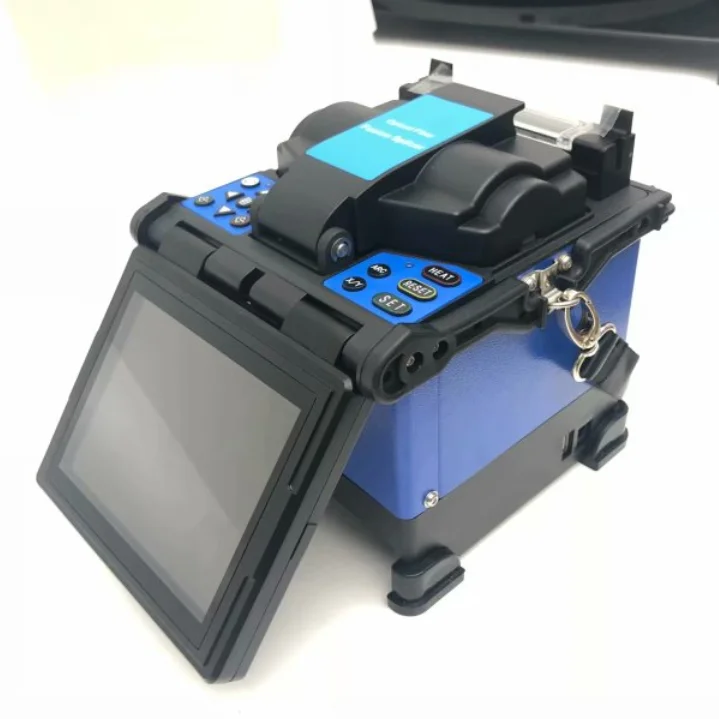

Fusion Splicer---4108S
The machine adopts high-speed image processing technology and special precision positioning technology, which can make the whole process of fiber fusion automatically complete within 9 seconds. The large screen LCD display makes the various stages of fiber fusion clear. It is small in shape, light in weight, suitable for field work, and it is simple in operation,fast in melting, and small in melting loss. It is particularly suitable for optical fiber cable engineering and maintenance in the fields of telecommunications, radio and television,railways, petrochemicals, electricity, military forces, and public security, as well as the teaching and research of scientific research institutes.
* Fiber alignment: core or cladding alignment
* Image processing: digital processing
* Multilingual interface
* Real-time monitoring of power supply
* 5 inch digital high-quality LCD screen
* Built-in lighting(easy to place fiber optics)

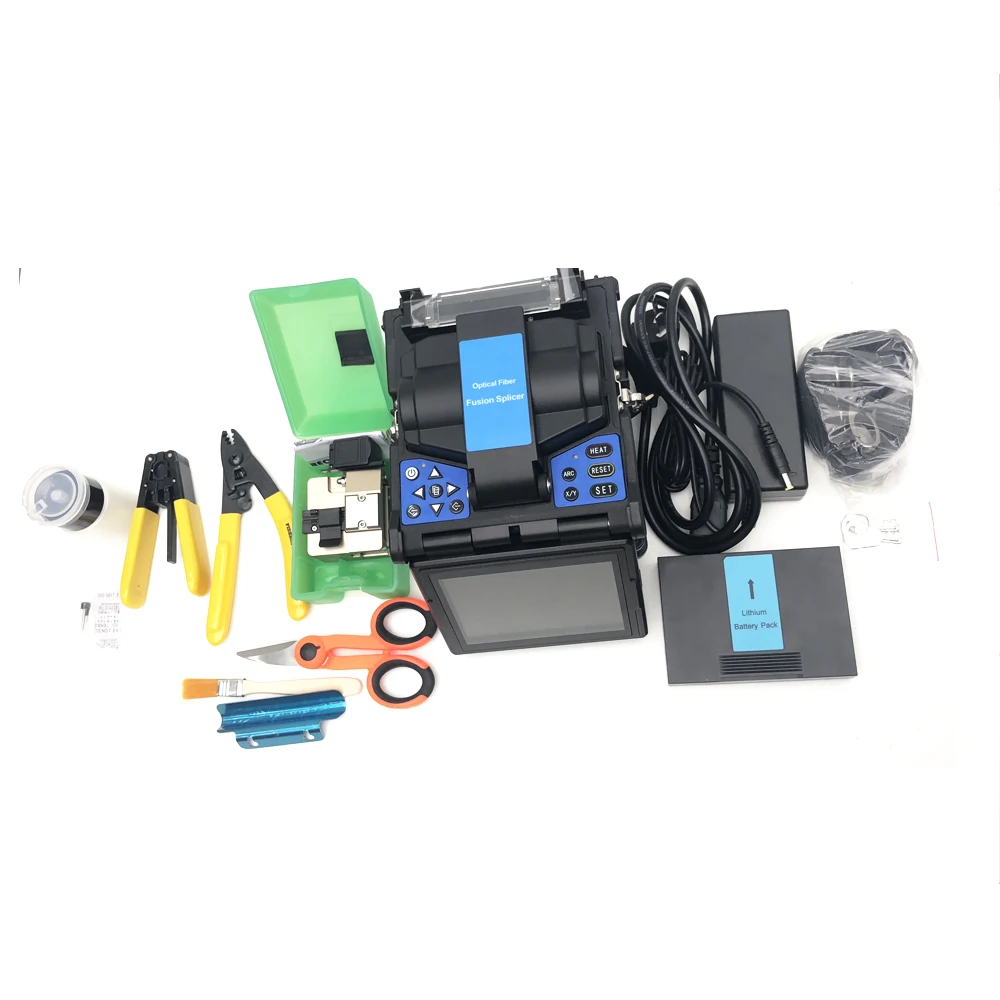

Standard Configuration
| 1 | Fusion Splice | 1 set |
| 2 | Fiber Cleaver | 1 set |
| 3 | Fiber Stripper | 1 pc |
| 4 | AC Adaptor | 1 pc |
| 5 | Power cord | 1 pc |
| 6 | Li Battery | 1 pc |
| 7 | Charger | 1 pair |

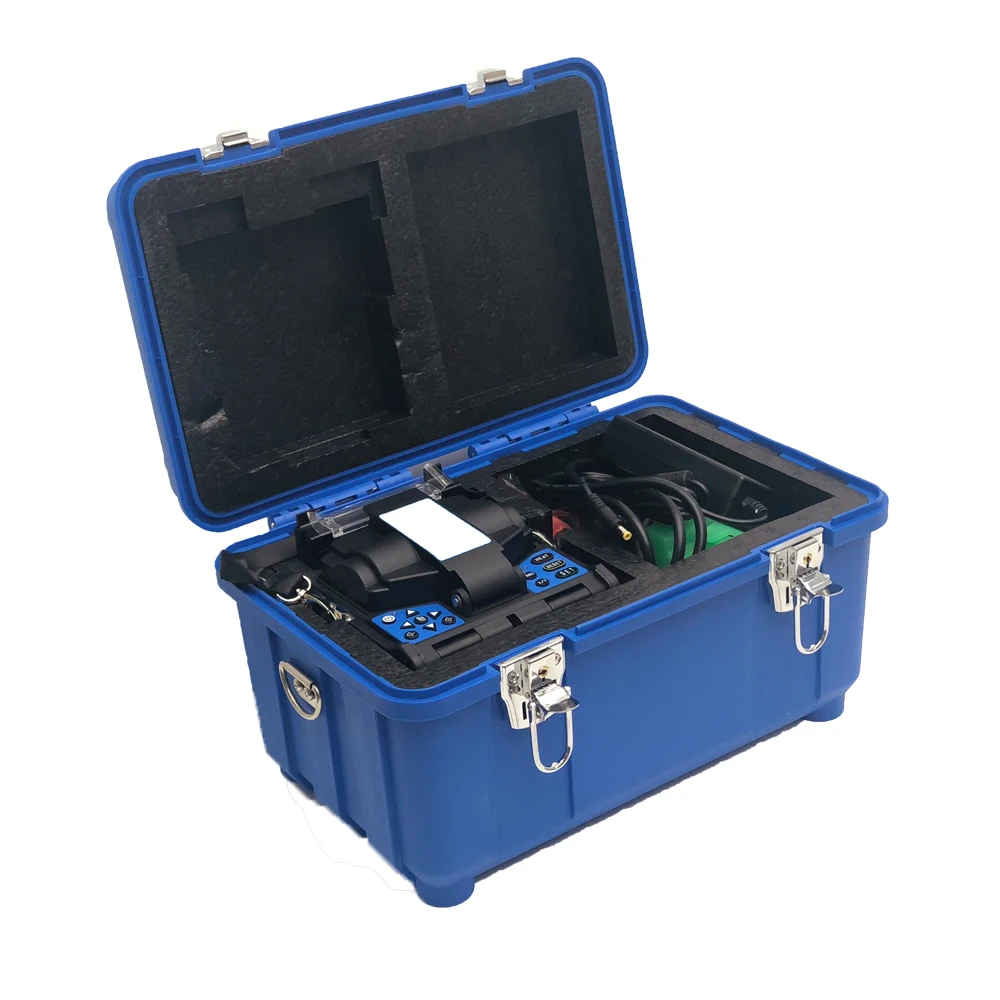

| 8 | Cooling tray | 1 pc |
| 9 | Spare Electrodes | 2 pair |
| 10 | User Manual CD | 1 pc |
Model | FTTH Fusion Splicer |
Splicing Type | SM, MM, DS, NZDS |
Splicing Loss | 0.02dB(SM),0.01dB(MM),0.04dB(DS), |
Return Loss | >60dB |
Splicing Mode | Manual, Half Auto, Auto |
Fiber Alignment | Core to Core Alignment by PAS technology |
Applicable Fiber | Cable indoor and 0.25mm,0.9mm fiber, SC connector(option) |
Splicing Time | ≤9s |
Heat Time | ≤30s |
Cleaved Length | 8~16mm |
Fiber Image/ Magnification | 300/200 times |
View Display | 5 inch digital high-quality LCD screen |
Tension Test | Standard 2N (option) |
Heat Shrinkable Sleeve | 60mm, 40mm and serials heat Shrinkable Sleeve |
Battery Capacity | 200 cycles splicing and heating, 3 hours charging time ( splicing and charging at same time) |
Battery Life | Cycling charge 300-500 times, easy to replace battery |
Electrodes Life | 3000, easy to replace electrodes |
Power Source | ≤20W |
Interface | USB Convenient data download and software update |
Construction Lighting | Built in high brightness, wide range of lights, easy to operate at night |
Power supply | Built in lithium battery 5200mAh 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A |
Operating Condition | 0-5000m above sea level, Temperature: -10-60℃, Humidity:0~95%RH (No dew) |
Weight (including battery) | 2.1 KG (including battery) |
Dimension (LxWxH) | 135mm(L)×158mm(W)×155mm(H) |
