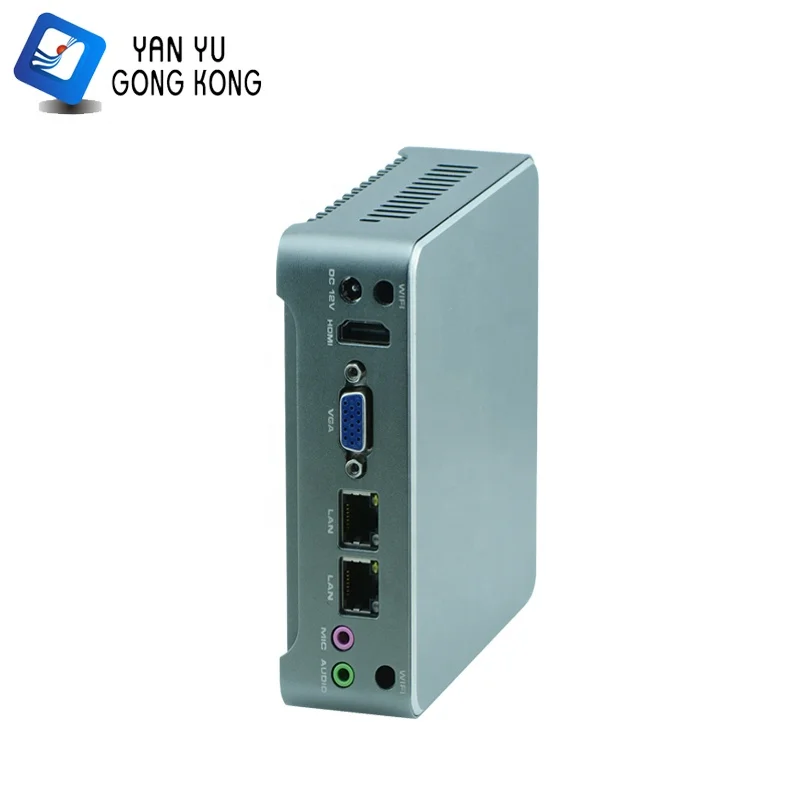

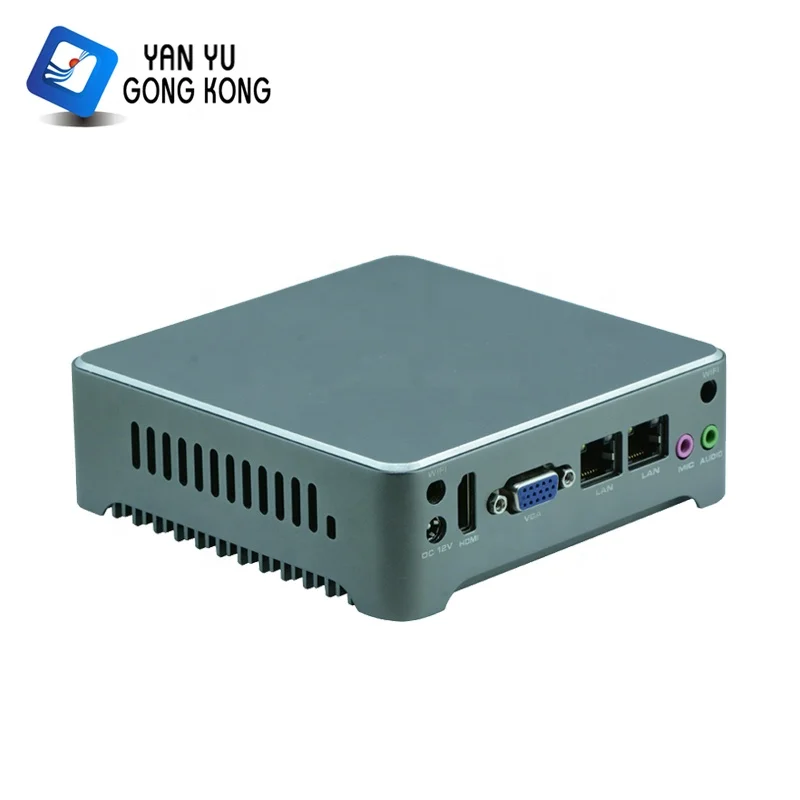

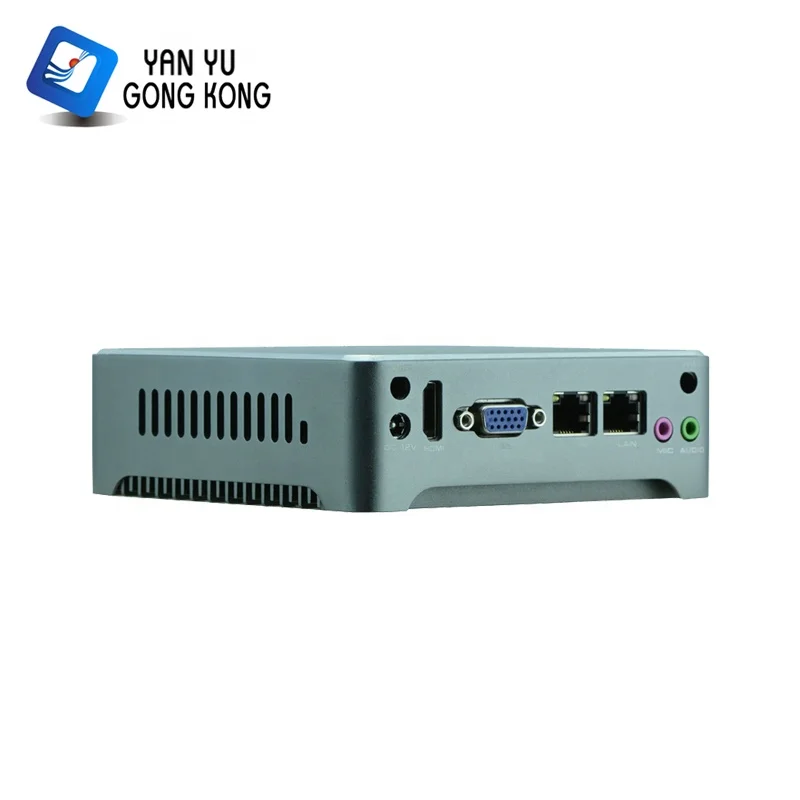

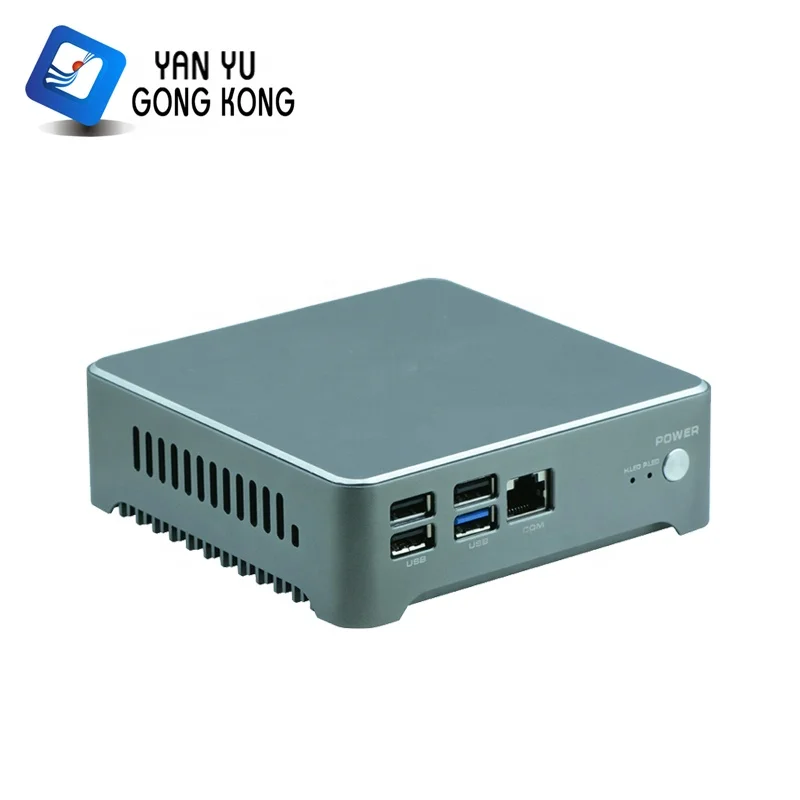

Yanyu nano J1900 quad core double network port fanless low power mini desktop computer
- Category: >>>
- Supplier: Yentek (shenzhen) Technology Co. Ltd.
Share on (62033246569):
Product Overview
Description

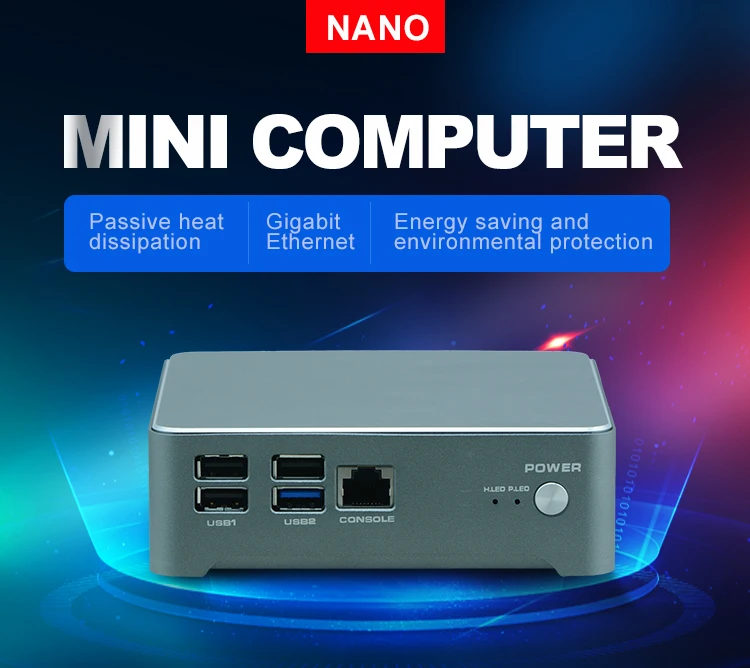

Inte Nano mini desktop J1900 Dual nic nano MINI PC desktop computer
Product Description
We are an Intel IoT Solutions Alliance Affiliate Member with professional R&D Team
16 years' manufacturing experience | OEM/ODM services | Exporting to the US and Europe
YANYUGONGKONG - Intel industrial Firewall Industrial Motherboards /Appliance.
YANYUGONGKONG also provide the service of custom design to meet your special requirement.
Chassis / PVC membrane etc can custom.
oem network appliance/ Nano computer etc.
Order Information
No. | Model | Processor | Motherboard | Memory | SSD | LAN | USB | WiFi | Adaptor | OS |
1 | N3929SZ | J1900/2.00GHz | N39_19 | / | / | 2*RTL8111F | 4 | N/A | 12V/3A | / |
2 | N3923SZ | 4020Y/1.50GHz | N92_I3 | / | / | 2*RTL8111F | 4 | N/A | 12V/3A | / |
3 | N3925SZ | 4210Y/1.50G | N92_I5 | / | / | 2*RTL8111F | 4 | N/A | 12V/3A | / |
4 | N3919SZ | J1900/2.00GHz | N39 | / | / | 1*RTL8111F | 6 | N/A | 12V/3A | / |
5 | N3905SZ | N2805/1.46GHz | N39_05 | / | / | 1*RTL8111F | 6 | N/A | 12V/3A | / |
Chassis | Color | Iron gray |
| Dimension | 128mm*128mm*41mm(L*W*H) |

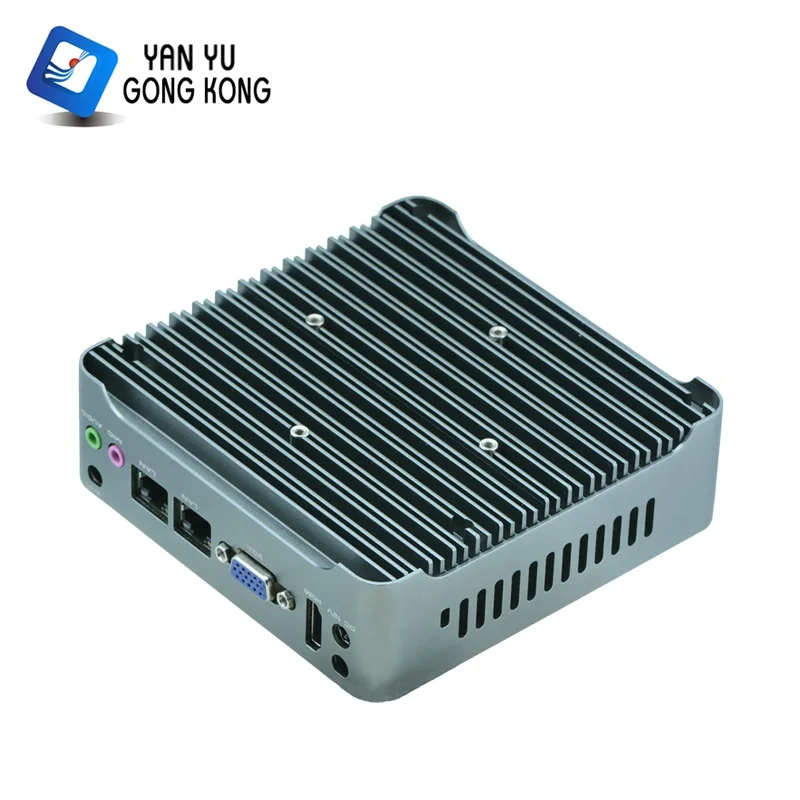

| Structure | Full aluminum fanless cooling structure |
| Material | Aluminum alloy |

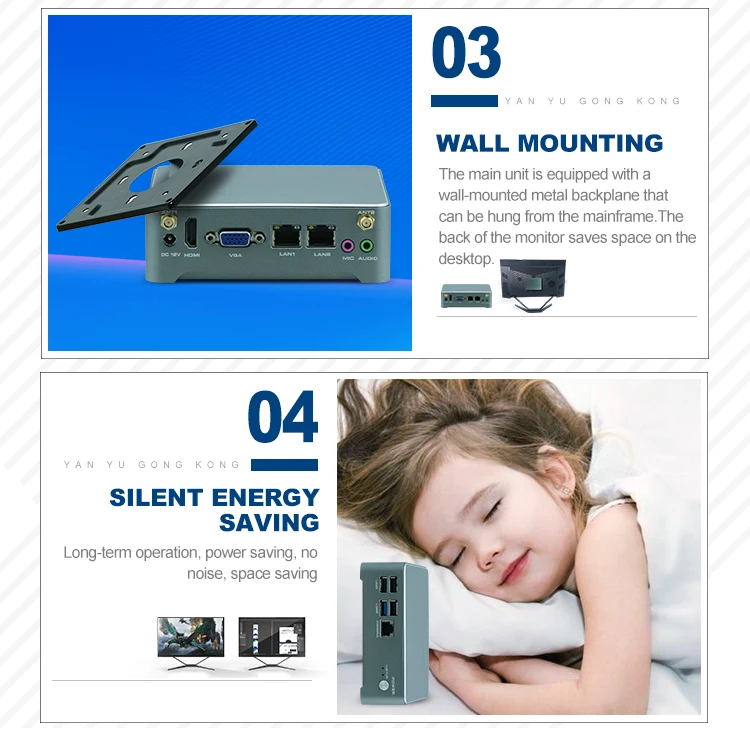

| Installation | Desktop type or wall-mount installation |
Motherboard | Model | STX-N39_19 |
| Processor | Integrated Intel® Celeron J1900 quad core 2.0GHz processor |
| Chipset | Intel® Bay trail SOC chipset platform |
Graphics | HD Graphics | Integrated Intel® HD Graphics, support DirectX 11.1, OpenGL 3.2, support VGA, HD OUTPUT synchronous/asynchronous display. |
| Resolution | VGA: max support 2560 x 1600 @ 60HZ HD OUTPUT: max support 1920 x 1080 @ 60HZ |
Storage | Memory | 1* SODIMM 1600/1333MHz DDR3L/1.35V memory, max up to 8GB |
| SATA | N/A |
| CF | N/A |
| SSD | Support 1*MSATA SSD expansion |
Audio | Audio | Integrated ALC662 6 channels Hi-Fi audio controller, support MIC, Line_out |
Network | Ethernet | 2*RTL8111 Gigabit LAN, support Wake On LAN /PXE |
| WiFi | Provide 1xMini-PCIE slot, support WiFi, 3G module |

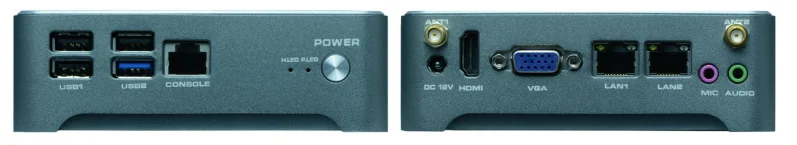

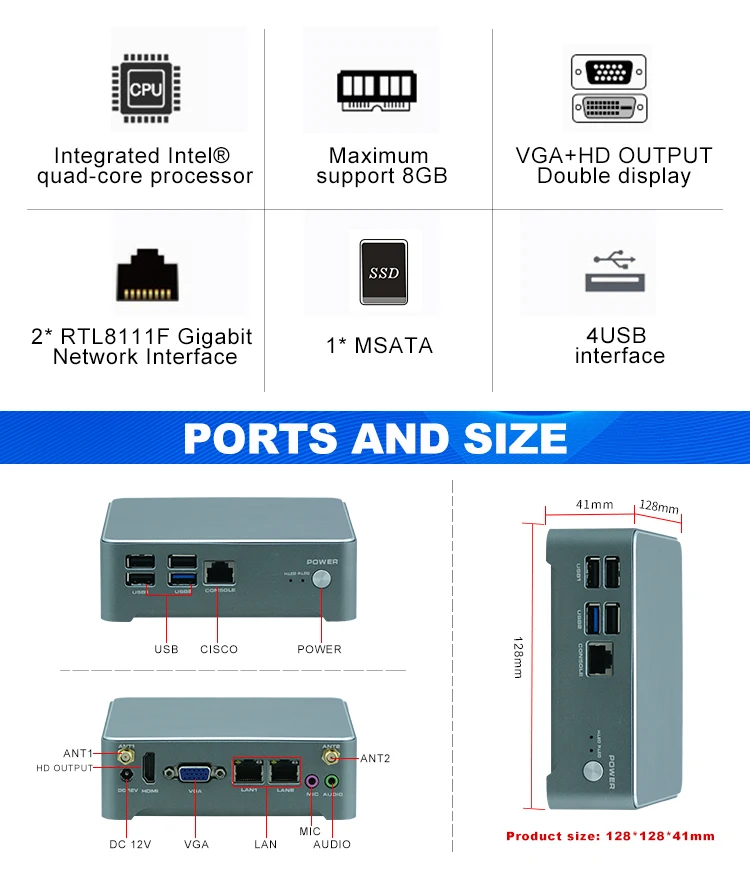

I/O Port | Serial Port | 1* standard serial port |
| USB | 3* USB2.0, 1*USB3.0 |
| Power Switch | 1* Power switch |
| LED indicator | 1*HDD LED, 1*Power LED |
| LAN | 2*RJ45 Gigabit LAN port |
| Display | 1*VGA, 1*HD OUTPUT |
| Power | 1*12V DC IN Jack |
| Antenna | 2*WiFi/3G SMA antenna (Optional) |
| Audio | 1*Line-out, 1*MIC |
Power | Power Adaptor | 12V/5A adaptor |
Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ |
| Relative Humidity | 5%-95%, no condensing |
| Vibration | 0.5g rms/5-500HZ/random/operating |
Operate System | Support Windows7, Windows8, Windows10, Linux OS | |
