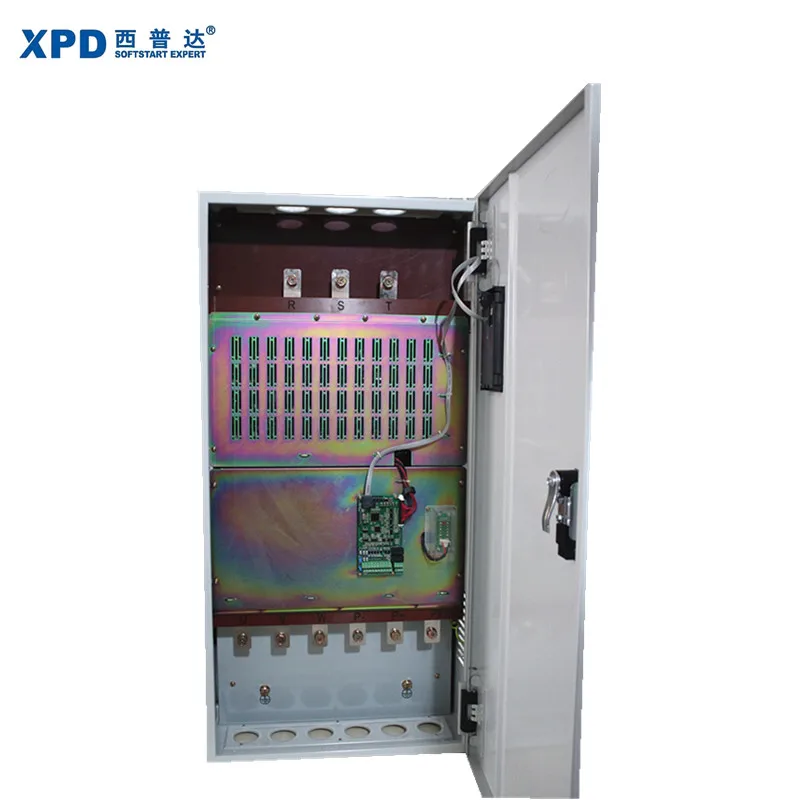

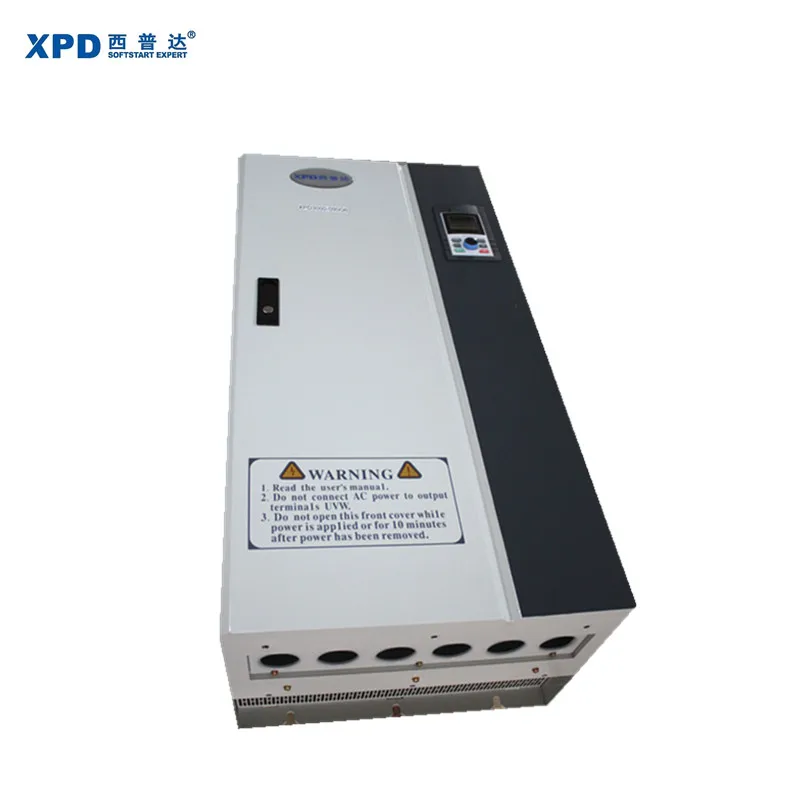

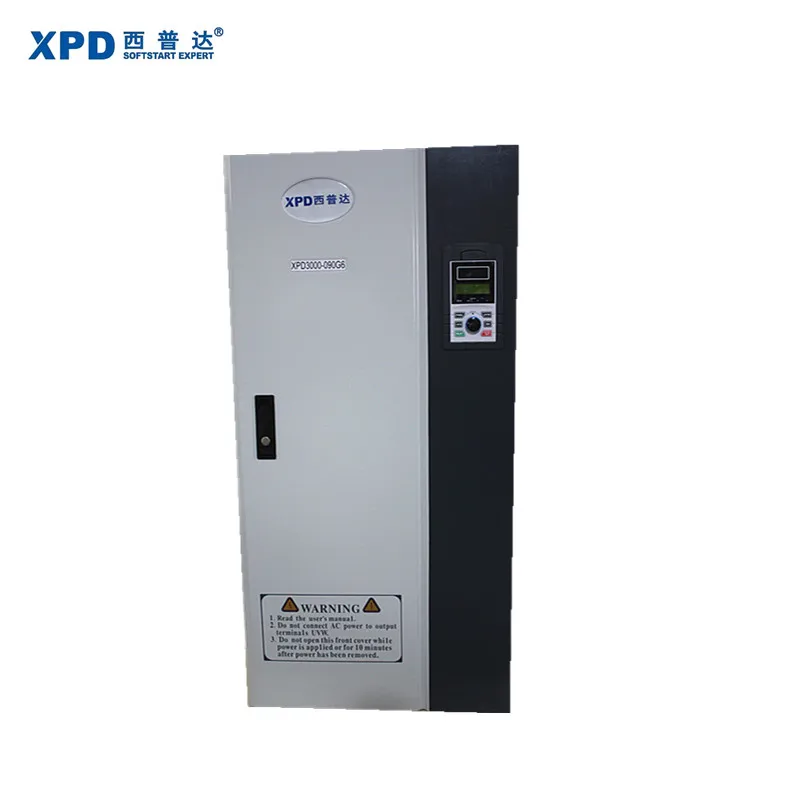

China famous brand 660v 690V 90kw frequency inverter

XPD3000 series inverter is a new product produced by XPD. It uses advanced space voltage vector SPWN control technology, adopts high performance power module and DSP chip, and has built-in current control loop, external support for a variety of extended IO card PG card (ABZ signal, complementary code form and differential form) and a variety of extended communication card (extended Modbus PROFIBUSDPCANOPEN). XPD3000 series inverter has good dynamic characteristics and super overload ability, to meet the customer's high quality, high reliability product requirements. Applicable to fan, pump and general mechanical load of the vector inverter.

Technical characteristics:

* High starting torque can also be achieved with high performance current vector control.

V/F control: 1HZ 150% torque (speed range: 60:1)

Open loop vector control: 0.5hz 150% (speed range: 100:1)

* Instantaneous blackout measures in line with the usage

Speed tracking function, most in line with the fan, blower and other fluid machinery with rotating body.

Instantaneous stop function, film production line and other power failure treatment measures, can save UPS (uninterrupted power supply) and other special equipment, detect the low voltage automatic instantaneous power failure compensation.

* Energy-saving control technology

The energy saving control of frequency converter can realize the high efficiency operation of induction motor, which is derived from the high efficiency control of frequency converter drive.

* Debug is convenient

Use function, only need to choose the mechanical use, can automatically set the most appropriate parameters, without cumbersome parameter setting.Can shorten the test run time.

* Double rated function, G/P in one to make the machine more miniaturized.

Use a frequency converter, can choose light load (120%), heavy load (150%) double specifications, according to the purpose of the motor can sometimes use a small gear capacity converter.

* Reliable braking function

Three braking modes are provided for users to choose: dc braking, flux braking and energy consumption braking.

Use over excitation brake function, no brake resistance can also emergency braking.

Expanded built-in energy consumption dynamic function, no brake resistance can also emergency braking.

Expanded the capacity of built-in energy consumption brake IGBT, if increase the brake resistance can increase more braking capacity.

1.5-30kw built-in brake unit

* Support master-slave control

The converter itself can be set to host or slave.

Set to host: the synchronized reference can be selected from the reference frequency, operating frequency or torque reference.

Set slave: you can set whether the slave follows the host to run commands.

The inverter supports droop control and can realize load distribution control under the same load with multiple motors.

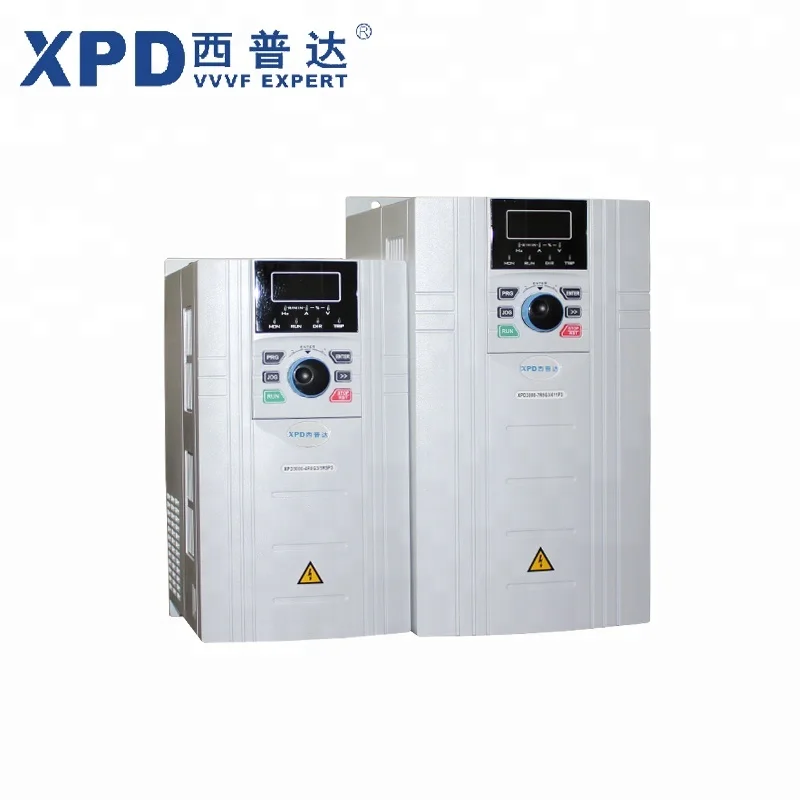

1.5kw to 15kw frequency inverter:

18kw to 132kw frequency inverter:

Over 160kw frequency inverter:

Basic wiring diagram:

Technical Parameters:

Textile, papermaking, wire drawing, machine tools, packaging, food, industry, crusher, compressor, hoist, wire drawing machine, transport vehicles, feeder, mixer, spinning machine, cigarette-rolling machines, injection molding machine, esp, such as machinery and equipment, constant pressure water supply pump, cooling fan, subway and tunnel fan, air conditioning, glass, ceramics, plastics, pharmaceutical, beverage, packaging, such as production load, environmental protection such as wastewater treatment, waste gas treatment and loads.

Wuxi Xipuda electronics technology Co., Ltd was established in 2003. Located in the economically developed city-Jiangsu Wuxi, which is near shanghai port. Xipuda specialized in the research, development and production of AC motor soft starter and frequency converter. We have five series of high/medium/low voltage soft starter, Type A, Type B, Type C, Type G, Type H. and two series of frequency converters,XPD2000 & XPD3000. Our products are widely used in various fields at home and abroad.

Q1: OEM or customer's logo printed is available?

           Yes, OEM or customer's logo are welcome.

Q2: Delivery date?

        Usually 3-7 days after receiving deposit; specific delivery based on order quantity.

Q3: What's your payment terms?

       30% deposit and 70% balance or 100% by T/T, L/C, Western Union.

Q4: If we do not have shipping forwarder in China, would you do this for us?

       We can offer you the best shipping line to ensure you can get the goods timely at best price.

Q5: Can you send me a sample?

       Yes, we can send you the sample for checking our quality, but you need to pay sample fee which is lower than original price.
