dc solar bore pump for underground water Solar pump system with controller
- Category: >>>
- Supplier: Zhejiang Boyi Mechanical and Electrical Technology Co. Ltd.
Share on (62033551703):
Product Overview
Description
dc solar bore pump for underground water Solar pump system with controller
Congratulations you find the professional manufacturer of solar powered water pumps.
Contact: Mr. Andy
Email / skype : andy(at)boyitechcn.com
Mobile / Wechat / Whatsapp: +86-151-5777-0580
Tel : +86-574-8831-6617
What is solar water pump?
Dc solar submersible pump is an environmentally-friendly water supply solution. Dc solar submersible pump are fitted with a permanent magnet motor which enables the efficient use of energy from nature. The dc solar submersible pump offers the perfect water supply solution in remote areas where water is scarce and the power supply is non-existent or unreliable.
INSTALL photo with tank for Agricultural irrigation
Why use solar water pump?
Generating electricity on farm using solar Photovoltaic (PV) technology can be an important step towards increasing the resilience and sustainability of your business.
Solar PV is scalable. Additional modules can easily be added to systems. Solar technology is proven, well understood and widely adopted across internationally.
On most farms, solar PV can provide cost effectively at least some proportion of energy needs. Benefits to implementing solar as a source of power for irrigation pumping include:
· Reduced bills for mains electricity and diesel
· Reduced connection and infrastructure costs when new power lines and poles can be avoided if fully replacing mains electricity
· No noise, fumes or fuelling runs if replacing diesel,
· Scalable – additional panels can be added to increase output
· Flexible – solar power can be integrated with mains electricity supply if desired
· Low maintenance. Aside from tracking systems, traditional solar generators have no moving parts and are generally very reliable.
· Protection from rising energy costs. Sunshine is free so generating energy on farm reduces exposure to rising electricity and diesel prices.
Where to use solar water pump?
· Agricultural irrigation
· Livestock
· Garden Fountains
· Home Supply
· Water treatment systems
· Large Scale Watering System for Commercial etc.
The dc solar submersible pump adapt to the characteristic weather profile of any given area. Dc solar submersible pump is more than just a pump -it's a complete intelligent system. Thanks to its built-in electronics, the dc solar submersible pump can be directly connected to the solar panels or batteries without requiring an external inverter.
Boyitech, professional solar water pump manufacturer for over 10 years. Please send an inquiry to get a free solution.

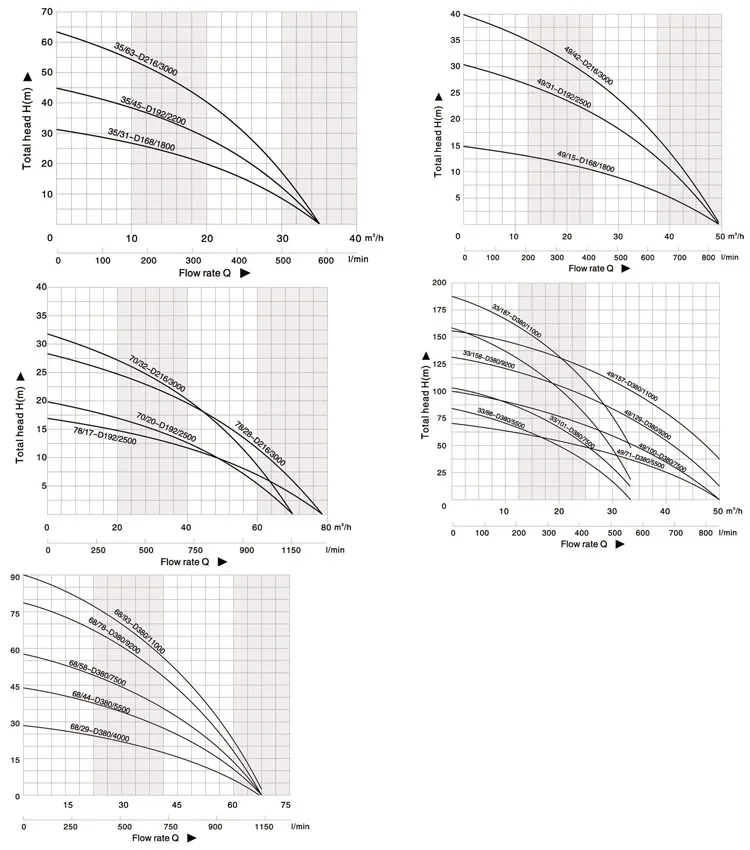

| Model | Imper | solar array voltage | solar array power | Max.flow | Max.head | OUTLET | Dimension |
| V | W | m³/h | M | IN | MM | ||
| 6BYSC35/31-D216/1800 | Centrifugal (stainless steel) | 288 | 2240 | 35 | 31 | 3' | 150 |
| 6BYSC35/45-D216/2200 | 288 | 2880 | 35 | 45 | 3' | 150 | |
| 6BYSC35/63-D216/3000 | 288 | 3600 | 35 | 63 | 3' | 150 | |
| 6BYSC49/15-D216/1800 | 288 | 2240 | 49 | 15 | 3'/4' | 150 | |
| 6BYSC49/31-D216/2500 | 288 | 3040 | 49 | 31 | 3'/4' | 150 | |
| 6BYSC49/42-D216/3000 | 288 | 3600 | 49 | 42 | 3'/4' | 150 | |
| 6BYSC70/20-D216/2500 | 288 | 3040 | 70 | 20 | 4' | 150 | |
| 6BYSC70/32-D216/3000 | 288 | 3600 | 70 | 32 | 4' | 150 | |
| 6BYSC78/17-D216/2500 | 288 | 3040 | 78 | 17 | 4' | 150 | |
| 6BYSC78/28-D216/3000 | 288 | 3600 | 78 | 28 | 4' | 150 |
| Model | Imper | solar array voltage | solar array power | Max.flow | Max.head | OUTLET | Dimension |
| V | W | m³/h | M | IN | MM | ||
| 6BYSC33/86-D380/5500 | Centrifugal (stainless steel) | 540 | 8250 | 33 | 86 | 3' | 150 |
| 6BYSC33/101-D380/7500 | 540 | 11250 | 33 | 101 | 3' | 150 | |
| 6BYSC33/158-D380/9200 | 540 | 13800 | 33 | 158 | 3' | 150 | |
| 6BYSC33/187-D380/11000 | 540 | 16500 | 33 | 187 | 3' | 150 | |
| 6BYSC49/71-D380/5500 | 540 | 8250 | 49 | 71 | 3' | 150 | |
| 6BYSC49/100-D380/7500 | 540 | 11250 | 49 | 100 | 3' | 150 | |
| 6BYSC49/129-D380/9200 | 540 | 13800 | 49 | 129 | 3' | 150 | |
| 6BYSC49/157-D380/11000 | 540 | 16500 | 49 | 157 | 3' | 150 | |
| 6BYSC68/29-D380/4000 | 540 | 6000 | 68 | 29 | 4' | 150 | |
| 6BYSC68/44-D380/5500 | 540 | 8250 | 68 | 44 | 4' | 150 | |
| 6BYSC68/58-D380/7500 | 540 | 11250 | 68 | 58 | 4' | 150 | |
| 6BYSC68/78-D380/9200 | 540 | 13800 | 68 | 78 | 4' | 150 | |
| 6BYSC68/93-D380/11000 | 540 | 16500 | 68 | 93 | 4' | 150 |
SPECIFICATION
-- Max Head : 38 -- 210m;
-- Max Flow : 35 -- 78 m3/hr;
-- Power : 1800 -- 11000w;
-- Voltage : 288V-540V;
-- Motor : DC/AC motor;
-- Material : Stainless steel;
-- Controller : External mppt type for Automatic restating;
PRODUCT FEATURE
-- The efficiency is improved 28% by the permanent magnetism,direct current, brushless, non-sensor motor.
-- Adopt double plastic package for rotor and stator,motor insulation ≥300MΩ,the motor security was much improved.
-- High technique products adopting MPPT and DSP chip technique.
-- 100% copper wire, cold-rolled silicon steel sheet.
-- Stainless steel 304 & 316 shaft , motor body, screw.
It's time to embrace nature's gift and the plentiful sunshine that we get in this land of golden soil.
