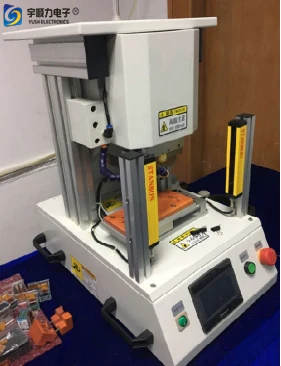

Double Fixtures Hot Press Soldering Machine

Product Overview

Description

Pluse Hot Press Welding Machine



Model :YSPC-2A





Specifications:



Machine Size	690 x 700 x 650 mm long/wide/high
Working size	200x260mm
Machine weight	110 kg
Working Pressure	0.4-0.8Mpa
Power supply	AC220V + 10% 50HZ, 2000W
Warming-up settings	two segments
Press head output	1~20Kg
Temperature Settings	Room Temperature ~500 C Error (+3 C)
Hot pressing time	1~99S (1S adjustable)
Hot pressing accuracy	0.05 mm
Parallel mode	CCD + LCD
Number of fixtures	2
Feeding mode	manual fetching and releasing
Start-up mode	two-handed pressing
Heating mode	pulse heating





Features:



1. pulse heating mode, because of different products, heating speed can be set up.
2. special material welding head to ensure that the product is pressed on average.
3. has the function of vacuum, it is more convenient to adjust the counterposition, rotating the feed by rotating double stations, and improving the working efficiency.
4. temperature numerical control, clear and precise, programmable curve including preheating and reflow welding temperature.
5. have digital display pressure switch, can presuppose pressure range, realize overvoltage protection function.
6.PLC control,

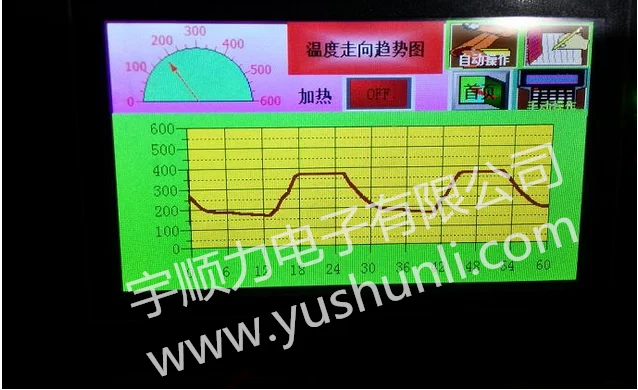

7 inch color touch screen LCD display input, real-time temperature curve display.
8. Chinese menu, all the parameter setting is simple and simple, and the operation is simplified.
9. and there is a password protection, system self inspection, fault alarm display function.
10.Microcomputer control, accurate and stable
11. programmable curves include preheating and reflow soldering temperature
12. suitable for high density TAB, TCP bonding and FPC, FFC and PCB welding
13. the vibration is small, the noise is low, and the voltage is not fluctuant.
14. head used to replace the traditional molybdenum alloy, titanium alloy, fast heating and cooling, heat transfer coefficient, corrosion resistance.
15. single head double fixture design, high efficiency, saving labor cost.





Equipment Operation Descriptions:



The main parameters of the hot press equipment are temperature, time and pressure, and the three elements are controlled, and the welding products are stable. The product of the heat press welding is generally, PCB/FPC/FFC these several kinds of  products are connected to each other with soldering tin, so as to achieve the function. It is very important for welding products to set the above parameters accurately. A good solder joint may make solder plentiful to weld two appearances and melt tin in the two parts. To make the above parameters cooperate effectively, the good can be welded.



FPC is made up of two layers of polyimide and copper platinum. The operating temperature scale of FPC in 130 to 200 degrees. All can be as high as 300 degrees short welding temperature. Because when PCB and FPC are being welded, the heat dissipation effect will be brought to the indenter. FPC and PCB will absorb heat. When the head is pressed down, the welding of air and convection will cause heat dissipation. Plus FPC is between 0.02~0.12 thickness, so it may take 50 to 80 degrees loss to the welding surface. Therefore, we should add the loss temperature when setting the temperature.





1.Unique pulse heat technology provides fastest soldering head heating
2.Programmable soldering temperature, heat-up rate and time duration for a wide range of products.
3.Thermocouple is fixed in close proximity to the working surface & the thermode, thus providing accurate temperature feedback control
4.Closed Loop PID temperature control with clearly visible LED display
5.Soldering time can be programmable and is triggered by temperature

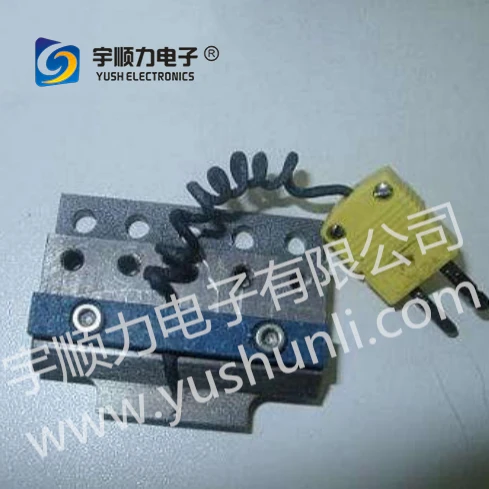

6.Floating thermode ensures consistent pressure and heat transfer between the thermode head and the parts to be joined
7.Programmable pressure switch with LCD display for precise force control

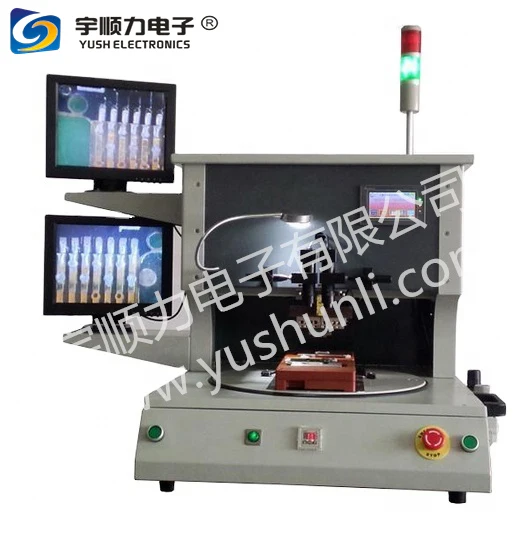

8.CCD camera system with magnification lens can be retrofitted for fine-pitch
