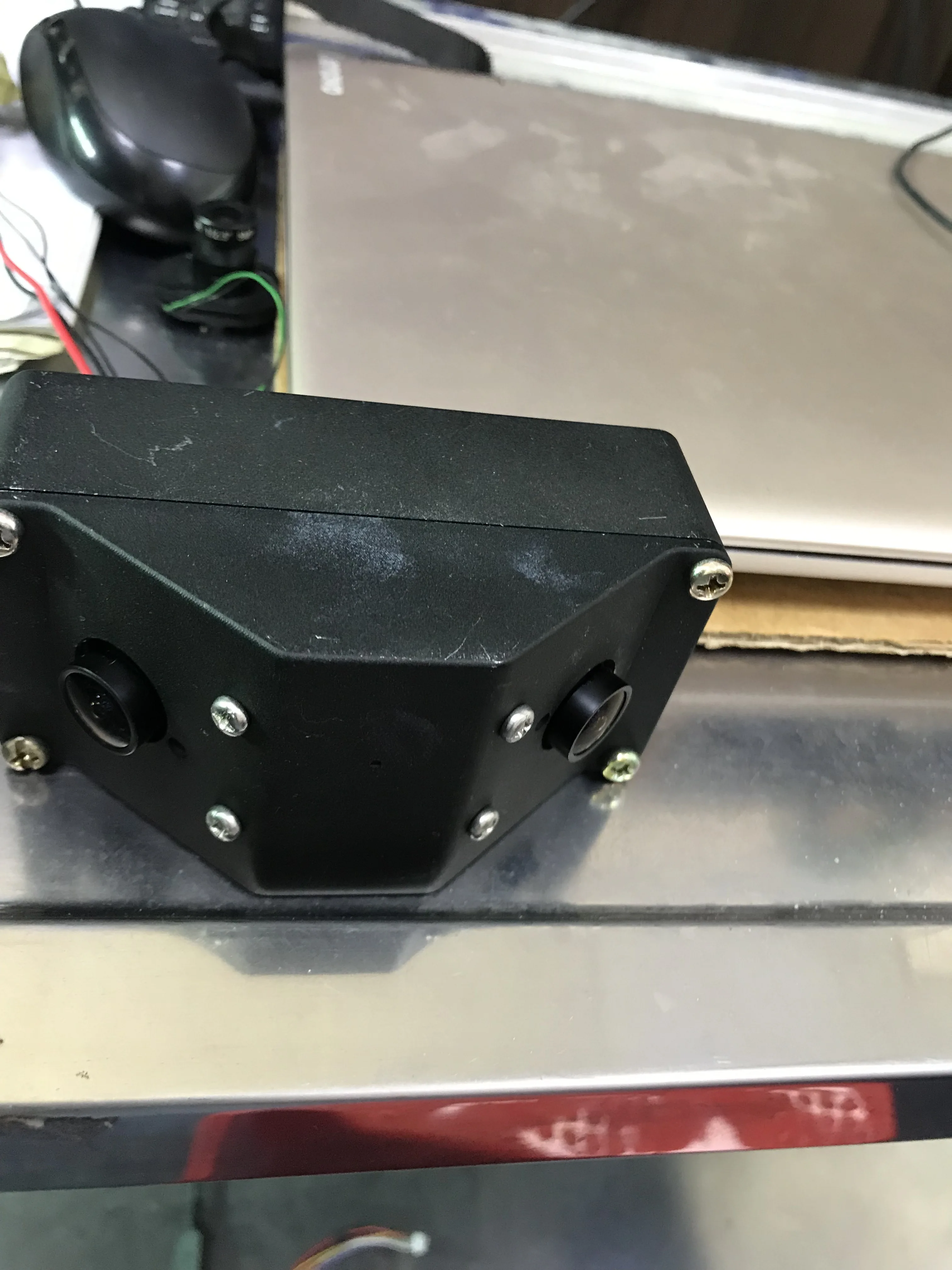

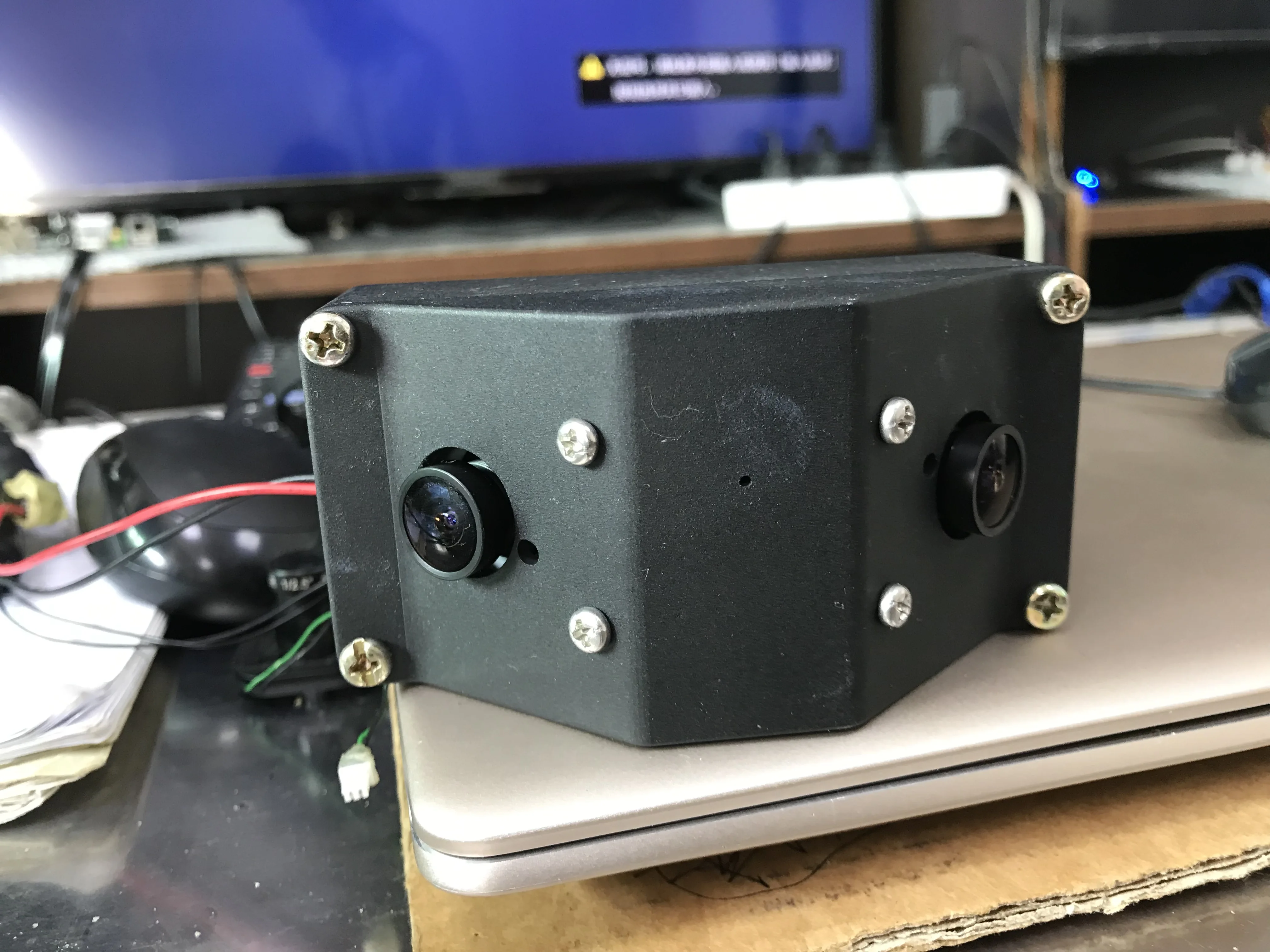

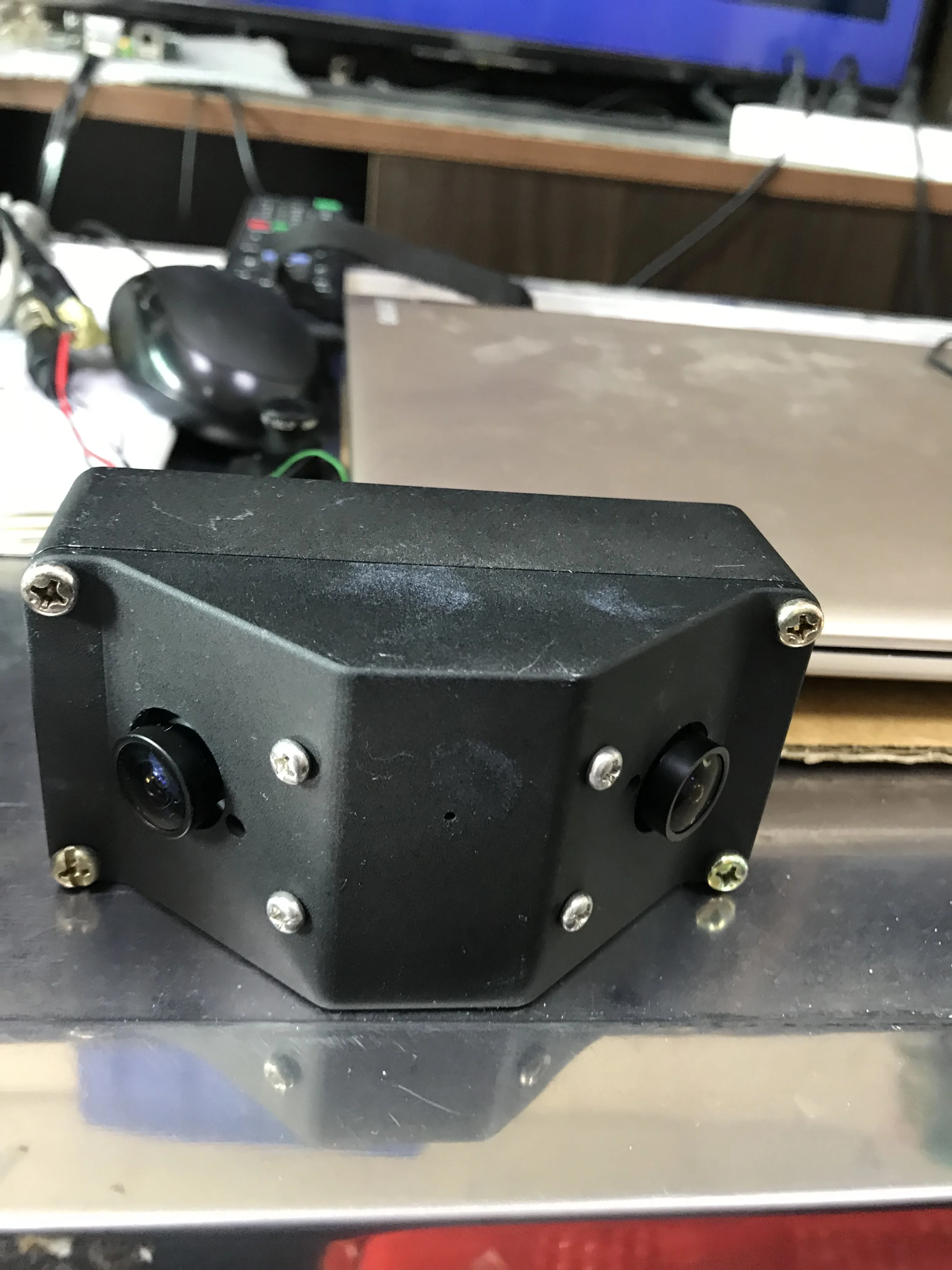

180 degree camera support 16 MP HI3559 camera module with wifi ,using for ROBOT machine .Intelligent module, AI module
- Category: >>>
- Supplier: Shenzhen Hstd Import And Export Trade Co. Ltd.
Share on (62033765291):
Product Overview
Description
180 degree camera support 16 MP HI3559 camera module with wifi ,using for ROBOT machine .Intelligent module, AI module.
Function
AI intelligent hardware chip, large-scale capture of face algorithm, support for face capture in complex environments
Support fast capture, interval capture, and capture after leaving;
Support de-weighting, optimization, and tracking;
25 frames per second real-time capture, up to 50 people
Support for face capture under low illumination and backlighting;
Support GB28281 and ONVIF protocols;
Support device SDK secondary development to access third-party platforms;
The core board connector models :
J3 | FH28D-50S-0.5SH | smd_fpc_1x50_r_p05-pl | Hirose # FPC connect |
J4 | FH28D-30S-0.5SH | smd_fpc_1x30_p05-pl | Hirose # FPC connect |
J6 | ZH-4P-90 | con-smt-4p-125mm | JST # |
J7 | ZH-8P-90 | con-smt-8p-125mm | JST # |
J9 | FH28D-50S-0.5SH | smd_fpc_1x50_r_p05-pl | Hirose # FPC connect |
J10 | FH28D-30S-0.5SH | smd_fpc_1x30_p05-pl | Hirose # FPC connect |
J15 | ZH-4P-90 | con-smt-4p-125mm | JST # |
The corresponding backplane connector model is: the connection between the base plate and the main board uses FPC cable and 1.25 spacing cable.
Interface introduce
No. | Item | Silk screen | Name |
1 | Cmos input | 6 | Audio input |
2 | RJ45 input | 7 | Usb |
3 | Reset button | 8 | Tf card |
4 | 12V input |
|
|
5 | Debug serial port |
|
Item No. | MH68TF-AH |
Image Sensor | 1/1.8"2 MP scan CMOS (IMX385) |
system structure | Embedded RTOS design, dual-core 32-bit DSP (Haisi 3516D), pure hard compression, watchdog |
Coprocessor | horizon |
Resolution | Main stream: 1080P/720P, sub-stream: D1/VGA/640*360/CIF/QVGA |
FPS | 1920x1080@50fps / 1280x720@50fps |
Video processing | Deeply optimized image effects in various scenes, high color reproduction during daytime, high definition of night vision, support for 3D noise reduction, support for digital WDR, support for wide dynamic, efficient adaptive H264/H265 image compression algorithm for ultra-low code stream, code The rate/frame rate is adjustable. Support for JPEG capture. |
Insight | Support face detection, analysis, recognition, capture |
Face maximum number detection | Analyze up to 1080P@25fps per second, and detect up to 100 faces at the same time |
Face upload method | Support FTP,HTTP upload |
Capture mode | Support fast capture, interval capture, capture after leaving |
Backlit face capture | Support |
Audio processing | An audio input and output interface, G711/AAC encoding, support for voice bidirectional, support for noise reduction, automatic gain adjustment, high frequency filtering, echo cancellation |
Network Interface | 1 piece RJ45 10/100M Adaptive Ethernet interface |
Network features | 10/100M Adaptive,8KVAntistatic energy;RTSP/HTTP/SMTP/FTP/DHCP/NTP/QQIOT/RTMP/GB28181 |
Video output | 1 channel CVBS SD composite video output (BNC interface) |
For more details ,you can ask me get the PDF version:

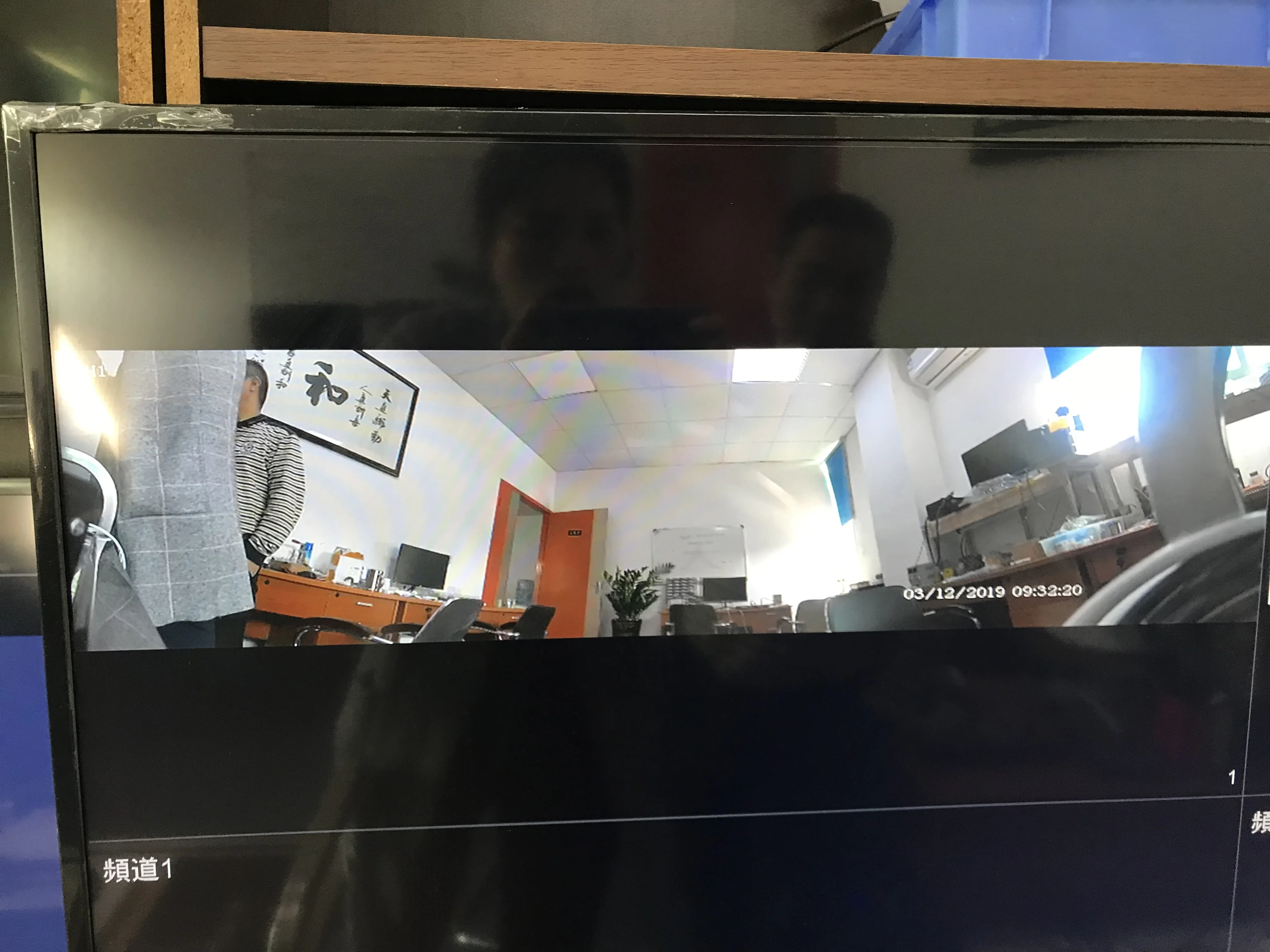

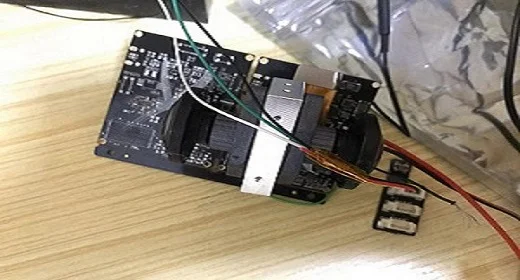

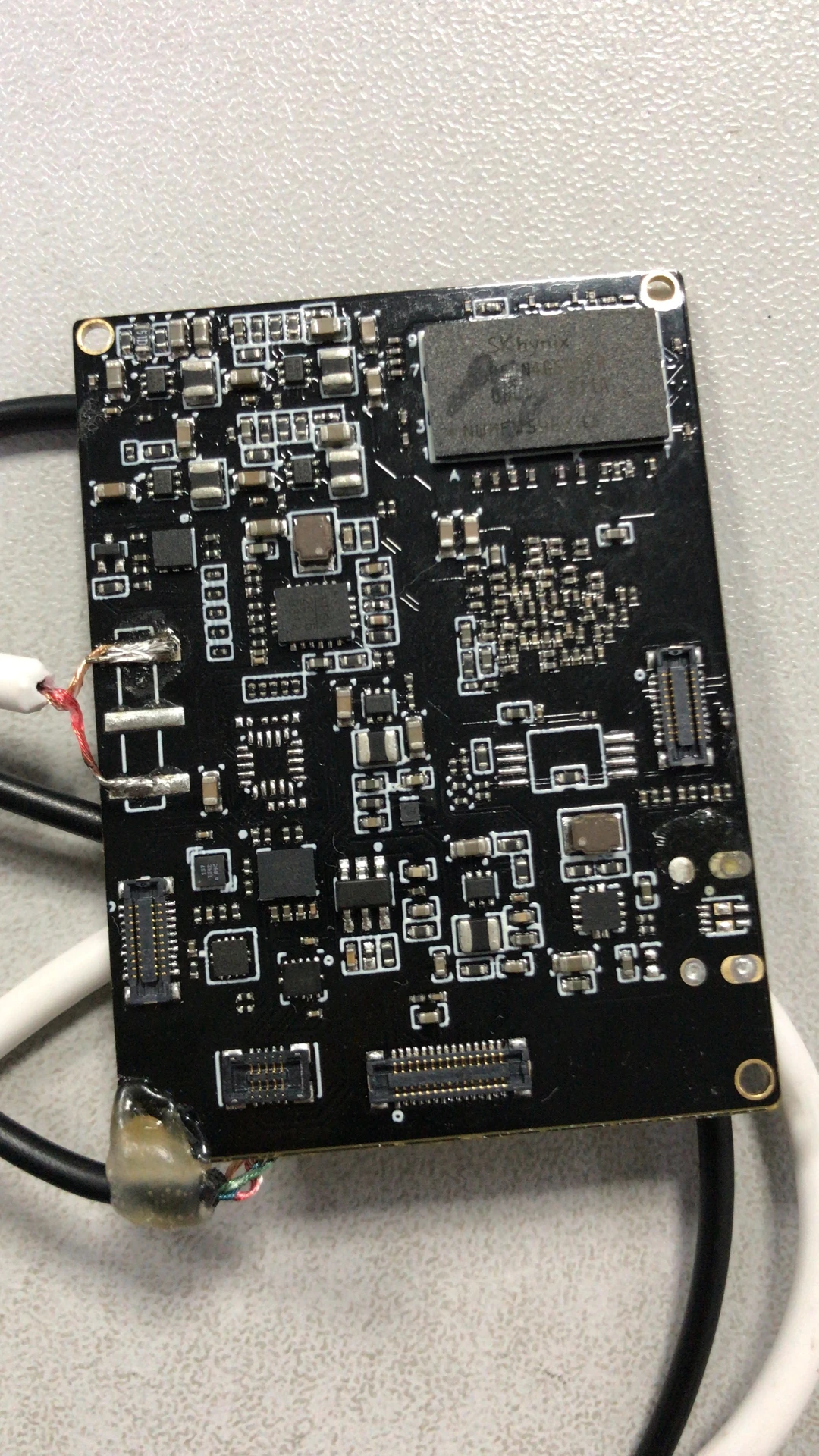

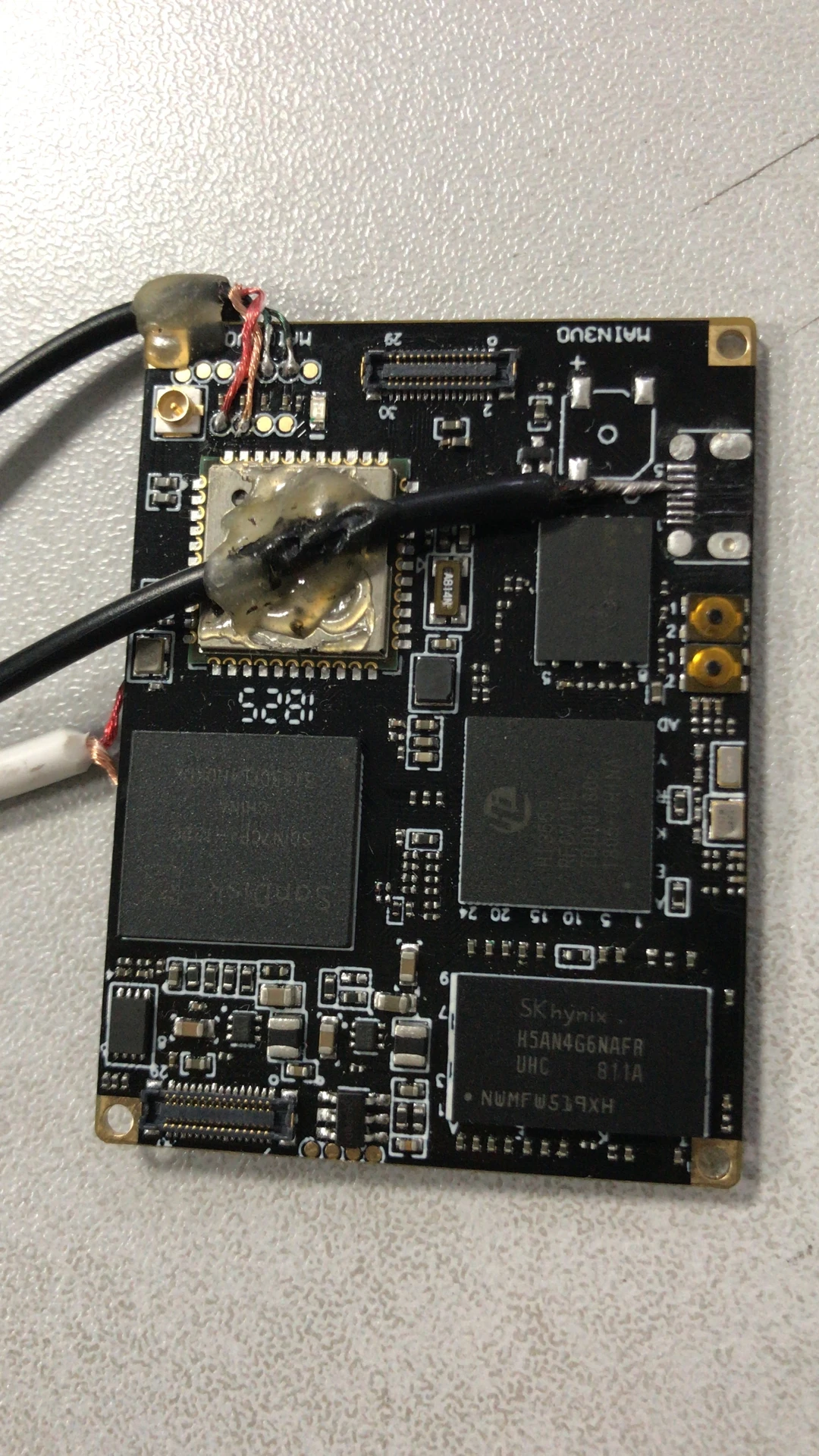

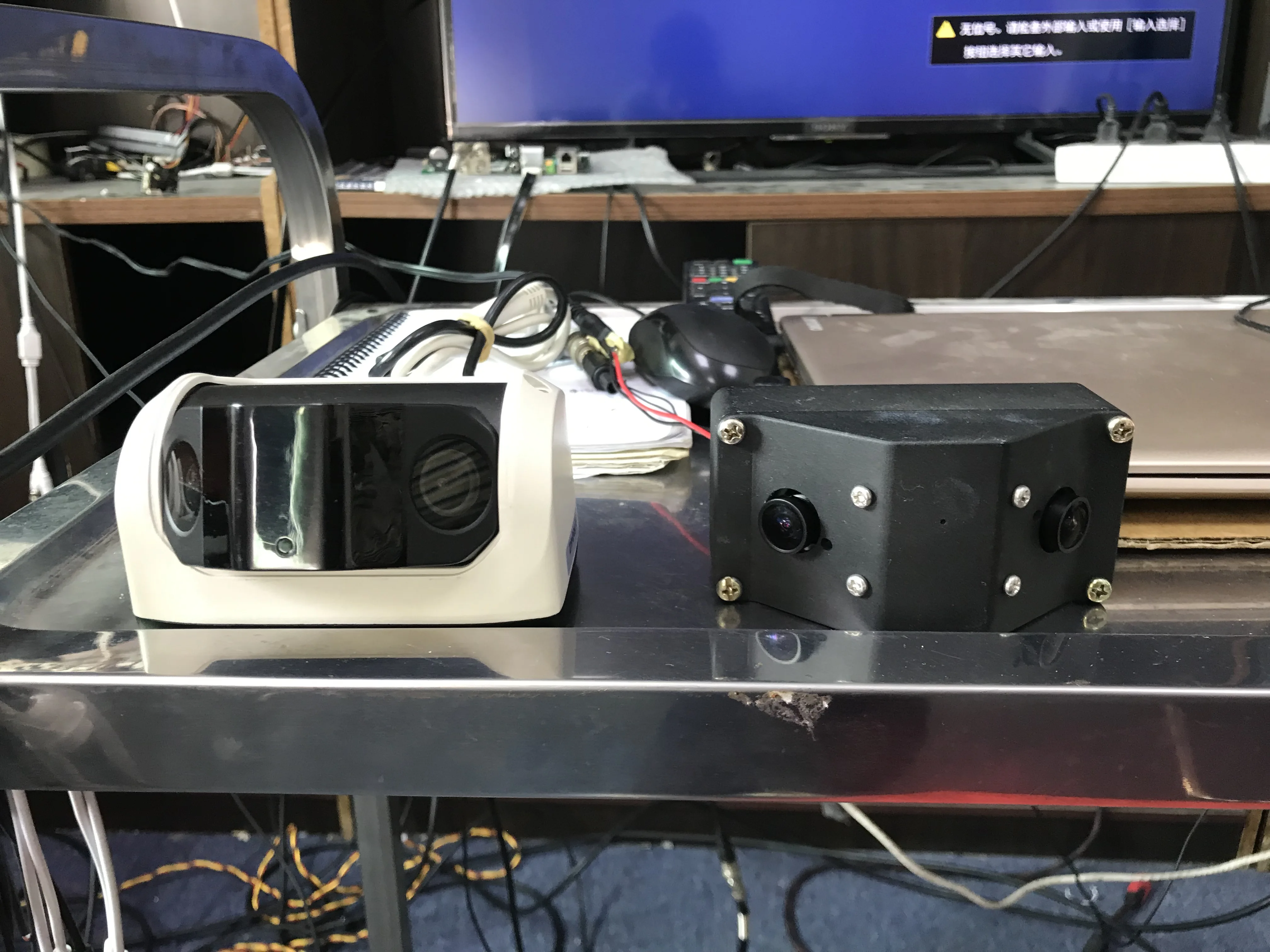

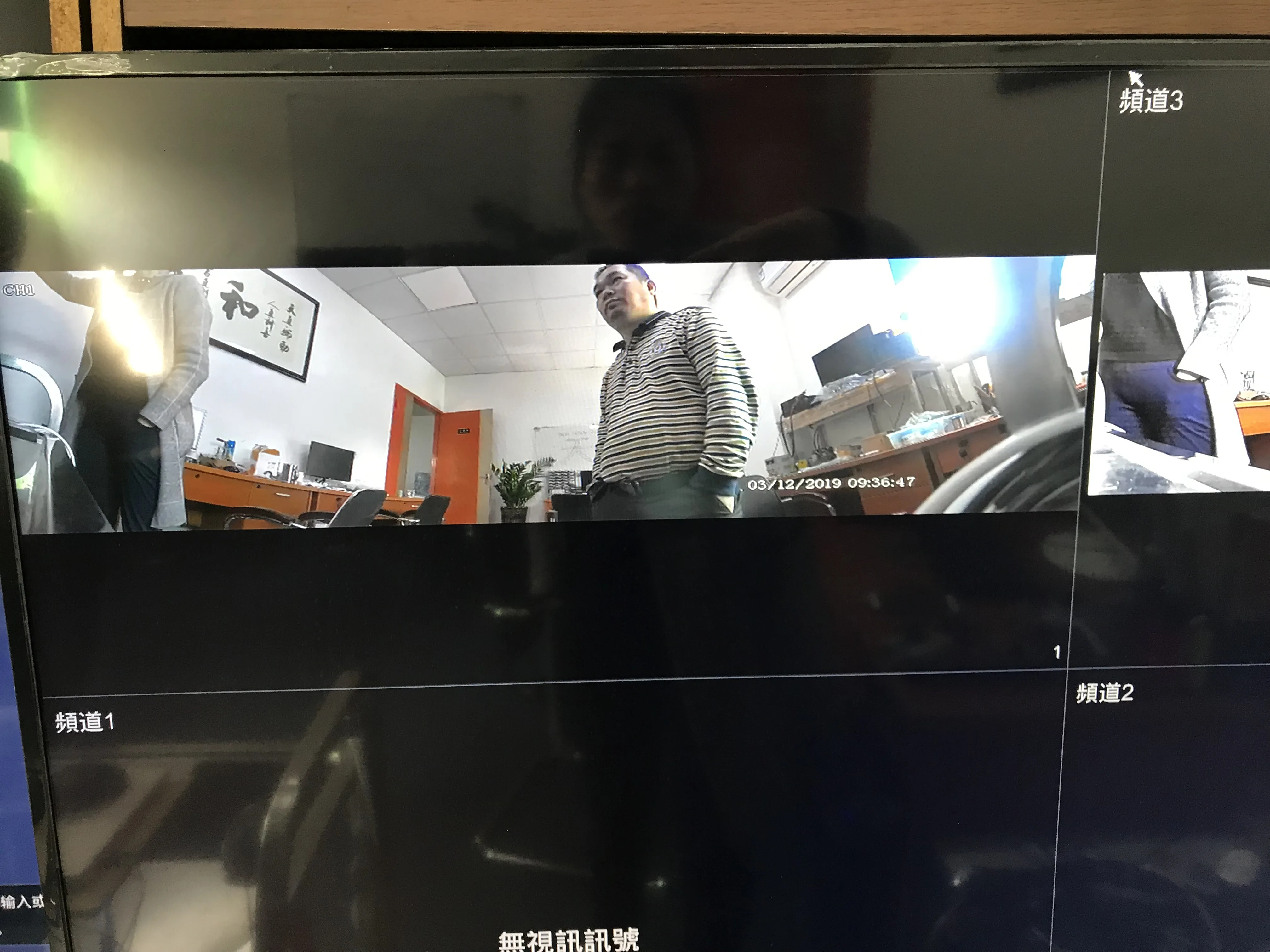

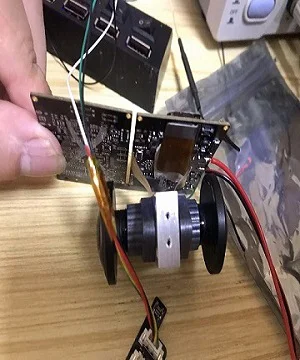

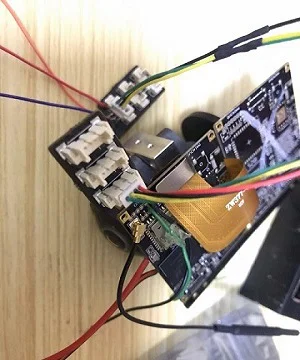

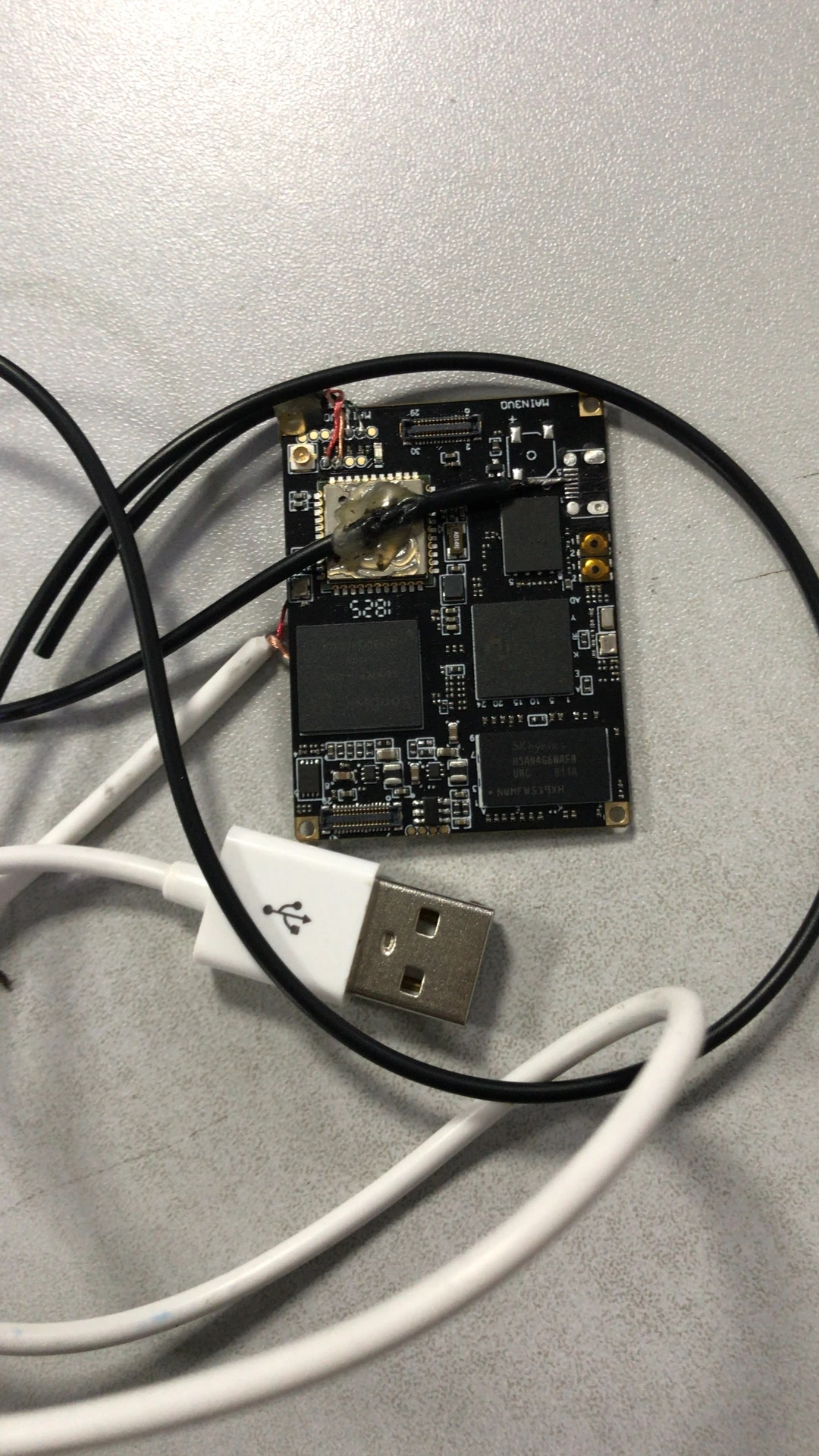

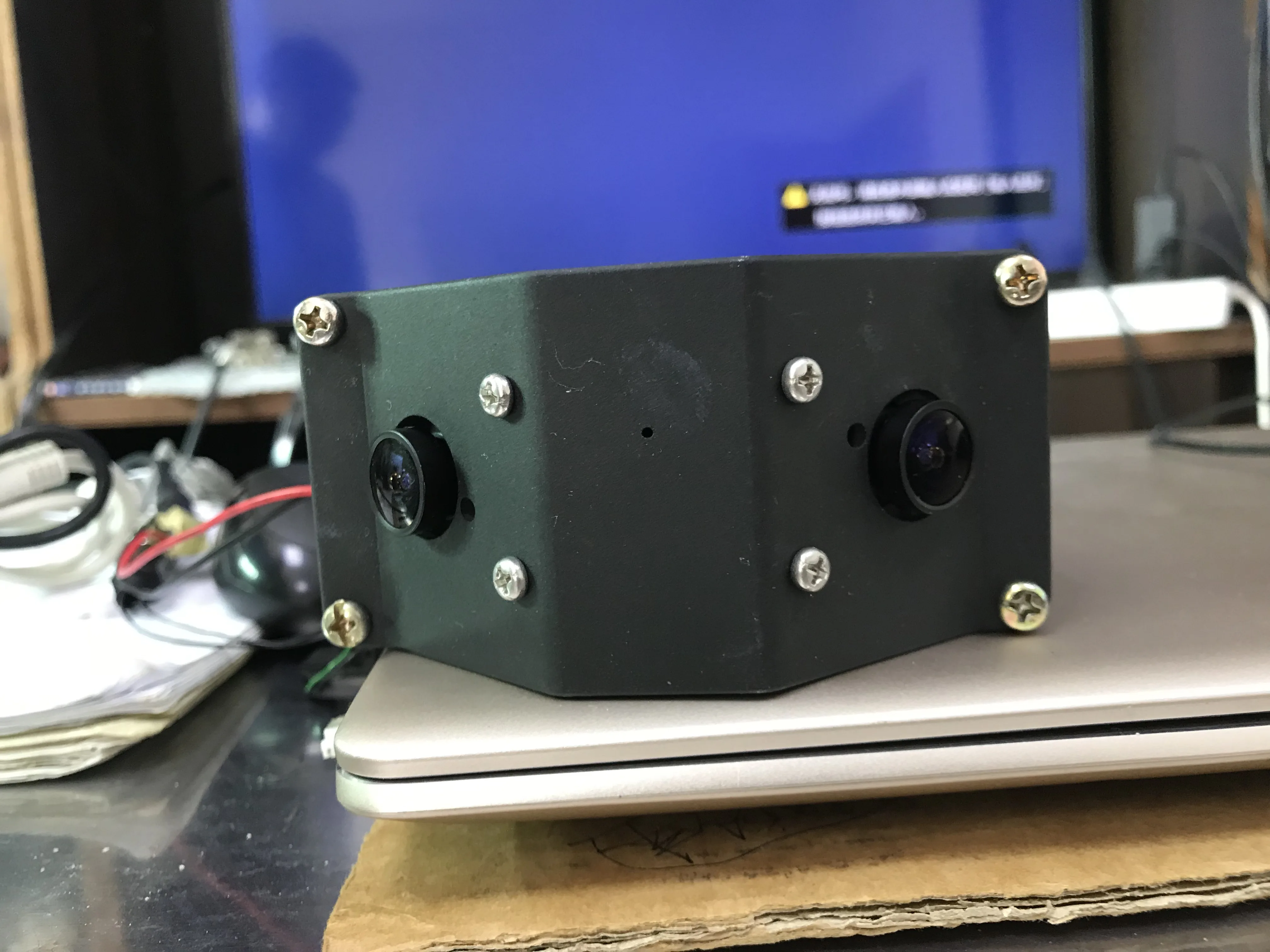

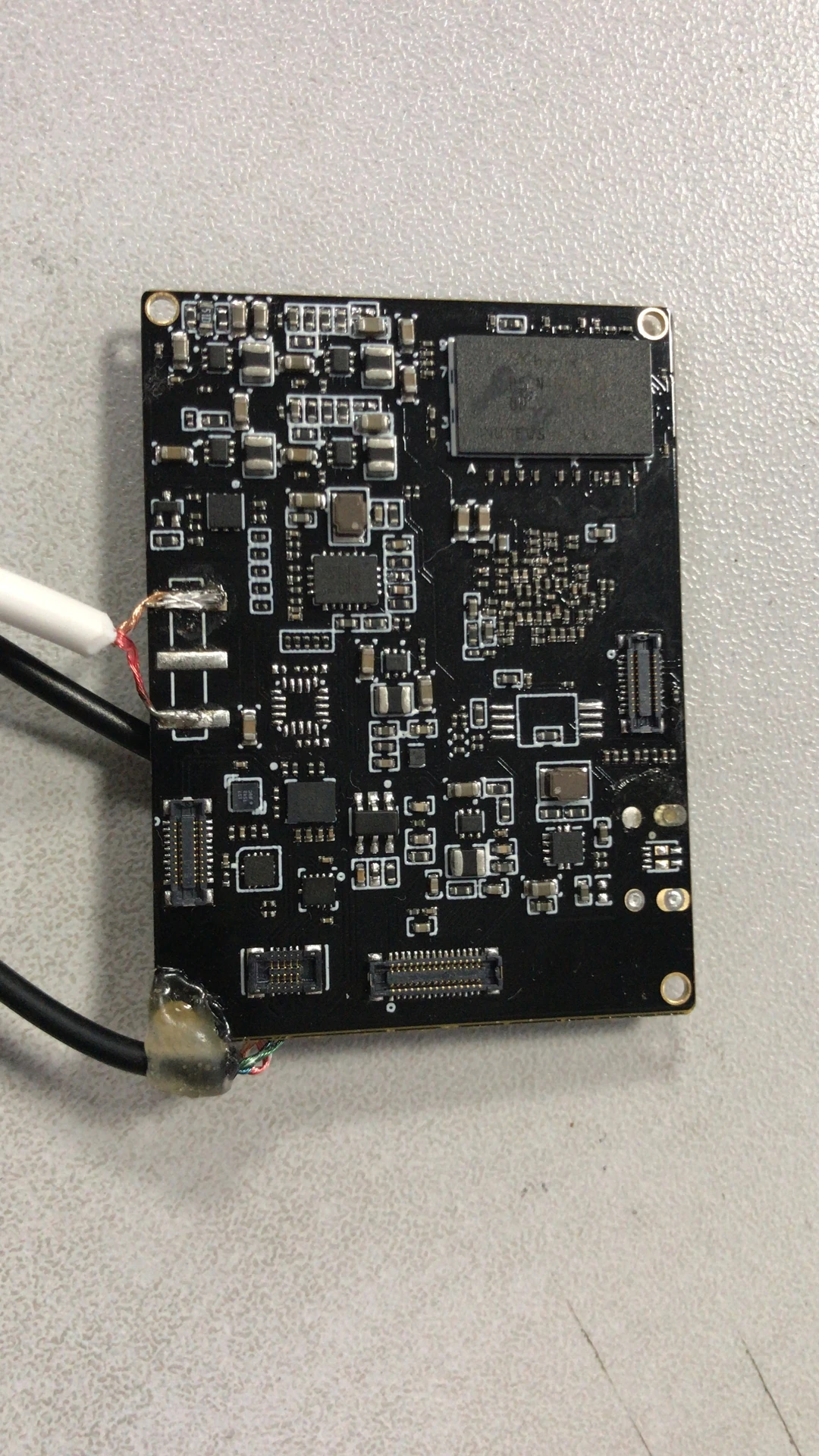

Module inside picture and finish product picture :
Good day My friend:
How are you .
This is Belle Liu from HSTD &GAONA.Our factory is manufacture the camera module and DVR in shenzhen china.
Welcome to inquiry our camera module for your new project ,Our engineer team will give you solution and idea .
we always customized the module for our buyer and the module function is design base on our customer requirement .
Like bellow module :
1.USB 2.0 and USB 3.0 camera module from 1MP(GC1024 )to 8MP
2.Dual camera module with 360 degree and Stitching image
3. Fish-eye Lens camera module and Pin-hold Camera module
4.Trigger module which can be take video and picture at 2 meters higher
5. Low light of USB IMX291
6.60FPS like OV9281 and OV2710
....... Best regards
Ms.Belle liu
Marketing OEM/ODM/BRAND Pro-manager
_______________________________
Mobile/Whatsapp:86-13651459271
Mail: belle.liu(@)szgaona.com belle_cable(@)163.com

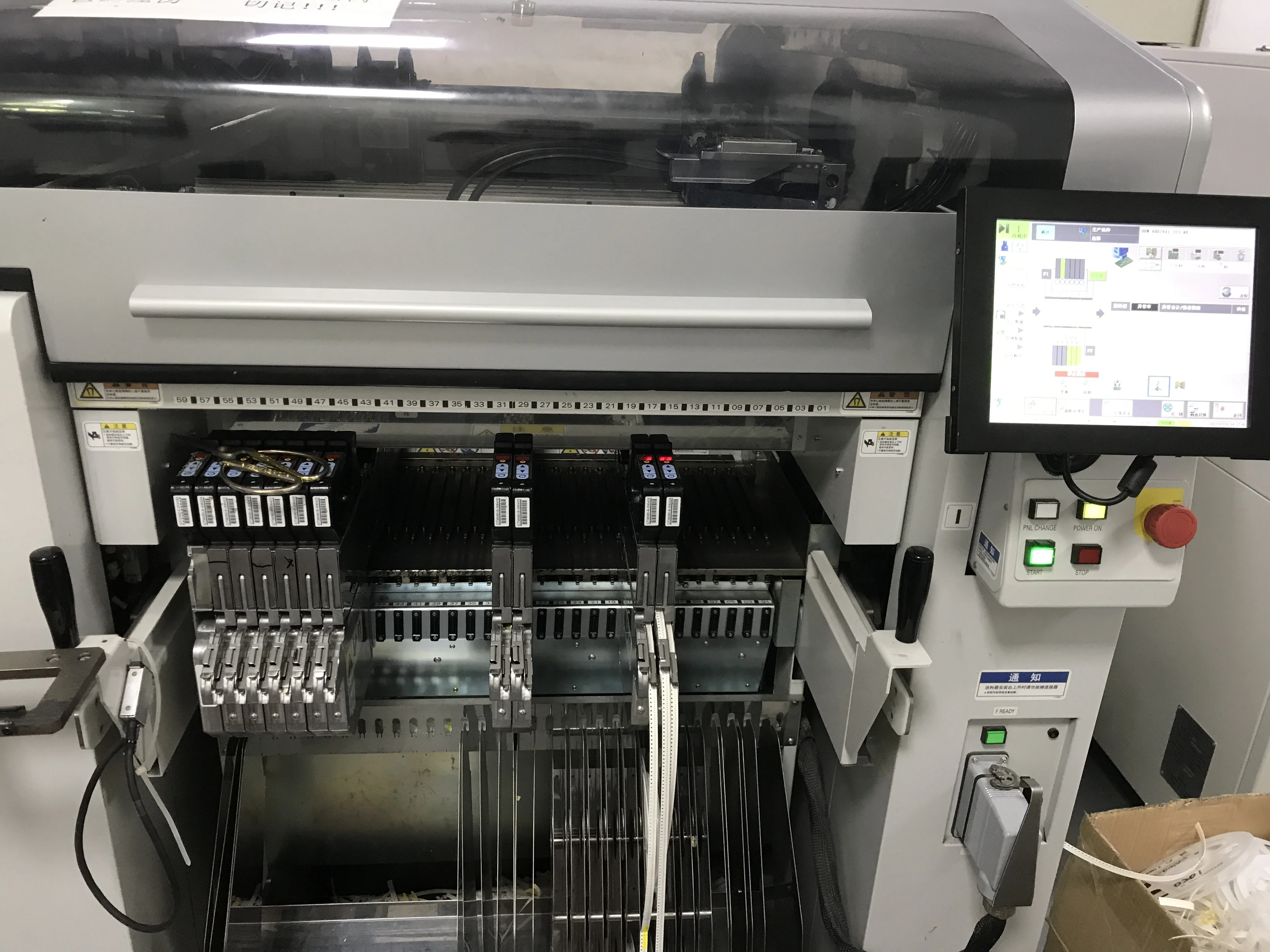

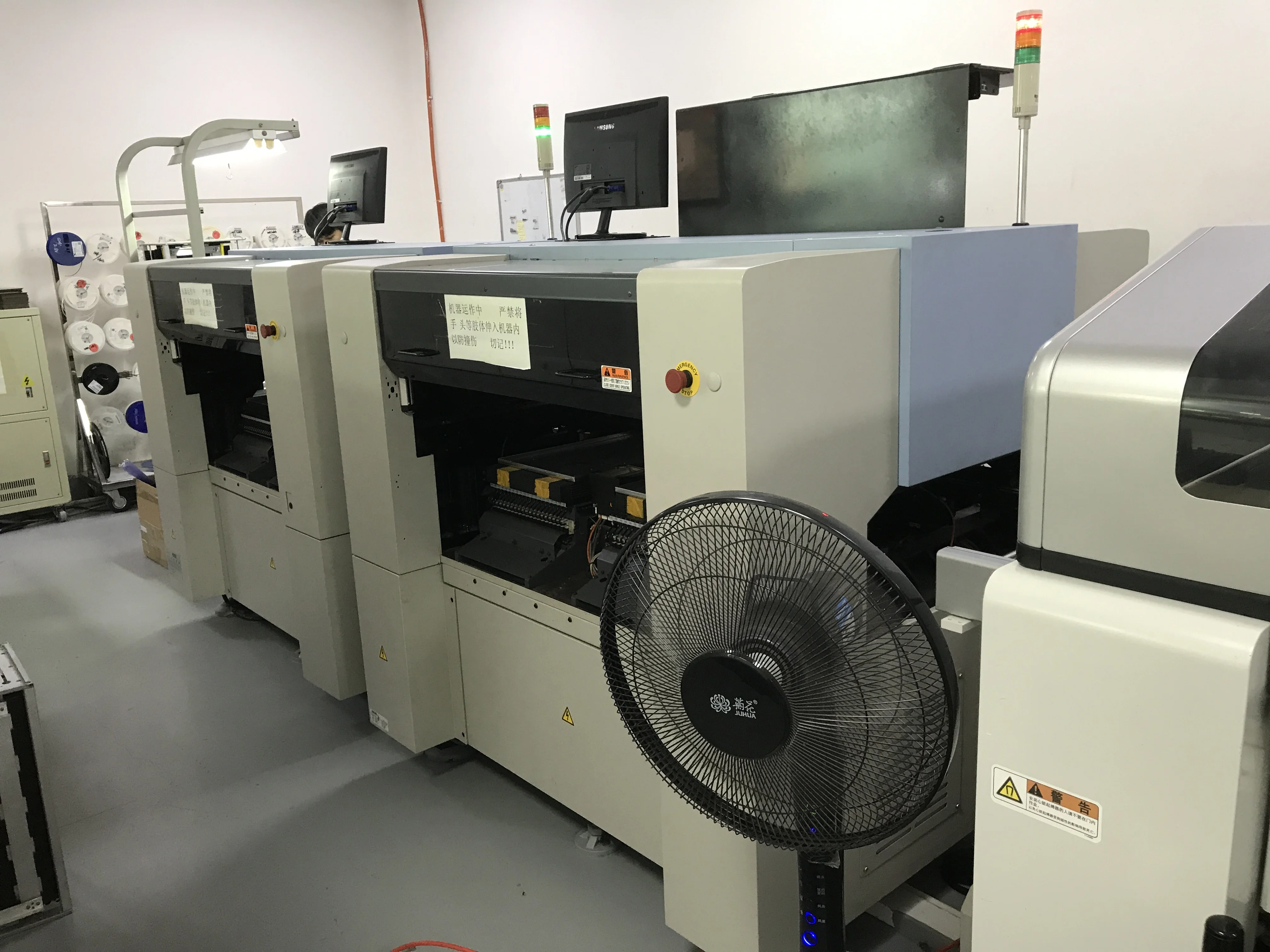

Factory Automatic machine :
