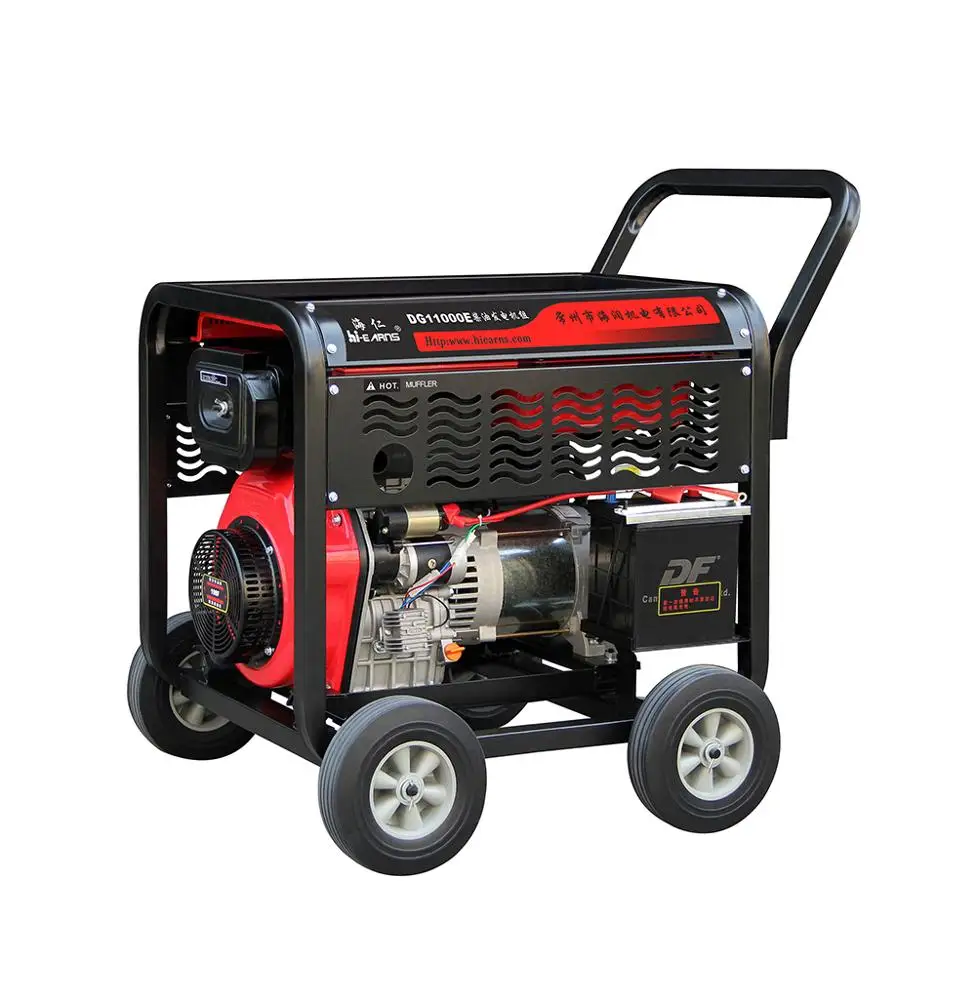

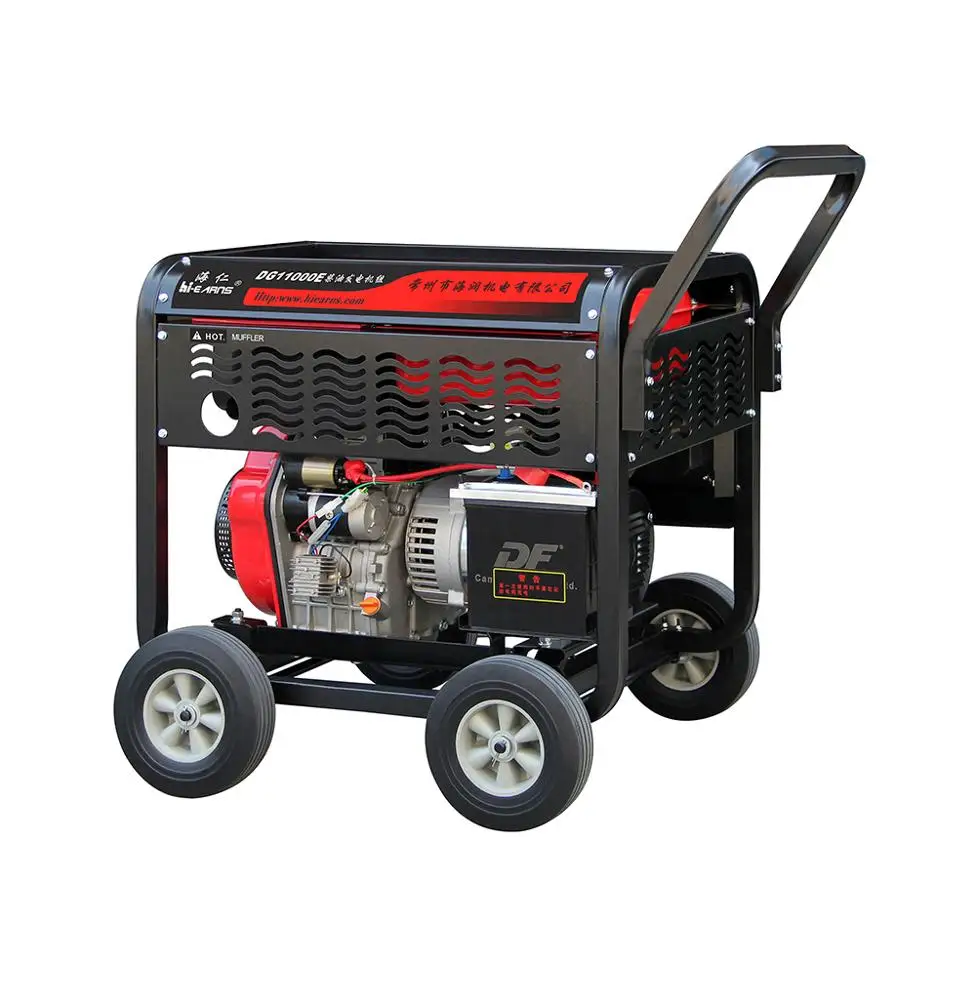

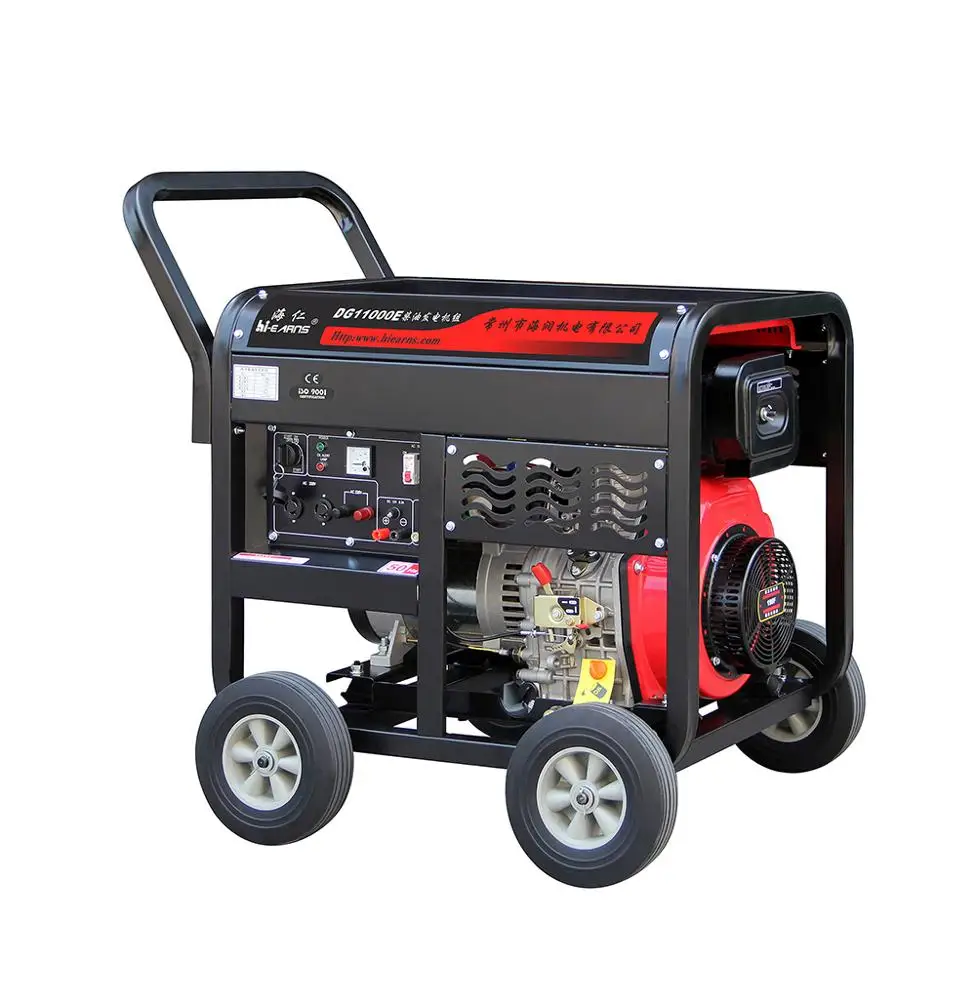

198 engine open type single cylinder diesel generator 50HZ 220V 230V High quality 10KVA 8KW Big tank
- Category: >>>
- Supplier: Changzhou Hi-Earns Mechanical & Electrical Co. Ltd.
Share on (62033885357):
Product Overview
Description
Related Products
DG11000E3 7.5KW portable diesel generator
| GENERATOR | Model | DG11000E3 | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 8.0 | 8.5 | |
| Rated output(kw) | 7.5 | 7.5 | |
| Rated. AC voltage(v) | 120, 220, 230, 240,380,400,415 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase/ three phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 80~85 | ||
| Fuel tank capacity(L) | 23 | ||
| Continues work(hr) | 10.5 | 9.5 | |
| ENGINE | Model | HR198FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 98×84 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 850× 550×670 | |
| Net weight(kg) | 160 | ||
| 20FT | 54 | ||
Product Description
Field of Application
♦ Our products are widely used in various fields, such as construction site,supermarket,hotel,server room,hospital,animal husbandry,fishery,camping

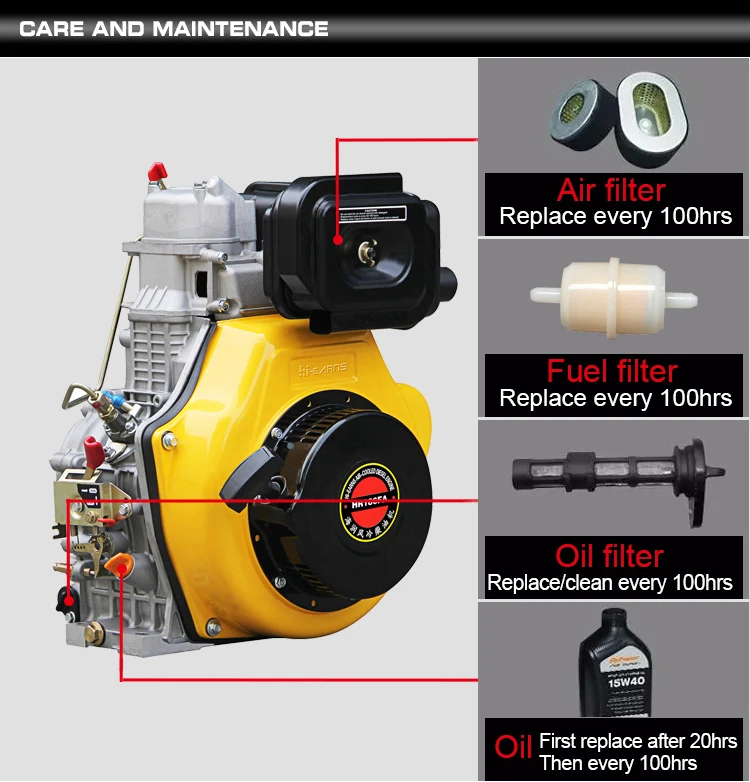

Care & Maintenance
♦ Diesel engines need regular maintenance in order to maintain the best performance
About Us
Exhibition
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.

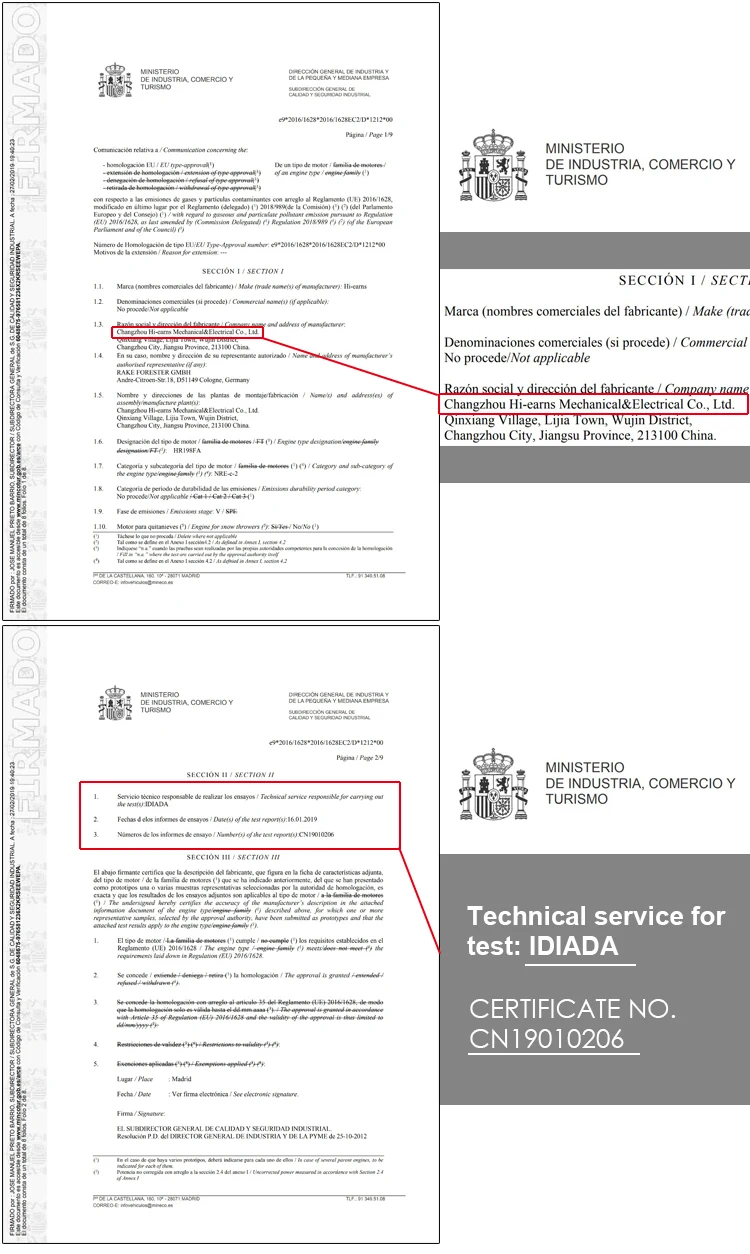

♦ ISO, CE Certificates. We have been making good progress.
