Corona Discharge Ozone Generator Dielectric Tube For Water Air Application

Advantage:

1. High performance and compact size
2. Very stable performance
3. Very easy installation with very reasonable design
4. Fan cooIing mode with a big cooling fins area
5. Quartz tube can be easily cleaned, should it become contaminated.
6. High ozone concentration with dry air source
7.100% check ozone concentration
8.100% burn-in test
9.100% 316 S.S and ozone compatible material
10.Suitable for water/air/medical treatment
11.500mg/h-700mg/h ozone output available

Function:

1. Ozone output: 700mg/h with dry air, 500mg/h with normal air
2. Ozone generator: Quartz Tube and 316 SS electrode (Titanium electrode optional)
3. High ozone concentration: > 5.0 mg/L at 1.0 L/min gas flow
4. Weight: only 0.7 Kg
5. Technology: German corona discharge
6. Low power consumption: 15W
7.Voltage: 110V or 220V AC
8.High voltage: 4.12Kv
9.High frequency: 24KHz

10. Life span: >10,000 hours non stop working

                  Air Purification

              Medical Therapy

            Water Treatment

Generator :

Made in accurate quartz tube and 316 S.S electrode (Titanium electrode optional) , a proper cooling fins area would help to make the product with a long lifespan.

Electronic:

Use latest German technology to keep the high frequency stable which would make the whole unit performs well. A potted design to prevent high humidity from the environment around.

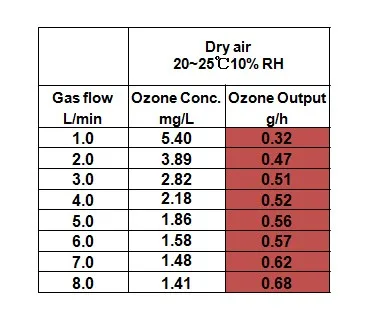

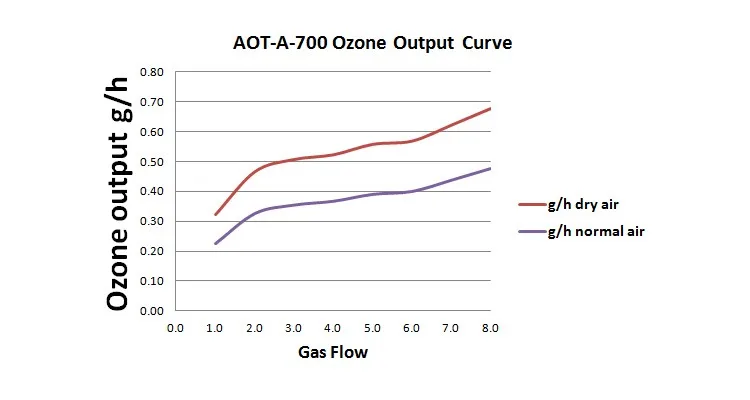

                         Dry Air Test Data

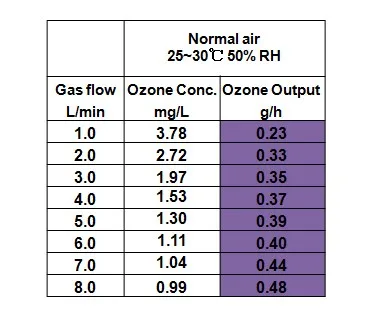

                       Normal Air Test Data

Glass&Electrode Tube:

Competitive price
Durable quality
Accurate air gap
Stable ozone output
More than 10,000 hours life
German technology

Ceramic Tube:

Cheap price
Short life
Low quality
Not safe
Low tech
Waste money

Ceramic Plate:

Cheap Price
Low concentration
Short life
Low quality
Can not use for water treatment
Low tech

Q. Which certification do you have for the products ?
A.CE EMC LVD UL, let us know if need extra certificate.

Q. Whether the order can be OEM ?
A. Of course , but MOQ is needed, contact us if you want to know more the OEM service.

Q. What kind of ozone product do your company supply ?
A. We have various models for your choice : ozone module, portable ozone generator, commercial ozone generator, ozone water purifier, medical ozone generator , etc.

Q. What's the normal payment terms ?
A. 100% pay before ship .

Q. How is your payment terms?
A. T / T, credit card, western union, paypal, etc;

Q: What shipping method I can choose?
A:We can ship by Sea and air cargo for bulk order ;
B: DHL, FEDEX, UPS, TNT, ARAMEX,EMS and some other special line express with competitive price are optional, it takes 5-10 days to get the parcel based on your area.

Q: When will you ship after I pay?
A:Normally we can ship within 5 days for sample order, 5-10 days for small order, please confirm the actual delivery time with our sales according to your quantity .

Q. What's your after sales service?
A:We offer one year warranty and also provide technical support even exceed the warranty period.
