PET bottle washing recycling machine plastic recycling
- Category: >>>
- Supplier: Zhangjiagang Lonham Machinery Co. Ltd.
Share on (62033942878):
Product Overview
Description
Product Application
1. PET bottle recycling washing line is mainly used for crushing, washing plastic bottles, plastic barrels, coca cola bottles, mineral water bottles etc PET flakes.
2. The whole production line reasonably structured, high degree automation, low electric energy consumption, high capacity, good clean effect, long using life.
3. Final PET flakes can be used for chemical fiber factory after this line, and used for producing PET strap, no need to do any treatment.
4. Output is 300-3000kg/hr
5. Size of final product can be adjusted according to change crusher screen mesh.
Complete recycling process
Specicication of Main Model
Capacity (kg/hr) | Power Installed (kw) | Required Area (m2) | Manpower | Steam Volume (kg/h) | Compressed Air (m3/h) | Water Supply (m3/min) |
1000 | 245 | 600 | 5 | 500 | 10 | 2 |
2000 | 394 | 750 | 6 | 800 | 15 | 3 |
3000 | 580 | 900 | 7 | 1000 | 15 | 4 |
Detailed Images

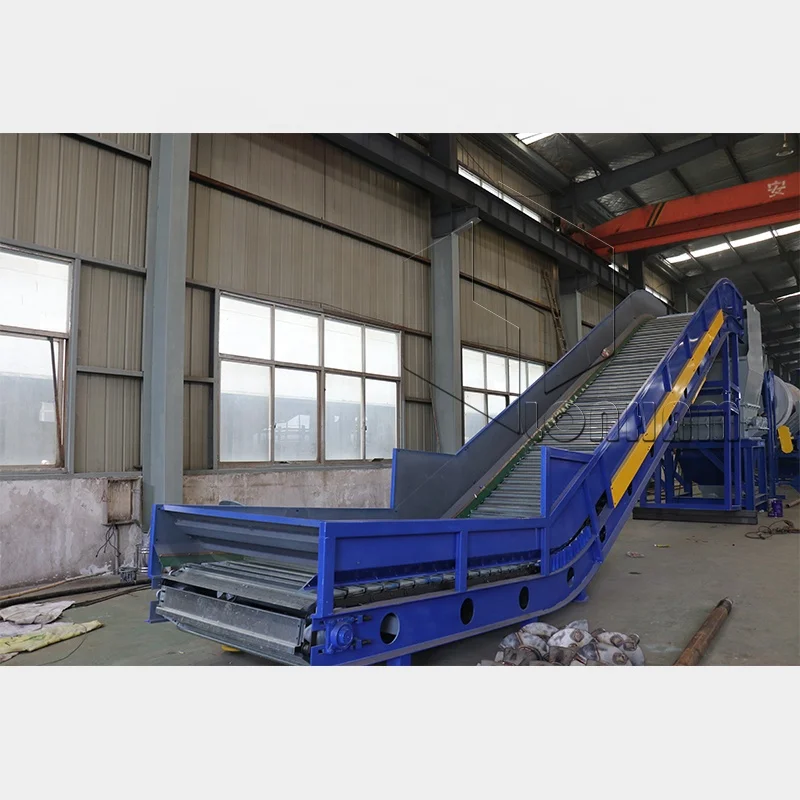

Name: Debale
Material: Carbon steel
Function: Break the compressed bottle bales into loose bottles, easy for the following recycling process
Name: Bottle label removing
Material: Carbon steel
Function: Remove the bottles labels and part of caps, pre-washing bottles

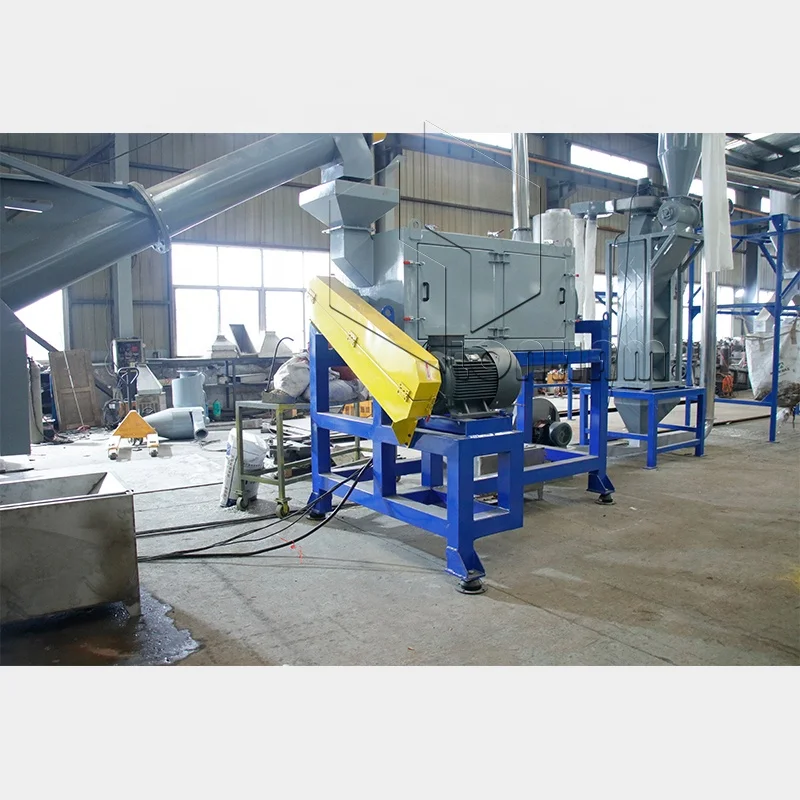

Name: Crusher
Material: Carbon steel
Function: Cut material into flakes, easy for washing and drying.

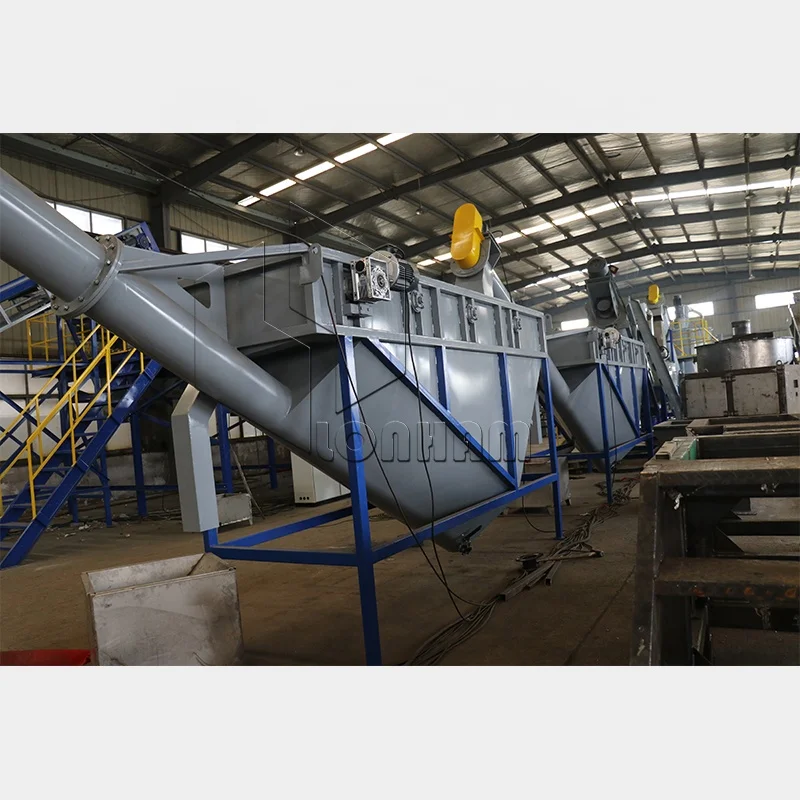

Name: Friction washerz+ Floating Tank
Material: stainless steel
Function: Clean PET flakes by cold water.
Name: Hot washer Tank
Material: Stainless steel
Function: Clean PET flakes by hot water and NaOH.

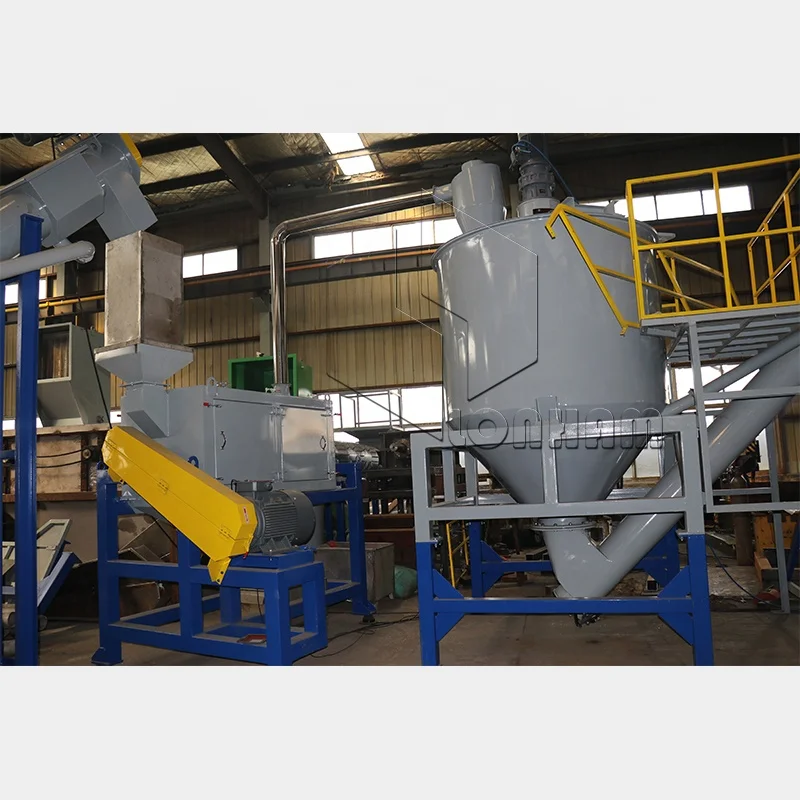

Name:Dewatering machine
Material: Stainless steel
Function: Remove water from PET flakes by centifuge dewatering principle

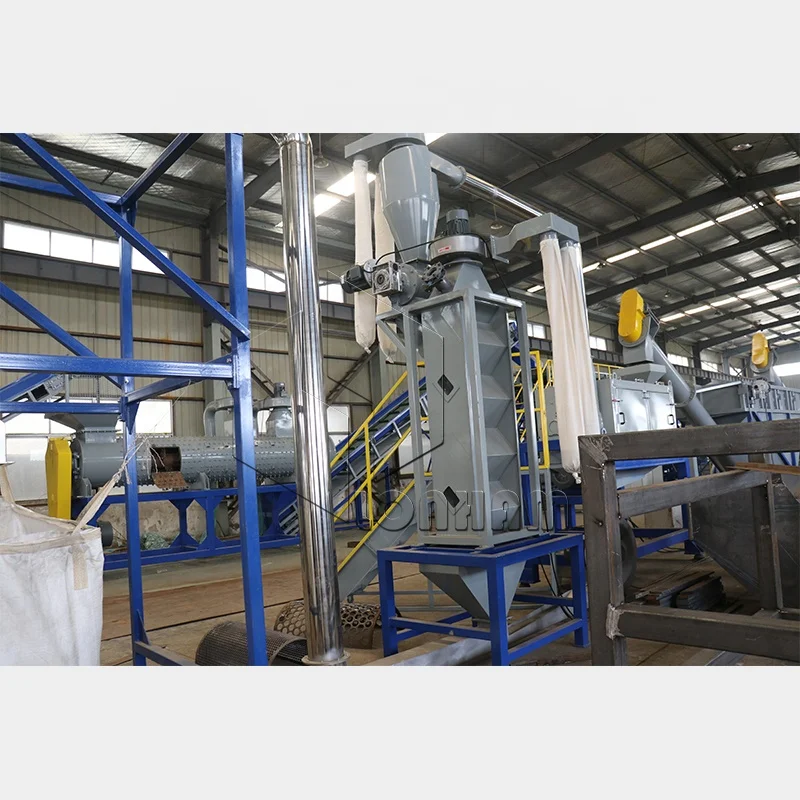

Name:Dyring system and label separate& Dust remove
Material:Stainless steel
Function: Drying PET flakes by electric heating blowing air and separate left label scraps by blower.
Exhibition&Customers
Our Service
Equipment selection, technical negotiation process:
1. Let you know machines' details technical specification and character.
2. Designing the machines and arrange the water, electric layout according to your requirement.
3. We can provide turnkey project according to your requirement.
Equipment production process:
1. Improve product quality through advanced production management.
2. Let you know production schedule through regular pictures, video, show the real production process to you.
3. Invite you or your third party, to our factory to test, inspection machine before shipment, until you are satisfied.
Equipment operation process:
1. Engineers are available to your factory for installation, commissioning, technical guidance and personnel training.
2. The equipment is completely free of charge for 12 months warranty. Spare parts are supplied with cost prices after 12moths after warranty time.
3. Establish the customer database, all the sold equipment can be checked any time.
4. Visit customers regularly, follow up the usage of each customer's equipment.
5. Increase service stations gradually, effectively improve service and spare parts supply speed.
