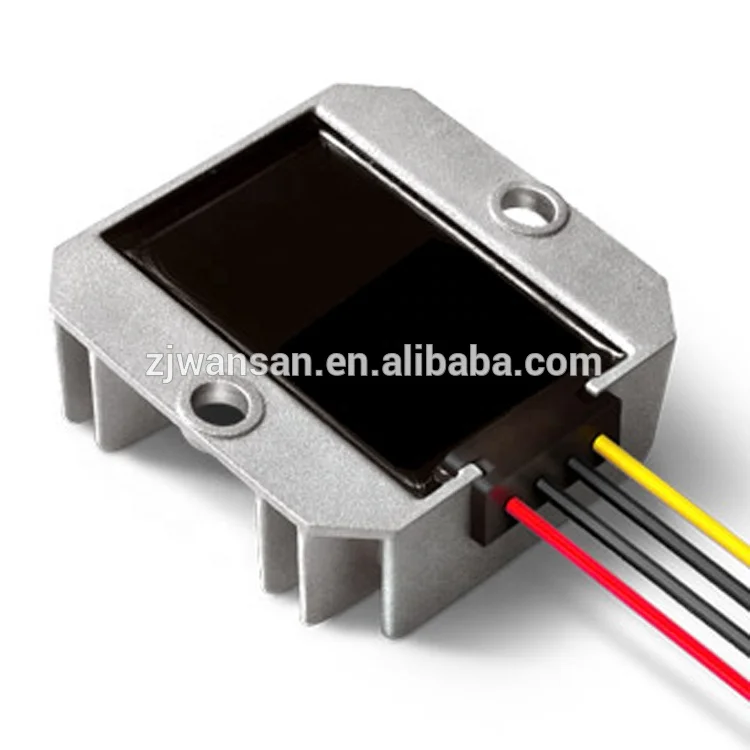

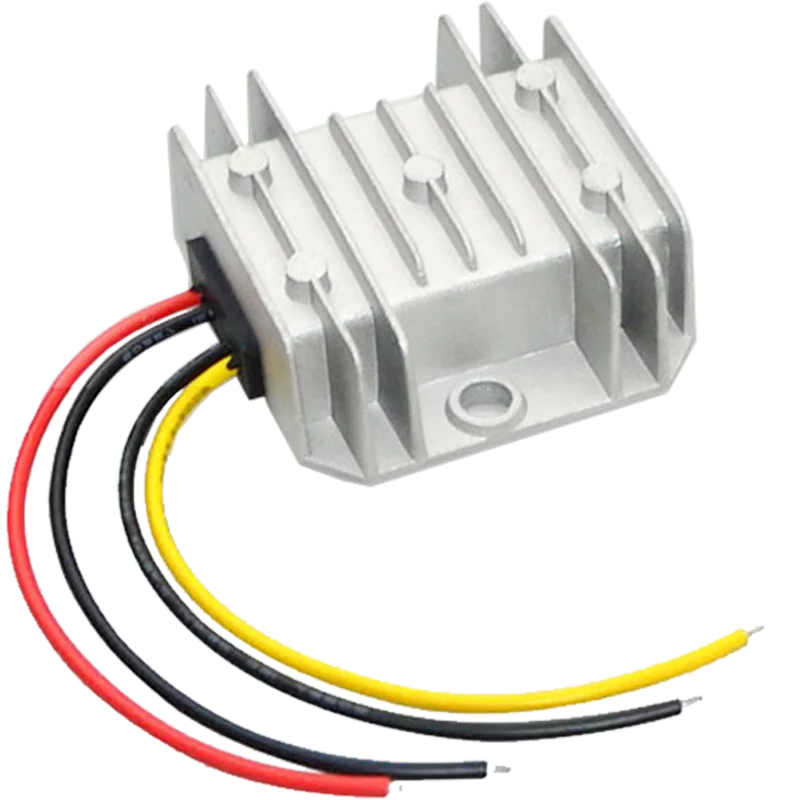

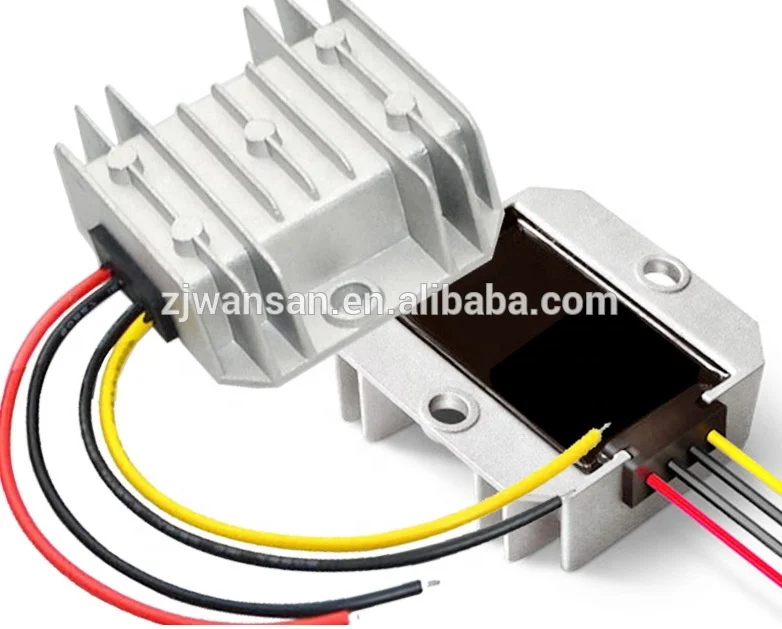

Wholesale waterproof DC24V to DC13.8V 5A Power Converter 69W BUCK Converter DC DC converter WS 24T13R805 for Led motor

Product Overview

Description



Step-down DC-DC Converters 24V to 13.8V Series





DC 24V to DC 13.8V 5A Power Converters 69W



Features



1. 100% full power & stable current output

2. 100% Imported components

3. Wide input voltage from 18-36Vdc

4. 100% waterproof & anti-shock protection, Ultra compact size, light weight

5. Industry grade DC24V to DC13.8V step-down converter, efficiency up to 94%

6. Waterproof level: IP68

7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection

8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and short-circuit, Auto-recovery when device is back to normal operating.

9. Non-Isolated Module

10.1-year warranty, lifetime up to 100,000 hours.

Specifications:

Model	WS-24T13R805
Input rated voltage	24V DC
Input voltage range	18-36V DC
Efficiency	95% (half load) ; 94% (full load)
Output voltage	13.8V DC
Output current	5 Amps
Output rated power	69 Watts
Output peak power	125%
Voltage regulation	< 1%
Load regulation	< 2%
Ripple (full load test)	< 50mV
No-load current	< 20mA
Working Temperature	-40°c ~ +80°c
Waterproof rating	IP 68
Protections	Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage
Machine size	57*64*22mm
Package size	89*72*30mm
N. Weight	125g
W. Weight	135g
Cooling way	Free air convection
Other	White box packing

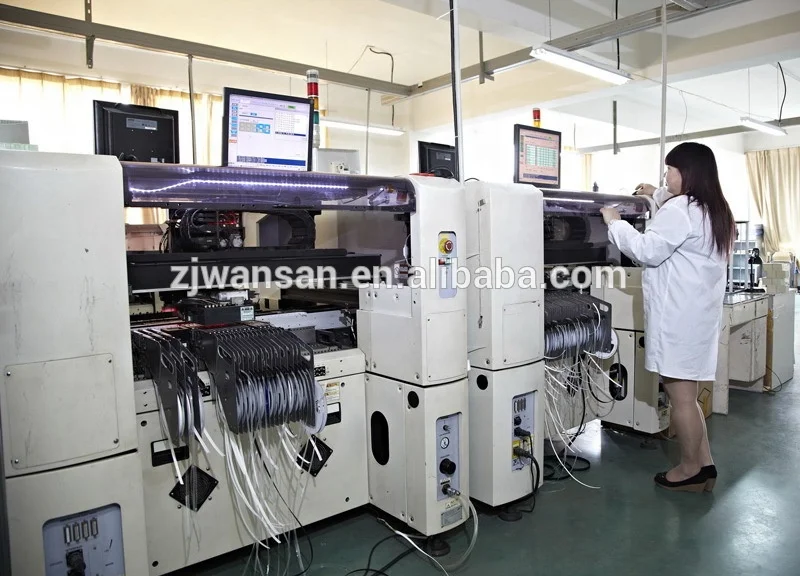

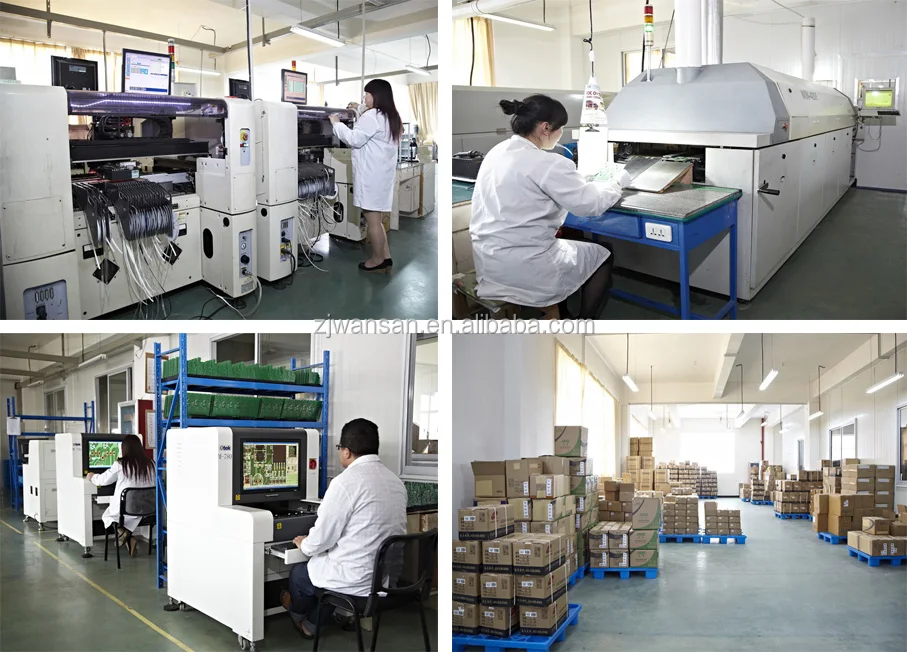

COMPANY INFORMATION



FAQ:

1. Are you a manufacturer?

100% yes, if you have a chance, you can visit our factory anytime.

2. Do you have any MOQ limit?

One piece is possible, you can buy one sample for testing first.

3. What about the lead-time?

Normally 1-2 working days after receive the payment.

4. How to pay for the sample fee?

Please send the payment to our PayPal account or from alibaba directly.

5. How do you ship the goods?

We often ship by DHL, UPS, FedEx or TNT, it usually takes 3-5 days to arrive.

6. Do you offer guarantee for the products?

Yes, we offer 1-year warranty for all DC DC converters.

7. I cannot find the suitable model, can I ask for a special model I need?

Sure. We are professional DC DC converter designer and manufacturer in China, please advising the detail specification you need, we will make it according to your request.
