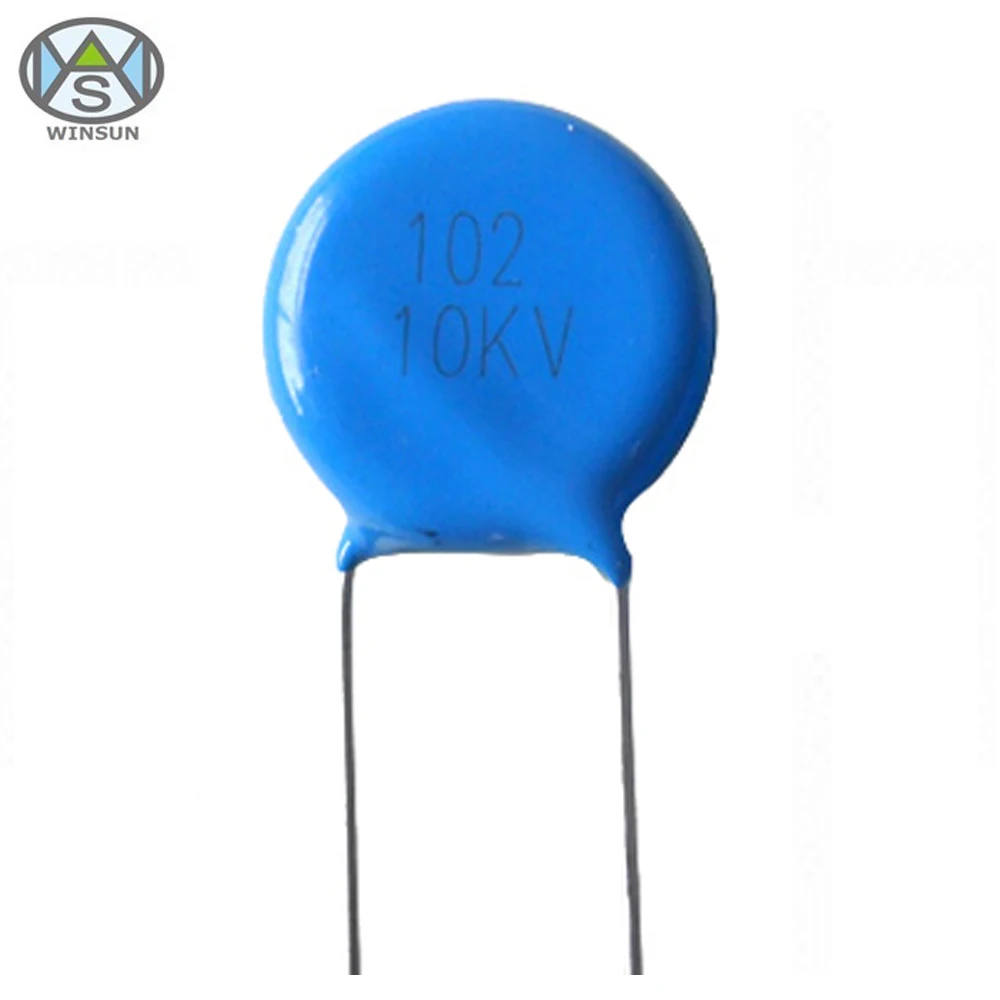

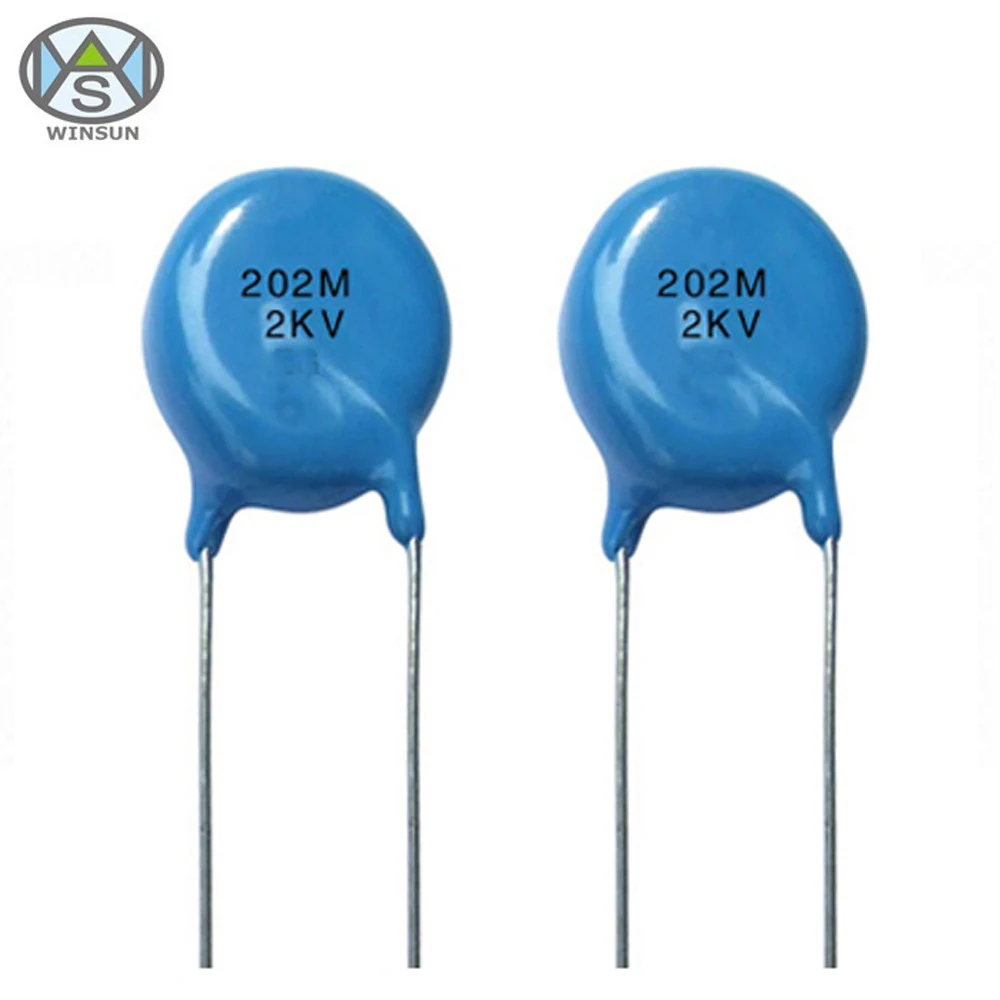

Best Price Blue High Voltage DIP Ceramic Disc Capacitor

Product Overview

Description



Made In China & Low Price Blue High Voltage DIP Ceramic Disc Capacitor





Features:

Linear temperature coefficient of capacitance. High stability of capacitance.
Low loss at wide range of frequency.
Class
Non linear temperature coefficient of capacitance. Large capacitance in small sizes.
Class
Linear temperature coefficient of capacitance. Low loss at wide range of frequency.
Stable capacitance change over the specified temperature.Ultra large capacitance in small sizes.



Rated Voltage:
100VDC, 250VDC, 500VDC, 1KVDC, 2KVDC



Capacitance:

 1pF~ 0.22 uF

Capacitance precision:
 ±0.25Pf, ±0. 5pF, ±5%, ±10%, ±20%, ±80%-20%



Dimension:
5.5mm 6.5mm 7.5mm 8.5mm 9.5mm 10.5mm 11.5mm 12.5mm 14.5mm 16.5mm 18.5mm 20.5mm



Operating Temperature Range:

-25+85C

Dissipation Factor(tan): At 1±0.1KHz,1±0.2Vrms 25±2
Y5P,Z5U:tanδ≤2.5%
Z5v:tanδ≤5.0%
Test voltage:
Rated working voltage  50VDC,500VDC:2 times of the rated voltage(50mA and under)for 1 to 5 seconds
Rated working voltage 1K VDC,2K VDC:2 times of the rated voltage(50mA and under)for 1 to 5 seconds  35K VDC(150%) 615K VDC150%
